110ton Pneumatic Press Punching Machine JIS 1 Metal Stamping Machine

110ton Press Punching Machine

110ton Pneumatic Punching Press

JIS 1 Metal Stamping Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Document:

STC-110V C frame open doub...nk.pdf

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

180mm

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

1745*2000*3059

Motor Power (kw):

Model Number:

STC-110V

Weight (t):

14.2

Key Selling Points:

Automatic

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, Engine, Other

Machine Name:

110ton Pneumatic Press Machine

Punching Capacity:

110ton For Pneumatic Press Machine

Slider Strokes Per Minute:

35-65 SPM For Machine Press

Punch Weight:

14.2 Tons For Punch Press

Long Slider Length:

180 Mm For Stamping Machine

Maximum Mode Height:

400 Mm For Hole Punching Machine

Material:

42CrMo Used For Crankshaft, ZQSn10-1 Used For Copper Sets

Color:

Customer Request

After Warranty Service:

Video Technical Support, Online Support, Spare Parts

Slider Guide Position Stucture::

2 Corner 6 Guide Structure

Highlight:

110ton Press Punching Machine

110ton Pneumatic Punching Press

JIS 1 Metal Stamping Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$50,000/cases 1-8 cases

Payment Terms

T/T

Supply Ability

1set 30days

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now

video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Pneumatic Punching Press Machine for Metal Electrical Switch Junction Box Making High Efficiency Metal Stamping Machine

Product Overview

3*3inch 47mm Deep Switch Box Junction Box Electrical Metal Box

Automatic Electric Metal Junction Electrical Switch Box Making Machine Metal Press Punching Machine

Product Application

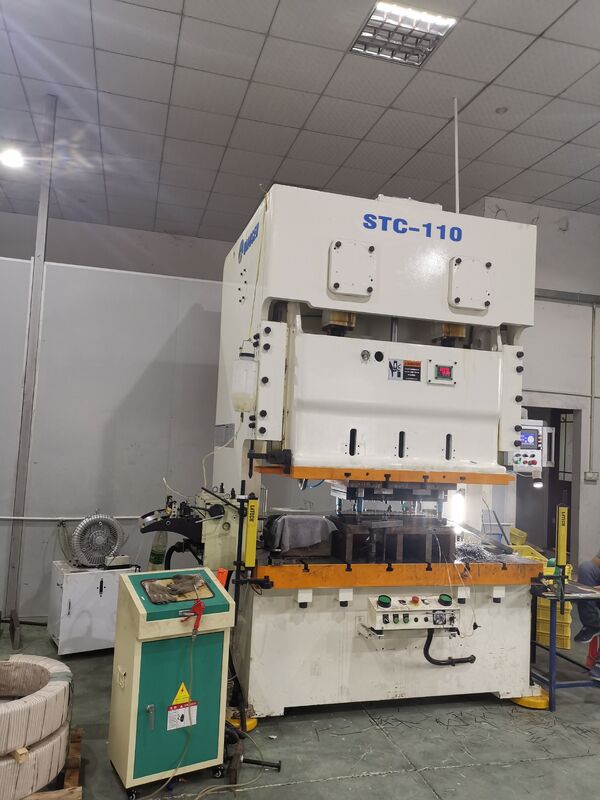

This punching press machine is used for stamping sheet metal parts. It can be cooperated with automatic feeding machine and stamping molds to form the automatic production line. It is suitable for blanking, trimming, punching hole, forming, bending, shallow stretching and other cold stamping process. The machine is used for different kinds of materials, including metal, copper, aluminum, brass, alloy, steel, iron etc.

Key Features

JIS1 Precision: The high-strength fuselage structure has small deformation and JIS 1 class precision inspection standard.
Easy Operation and Easy Maintenance: The body of C-type punching machine is open on 3-sides, easy to operate, easy to install molds, feeders, and automatic mold changing devices to realize automatic production. OMPI pneumatic dry clutch are used, which is very easy maintenance.
Energy Efficient: Energy and cost saving, can improve the material use rate to 105%-108%, Save 25%-35% of energy, which means can save 4004 kw.h per year for one machine.
Manual/Semi-Automation/Full Automation: Considering different product processes, manual mode, semi-automatic mode and fully automatic mode are all optional. Full automation can upload all mold information to one machine in one time, then copy to other machines using system.
Safety: Equipped with photo-electric device on the down platform side, machine will stop when block the grating. Also have oil pressure overload device, machine will stop when weight overload. Two emergency buttons on the machine provide fast response when issues occur.
Stable: Stable using, slider adopt high frequency quenching and rail grinding process, which have small wear, high precision and improve mold life.

Product Specifications

NO	Item	Unit	STC-110V	STC-110H
1	Punching capacity	ton	110
2	Ability occurrence point	mm	5	3
3	Slider strokes per minute	SPM	35-65	50-100
4	Long slider length	mm	180	110
5	Maximum mode height	mm	400	435
6	Slider adjustment amount	mm	100
7	Up platform area	mm	140050070
8	Down platform area	mm	1800650130
9	Slider center to machine distance	mm	-
10	Platform to floor distance	mm	830
11	Shank hole	mm	-
12	Main motor power	kw*p	11*4
13	Air pressure	kg/cm²	5
14	Punch accuracy grade		JIS 1
15	Punch dimension(LWH)	mm	174520003059
16	Punch weight	ton	14.2
17	Die cushion capacity(optional)	ton	-
18	Stroke(optional)	mm	-
19	Active area(optional)	mm	-

Related Products

Company Profile

Dongguan Qiaosen Machinery Co., Ltd which have our own factory located in Jiangsu province, established in 2016, Closed to Shanghai city and transportation is very convenient. Our factory took the lead in passed authentication of the ISO9001:2008 quality management system. A factory specialized in the production of hydraulic press machine. Mainly products 10 tons to 2000 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation, space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, southeast Asia, the Middle East and other countries.

Warranty And Service

One year warranty for whole press machine
All spare parts are available as most of the parts produced by our factory
Easy to get electric parts as all are international famous brands
Technical training and consulting via email, phone or video
Engineers available for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity sent with press

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, start from 2016 sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.

Why select us?

We are capable with the powerful R & D ability manufacturer and we promise customers will never regret if they choose our brand; the worldwide service and sales net for supporting worldwide customers.

What can you buy from us?

Stamping press, Feeder, Straightening machine, Uncoiler, and Molds.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can the touch screen board language change to others?

Yes, we can do it according to your requirement like Spanish, French etc.
