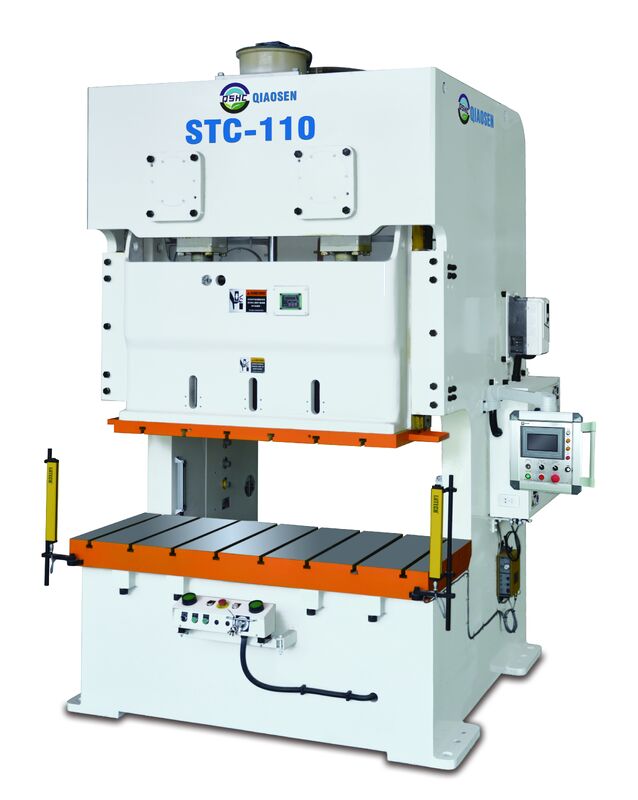

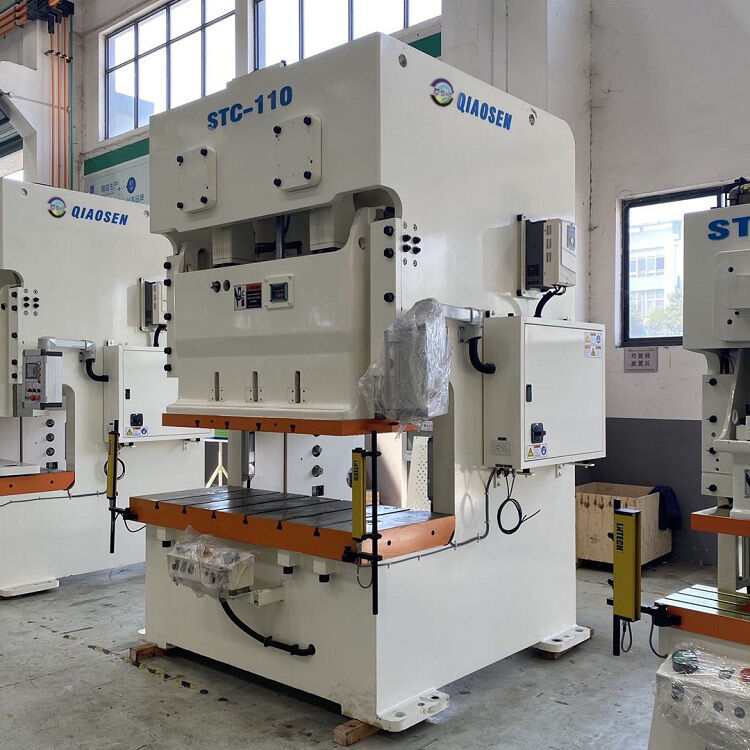

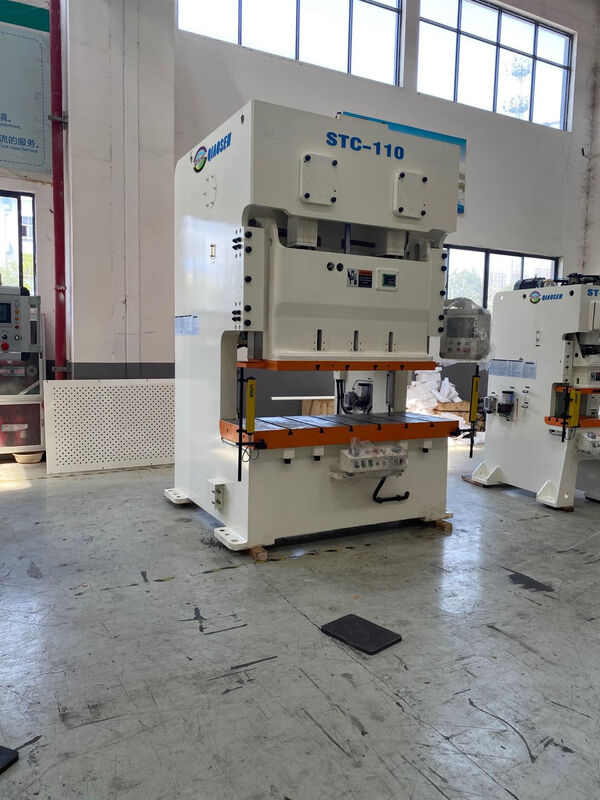

STC-110V 110-ton High-Precision Punch Press Metal Stamping Machine
Designed for electronics hardware, auto parts, and mass production applications.
Machine Overview
This high-precision servo punch press with 110-ton pressure is designed to press thin metal sheets into various metal parts stably and efficiently. Suitable for mass production, it performs stamping, forming, and blanking operations, replacing traditional manual or low-efficiency equipment.
Key Advantages
- High Accuracy: Meets JIS Class 1 precision standard for consistent part dimensions and extended mold life
- Easy Operation: 15.6-inch touch screen for direct setting of stamping speed and stroke parameters
- Energy Efficient: Saves over 50% energy compared to traditional punch presses
- Stable & Durable: High-strength steel frame with premium alloy components for reduced maintenance
- Low Noise: Precision grinding design minimizes vibration and noise for improved workshop environment
Industry Applications
- Electronic accessories: terminals, small shrapnel, precision electronic parts
- Hardware products: gaskets, buckles, small hardware parts
- Home appliances: metal casings, small brackets for air conditioners and refrigerators
- Auto parts: sensors, interior metal parts, sheet metal components
Ideal for all industries requiring mass stamping of metal parts.
Qiaosen Punch Press STC-110V is a 110-ton high-precision, energy-saving, and easy-to-operate servo punch press, specially designed for efficient mass production of various metal parts.
Product Applications

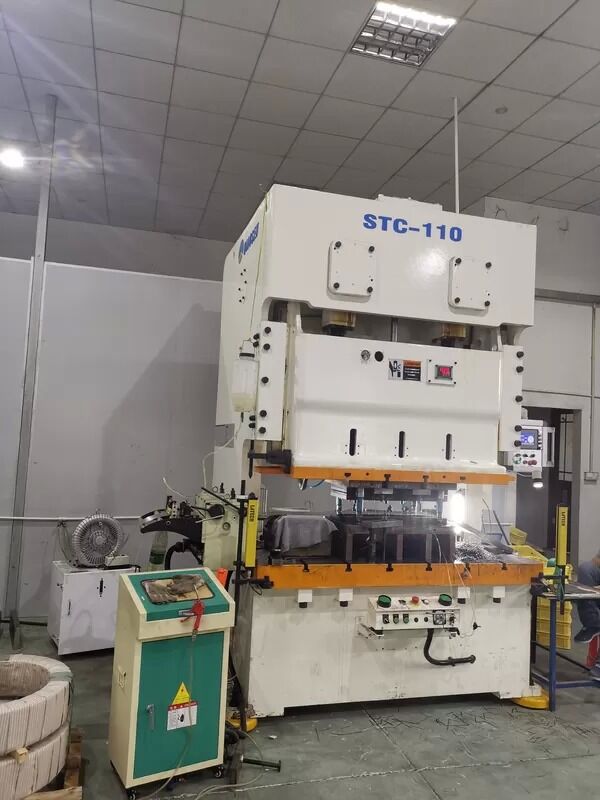

This punching press machine is used for stamping sheet metal parts. It can be integrated with automatic feeding machines and stamping molds to form complete automatic production lines. Suitable for blanking, trimming, punching, forming, bending, shallow stretching, and other cold stamping processes. Compatible with various materials including metal, copper, aluminum, brass, alloy, steel, and iron.
Technical Features
- JIS1 Precision: High-strength fuselage structure with minimal deformation and JIS Class 1 precision standards
- Easy Operation & Maintenance: C-type open design on three sides for easy mold installation and maintenance with OMPI pneumatic dry clutch
- Energy Efficient: Improves material use rate to 105%-108% and saves 25%-35% energy (approximately 4004 kWh annually per machine)
- Operation Modes: Manual, semi-automatic, and fully automatic modes available with mold information transfer capability
- Safety Features: Photo-electric safety device, oil pressure overload protection, and emergency stop buttons
- Stable Performance: High-frequency quenching and rail grinding process for minimal wear, high precision, and extended mold life
Product Specifications
| NO |
Item |
Unit |
STC-110V |
STC-110H |
| 1 |
Punching capacity |
ton |
110 |
|
| 2 |
Ability occurrence point |
mm |
5 |
3 |
| 3 |
Slider strokes per minute |
SPM |
35-65 |
50-100 |
| 4 |
Long slider length |
mm |
180 |
110 |
| 5 |
Maximum mode height |
mm |
400 |
435 |
| 6 |
Slider adjustment amount |
mm |
100 |
|
| 7 |
Up platform area |
mm |
1400*500*70 |
|
| 8 |
Down platform area |
mm |
1800*650*130 |
|
| 9 |
Slider center to machine distance |
mm |
- |
|
| 10 |
Platform to floor distance |
mm |
830 |
|
| 11 |
Shank hole |
mm |
- |
|
| 12 |
Main motor power |
kw*p |
11*4 |
|
| 13 |
Air pressure |
kg/cm² |
5 |
|
| 14 |
Punch accuracy grade |
|
JIS 1 |
|
| 15 |
Punch dimension(L*W*H) |
mm |
1745*2000*3059 |
|
| 16 |
Punch weight |
ton |
14.2 |
|
| 17 |
Die cushion capacity(optional) |
ton |
- |
|
| 18 |
Stroke(optional) |
mm |
- |
|
| 19 |
Active area(optional) |
mm |
- |
|
Company Profile
Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production. Product range includes 10-ton to 2000-ton press machines across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Applications span aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware. Products are recognized for excellent design, competitive pricing, superior quality, and efficient after-sales service, serving domestic markets across 20+ provinces and international markets including United States, Japan, Russia, European Union, Southeast Asia, and Middle East.
Certifications
Frequently Asked Questions
Are you the manufacturer? Can we visit your factory?
We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.
What are your main products and main foreign markets?
Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.
What are the advantages of your machines and how can I trust the quality?
Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.
Will you update production process information after placing an order?
After order confirmation, we provide regular updates on production details via email and photos.
Can we be your agent?
Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.
What are your payment terms?
We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.
How long is your warranty?
We offer 12 months free warranty with lifelong maintenance support.
Do you accept customer logos and customization?
Yes, we accept various customizations including logos and machine modifications according to customer requirements.
