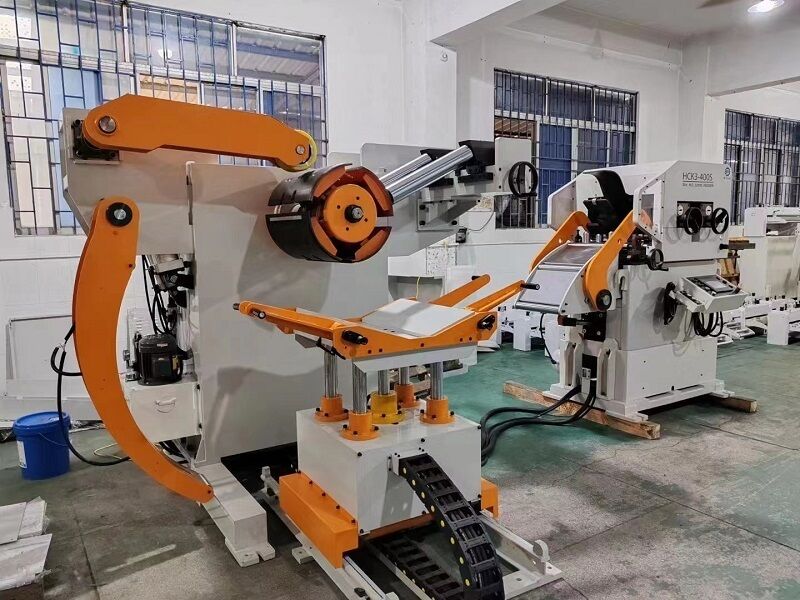

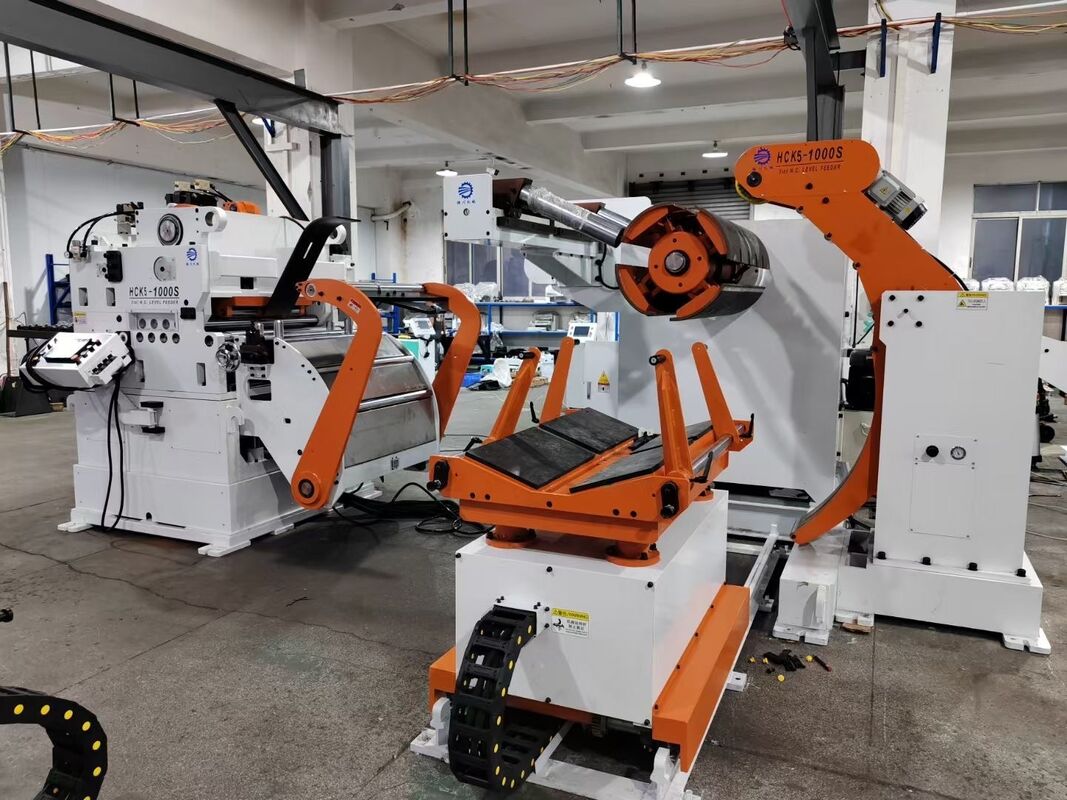

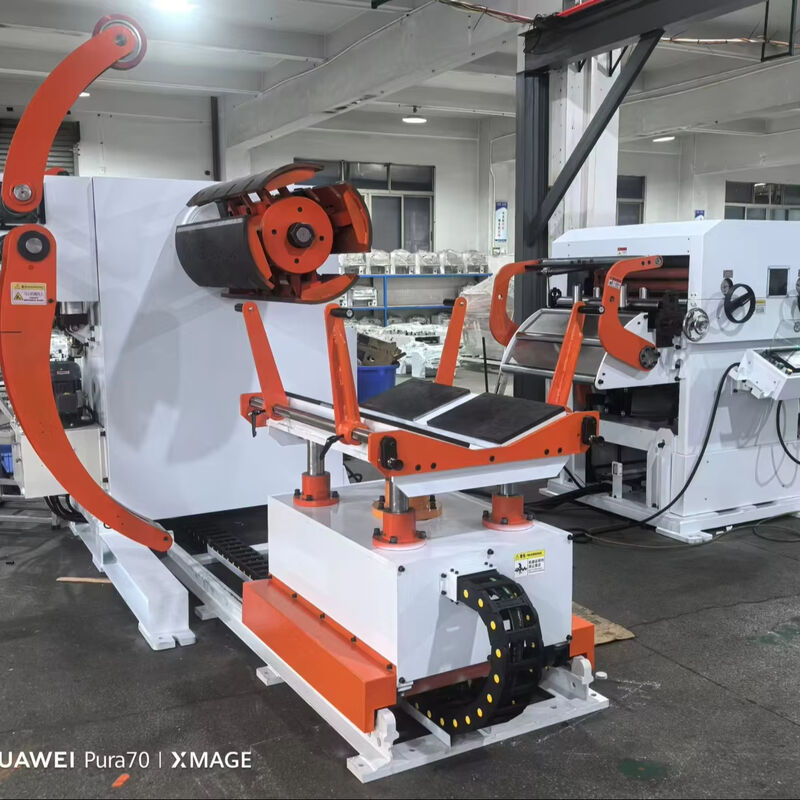

Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet

Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet

Servo Metal Straightening Machine

3 in 1 Metal Straightening Machine

15M/min Sheet Metal Straightener

Place of Origin:

China

Brand Name:

QIAOSEN

Model Number:

HCK2-600

Chat Now
Request A Quote
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Product Details
Width Of Material(mm):
70-600
Thickness Of Material(mm):
0.6-6.0
Max.Coil Weight(kg):
5000
Coil.D.(mm):
508
Coil O.D.(mm):
1400
Max.Line Speed(m/min):
16~24
Feed Accuracy(mm):
±0.15
Work Roll:
Upper4/Lower3
Number Of Feed Rols:
1
Back Pressure Roll:
Provided
Feed Level(mm):
1200±100
Power Supply:
220VAC 50Hz/AC380V 50HZ
Air Supply(kg/cm2):
5kg/cm2
Uncoil Expansion:
Hydraulic
达Main Motor(kw):
AC7.5
Uncoil Motor(kw):
2.2
Highlight:

Servo Metal Straightening Machine

,

3 in 1 Metal Straightening Machine

,

15M/min Sheet Metal Straightener

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$34520\SET
Delivery Time
7-10
Payment Terms
T/T
Supply Ability
30 Sets/Month
RELATED PRODUCTS
Good price 200 Ton Pneumatic Power Press Punching Machine for Auto Parts Stamping online

200 Ton Pneumatic Power Press Punching Machine for Auto Parts Stamping

Chat Now
Good price STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton online

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now
Good price Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet online

Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet

Chat Now
Good price ST-80 80Ton C Frame Single Point Crank Pneumatic Precision Power Press for Hardware Auto Parts Stamping online video

ST-80 80Ton C Frame Single Point Crank Pneumatic Precision Power Press for Hardware Auto Parts Stamping

Chat Now
CONTACT US
86-0769-26628519
titi@qiaosenmachinery.com
86-0769-26626853
Chat Now
Product Description

Product Description
Automatic 3-in-1 Servo Uncoiler Sheet Metal Straightener & Roll Feeder Machine
This industrial-grade 3-in-1 machine combines uncoiling, straightening, and feeding functions for stamping production lines, delivering precision and efficiency in sheet metal processing.
Product Specifications
Place of Origin Guangdong, China
Type Feeder Machine
Application Sheet Metal Processing
Core Components PLC, Bearing, Motor, Pump
Brand Name Qiaosen
Voltage 380V (Customizable)
Power 2HP
Dimensions (L×W×H) 5150×2258×3398mm
Weight 2000kg
Feeding Speed 15 M/min
Material Width Range 70-800mm
Material Thickness Range 0.6-6.0mm
Max Correction Speed 22/min
Main Motor Power AC22kw
Max Material Weight 7000kg
Coil Inside Diameter 508mm
Coil Outside Diameter 1400mm
Warranty 1 Year
Key Features
  • Easy to operate with intuitive controls
  • Comprehensive 3-in-1 functionality: uncoiling, straightening, and feeding
  • High precision servo gear system
  • Suitable for industrial stamping production lines
  • Robust construction for heavy-duty applications
  • Video outgoing inspection provided
  • Machinery test report included

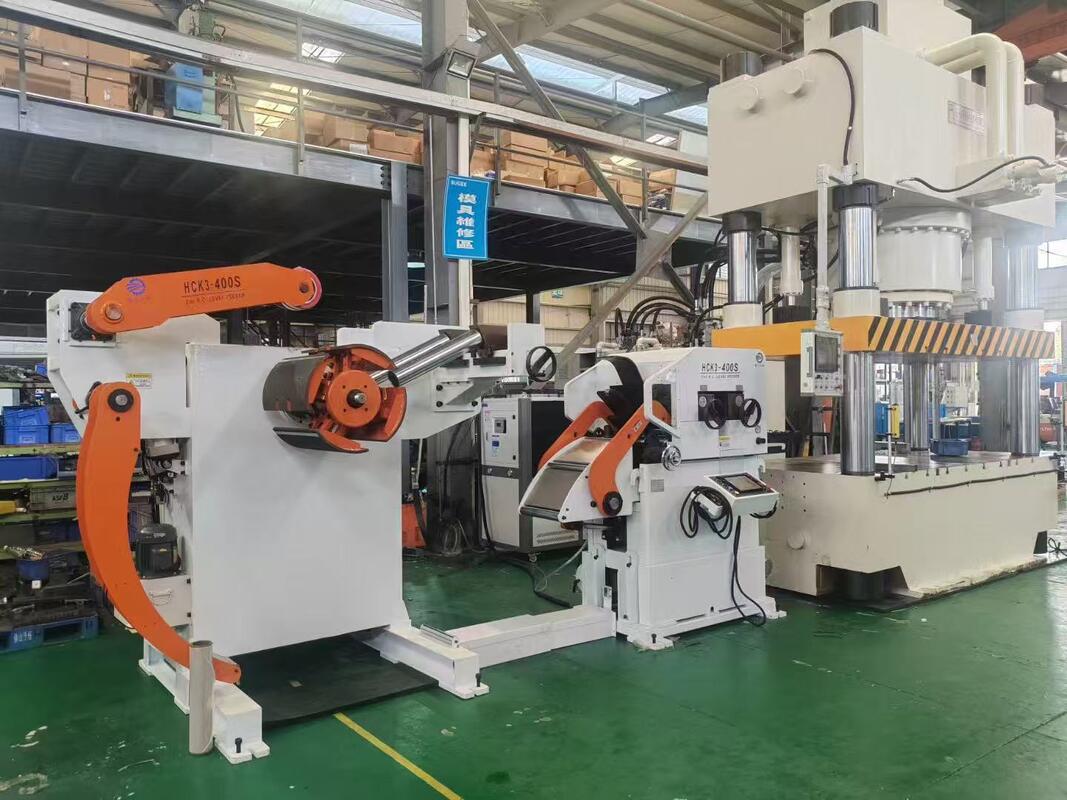

Automatic 3-in-1 Uncoiler Straightening and Roll Feeder Machine for industrial stamping production
About Qiaosen Machinery
Dongguan Qiaosen Machinery Co., Ltd., established in 2016, operates from its factory in Jiangsu province near Shanghai. The company holds ISO9001:2008 quality management system certification and specializes in pneumatic press machines ranging from 25 to 1600 tons across 8 series with over 100 types. Products include single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines serving aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries. Known for excellent design, competitive pricing, superior quality, and efficient after-sales service, Qiaosen products are distributed across 20+ domestic provinces and exported globally.
Product Configuration
STC-110H Power Press Machine configuration and components diagram showing detailed mechanical layout
Warranty & Service
  • One year warranty for complete press machine
  • Comprehensive spare parts availability
  • International brand electrical components
  • Technical training and consulting via email, phone, or video
  • On-site engineer service available
  • English operation and maintenance manual included
  • Certificate of conformity provided
Frequently Asked Questions
Are you manufacturer?
Yes, we are manufacturer for more than ten years.
What kind of payment term you can do?
We are flexible about payment terms, please contact us for details.
What info you need before you make the proposal for a roll forming machine?
The profile drawings, material informations, your special requirements.
What I should do if I just start to know roll forming machinery?
Contact us immediately, we provide free consultant pre-sales service.
