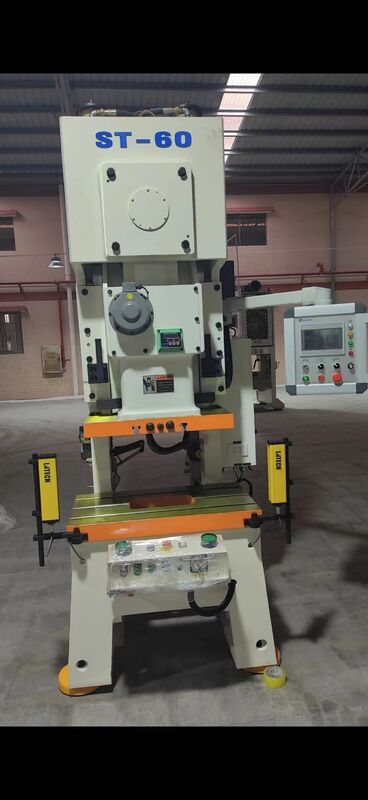

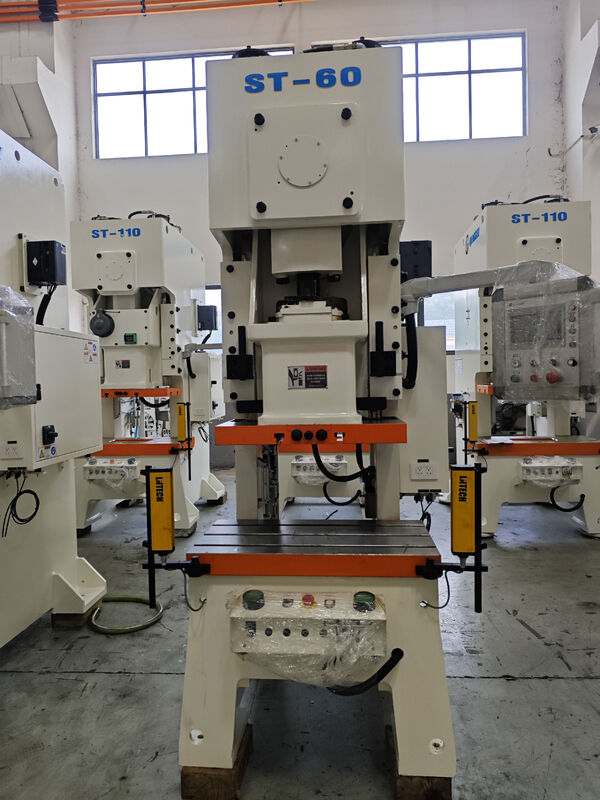

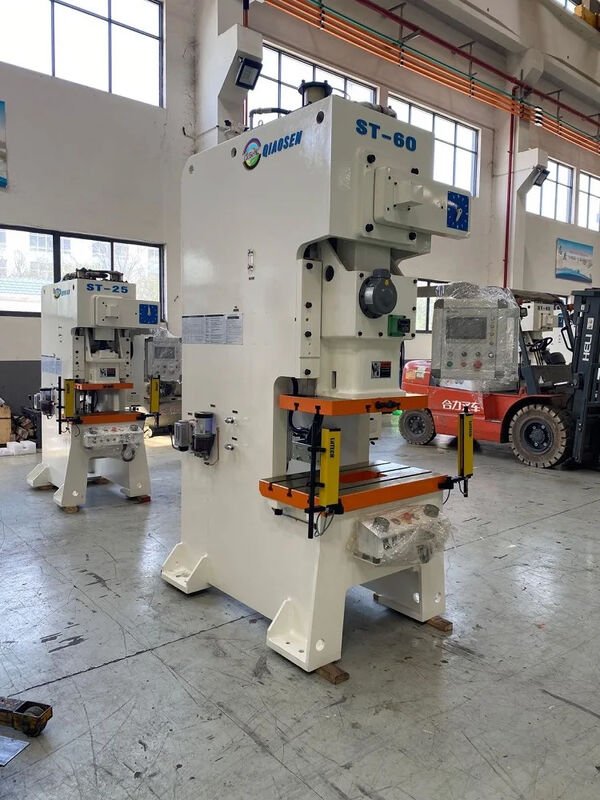

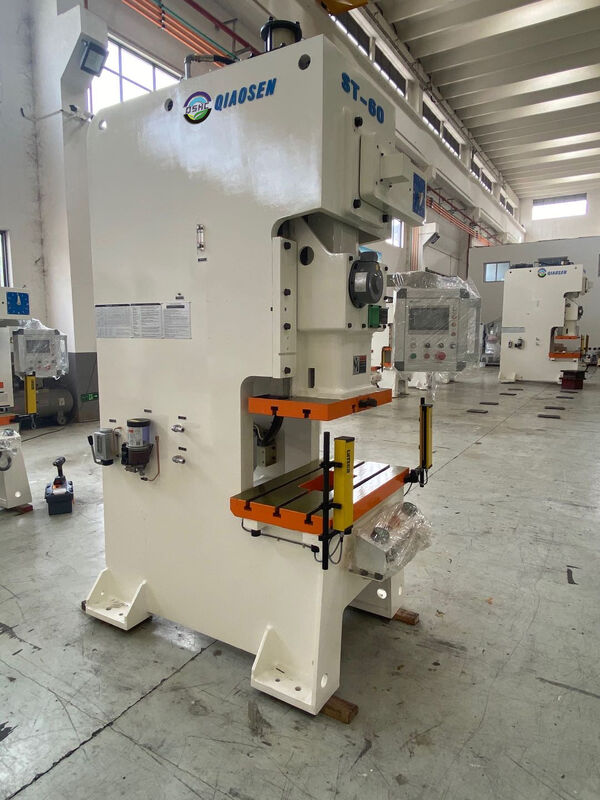

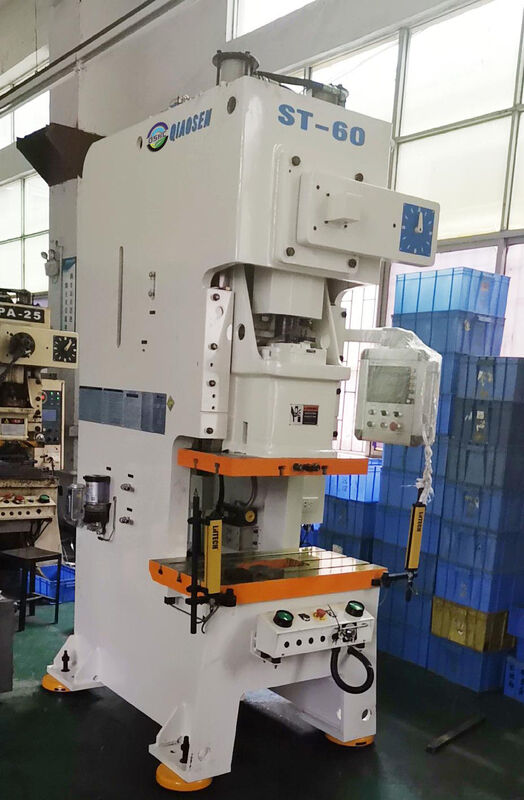

ST-60V High Accuracy Pneumatic Press Machine 60ton For Metal Sheet Stamping

Pneumatic Press Machine 60ton

High Accuracy Pneumatic Press Machine

60t Metal Sheet Stamping Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

120

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

1595*1000*2800mm

Motor Power (kw):

5.5

Model Number:

ST-60V

Weight (t):

5.6

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

60ton

Slider Adjustment Amount:

75mm

Up Platform Area:

700*400*70mm

Down Platform Area:

900*500*80mm

Slider Center To Machine Distance:

255mm

Platform To Floor Distance:

785mm

Main Motor Power:

5.5*4

Air Pressure:

Punch Dimension(L*W*H):

1595*1000*2800mm

Punch Weight:

5.6tons

Highlight:

Pneumatic Press Machine 60ton

High Accuracy Pneumatic Press Machine

60t Metal Sheet Stamping Machine

Payment & Shipping Terms

Price

$14,600/cases 1-2 cases

25ton Metal Sheet Punching Machine 60-140 SPM Slider Strokes 2.1T Punch Weight

Chat Now

ST-35V 35t Thin Sheet Metal Stamping Press for Electronic / Automotive Industries

Chat Now

60ton C Frame Punch Press High Precision for Metal Processing

Chat Now

ST-60V 60 Ton Pneumatic Punching Machine JIS 1 Grade With High Strength Alloy Crankshaft

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

ST-60V High-Accuracy Pneumatic Punching & Power Press Machine for Metal Sheet Stamping

This 60-ton open single point crank punching machine meets Japanese JIS 1 class standards for safety, energy efficiency, stability, automation, and high precision.

Performance Features

High-strength fuselage structure with minimal deformation and high precision
OMPI pneumatic dry clutch brake system
Slider with 2-corner and 6-sided guides
Slider guide features high-frequency quenching and rail grinding process for minimal wear, high precision, and extended service life
Crankshaft made of high-strength alloy 42CrMo (1.3 times stronger than 45 steel)
Copper sleeve made of tin phosphor bronze ZQSn10-1 (1.5 times stronger than ordinary BC6 brass)
Highly sensitive hydraulic overload protection device protects press and die service life
Optional mat (air cushion) available

Technical Specifications

No	Item	Unit	ST-60V
1	Punching capability	ton	60
2	Impact force location	mm	4
3	Slider strokes per minute	SPM	35-90
4	Slider length	mm	120
5	Max die shut height	mm	310
6	Slider adjustment amount	mm	75
7	Up platform area	mm	700×400×70
8	Down platform area	mm	900×500×80
9	Shank hole	mm	Ø50
10	Main motor power	kw×p	5.5×4
11	Air pressure	kg/cm²	6
12	Punch accuracy grade		JIS 1
13	Slider adjustment device		Manual operation
14	Slider center to machine distance	mm	225
15	Platform to floor distance	mm	785
16	Punch weight	ton	5.6
17	Punch dimension (L×W×H)	mm	1595×1000×2800
18	Die cushion capacity	ton	3.6
19	Stroke	mm	70
20	Active area	mm²	350×300

Product Configuration

Similar Products

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, with our own factory located in Jiangsu province, was established in 2016. Our location near Shanghai provides convenient transportation access. We are a hub of creative minds and gifted talents in machinery manufacturing.

Our factory was among the first to pass ISO9001:2008 quality management system certification. We specialize in hydraulic press machine production, offering machines from 10 tons to 2000 tons across 8 series with over 100 types. Our product range includes single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines used in aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries.

Our products are known for exquisite design, competitive pricing, excellent quality, and efficient after-sales service and technical support. We serve customers across more than 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, the Middle East, and other countries.

Packing & Delivery

Warranty and Service

One year warranty for the complete press machine
All spare parts available as most components are produced in our factory
Easy access to electrical parts using international famous brands
Technical training and consulting available via email, phone, or video
Engineer dispatch available for service, installation, or training with reasonable additional cost
English operation and maintenance manual provided with each press
Certificate of conformity included with each machine

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, established in 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our team consists of 51-100 professionals.

Why select us?

We are a high-end quality punching machine manufacturer and guarantee customer satisfaction with our brand selection.

How about your delivery time?

Typically 25 to 40 working days after receiving advance payment.

Do you provide after-sale service?

Our technical and quality team provides continuous support whenever needed.

Can I order machines in different colors?

Yes, we can customize colors to match your production line requirements.

Can the touch screen language be changed?

Yes, we can provide interface languages including Spanish, French, and others according to your requirements.
