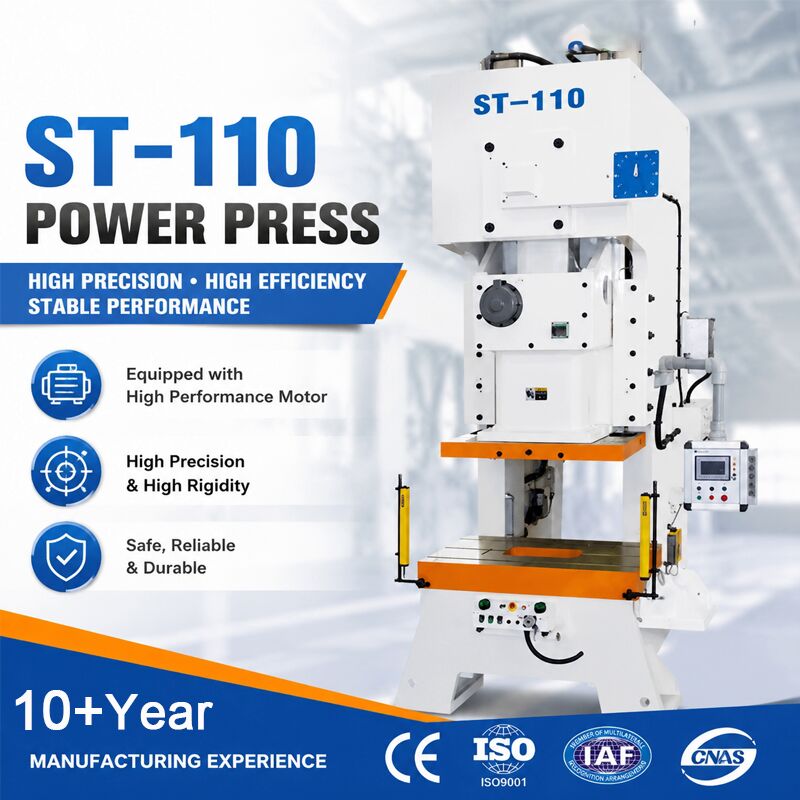

Place of Origin:
China
Brand Name:
QIAOSEN
Model Number:
ST-110V
Document:
Model Code Explanation:

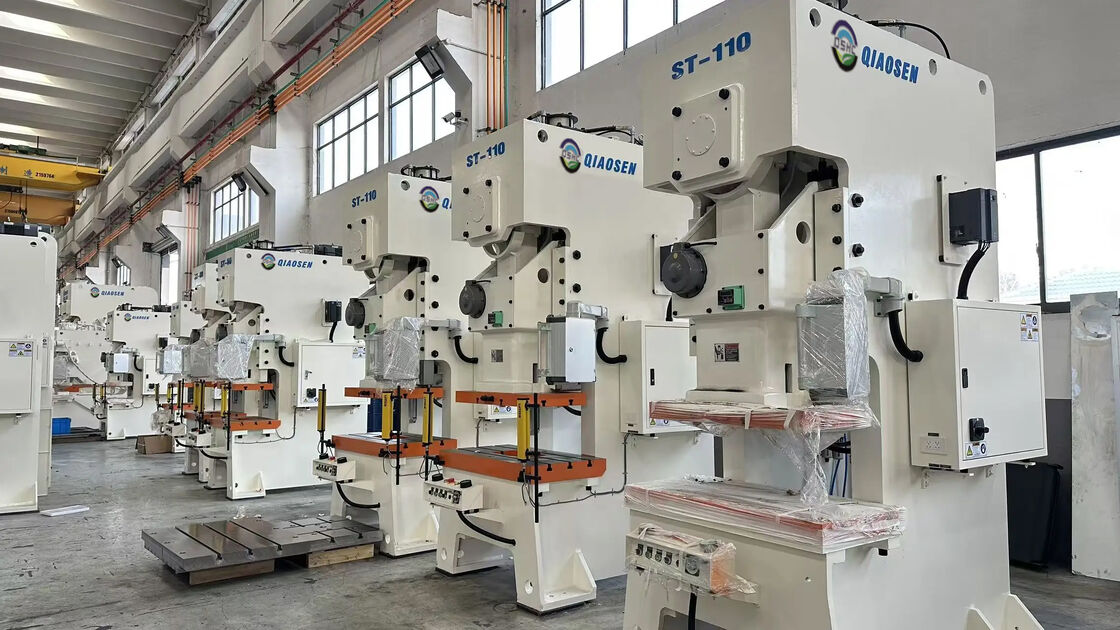

Extra-thick steel plate integrated welding with secondary high-temperature stress relief annealing. Reinforced rib structure greatly reduces frame deflection under heavy eccentric load.
Box-type reinforced slide with six-sided full quenched & precision ground guide rails. Dual large balance cylinders eliminate severe vibration during heavy stamping.
Crankshaft forged from high-strength 42CrMo alloy steel with overall carburizing and precision grinding, tensile strength 1.3 times higher than ordinary carbon steel.
Large-diameter low-inertia dry friction clutch with dual imported solenoid safety interlock valves, braking response within 70ms with anti-secondary slide drop protection.
Large integrated touch screen real-time displays stroke frequency, die height, production counter, running fault alarm. Supports parameter memory and automated stamping linkage.
Built-in large-flow hydraulic pressure relief assembly. Auto pressure relief and emergency stop once overloaded, protecting crankshaft, gears and large forming molds.
Standard multi-beam safety light curtain, mushroom emergency stop button, two-hand safety operation mode, overload auto alarm & machine lock function.
Dual independent 3.6-ton air die cushions as standard configuration, single cushion stroke 80mm. Uniform full-table blank holder force to eliminate wrinkling.
| Parameter | Specification |
|---|---|
| Nominal Force | 110 Ton (1100kN) |
| Applicable Material Thickness | 1–6mm cold rolled steel, galvanized steel, SUS stainless steel, copper, aluminum alloy |
| Slide Stroke | 180mm (V long stroke design) |
| Adjustable Stroke Rate | 35–65 SPM |
| Max Die Height Adjustment | 400mm |
| Standard Dual Air Cushion Force / Stroke | 3.6 Ton * 2 / 80mm |
| Overall Machine Weight | 14.2 Ton |
| Precision Standard | JIS Class 1 heavy-duty stamping press standard |
| Overall Dimension | 1745 × 2000 × 3059mm |
| Required Working Air Pressure | 6kg/cm² |
| Main Motor Power | 11kW |
Designed for heavy blanking, thick plate bending, flanging, embossing and medium shallow drawing of medium-large metal hardware:
Applicable industries: Automotive stamping parts, home appliance sheet metal, new energy battery structural components, electrical cabinet hardware, construction heavy hardware, agricultural machinery sheet metal.
Note: Not suitable for plates thicker than 6mm or heavy deep drawing requiring ultra-high rigidity; select STE closed series for thick plate over 6mm and heavy forming.
| Specification | Value |
|---|---|
| Product Name | Metal Forming Punching Machine |
| Model | ST-110V |
| Impact Force Location | 6mm |
| Slider Strokes Per Minute | 30-60 SPM |
| Slider Stroke Length | 180mm |
| Die Shut Height | 360mm |
| Slider Adjustment Amount | 80mm |
| Up Platform Area | 910×470×80mm |
| Down Platform Area | 1150×600×110mm |
| Shank Hole | Ø50 |
| Main Motor Power | 11×4kw×p |
| Slider Adjust Device | Electric Operation |
| Air Pressure | 6kg/cm² |
| Punch Precision Level | JIS 1 |
| Overall Dimension | 1900×1300×3200mm |
Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates from our factory located in Jiangsu province. Our facility is strategically positioned close to Shanghai city with excellent transportation access.
Our factory achieved ISO9001:2008 quality management system certification and specializes in hydraulic press machine production. We manufacture press machines from 10 tons to 2000 tons across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines.
Our products serve various industries including aviation, aerospace, automobile, shipbuilding, light appliances, and daily hardware. With exquisite design, competitive pricing, excellent quality, and efficient after-sales service, our products have gained recognition from domestic and international customers, exporting to United States, Japan, Russia, European Union, Southeast Asia, and Middle Eastern countries.
Our factory is located in Wuxi, China with a branch company in Dongguan, established in 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our team consists of 51-100 professionals.
We are high-end quality punching machine manufacturer and we promise customers will never regret choosing our brand.
Usually 25 to 40 working days after receiving advance payment.
Our technical and quality team will support you anytime you need assistance.
Yes, we can customize colors to match your production line requirements.
Yes, we can customize languages including Spanish, French, and others according to your requirements.
