Name: 260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-260
Price: 62940 USD
Availability: InStock

Home > Products > C Frame Punch Press >

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton automatic pneumatic press machine

high rigid C frame punching equipment

metal sheet stamping machine for automotive

Place of Origin:

Jiangsu，wuxi

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-260

Document:

ST-260V C fame open single...nk.pdf

Chat Now

Request A Quote

Product Details

Slide Stroke (mm):

20-40

Power Source:

Pneumatic

Voltage:

380V/220V

Dimension(l*w*h):

2780*1850*4470

Motor Power (kw):

22*4

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Punching Capacity:

260ton

Slider Adjustment Amount:

260mm

Up Platform Area:

1250*700*100mm

Down Platform Area:

1500*840*180mm

Highlight:

260ton automatic pneumatic press machine

high rigid C frame punching equipment

metal sheet stamping machine for automotive

Payment & Shipping Terms

Minimum Order Quantity

Price

$62940/case

Packaging Details

Standard

Delivery Time

Payment Terms

T/T

Supply Ability

30 Sets/Month

25 Ton C Frame Pneumatic Punch Press High Precision Metal Sheet Stamping Machine For Hardware Terminal Forming Production Line

Chat Now

ST-25 Pneumatic Power Press

Chat Now

110 Ton High Precision Pneumatic Power Press for Heavy Metal Stamping and Forming

Chat Now

ST-35V 35 Ton Long Stroke High Speed C Frame Pneumatic Punch Press for Precision Stamping

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Technical Specifications

No	Item	Unit	ST-260 V Type	ST-260 H Type
1	Punching capability	ton	260
2	Impact force location	mm	7	3.5
3	Slider strokes per minute	SPM	20-40	40-50
4	Slider length	mm	250	150
5	Max die shut height	mm	500	550
6	Slider adjustment amount	mm	120
7	Up platform area	kN	1250×700×100
8	Down platform area	ml	1500×840×180
9	Shank hole	N.m	Ø65
10	Main motor power	kw×p	22×4
11	Air pressure	kg/cm²	6
12	Punch accuracy grade		JIS 1
13	Slider adjustment device		Manual operation
14	Slider center to machine distance	mm	430
15	Platform to floor distance	mm	1030
16	Punch weight	ton	32

Product Overview

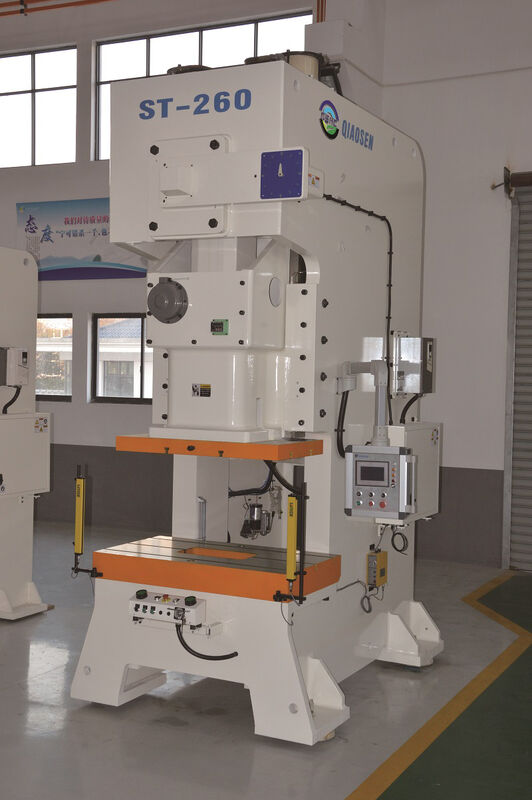

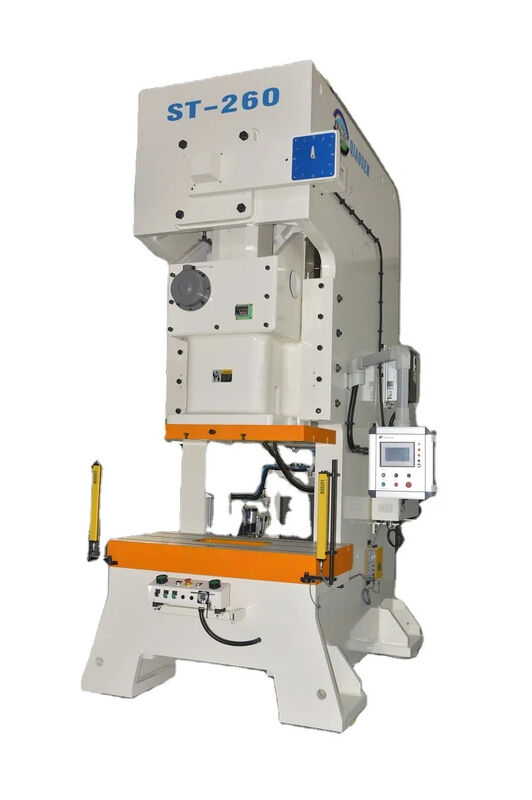

ST-260ton V type punching machine

This is 260ton open single point crank punching machine, meeting Japanese JIS 1 class standard—Safety, Energy saving, Stable, Automation, High precision.

ST-260ton V type punching machine overview

Performance Features

The high-strength fuselage structure has small deformation and high precision
OMPI pneumatic dry clutch brake
The slider adopts 2-corner and 6-sided guides
The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
Highly sensitive hydraulic overload protection device protects the press and die service life
Optional mat (air cushion)

Punching machine performance feature detail

Punching machine component view

Punching machine assembly detail

Punching machine operational view

Punching machine technical specification

Punching machine diagram

Punching machine complete unit

Product Configuration

Product configuration diagram

Product configuration details

Product configuration specifications

Warranty And Service

One year warranty for whole press machine
All spare parts are available as most of the parts produced by our factory
Easy to get electric parts as all are international famous brands
Technical training and consulting via email, phone or video
Engineers available for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity sent with press

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.

Why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can I do different color machine?

Yes, we can customize your own colors to match your production line.

Can the touch screen board language change to others?

Yes, we can do it according to your requirement like Spanish, French, etc.
