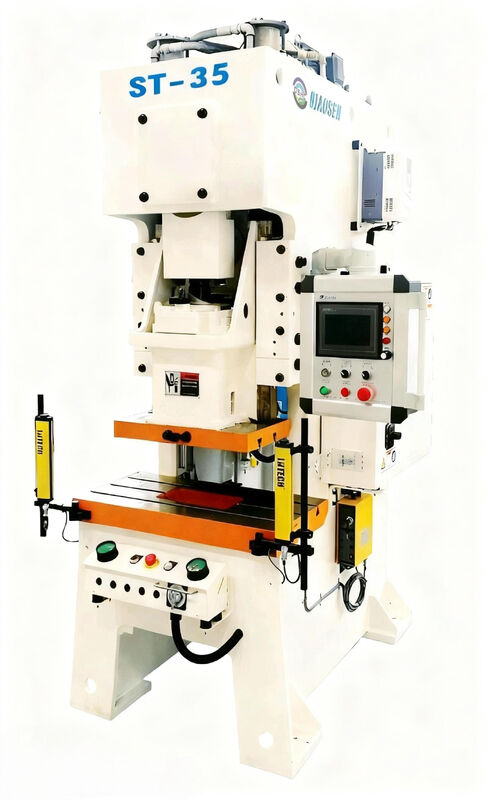

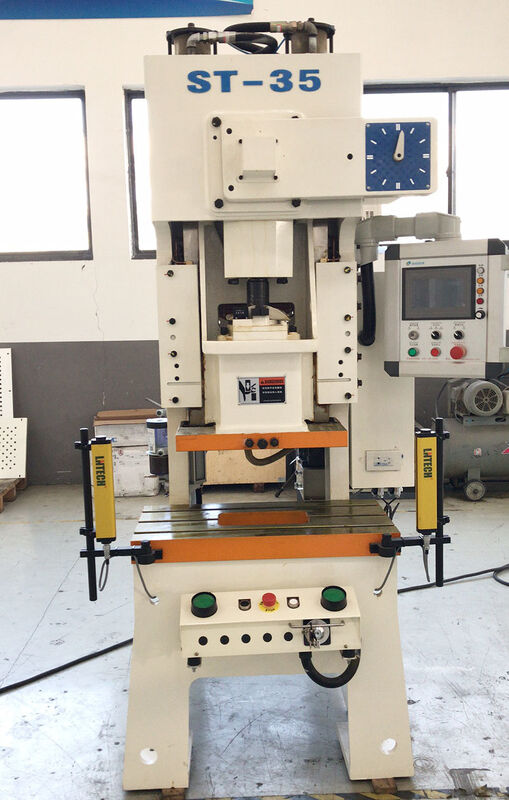

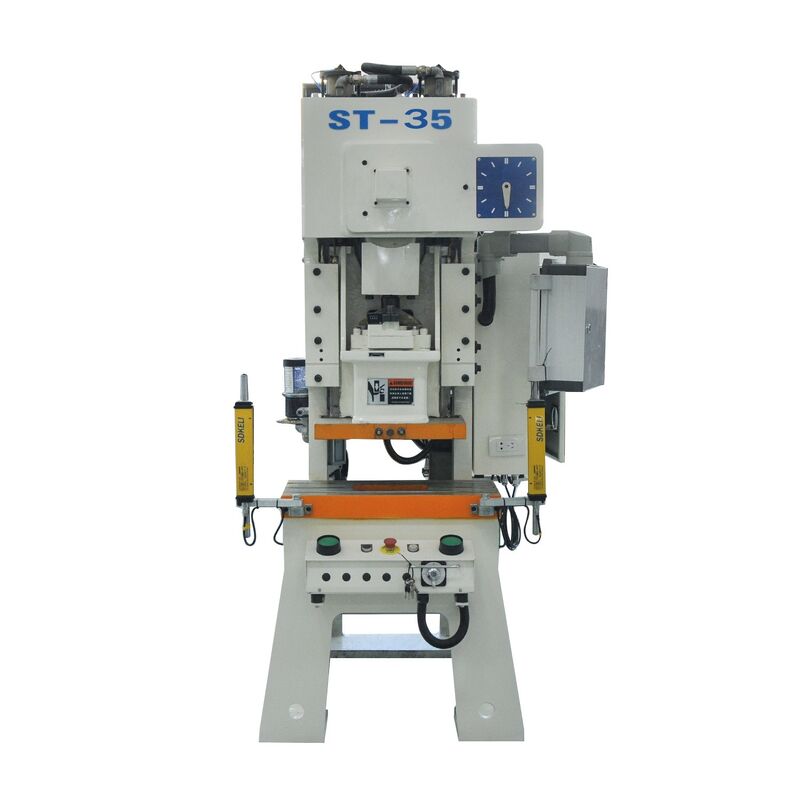

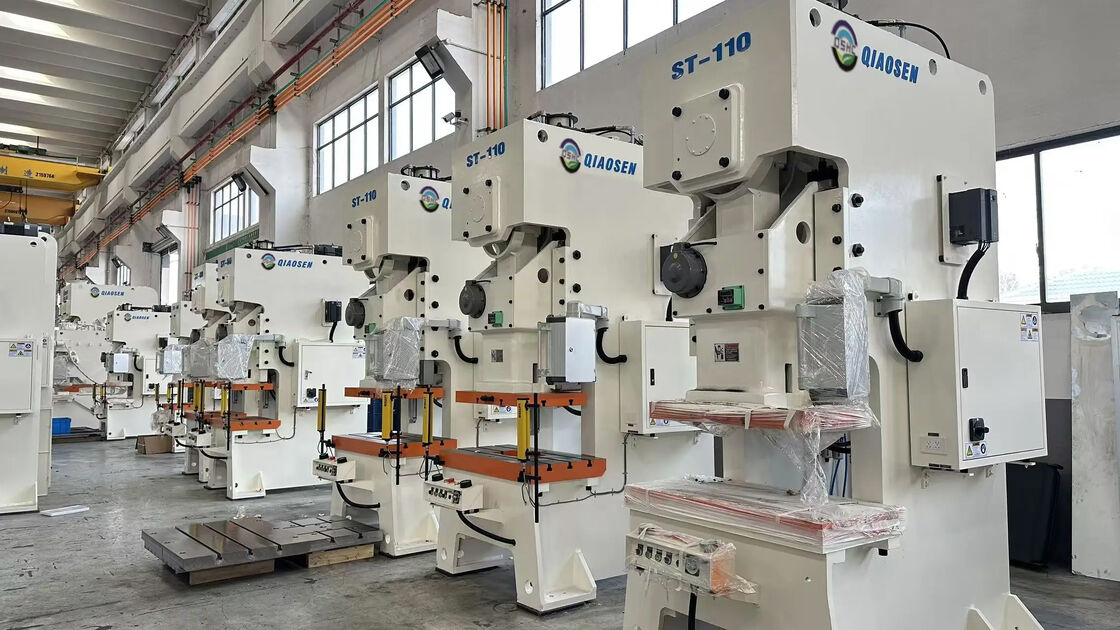

ST-35V 35 Ton Long Stroke High Speed C Frame Pneumatic Punch Press for Precision Stamping

Professional manufacturer of precision metal stamping power presses. The ST Series features open C-frame single crank pneumatic punch press with multi-direction feeding space for easy mold change and automation matching.

Thick Q235 steel plates are integrally welded and treated with secondary high-temperature annealing to eliminate internal welding stress. Low frame deflection under light & medium eccentric load. Three-side open feeding design supports front, rear, left and right feeding, fully compatible with mini uncoilers, straighteners and NC servo roller feeders.

Box-type welded slide equipped with fully quenched & precision ground six-side guide rails with micro clearance fit, minimizing lateral offset during high-speed reciprocating motion. Dual balance cylinders counteract slide gravity vibration, stabilize workpiece dimensional tolerance and extend service life of precision small molds.

Crankshaft forged from high-strength 42CrMo alloy steel with surface carburizing and precision grinding. All gear tooth surfaces adopt medium-frequency quenching for low abrasion and stable power transmission. Wear-resistant tin-phosphor bronze ZQSn10-1 copper sleeves reduce daily maintenance frequency.

Low-inertia dry friction clutch with dual imported solenoid safety interlock valves, braking response within 70ms with anti-secondary slide drop protection. Three standard operation modes are supported: inch jog, single stroke, continuous stroke.

Integrated touch screen displays stroke rate, die height, production counter and running status in real time. Stamping speed is freely adjustable, with intuitive parameter setting for novice operators, supporting linkage with automatic coil stamping lines.

Built-in sensitive hydraulic pressure relief structure. It automatically releases pressure and triggers emergency stop under overload conditions such as over-thick sheets or stuck molds, effectively protecting crankshafts, gears and molds from collision damage.

Standard multi-beam safety light curtain, mushroom emergency stop button, two-hand safety operation mode, overload auto alarm and machine lock. All safety components comply with CE and JIS Class 1 mechanical safety standards.

2.3-ton air die cushion is available as an optional accessory with an effective cushion stroke of 50mm. It provides uniform blank holder force to suppress material wrinkling during light bending and shallow drawing forming.

• Nominal Force: 35 Ton (350kN)
• Applicable Material Thickness: 0.2–3.5mm cold rolled steel, galvanized steel, SUS stainless steel, copper, aluminum alloy foil
• Slide Stroke: 70mm (V long stroke design)
• Adjustable Stroke Rate: 40–120 SPM
• Max Die Height Adjustment: 220mm
• Optional Air Cushion Force / Stroke: 2.3 Ton / 50mm
• Overall Machine Weight: 3 Ton
• Precision Standard: JIS Class 1 stamping press standard
• Overall Dimension: 12809002200mm
• Required Working Air Pressure: 6kg/cm²
• Main Motor Power: 3.7kW

It is designed for blanking, light bending, embossing, trimming and shallow drawing of miniature & small metal hardware:

• Electronic accessories: precision terminals, micro shrapnel, thin gaskets, PCB shielding sheets, connector pins
• Light hardware fittings: small hinges, miniature cabinet brackets, tiny auto stamping parts, lock accessories
• Household & consumer hardware: small kitchenware components, furniture metal fasteners
• Lithium battery & communication miniature structural parts

Applicable industries: Consumer electronics, lithium battery auxiliary parts, auto micro small parts, communication hardware, toy metal fittings, watch precision components.

1. Balanced small-medium tonnage with long V-type slide stroke, ideal for mixed production of punching, bending and shallow drawing.
2. Ultra-lightweight whole machine only 3 tons, low ground bearing load requirement, applicable for small startup workshops without floor reinforcement.
3. Three-side open multi-direction feeding design, more flexible to match various small automatic coil feeding lines compared with closed frame presses.
4. Max 120 strokes per minute high-speed performance, high efficiency for mass production of thin electronic metal parts.
5. Six-side fully hardened slide guides maintain long-term stable precision and lower mold wear rate.
6. Low procurement cost and cheap daily maintenance, universal spare parts with easy global supply.

Minor Disadvantages: Not suitable for sheets thicker than 3.5mm or heavy deep drawing processes. Select ST-45 / ST-80 for thicker plates and larger forming tonnage demand.

1. Small hardware factories processing 0.2–3.5mm thin metal sheets to produce electronic terminals, shrapnel and lithium battery components
2. Manufacturers requiring frequent mold switching and multi-variety small-batch flexible production
3. Factories planning to build compact small automatic progressive die stamping lines
4. Startup workshops with limited floor space and low ground load capacity
5. Production enterprises mainly engaged in thin sheet blanking, light bending and shallow drawing crafts

1. Mount upper mold on slide and fix lower mold on worktable, adjust die height via PLC touch screen
2. Match coil uncoiler, straightener and NC servo feeder to realize automatic continuous sheet feeding
3. Set stamping speed, production batch and operation mode on the control panel
4. Crankshaft drives slide reciprocate to complete blanking, bending or embossing forming
5. Optional air cushion provides stable blank holder force to avoid sheet wrinkling during drawing processes
6. Safety light curtain triggers instant emergency stop once operators’ hands enter the stamping working zone

Ideal for blanking, light bending, embossing, trimming and shallow drawing of miniature & small metal hardware components including:

• Electronic accessories: precision terminals, micro shrapnel, thin gaskets
• Light hardware fittings: small hinges, miniature cabinet brackets
• Household & consumer hardware: kitchenware components, furniture fasteners
• Lithium battery & communication miniature structural parts

• 12-month comprehensive warranty for entire press machine
• Complete spare parts availability with in-house manufacturing
• International brand electrical components for easy replacement
• Technical training and consulting via email, phone, or video conference
• On-site engineer service, installation, and training available
• English operation and maintenance manual included
• Certificate of conformity provided with each machine
