Name: ST-260 Motorized Precision Machine Tool | High-Efficiency CNC Processing Equipment
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-260
Price: 5.00 USD
Availability: InStock

Home > Products > Press Punching Machine >

ST-260 Motorized Precision Machine Tool | High-Efficiency CNC Processing Equipment

motorized precision machine tool

high-efficiency CNC processing equipment

press punching machine with warranty

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-260

Document:

ST-260V C fame open single...nk.pdf

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

2780*1850*4470

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

200ton For Automatic Punching Machine

Slider Adjustment Amount:

120mm For Rosin Pneumatic Press Machine

Up Platform Area:

1250*700*200mm For Power Press Machine

Down Platform Area:

1500*840*180mm For Tube Punching Machine

Highlight:

motorized precision machine tool

high-efficiency CNC processing equipment

press punching machine with warranty

Payment & Shipping Terms

Minimum Order Quantity

Price

$49，312/cases 1-9 cases

Delivery Time

5-8 work days

Payment Terms

T/T

Supply Ability

1set 30days

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now

video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Product Overview

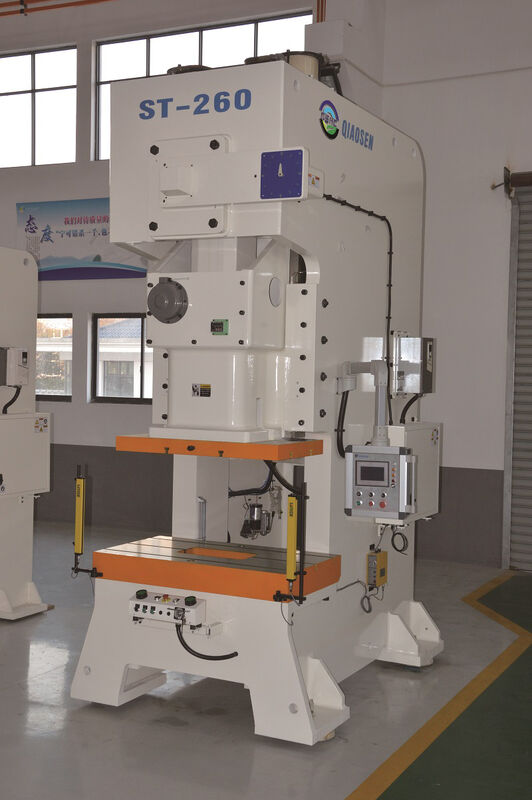

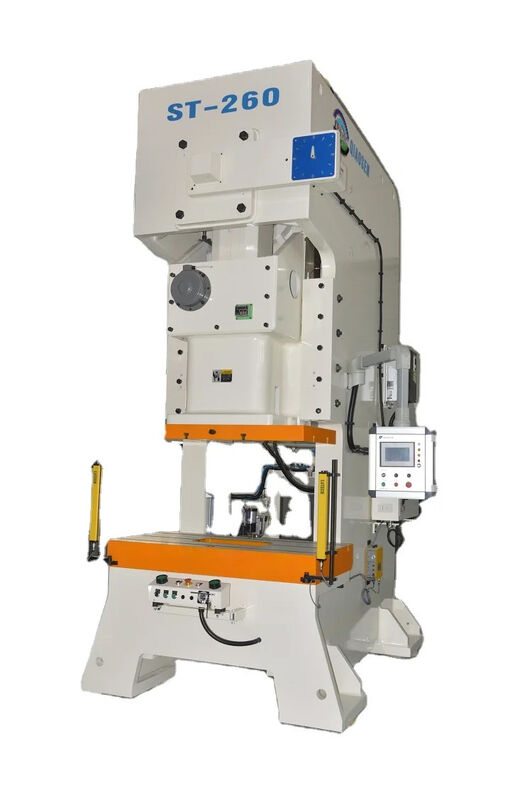

STC-260ton punching machine

This is 260ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE

1. The high-strength fuselage structure has small deformation and high precision.
2. OMPI pneumatic dry clutch brake are used
3. The slider adopts two corner and six sided guides and the slider guide adopts"high-frequency quenching" and "rail grinding process", small wear, high precision,long precision maintenance time and improve service life.
4. Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
5. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
6. The highly sensitive hydraulic overload protection device protects the life of the press and die .

7. Standard SMC pressure regulator,oil mister,air filter.
8. Optional mat (air cushion)

ST-260 Motorized Precision Machine Tool | High-Efficiency CNC Processing Equipment 0

Advantage

1. Japanese standard design and JIS 1 grade inspection.
2. High Precision and High stability---0-0.02mm deviation on left and right crankshaft, avoid unilateral stress and broken shaft.

3. Energy efficient, low cost. OPMI pneumatic dry clutch brakes, Photoelectric protection device,Double drop multiple protection
device , automatic feeder device work together to improve safety and convenience.

4. Can improve the material use to 105%-108%, Save 25%-35% of energy , which means can save 4004 kw.h per year for one machine.

5. All electric parts accessories and pneumatic parts are famous brand which ensure have good quality and long service life.

No	*Item*	*Unit*	*STC-260*
	*Mode*		*V type*	*H type*
1	*punching capability*	*ton*	*260*
2	*Impact force location*	mm	7	*3.5*
3	*Slider stokes per minute*	*SPM*	*20-40*	*40-50*
4	*Long slider length*	mm	*250*	*150*
5	*Maximum mode height*	mm	*500*	*550*
6	*Slider adjustment amount*	mm	*120*
7	*Up platform area*	mm	**1250700100**
8	*Down platform area*	mm	**1500840180**
9	*Platform to floor distance*	mm	*1030*
10	*Capacity*	*Ton*	**102***
11	*Main motor power*	**kwp***	**224***
12	*Air pressure*	*kg/cm^2*	6
13	*Punch accuracy grade*		*JIS 1*
14	**punch dimension(LWH)**	mm	**278018504470**
15	*Punch weight*	*ton*	32

PRODUCT CONFIGURATION

SIMILAR PRODUCTS

ST-260 Motorized Precision Machine Tool | High-Efficiency CNC Processing Equipment 4

Company Profile

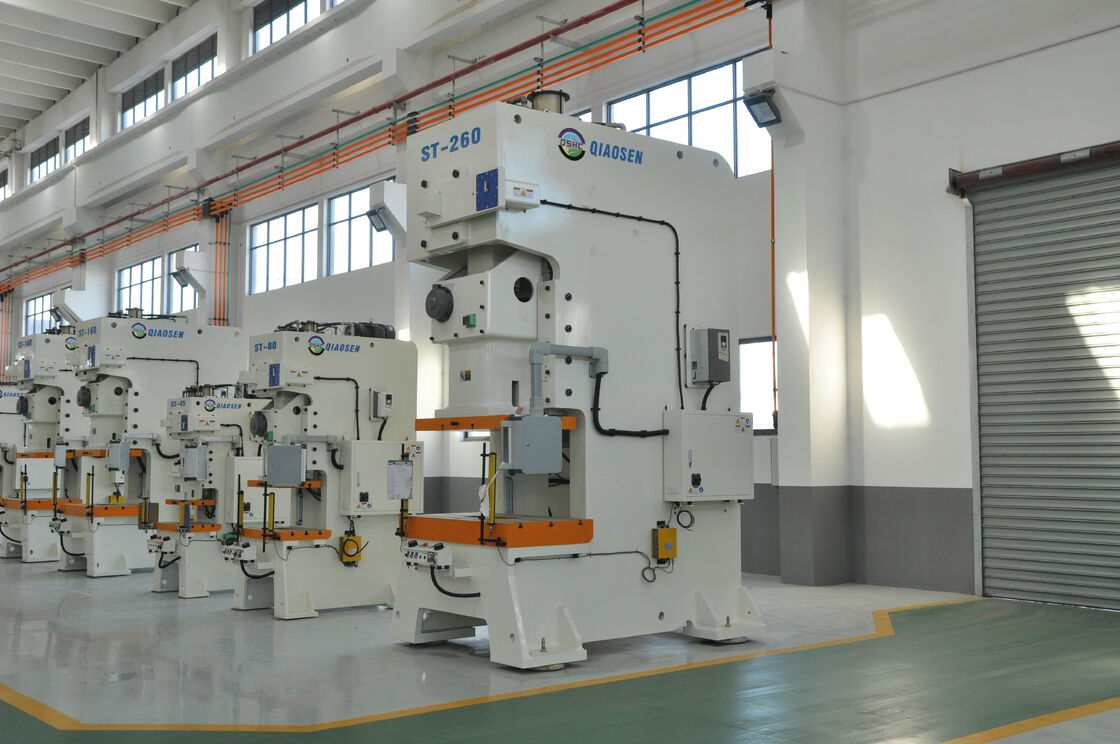

Dongguan Qiaosen Machinery Co.,Ltd which have our own factory located in Jiangsu province, established in 2016,Closed to shanghai city and transportation is very convenient, a birth place of creative minds and gifted talents.

Our factory took the lead in passed authentication of the ISO9001:2008 quality management system . A factory specialized in the production of pneumatic press machine. Mainly products 25 tons to 1600 tons press machine with 8 series, have more than 100 types, link single column, four column, c frame, h frame and all kinds of press machine, punching machine, folding machine, cutting machine, is used in aviation,space flight, automobile, ship, light appliance, daily used hardware and so on. All along, the company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support, received the affirmation of customers at home and abroad, sell well in more than 20 domestic provinces, cities and districts, and exported to United States,Japan, Russia, European Union, southeast Asia, the Middle East and other countries.

ST-260 Motorized Precision Machine Tool | High-Efficiency CNC Processing Equipment 6

Warranty And Service

1. One year warranty for whole pressmachine.
2. All spare parts are available as most of the parts produced by our factory.
3. It is easy to get the electric parts as all are international famous brands.
4. We can provide technical training and consulting via email, phone or video.
5. We can send out engineers for service, installation or training with reasonable additional cost.
6. English operation and maintenance manual is provided with the press.
7. Certificate of conformity will be sent with press

FAQ

who are we?
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.

Can i do different color machine?
A: Yes, we can customize your own colors to match your production line

Can the touch screen board language change to others
A: Yes, we can do it according to your requirement like Spanish, French ect...
