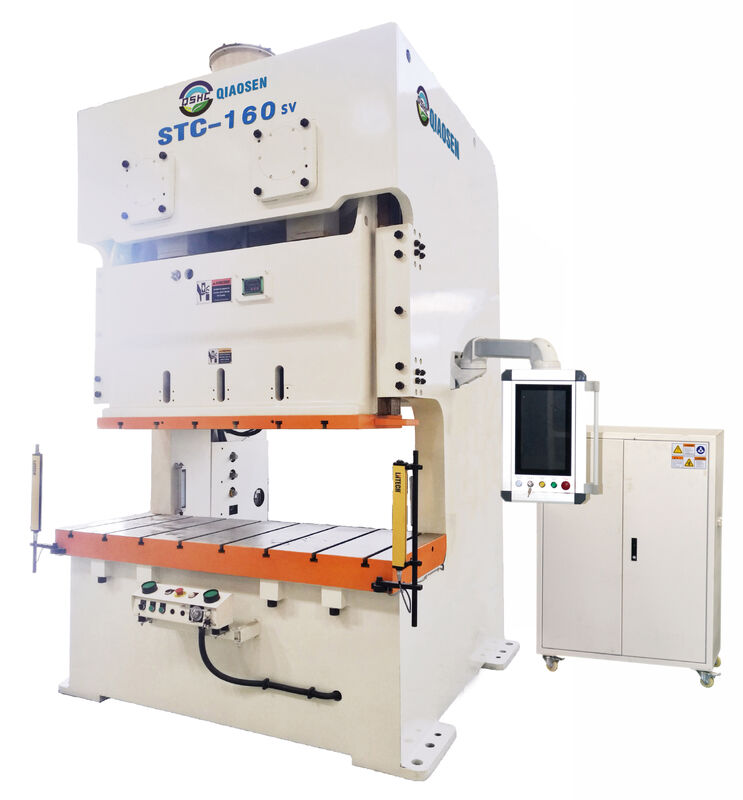

160ton Double Crank Power Press High Accuracy Pneumatic for Metal Shaping

160ton Double Crank Power Press

High Accuracy Pneumatic Punching Machine

Pneumatic Metal Shaping Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

200

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

1940*2200*3709

Motor Power (kw):

Model Number:

STC-160V

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

160ton For Automatic Punching Machine

Slider Adjustment Amount:

100mm For Rosin Pneumatic Press Machine

Up Platform Area:

1600*550*70mm For Power Press Machine

Down Platform Area:

2000*760*150mm For Tube Punching Machine

Platform To Floor Distance:

990mm For Door Hinge Making Machine

Main Motor Power:

15*4 For Pneumatic Punching Machine

Air Pressure:

6 For Steel Hole Punching Machine

Punch Dimension(L*W*H):

1940*2200*3709mm For Perforated Sheet Machine

Punch Weight:

22tons For Sheet Metal Punching Machine

Slider Strokes Per Minute:

30-55

Highlight:

160ton Double Crank Power Press

High Accuracy Pneumatic Punching Machine

Pneumatic Metal Shaping Machine

Payment & Shipping Terms

Price

$54,286/cases 1-2 cases

STC-200V High Accuracy Pneumatic Power Press Machine 200t with Progressive Templates

Chat Now

video

Durable Double Crank Power Press Designed for Heavy Duty Metal Stamping and Fabrication Tasks in Industrial Production Lines

Chat Now

Automatic Pneumatic Punching Machine 250t for Precision Metal Stamping

Chat Now

STC Steel Frame V Press Punching Machine 250ton JIS Class 1 for Heavy Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

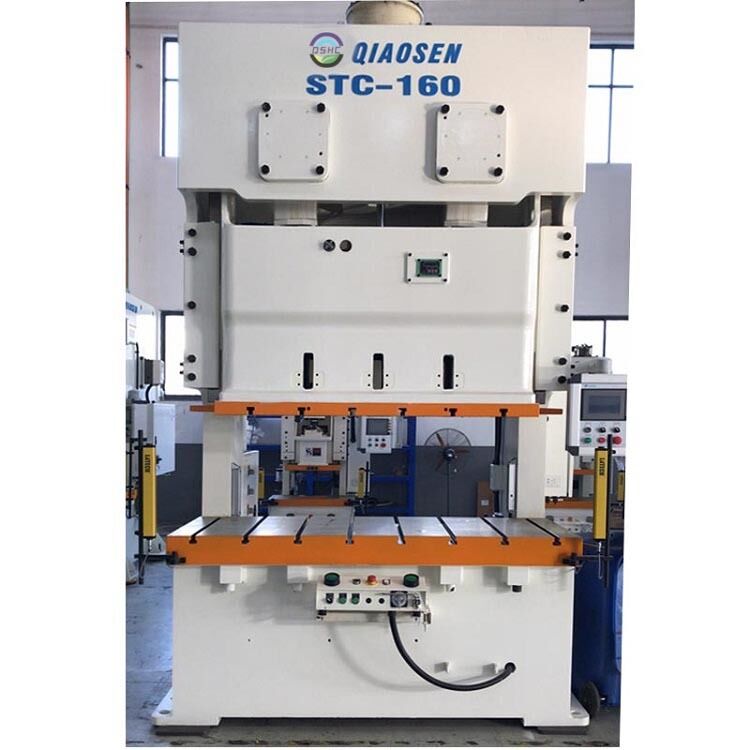

STC-160 Ton V-Type Double Crank Power Press

Heavy duty double crank power press machinery built to handle complex metal shaping with superior accuracy.

Product Overview

STC-160ton V type punching machine is a 160-ton open double point crank punching machine that meets Japanese JIS 1 class standards for safety, energy saving, stability, automation, and high precision.

Performance Features

High-strength fuselage structure with minimal deformation and high precision
OMPI pneumatic dry clutch brake system
Slider with two corner and six-sided guides featuring high-frequency quenching and rail grinding process for minimal wear and extended service life
Crankshaft made of high-strength alloy 42CrMo, 1.3 times stronger than 45 steel
Copper sleeve made of tin phosphor bronze ZQSn10-1, 1.5 times stronger than ordinary BC6 brass
Highly sensitive hydraulic overload protection device to protect press and die life
Standard SMC pressure regulator, oil mister, and air filter
Optional mat (air cushion) available

Key Advantages

Japanese standard design and JIS 1 grade inspection
High precision and stability with 0-0.02mm deviation on left and right crankshaft to avoid unilateral stress and broken shaft
Energy efficient operation with low operating costs
Comprehensive safety features including photoelectric protection and double drop multiple protection devices
Material utilization improved to 105%-108%
Energy savings of 25%-35%, saving approximately 4004 kWh per year per machine
All electric and pneumatic parts from internationally recognized brands for quality and longevity

Technical Specifications

No	Item	Unit	STC-160
1	Punching Capability	ton	160
2	Impact Force Location	mm	6 (V type) \| 3 (H type)
3	Slider Strokes Per Minute	SPM	30-55 (V type) \| 40-85 (H type)
4	Long Slider Length	mm	200 (V type) \| 130 (H type)
5	Maximum Mode Height	mm	450 (V type) \| 485 (H type)
6	Slider Adjustment Amount	mm	100
7	Up Platform Area	mm	1600×550×70
8	Down Platform Area	mm	2000×760×150
9	Platform to Floor Distance	mm	990
10	Capacity	Ton	6.3×2
11	Main Motor Power	kw×p	15×4
12	Air Pressure	kg/cm²	6
13	Punch Accuracy Grade		JIS 1
14	Punch Dimension (L×W×H)	mm	1940×2200×3709
15	Punch Weight	ton	22
16	Crown Sheet Area	mm	410×260×2

Product Configuration

Similar Products

Warranty and Service

One year warranty for entire press machine
All spare parts available with most components produced in-house
Easy access to electric parts from international famous brands
Technical training and consulting via email, phone, or video
Engineer dispatch available for service, installation, or training at reasonable additional cost
English operation and maintenance manual provided
Certificate of conformity included with press delivery

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan. Established in 2016, we serve Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our organization employs 51-100 people.

Why select us?

We are a high-end quality punching machine manufacturer and guarantee customer satisfaction with our brand.

How about your delivery time?

Typically 25 to 40 working days after receiving advance payment.

Do you provide after-sale service?

Our technical and quality team provides continuous support whenever needed.

Can I customize machine colors?

Yes, we can customize colors to match your production line requirements.

Can the touch screen language be changed?

Yes, we can configure the interface in languages including Spanish, French, and others according to your requirements.
