200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming

200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming

Place of Origin:

China

Brand Name:

QIAOSEN

Model Number:

STE-200S

Chat Now
Request A Quote
200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming 200 Ton Closed Double Crank Punch Press High-Accuracy Metal Stamping Machine for Heavy Forming
Product Details
Slide Stroke (mm):
300mm
Power Source:
Pneumatic
Place Of Origin:
Jiangsu, China
Brand Name:
Qiaosen
Voltage:
380/220
Motor Power (kw):
18.5
Model Number:
STE-200S
Weight (t):
35
Key Selling Points:
High-Accuracy
Warranty:
1 Year
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Pump
Force Location:
6mm For Metal Stamping Machine
Slider Length:
250mm For Punching Machine Hole
Slider Strokes Per Minute:
20-50SPM For Machine Punch
Die Shut Height:
500mm For Mechanical Punching Machine
Slider Adjustment Amount:
120mm For Machine Power Press
Slider Area:
1850*750mm
Bolster Area:
2200*940mm
Side Opening:
1100mm For Metal Pressing Machine
Main Motor Power:
18.5*4 For Steel Sheet Punching Machine
Air Pressure:
6kg/cm^2
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$220,000/piece
Packaging Details
Standard
Delivery Time
30
Payment Terms
T/T
Supply Ability
30 Sets/Month
RELATED PRODUCTS
Good price STC-110 Open Type Double Point Crank Servo Precision Punch Press with 110 Tons Pressing Force for High Efficiency Sheet Metal Fabrication online

STC-110 Open Type Double Point Crank Servo Precision Punch Press with 110 Tons Pressing Force for High Efficiency Sheet Metal Fabrication

Chat Now
Good price STC-250 Double Crank Power Press 250t with Pneumatic Dry Clutch Brake online

STC-250 Double Crank Power Press 250t with Pneumatic Dry Clutch Brake

Chat Now
Good price STC Steel Frame V Press Punching Machine 250ton JIS Class 1 for Heavy Metal Stamping online

STC Steel Frame V Press Punching Machine 250ton JIS Class 1 for Heavy Metal Stamping

Chat Now
Good price Heavy Duty STC Series Mechanical Punch Press with High Precision, Integrated Cast Steel Frame, and Hydraulic Overload Protection for Metal Stamping online

Heavy Duty STC Series Mechanical Punch Press with High Precision, Integrated Cast Steel Frame, and Hydraulic Overload Protection for Metal Stamping

Chat Now
CONTACT US
86-0769-26628519
titi@qiaosenmachinery.com
86-0769-26626853
Chat Now
Product Description
STE-200 Closed Double Crank Punch Press with Integral One-Piece Frame
Product Overview
The STE-200S is a heavy-duty closed double crank punch press featuring an integrated one-piece H-frame construction. Designed for precision stamping of metal hardware and auto parts, this 200-ton capacity press delivers exceptional rigidity and stability for demanding industrial applications.
Integrated H-Frame Construction
Extra-thick steel plates welded into a one-piece closed frame with secondary stress relief annealing for maximum rigidity and minimal deflection.
Dual Crankshaft Transmission
Twin synchronous 42CrMo alloy crankshafts with wide-span double connecting rods for even load distribution and heavy forming capability.
Wet Friction Clutch System
Oil-cooled wet clutch enables continuous high-speed stamping without overheating, ideal for automated production lines.
Precision Slide Guidance
Four-corner eight-sided hardened slide guides maintain dimensional accuracy under large eccentric loads.
Technical Specifications
Parameter Specification
Model STE-200S
Nominal Force 200 Ton (2000kN)
Slide Stroke 200mm
Stroke Rate 20-55 SPM
Max Die Height Adjustment 500mm
Standard Air Cushion Force 14 Ton / 100mm stroke
Main Motor Power 18.5kW * 4
Working Air Pressure 6kg/cm²
Machine Weight 23 Ton
Precision Standard JIS Class 1
Core Features & Components
  • Integrated One-Piece Closed H Frame: Constructed with extra-thick steel plates via integrated welding and secondary high-temperature stress relief annealing. Frame rigidity reaches 1/8000 with minimal deflection under full nominal load.
  • Four-Corner Eight-Sided Hardened Slide Guide: Fully quenched and precision ground guide rails with micro-clearance matching tolerate large eccentric loads without lateral runout.
  • Dual 42CrMo Alloy Crankshaft & Wide-Span Double Connecting Rods: Twin synchronous crankshafts forged from high-strength 42CrMo alloy steel with overall carburizing and precision grinding.
  • Wet Pneumatic Friction Clutch-Brake System: Oil-cooled wet clutch features large friction contact area and low heat generation for non-stop high-speed stamping.
  • 15.6-inch Digital PLC Touch Control System: Preloaded with multiple stamping motion curves and supports one-click parameter copying for multi-line mass production.
  • Standard Large-Tonnage Air Die Cushion: 14-ton air cushion with 100mm stroke provides uniform blank holder force to suppress sheet wrinkling.
  • Complete Industrial Safety Protection: Multi-beam safety light curtain, hydraulic overload protection, emergency stop circuit, and two-hand operation mode.
  • Forced Thin Oil Circulating Lubrication: Independent circulating oil pump supplies lubricant to all moving parts with real-time monitoring.
Applications & Industries
Material Compatibility: 1-10mm cold rolled steel, galvanized steel, SUS stainless steel, aluminum alloy, and copper plate
Primary Processes:
  • Thick plate blanking & trimming
  • Medium & deep drawing
  • Multi-station progressive forming
  • Heavy bending, flanging, embossing and cold extrusion
Target Industries:
  • New energy auto components
  • Home appliance sheet metal
  • Lithium battery structural parts
  • Heavy hardware and construction hardware
  • Large electrical equipment accessories
Competitive Advantages
  • Integrated closed H-frame provides ultra-high rigidity with zero opening deflection under heavy eccentric loads
  • Symmetrical dual synchronous crankshaft structure distributes force evenly, extending component service life
  • Standard oil-cooled wet clutch supports continuous automated production without frequent cooling shutdowns
  • 14-ton high-capacity air cushion included as standard equipment
  • Four-corner eight-sided hardened slide guides accommodate large eccentric offsets for progressive dies
  • Forced circulating lubrication system reduces maintenance frequency and labor costs
  • Symmetrical balance design minimizes vibration and noise for stable unmanned operation
Product Images

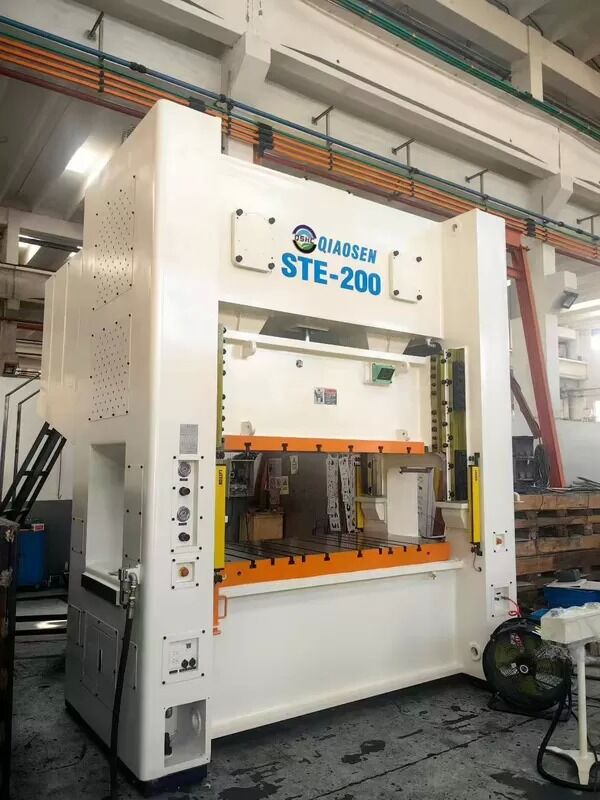

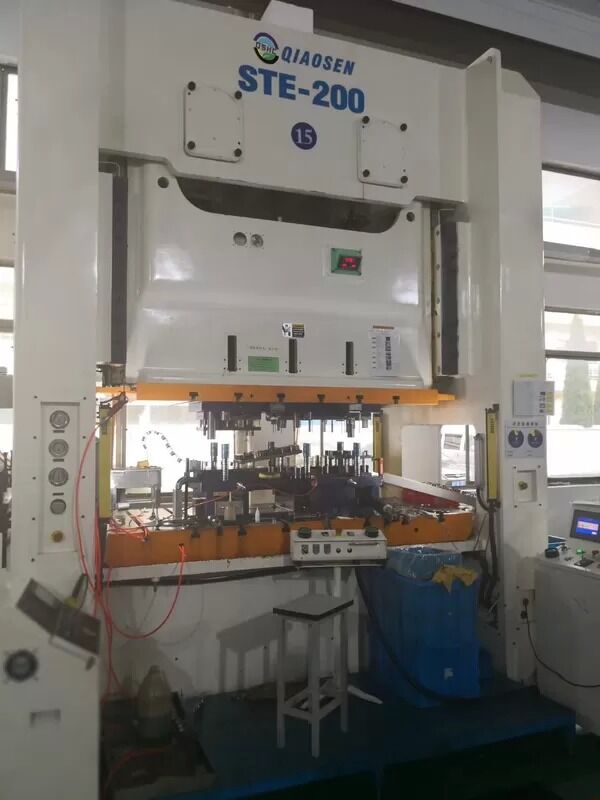

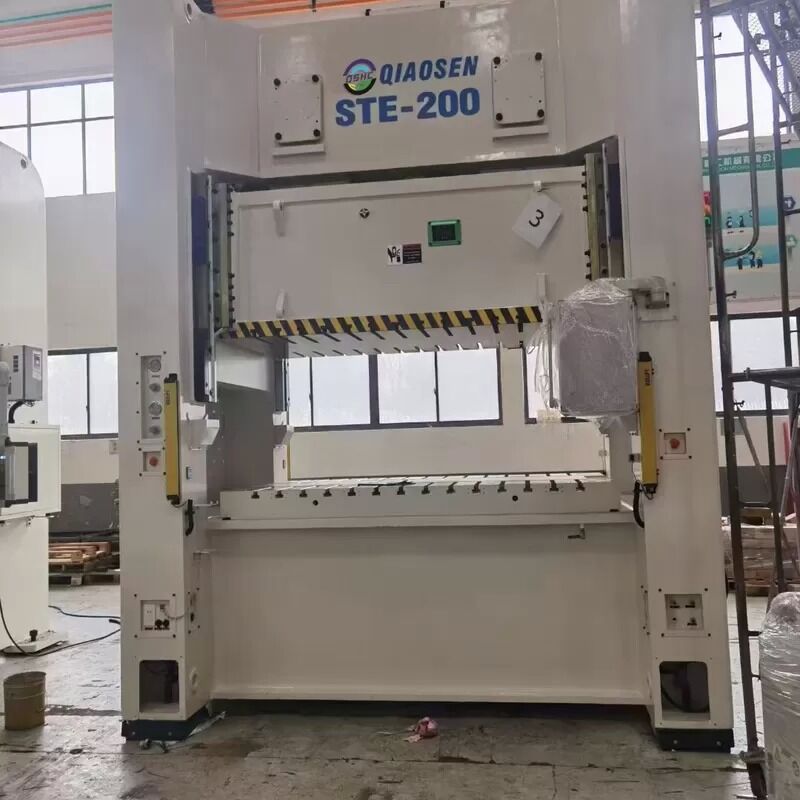

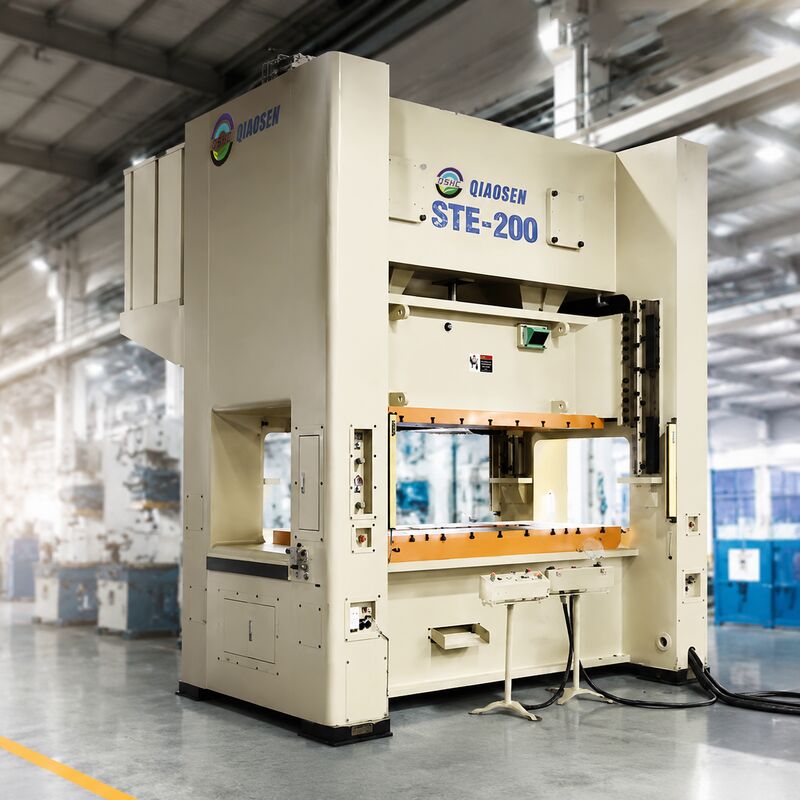

STE-200S H Frame Double Crank Press front view showing robust construction Close-up view of STE-200S press control panel and components STE-200S press side view highlighting frame structure Detailed view of STE-200S press working area and slide mechanism STE-200S press operational view in manufacturing environment
Professional FAQ
What are the core structural differences between STE-200S and ST series C-frame presses?
  • Frame Rigidity: STE features integrated closed H dual-column structure with rigidity of 1/8000 and nearly zero deflection. ST series open C-frame design generates obvious opening deformation under heavy eccentric loads.
  • Transmission Mechanism: STE uses dual synchronous crankshafts and wide-span double connecting rods for uniform load distribution. ST uses single crankshaft with limited thick plate capacity.
  • Clutch Configuration: STE-200S includes standard oil-cooled wet clutch for continuous production; ST series dry clutches require regular cooling.
  • Process Capability: STE supports 1-10mm thick plates and medium/deep drawing; ST is limited to sheets under 6mm for light bending and blanking.
What service advantages does the wet clutch provide?
The wet friction clutch features circulating oil cooling with large friction contact area and low surface temperature during continuous operation. It can run 24 hours on automated lines without shutdown cooling. Wear rate is reduced by over 40% compared to dry clutches, delivering longer service life and lower replacement costs.
Is the air die cushion standard equipment?
Yes, the 14-ton heavy-duty air die cushion is standard equipment with no extra charges. It provides 100mm effective cushion stroke and outputs uniform blank holder force across the entire worktable to restrain material wrinkling during drawing operations.
What safety systems are integrated?
  • Multi-beam safety light curtain with instant emergency stop
  • Full-load hydraulic automatic pressure relief overload protection
  • Dual-solenoid wet clutch anti-secondary drop interlock circuit
  • Mushroom emergency stop button and two-hand safety operation
  • Auto alarm and machine lock for overload, low oil pressure, and insufficient air pressure
All safety assemblies comply with CE and JIS mechanical safety standards.
Warranty & Service
Qiaosen Machinery warranty and service commitment
  • 12-month full machine warranty from shipment date
  • All spare parts available with most produced in-house
  • International brand electrical components for easy replacement
  • Technical training and consulting via email, phone, or video
  • On-site engineering service, installation, and training available
  • English operation and maintenance manual provided
  • Certificate of conformity included with press
Company Profile

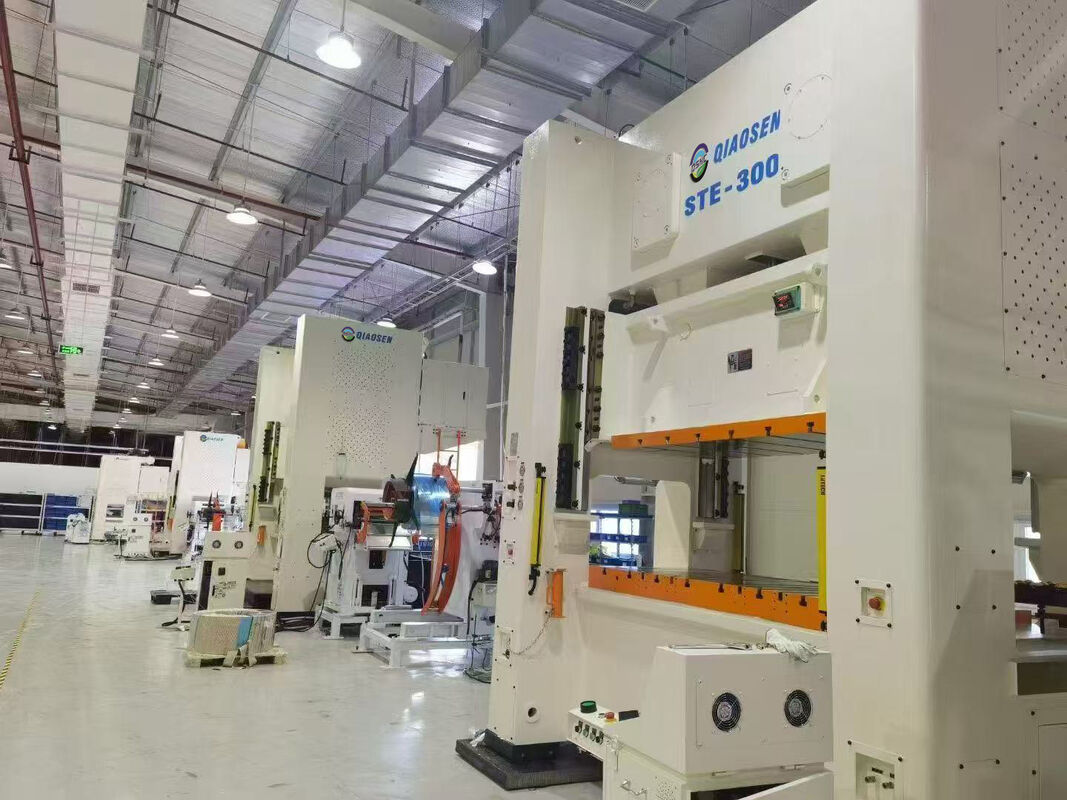

Qiaosen Machinery factory facility and manufacturing capabilities Qiaosen Machinery production line and quality control processes
Dongguan Qiaosen Machinery Co., Ltd. operates its own factory in Jiangsu province, established in 2016. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machines from 10 to 2000 tons capacity across 8 series with over 100 models. Products serve aviation, aerospace, automotive, shipbuilding, light appliances, and hardware industries worldwide.
Packing & Delivery

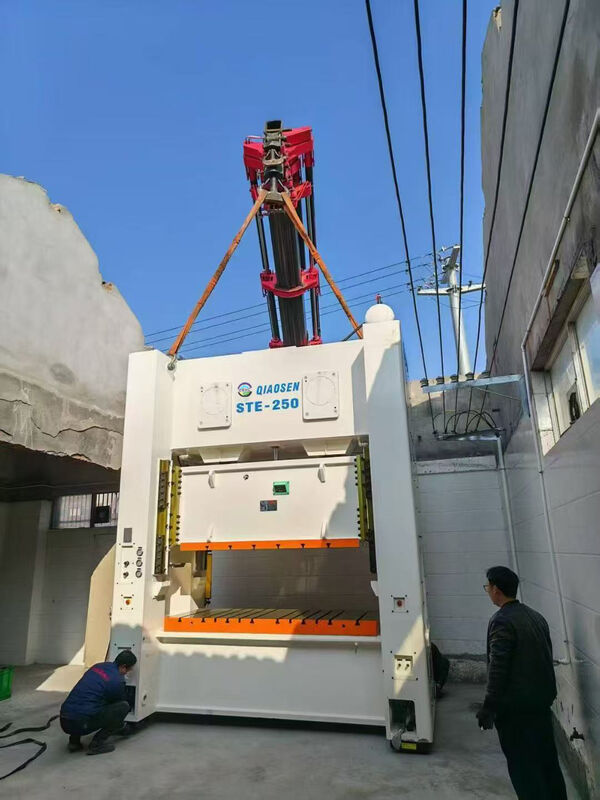

STE-200S press packaging and shipping preparation
Standard delivery time: 25-40 working days after advance payment. Professional packaging ensures safe transportation to global destinations including Southeast Asia, Middle East, Africa, Europe, and Americas.
