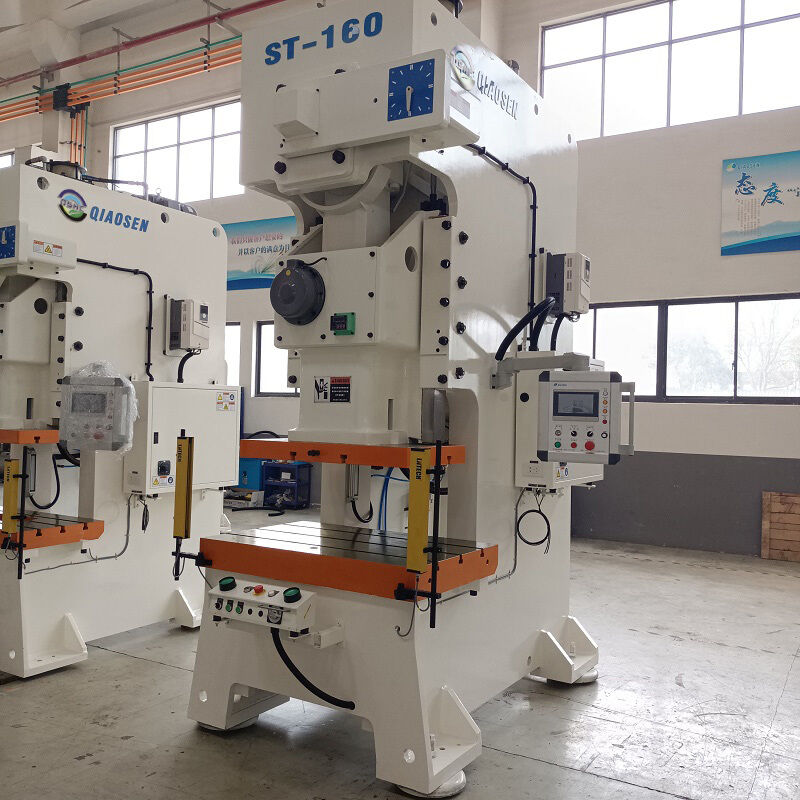

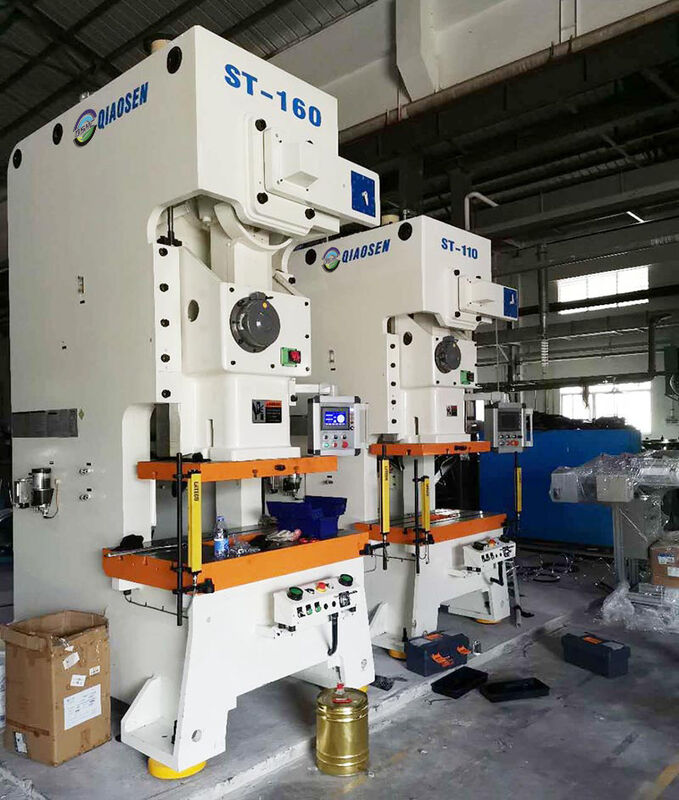

Name: 160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-160V
Price: 42 USD
Availability: InStock

Home > Products > C Frame Punch Press >

160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping

Place of Origin:

China

Brand Name:

QIAOSEN

Model Number:

ST-160V

Document:

ST-160V C fame open single...nk.pdf

Chat Now

Request A Quote

Product Details

Power Source:

Pneumatic

Place Of Origin:

Jiangsu, China

Voltage:

38/220V

Dimension(l*w*h):

2315*1400*3670

Motor Power (kw):

Model Number:

ST-160V

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Slider Strokes Per Minute:

20-50

Slider Strokes Length:

200

Payment & Shipping Terms

Minimum Order Quantity

Price

$42,000/set

Packaging Details

Standard

Delivery Time

Payment Terms

T/T

Supply Ability

30 Sets/Month

110 Ton High Precision Pneumatic Power Press for Heavy Metal Stamping and Forming

Chat Now

ST-35V 35 Ton Long Stroke High Speed C Frame Pneumatic Punch Press for Precision Stamping

Chat Now

video

160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping

Chat Now

video

45 Ton C Frame Pneumatic Punch Press with JIS Class 1 Precision for Metal Stamping

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

160T Single Crank Punching Machine C Type Frame Hardware Blending Bending Stamping Press

Product Overview

The ST Series C-frame single crank pneumatic punch press features a wide open front side for easy feeding, mold changing, and automation integration. With a nominal punching force of 160 tons, this machine delivers maximum stamping pressure for metal forming, blanking, and bending operations.

Main Structure & Features

Integrated C-Frame Body: Constructed from thick steel plate with stress relief treatment for minimal deformation and stable stamping precision
Precision Slide Block: Features 6-sided hardened guide rails with minimal clearance for consistent part dimensions and reduced mold wear
Large Working Table: Includes central blanking hole for direct waste removal and clean production
Pneumatic Clutch & Brake System: Imported dry-type clutch supporting inch, single stroke, and continuous stroke modes
Digital Control Panel: User-friendly interface for adjusting stamping speed, die height, production counter, and working modes
Safety Light Curtain: Standard safety device that stops machine immediately when hands enter stamping zone
Hydraulic Overload Protection: Automatic pressure relief and emergency stop during overload conditions

Technical Specifications

Model	ST-160V	ST-160H
Impact Force Location	6mm	3mm
Slider Strokes Per Minute	20-50 SPM	40-70 SPM
Slider Stroke Length	200mm	90mm
Die Shut Height	460mm	510mm
Slider Adjustment Amount	100mm
Upper Platform Area	990×550×90mm
Lower Platform Area	1250×800×140mm
Shank Hole	Ø65
Main Motor Power	15×4kW×P
Slider Adjust Device	Manual Operation
Air Pressure	6kg/cm²
Punch Precision Level	JIS 1
Overall Dimension	2315×1400×3670mm

Applications & Industries

Ideal for medium and small metal hardware processing including blanking & piercing, bending, shallow drawing, trimming, embossing, and logo stamping. Widely used in door & window hardware, electronic terminals, automotive small parts, home appliance sheet metal, kitchenware, and communication accessories.

Key Advantages

Wide open C-shape design provides excellent space for automatic feeders, coil lines, and robot integration
Strong versatility - one machine completes multiple stamping processes
Easy mold changing and simple operation with lower maintenance costs
Stable long-term precision effectively reduces mold loss

Ideal Customers

Small & medium hardware factories with medium-size workpieces and flexible batches
Factories with frequent mold changes and multiple product types
Buyers planning to equip automatic coil feeding lines or pick-and-place robots
Manufacturers requiring high consistent part precision to reduce mold repairing

Warranty & Service

One year warranty for whole press machine
All spare parts available as most parts produced in our factory
International brand electrical components for easy replacement
Technical training and consulting via email, phone, or video
Engineer service, installation, or training available
English operation and maintenance manual provided
Certificate of conformity included with press

Company Profile

Dongguan Qiaosen Machinery Co., Ltd., established in 2016, operates its own factory in Jiangsu province near Shanghai. The company specializes in hydraulic press machine production with ISO9001:2008 certification. Product range includes 10 to 2000 ton press machines across 8 series and over 100 types, serving aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries worldwide.

Certifications

Packing & Delivery

Frequently Asked Questions

Who are we? Our factory is located in Wuxi, China with a branch in Dongguan, established in 2016, exporting to Southeast Asia, Mid East, Africa, and Europe.

Why select us? We are high-end quality punching machine manufacturers committed to customer satisfaction.

Delivery time? Typically 25-40 working days after receiving advance payment.

After-sale service? Our technical and quality team provides continuous support.

Custom colors? Yes, we can customize machine colors to match your production line.

Language options? Touch screen languages can be customized to Spanish, French, and others.
