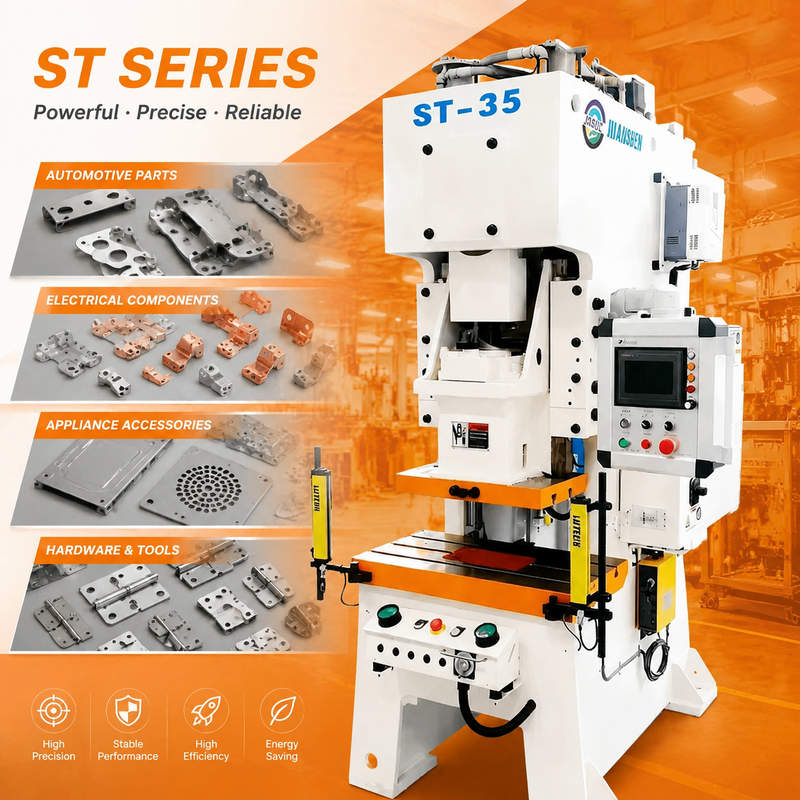

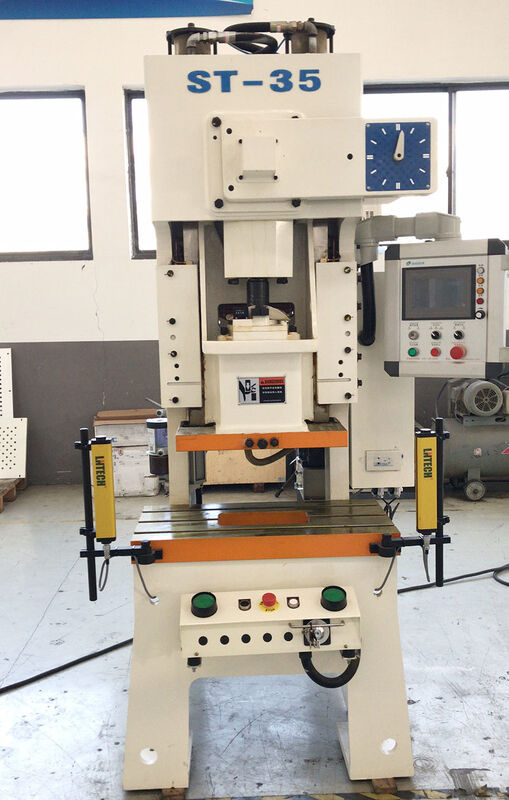

Heavy Duty C Frame Punch Press Industrial Pneumatic Power Press High Precision Metal Stamping Forming Machinery
What is a Power Press?
A power press is a professional metal working machine that utilizes strong mechanical force to cut, bend, shape, and stamp metal sheets into various metal parts. This equipment replaces manual labor, making metal processing faster and more standardized.
Main Application Industries
This machine is widely used across multiple manufacturing sectors:
- Electronic Products: Small metal components for phones, home appliances, and circuit components
- Hardware Products: Daily hardware items, fasteners, metal brackets, and accessories
- Automobile Industry: Various automotive metal parts and interior components
- Kitchen & Daily Goods: Metal shells and structural parts for everyday necessities
Key Advantages
High Efficiency: Operates continuously for extended periods, significantly increasing production volume and reducing working time.
Stable & Accurate: Produces consistent metal parts with identical size and shape, ideal for mass production requirements.
Durable Construction: Reinforced machine frame designed to resist deformation even after years of intensive use.
Easy Operation: Simple control panel enables quick learning and efficient operation by workers.
Energy Saving: Low power consumption helps minimize production costs.
High Safety: Equipped with multiple safety devices to protect both operators and machinery.
Standard Equipment & Main Components
- Main Frame: High-strength welded steel body for solid and stable operation
- Sliding Block & Guide Rails: Ensure precise up and down movement
- Crankshaft & Drive Parts: Core driving components built for strength and wear resistance
- Hydraulic Overload Protector: Automatically stops machine during overload conditions to protect molds and equipment
- Light Curtain Safety Guard: Prevents accidental injury during operation
- Pneumatic Brake System: Provides flexible control for machine start and stop functions
- Control Panel: User-friendly buttons and switches for easy operation
- Air Filter, Pressure Regulator & Oiler: Maintains smooth operation of pneumatic system
Optional Accessories
- Automatic feeding machine
- Material straightener
- Various types of stamping molds
- Frequency converter for speed adjustment
Technical Specifications
| Product Name |
Punching Machine |
| Model |
ST-35V |
| Impact Force Location |
3.2mm |
| Slider Strokes Per Minute |
40-120 SPM |
| Slider Stroke Length |
70mm |
| Die Shut Height |
220mm |
| Slider Adjustment Amount |
55mm |
| Upper Platform Area |
520×250×50mm |
| Lower Platform Area |
800×400×70mm |
| Shank Hole |
Ø38.1 |
| Main Motor Power |
3.7×4kW×P |
| Slider Adjustment Device |
Manual Operation |
| Air Pressure |
6kg/cm² |
| Punch Precision Level |
JIS 1 |
| Overall Dimensions |
1280×900×2200mm |
Key Features & Benefits
- High-strength fuselage structure with minimal deformation and high precision
- OMPI pneumatic dry clutch brake system
- Slider with 2-corner and 6-sided guides for enhanced stability
- High-frequency quenched and rail-ground slider guides for reduced wear and extended service life
- Crankshaft made of high-strength 42CrMo alloy (1.3x stronger than standard 45 steel)
- Tin phosphor bronze ZQSn10-1 copper sleeve (1.5x stronger than standard BC6 brass)
- Highly sensitive hydraulic overload protection to safeguard press and die longevity
- Optional air cushion mat available
Product Configuration
Company Profile
Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.
We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Our equipment serves aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries.
Our products are recognized for exquisite design, competitive pricing, excellent quality, and efficient after-sales service with technical support. We serve over 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, Middle East, and other countries.
Warranty and Service
- One year warranty for entire press machine
- All spare parts available as most components are produced in our factory
- Easy access to electric parts as all are international famous brands
- Technical training and consulting provided via email, phone, or video
- Engineers available for service, installation, or training with reasonable additional cost
- English operation and maintenance manual provided with the press
- Certificate of conformity included with press delivery
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French etc.
