Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE\ISO
Model Number:
STC-110
QIAOSEN STC series is an open double-point precision punch press. The number after the model stands for stamping tonnage - STC-110 delivers 110 tons of pressing force.
This machine uses powerful pressure to process metal sheets, cutting, bending and pressing flat steel plates into various hardware parts. Widely adopted by factories producing home appliances, auto parts, electronics and kitchenware.
Two driving shafts inside the machine press down synchronously from two force points:
Suitable for: Auto parts manufacturers, home appliance sheet metal plants, electronic component factories, daily hardware workshops, kitchenware processing factories, electrical cabinet workshops.

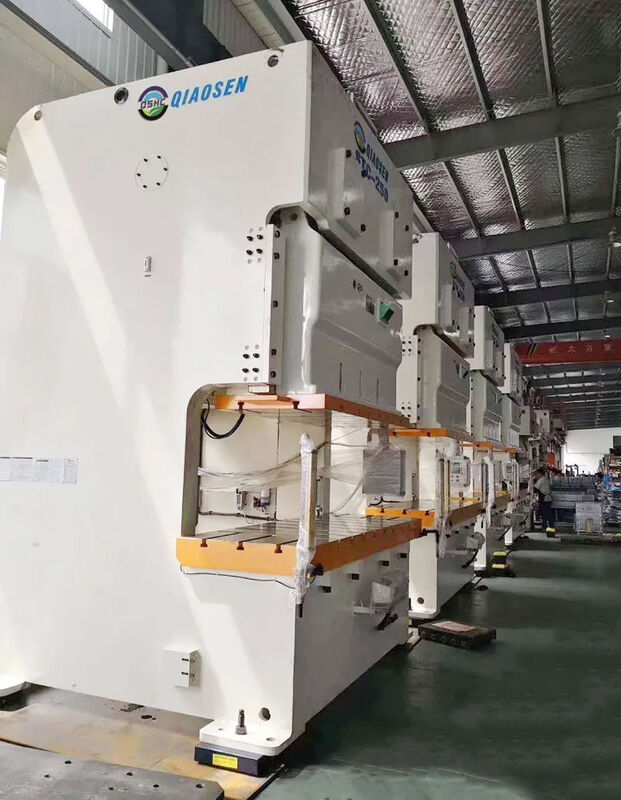

One-piece heavy cast iron frame with sufficient self-weight and high rigidity. Advantages: No shaking or deformation during high-speed stamping. Consistent workpiece dimensions after years of production, service life over 10 years with regular maintenance.
Built-in high-power motor and high-precision transmission structure, delivering stable pressing force with adjustable stamping speed. Supports 24-hour non-stop mass production to fulfill urgent orders.
Ample worktable space to install large stamping molds. Multiple fixing slots reserved on the surface for fast mold disassembly and replacement, saving mold change and debugging time.
Standard safety light curtain. The machine stops automatically once hands or tools enter the stamping zone, completely avoiding stamping injuries. Safe for new operators.
All circuits are protected inside the cabinet with clearly labeled operation buttons. Stamping mode, speed and stroke can be adjusted with one click. Stable circuit system with low failure rate, easy circuit inspection and maintenance.
Equipped with emergency stop buttons and overload protection. The machine will release pressure and halt automatically when encountering hard materials or stuck molds, preventing mold and machine damage and cutting maintenance costs.
| Item | Unit | STC-110H |
|---|---|---|
| Punching Capability | ton | 110 |
| Impact Force Location | mm | 3 |
| Slider Strokes Per Minute | SPM | 50-100 |
| Slider Length | mm | 110 |
| Max Die Shut Height | mm | 435 |
| Slider Adjustment Amount | mm | 100 |
| Main Motor Power | kw*p | 11*4 |
| Air Pressure | kg/cm² | 5 |
| Punch Accuracy Grade | JIS 1 | |
| Platform to Floor Distance | mm | 830 |
| Overall Dimension | mm | 1745×2000×3059 |
| Punch Weight | ton | 14.2 |
Our factory is located in Wuxi, China with a branch in Dongguan, established in 2016. We export to Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our team consists of 51-100 professionals.
We are a high-end quality punching machine manufacturer committed to customer satisfaction.
Typically 25-40 working days after receiving advance payment.
Our technical and quality team provides continuous support as needed.
Yes, we can customize colors to match your production line requirements.
Yes, we can configure the interface in languages such as Spanish, French, and others according to your requirements.
