Name: 200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: STC-200
Price: 5.00 USD
Availability: InStock

Home > Products > Press Punching Machine >

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE\ISO

Model Number:

STC-200

Chat Now

Request A Quote

Product Details

Motor Hp:

2HP

Die Type:

Standard/customized

Punching Diameter Range:

5-100 Mm

Maximum Punching Force:

100-1000 Tons

Roller Arrangement:

Up 7/down 8

Use:

Sheet

Rating Point:

7mm

Power Source:

Pneumatic

Die Set Compatibility:

Standard And Custom Dies

Punching Force:

10-300 Tons

Punching Capacity:

200ton For Automatic Punching Machine

Weight:

2000-8000 Kg

Stroke Length:

300

Punch Weight:

14.2 Tons For Punch Press

Frame Material:

High-strength Steel

Payment & Shipping Terms

Minimum Order Quantity

Price

$65,716/cases 1-9 cases

Packaging Details

WOODEN BOX

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

100SET per month

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now

video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Industrial Grade Press Punching Machine

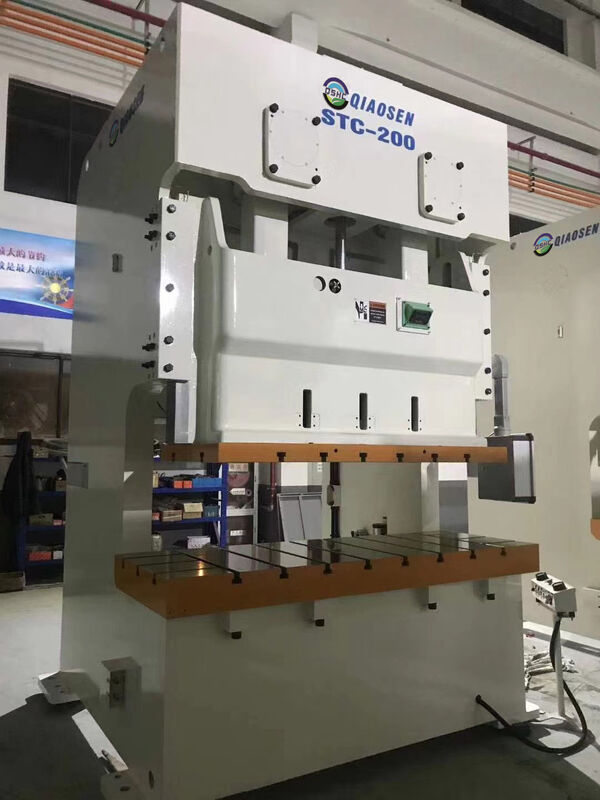

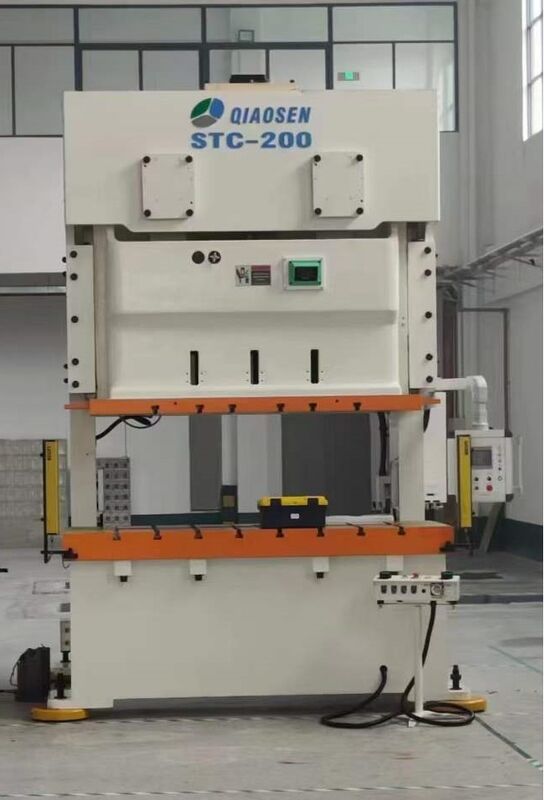

Qiaosen STC‑200 is a 200‑ton heavy‑duty two‑point power press, designed for stamping large‑size and thick‑sheet metal parts. Two‑point driving ensures stable performance without deflection. With an extra‑wide worktable, it is ideal for mass production of auto parts, home appliance shells and large sheet‑metal components.

Applications

This 200‑ton open‑back two‑point pneumatic power press features larger tonnage, higher stability and longer worktable compared with single‑point presses. Widely used in mass processing of auto spare parts, home appliance sheet‑metal parts, large brackets, thick‑plate hardware, blanking, bending and deep drawing.

Core Advantages

Two‑Point Driving for Stable Stamping: Dual crankshafts drive the slide synchronously, with even force distribution. No deflection during stamping, less mould wear and stable product dimensions.
Thick Cast‑Iron Frame, Long‑Lasting & Stable: High‑strength integrated cast‑iron frame with strong rigidity and vibration resistance. Precision remains consistent even after long‑term thick‑sheet stamping.
Extra‑Large Worktable for Large Moulds: Spacious worktable supports long moulds and multi‑station progressive moulds, perfect for automated production lines.
Smart & Easy Operation: Controlled by PLC & touch screen, supports inching, single stroke and continuous stroke modes. Easy to connect with feeders and levelers for fully‑auto working.
Multi‑Safety Protection: Equipped with dual‑hand buttons, light curtain protection, emergency stop and overload protection. Automatically stops when operators approach to ensure safety.

Technical Specifications

Nominal Capacity	200 Ton
Slide Stroke	160 mm
Strokes per Minute	25–55 SPM (adjustable)
Max. Die Height	450 mm
Worktable Size	2400 × 840 mm
Machine Weight	Approx. 30.5 Ton
Precision Standard	JIS Grade‑1 Precision

Suitable Industries

Auto spare parts, home appliance shells, large hardware components, construction machinery parts, thick‑sheet metal stamping factories.

Manufacturer Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.

We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines.

Warranty and Service

One-year warranty for the complete press machine
All spare parts available as most components are produced in-house
Easy access to electrical parts from international famous brands
Technical training and consulting via email, phone, or video
Engineer dispatch for service, installation, or training with reasonable additional cost
English operation and maintenance manual provided with press
Certificate of conformity included with press delivery

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, operating since 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our office employs 51-100 people.

Why select us?

We are a high-end quality punching machine manufacturer committed to customer satisfaction with our brand.

How about your delivery time?

Typically 25 to 40 working days after receiving advance payment.

Do you provide after-sale service?

Our technical and quality team provides continuous support whenever needed.

Can I do different color machine?

Yes, we can customize colors to match your production line requirements.

Can the touch screen board language change to others?

Yes, we can customize languages including Spanish, French, and others according to your requirements.
