Name: NC Servo Roller Feeder with High Precision Feeding (±0.1mm), Japan Yaskawa Servo Control, and Wide Material Compatibility (0.1-3.2mm)
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: NC-800
Price: 2.00 USD
Availability: InStock

Home > Products > Servo Feeder >

NC Servo Roller Feeder with High Precision Feeding (±0.1mm), Japan Yaskawa Servo Control, and Wide Material Compatibility (0.1-3.2mm)

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE\ISO

Model Number:

NC-800

Chat Now

Request A Quote

Product Details

Item Name:

Roll Feeder Nc

Dimensions:

Customizable Based On Model

Pass Line Adjustment:

50mm

Width Of Material:

200-1300mm

Material Width Range:

70-800mm

Feeding Length:

0.01-9999.99mm For Servo Roll Feeder

Warranty:

1 Year

Automation Level:

Manual/Semi-automatic/Automatic

Feeding Capacity:

400WX2.0T/ 80WX3.2T

Selling Point:

Easy To Operate

Stroke Length:

300

Feeding Speed:

Adjustable, Up To 120 Strokes Per Minute

Application:

Automated Assembly, Packaging, Stamping, And Manufacturing Processes

Drivetype:

Servo Motor

Controlmethod:

Programmable Controller

Payment & Shipping Terms

Minimum Order Quantity

Price

$4,879/cases 1cases

Packaging Details

WOODEN BOX

Delivery Time

15-25

Payment Terms

T/T

Supply Ability

100SET per month

NC Servo Roller Feeder with High Precision Feeding (±0.1mm), Japan Yaskawa Servo Control, and Wide Material Compatibility (0.1-3.2mm)

Chat Now

Automatic NC Servo Roller Feeder with High Precision (±0.01mm) and Japan Yaskawa Servo System for 16m/min Metal Coil Feeding

Chat Now

Automatic Adjustable Double-Sided Oil Coating Machine for Stamping Oil Feeder and Wool Roller Lubricator

Chat Now

video

Automatic NC Zigzag Servo Feeder Machine for Metal Sheet Circle Blanking Stamping Line

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

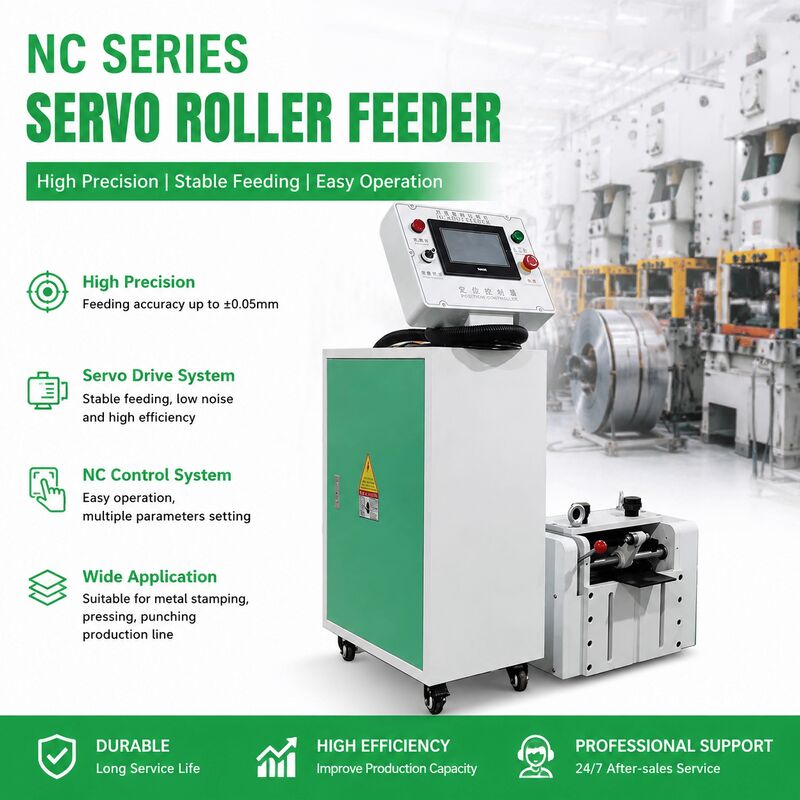

NC Series Customized Parameter Servo Roller Feeder

Product Overview

QIAOSEN NCF series NC servo feeder is a high precision independent roller type servo feeder for metal coil stamping. Equipped with Japan Yaskawa servo system, 7-inch touch screen, pneumatic relaxation device and hard chrome plated feeding rollers. Provides accurate feeding (±0.1mm) and high speed (16m/min), compatible with all QIAOSEN press series (ST/STB/STD).

Application Industries

Electronic: Terminal, connector, shrapnel, LED bracket
Home appliance: Small hardware, heat sink, electrical accessories
Automotive: Medium & small precision stamping parts, progressive die mass production

Core Features

Japan Yaskawa Servo Control System - Closed-loop control, fast response and high positioning accuracy with 20 groups of multi-stage programming

High Rigidity Hard Chrome Plated Rollers - HRC60° hard chrome plating, wear-resistant, scratch-proof with pneumatic relaxation device

High Feeding Precision & Speed - Accuracy: ±0.1mm (≤700mm), ±0.2mm (>700mm); Max speed: 16m/min

Wide Material Compatibility - Suitable for cold rolled steel, galvanized steel, stainless steel, aluminum, copper coil (0.1-3.2mm thickness)

User-Friendly Operation - One-touch setting on touch screen with inching/single/continuous mode support

Operation Procedure

In manual mode, the operator feeds the tape into the machine using a switch that controls two pneumatic clamping cylinders and the feed motor.
Next, a control run is performed to reset the encoder value.
The operator sets the length and number of workpieces to be cut.
Presses "automatic start" to activate the automatic mode, and the machine starts working according to the entered data.
After cutting the last workpieces, the machine stops and switches to manual mode, then the operator can enter new order data or repeat the previous one.

Technical Specifications

Item	Unit	NCF-200	NCF-300	NCF-400	NCF-500	NCF-600	NCF-800
Material Width	mm	200	300	400	500	600	800
Material Thickness	mm	0.1-2.5	0.1-2.5	0.1-3.0	0.1-3.0	0.1-3.2	0.1-3.2
Feeding Length	mm	0.1-9999.99
Feeding Precision	mm	±0.1/±0.2
Max Feeding Speed	m/min	16
Motor Power	kW	1.5	1.5	2.2	2.2	3.0	3.0
Air Pressure	MPa	0.6
Control System	-	Yaskawa Servo + PLC + Touch Screen

Additional Specifications

No	Item	Data
1	Width of material	AC380V/3phase
2	Thickness of material	MAX3.2
3	Feeding Capacity	300W2.3T, 803.2T
4	Feeding length	0.01-9999.99
5	Roll pressure	Spring type
6	Releasing system	Pneumatic type
7	Pass line adjustment	50mm

Standard Configuration

NCF main frame with heavy duty steel structure
Japan Yaskawa servo motor & driver
PLC + 7-inch color touch screen
Pneumatic relaxation device
Hard chrome plated feeding rollers
Independent electric control box
Emergency stop button & safety protection

Optional Accessories

Hydraulic relaxation device
Coil guiding device
Material straightening mechanism
Customized roller surface (non-slip, oiling)

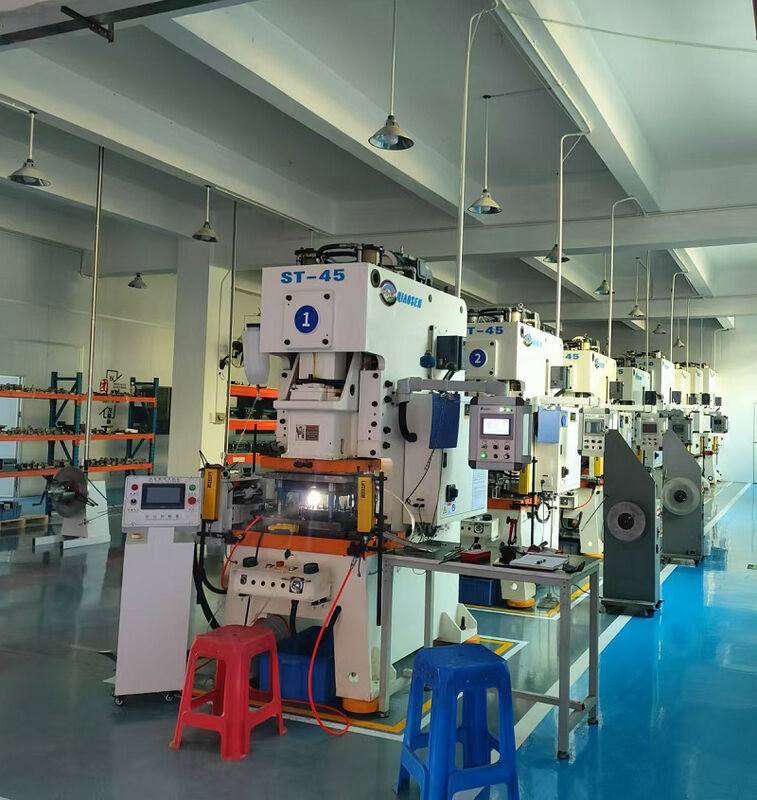

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, with our own factory located in Jiangsu province, was established in 2016. Conveniently located close to Shanghai city with excellent transportation access. Our factory was among the first to pass authentication of the ISO9001:2008 quality management system. We specialize in the production of hydraulic press machines, offering products from 10 tons to 2000 tons with 8 series and over 100 types.

Warranty & Service

One year warranty for whole press machine
All spare parts available as most parts produced by our factory
Easy access to electric parts as all are international famous brands
Technical training and consulting via email, phone or video
Engineer dispatch for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity included with press

Frequently Asked Questions

Are you the manufacturer? Can we visit your factory?

We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.

What are your main products and main foreign markets?

Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.

What are the advantages of your machines and how can I trust the quality?

Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.

Will you update production process information after placing an order?

After order confirmation, we provide regular updates on production details via email and photos.

Can we be your agent?

Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.

What are your payment terms?

We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.

How long is your warranty?

We offer 12 months free warranty with lifelong maintenance support.

Do you accept customer logos and customization?

Yes, we accept various customizations including logos and machine modifications according to customer requirements.
