Name: High Precision Feeding Pneumatic Punching Press for 3.2mm Thickness Metal Stamping Equipment
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: NC-200
Price: 2600 USD
Availability: InStock

Home > Products > Servo Feeder >

High Precision Feeding Pneumatic Punching Press for 3.2mm Thickness Metal Stamping Equipment

Place of Origin:

China

Brand Name:

QIAOSEN

Model Number:

NC-200

Chat Now

Request A Quote

Product Details

Warranty:

1 Year

Roll Pressure:

Spring Type

Feeding Length(mm):

0.01-9999.99

Feeding Capacity:

200WX2.3T 80WX3.2T-1300WX1.2T 110WX3.2T

Thickness Of Material(mm):

MAX.3.2

Width Of Material(mm):

200-1300

Releasing System:

Pneumatic Type

Pass Line Adjust (mm):

+50mm

Power Supply:

AC 380V/3 Phase

Payment & Shipping Terms

Minimum Order Quantity

Price

$2600/piece

Packaging Details

Standard

Delivery Time

7-10

Payment Terms

T/T

Supply Ability

30 Sets/Month

High Precision Servo Feeder for Metal Stamping Lines

Chat Now

video

High Precision Double-Sided Oil Coating Machine for Automatic Anti-Rust Lubrication on Metal Strips

Chat Now

High Precision NC Servo Roller Feeder Machine with Pneumatic Release for MAX 3.2mm Thickness Metal Strips

Chat Now

Automatic Adjustable Double-Sided Oil Coating Machine for Stamping Oil Feeder and Wool Roller Lubricator

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

High Precision Feeding Pneumatic Punching Press For Metal Stamping

High precision servo feeders for metal stamping production lines. Suitable for coil feeding, progressive dies, and automatic press systems.

A servo feeder is an automatic feeding system designed to deliver sheet metal or coil material into a power press with exceptional accuracy. Driven by a servo motor and controlled through a PLC system, servo feeders provide precise feeding length, stable operation, and high production efficiency. They are widely used in automotive parts manufacturing, home appliance production, electronic components, hardware stamping, and other precision metal processing industries.

Key Features

High feeding accuracy up to ±0.02 mm
Servo motor drive for smooth and stable feeding
User-friendly touchscreen control
Multiple feeding programs for different production requirements
Compatible with mechanical presses, pneumatic presses, and hydraulic presses
Suitable for aluminum, stainless steel, copper, galvanized steel, and other metal coils
Low maintenance and long service life
Easy integration with decoilers and straighteners

Applications

Automotive parts
Electrical components
Household appliance manufacturing
Metal furniture
Hardware products
Electronics industry
Progressive die stamping
Precision metal stamping

Advantages

Improve stamping accuracy
Reduce material waste
Increase production efficiency
Easy operation and quick parameter adjustment
Suitable for high-speed production lines
Reliable performance with low operating cost

Detailed Features

Feeds material for various thicknesses and feeding stroke lengths
Suits high-speed feeding and long stroke length feeding to improve production capacity and precision
User-friendly operation panel for free input of feeding length (0.01mm-9999.99mm) and feeding speed
Pneumatic cylinder releasing method ensures reliable operation without malfunction
Optional mechanical releasing method available per customer requirements
High precision feeding: ±0.02mm
Supports 5 sets of different feeding lengths with up to 999 strokes per length
Normal manual running mode with manual speed for easy feeding of steel material to stamping mold
Effective releasing device for rollers based on press machine's cam position electronic signal and material thickness
Touch screen input for feeding length numbers
Hollow feeding roller with HRC60 surface hardness and chrome plating

Structural Design

High-quality servo motor for efficient feeding testing time reduction
High-sensitivity encoder ensures feedback and improves feeding precision
Quality belt system eliminates gear gap, prevents gear abrasion, operates quietly without lubrication
Internally mounted motor design protects against potential damage

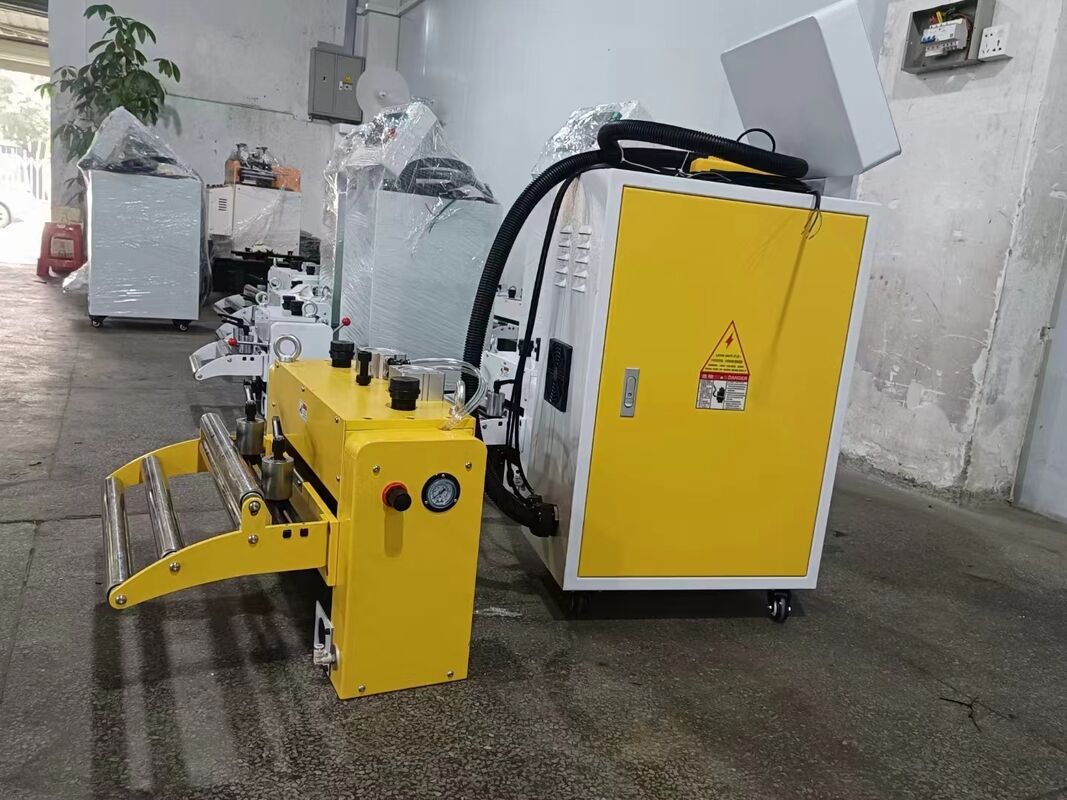

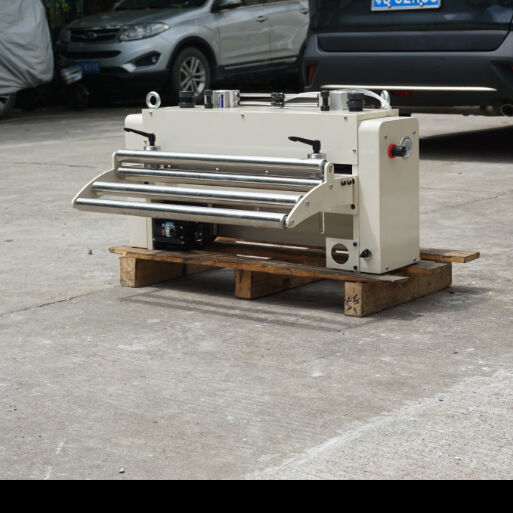

Product Images
