High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping

High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping

Place of Origin:

CHINA

Brand Name:

qiaosen

Certification:

CE/ISO14001

Document:

NC-200C.pdf

Chat Now
Request A Quote
High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping
Product Details
Widthof Material:
200mm
Thickness Of Material:
0.2-3.0mm
Feeding Length:
0.01-9999.99mm
Releasing System:
Pneumatic Release Or Mechanical Release
Payment & Shipping Terms
Minimum Order Quantity
1
Price
1960
Payment Terms
T/T
Supply Ability
1set 7days
RELATED PRODUCTS
Good price High Precision NC Servo Roll Feeder CNC Feeding Machine with ±0.01 mm Accuracy for Easy To Operate Metal Coil Strip Feeding online

High Precision NC Servo Roll Feeder CNC Feeding Machine with ±0.01 mm Accuracy for Easy To Operate Metal Coil Strip Feeding

Chat Now
Good price Automatic NC Zigzag Servo Feeder Machine for Metal Sheet Circle Blanking Stamping Line online video

Automatic NC Zigzag Servo Feeder Machine for Metal Sheet Circle Blanking Stamping Line

Chat Now
Good price High Precision NC Servo Roller Feeder For Metal Stamping Press Automatic Coil Strip Feeding Machine online

High Precision NC Servo Roller Feeder For Metal Stamping Press Automatic Coil Strip Feeding Machine

Chat Now
Good price NC Servo Roller Feeder with High Precision Feeding (±0.1mm), Japan Yaskawa Servo Control, and Wide Material Compatibility (0.1-3.2mm) online

NC Servo Roller Feeder with High Precision Feeding (±0.1mm), Japan Yaskawa Servo Control, and Wide Material Compatibility (0.1-3.2mm)

Chat Now
CONTACT US
+8618103082715
titi@qiaosenmachinery.com
86-0769-26626853
Chat Now
Product Description
High Precision NC Servo Levelling Feeder for Medium Thin Metal Sheet Stamping

NC Servo Feeder for Stamping Production Line - Automatic Metal Sheet Feeding Machine

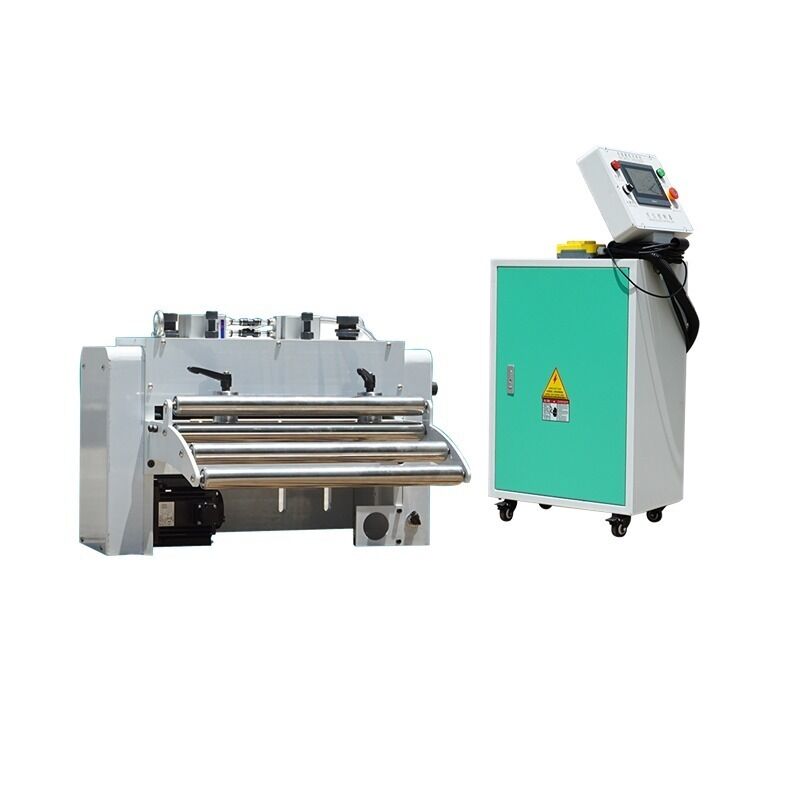

High Precision NC Servo Levelling Feeder overview
Technical Specifications
Specification Details
Material Thickness Range 0.2-3.0mm (thin-to-medium gauge metal sheets)
Material Width 0-600mm (Optional: 300/400mm)
Feeding Length 0.01-9999.99mm
Feeding Accuracy ±0.15mm/m (High-precision model: ±0.03mm)
Feeding Speed Up to 16m/min
Drive Motor Yaskawa (Japan) servo motor; Power: 3.8kW
Bearing Configuration NSK high-precision bearings (servo-motor specific)
Control System Mitsubishi PLC + Touchscreen; supports 20-stage feeding programs
Release Method Pneumatic (0.6MPa)
Power Supply AC380V/50Hz, 3-phase 4-wire
Key Features
  • Core feeding equipment for automatic stamping production lines
  • Perfectly matches uncoiler & straightener and punch press
  • Advanced NC servo control system for high-precision feeding
  • ±0.03mm feeding accuracy to reduce scrap rate
  • Durable motor bearings and anti-slip feeding rollers
  • Smooth operation during 24-hour continuous operation
  • User-friendly touch screen for easy parameter setting
  • Multi-program storage for frequent production changes
  • Widely used in metal stamping, automotive parts, home appliance and electronics industries
  • Improves stamping line efficiency and safety
Factory Photos

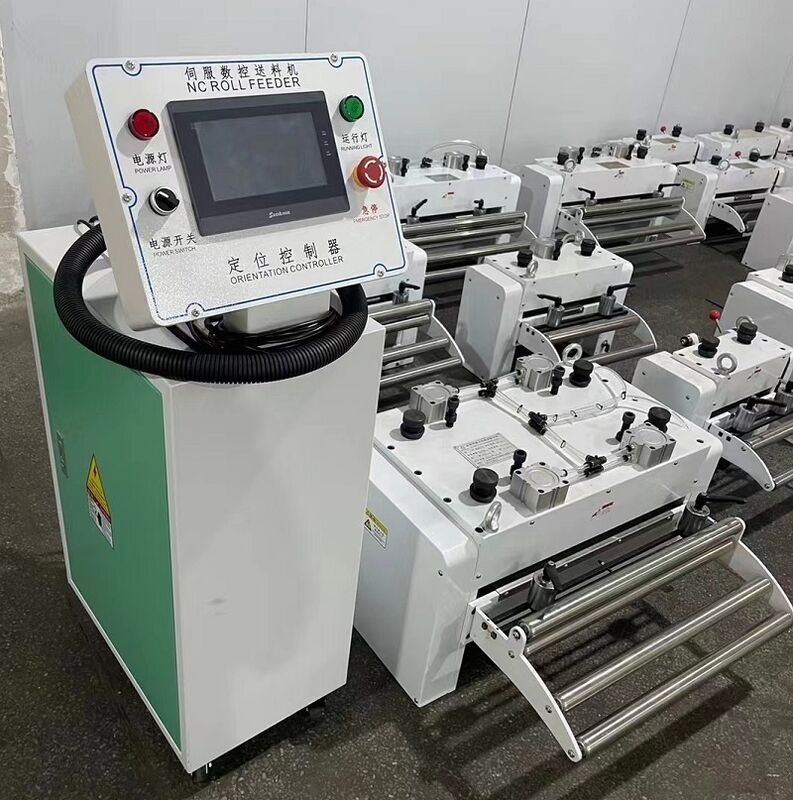

NC Servo Feeder factory installation view
NC Servo Feeder close-up detail
NC Servo Feeder operational view

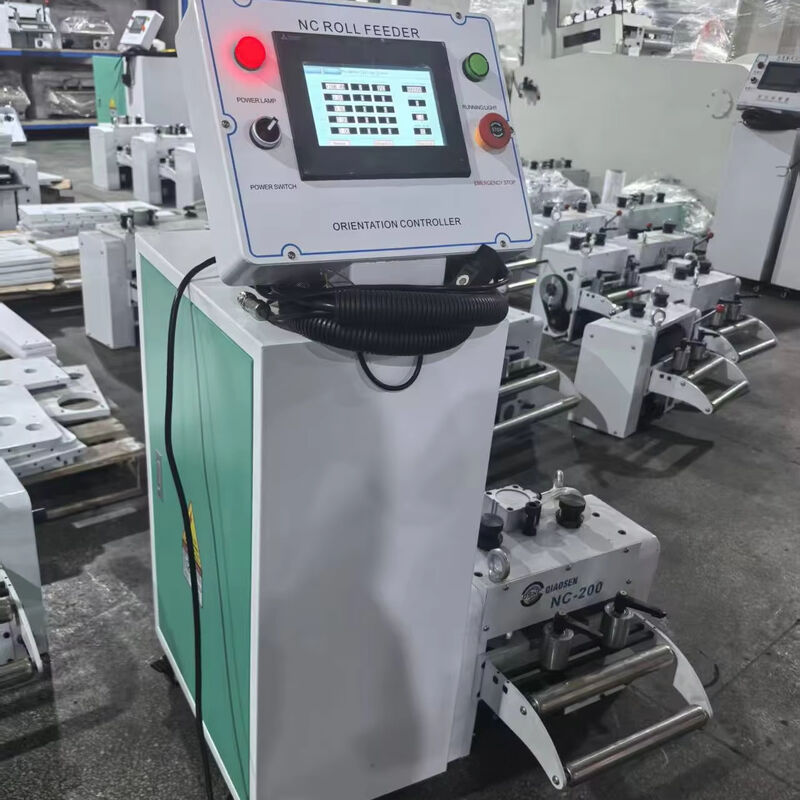

NC Servo Feeder control panel
Packaging
NC Servo Feeder packaging overview
NC Servo Feeder secure packaging
NC Servo Feeder packaging specifications
Required Information for Model Recommendation

We need the following information to recommend the right model:

  • Material type (cold-rolled steel, aluminum, copper, galvanized sheet, etc.)
  • Material thickness (mm) and maximum width (mm)
  • Required feeding length, accuracy, and production speed
  • Punch press specifications (model, tonnage, control type)
  • Power supply standard in your country (voltage & frequency)
  • Order quantity and target delivery time
What You'll Receive After Submission
  • Detailed technical specifications
  • Tailored quotation with price & payment terms
  • 3D drawings or installation diagram
  • Lead time and shipping information
