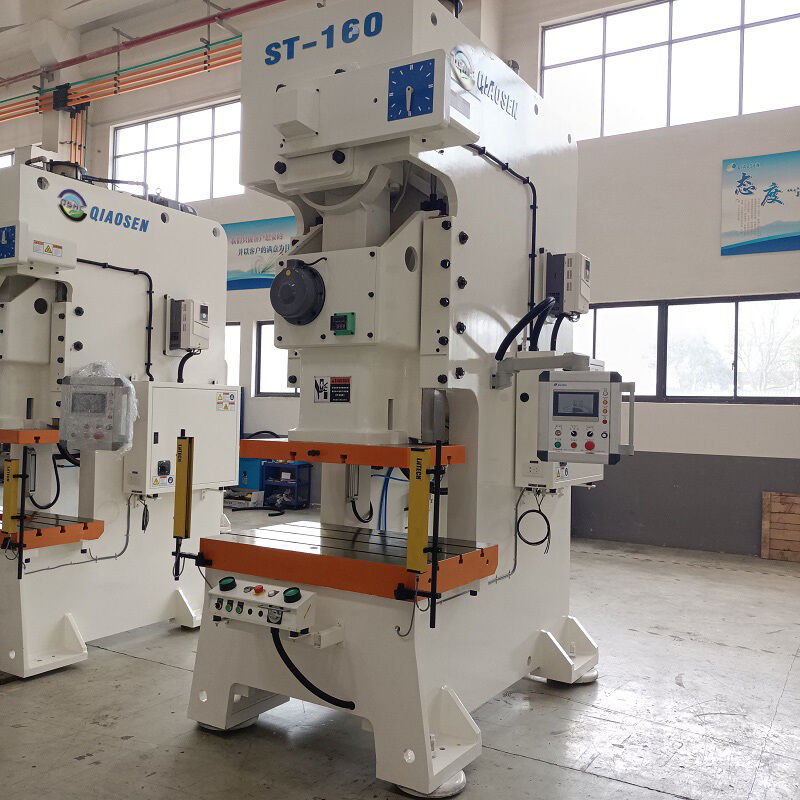

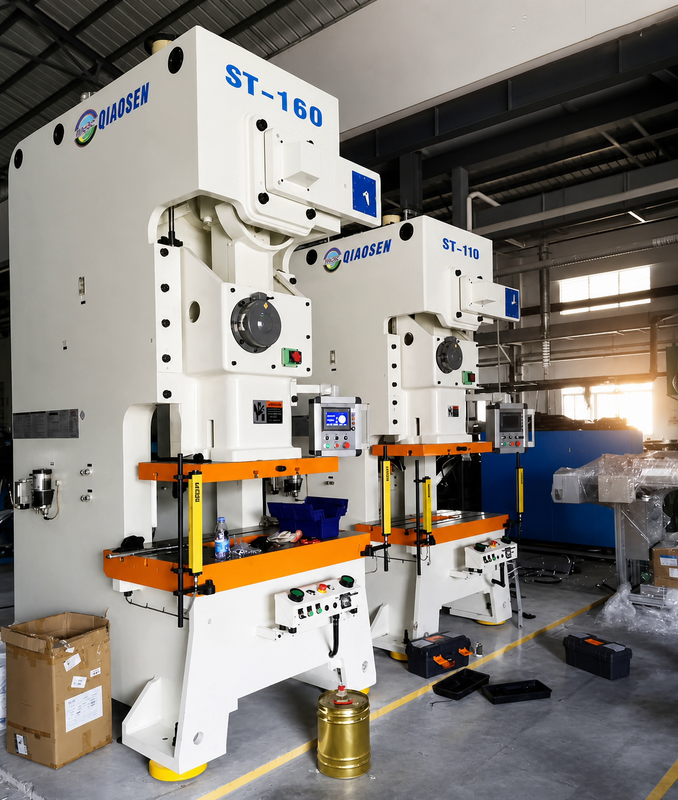

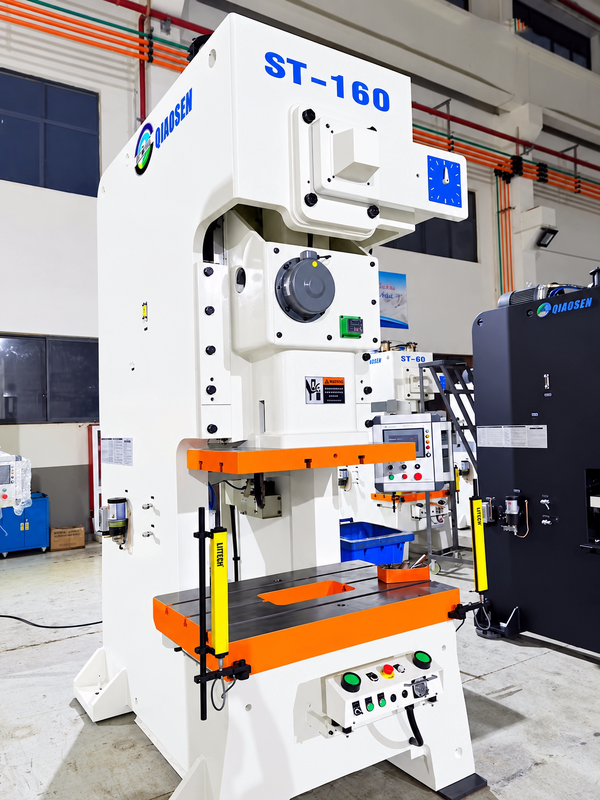

160 Ton C Frame Punch Press with JIS Class 1 Precision and Hydraulic Overload Protection for Metal Stamping

160 Ton C Frame Punch Press with JIS Class 1 Precision and Hydraulic Overload Protection for Metal Stamping

160 Ton C Frame Punch Press

JIS Class 1 Precision Power Press

Hydraulic Overload Protection Metal Stamping Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-160V

Chat Now
Request A Quote
Product Details
Machine Type:
Pneumatic
Voltage:
380V
Dimension(l*w*h):
2315*1400*3670mm
Motor Power (kw):
15
Weight (t):
16
Warranty:
1 Year
Slider Adjustment Amount:
200mm
Up Platform Area:
990*550*90mm
Down Platform Area:
1200*800*140mm
Highlight:

160 Ton C Frame Punch Press

,

JIS Class 1 Precision Power Press

,

Hydraulic Overload Protection Metal Stamping Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$36,000/case
Packaging Details
Standard
Delivery Time
30
Payment Terms
T/T
Supply Ability
30 Sets/Month
Product Description
160 Ton C Frame Single Point Precision Power Press For Metal Sheet Punching Bending And Shallow Drawing
Product Introduction
ST-160 C Frame Precision Power Press

ST-160 is Qiaosen 160 ton C frame single point precision power press. It adopts one-piece cast frame with high rigidity. The slide uses six-side guide structure and meets JIS class 1 precision standard. It is widely used for metal sheet punching, bending, forming and shallow drawing. It can match with uncoiler, straightener and servo feeder to build fully automatic stamping line. Suitable for automotive hardware, home appliance parts, new energy sheet metal and electronic metal components.

Core Advantages
One-piece cast frame, strong anti-vibration performance, less deformation during long-time mass production
Six-side slide guide design, small running clearance to guarantee high stamping precision and longer mould life
Hydraulic overload protection device, release pressure automatically to protect machine and mould under overload
Simple operation and convenient die adjustment, user-friendly control panel for operators
Reserved interface for automatic feeding machines, realize continuous stamping and reduce labor cost
Technical Specifications
Item Unit ST-160 V Type ST-160 H Type
Punching capability ton 160
Impact force location mm 6 3
Slider strokes per minute SPM 20-50 40-70
Slider length mm 200 90
Max die shut height mm 460 510
Slider adjustment amount mm 110
Up platform area mm 990×550×90
Down platform area mm 1250×800×140
Shank hole mm Ø65
Main motor power kw×p 15×4
Air pressure kg/cm² 6
Punch accuracy grade JIS 1
Slider adjustment device Electric operation
Slider center to machine distance mm 405
Platform to floor distance mm 900
Punch weight ton 16
Punch dimension (L×W×H) mm 2315×1400×3670
Die cushion capacity ton 10
Stroke mm 80
Active area mm² 650×420
Application Industries

Automotive Hardware, Home Appliance Parts, New Energy Sheet Metal, Electronic Metal Parts, Kitchen Hardware, Construction Hardware Stamping

Matching Equipment

Can match with uncoiler, 2-in-1 straightener feeder, servo feeder and stamping mould, provide complete automatic stamping line solution.

Warranty and Service
  • One year warranty for the complete press machine
  • All spare parts available with most components produced in-house
  • Easy access to electrical parts using international famous brands
  • Technical training and consulting via email, phone, or video
  • Engineer dispatch available for service, installation, or training at reasonable additional cost
  • English operation and maintenance manual provided with the press
  • Certificate of conformity included with press delivery
Company Profile

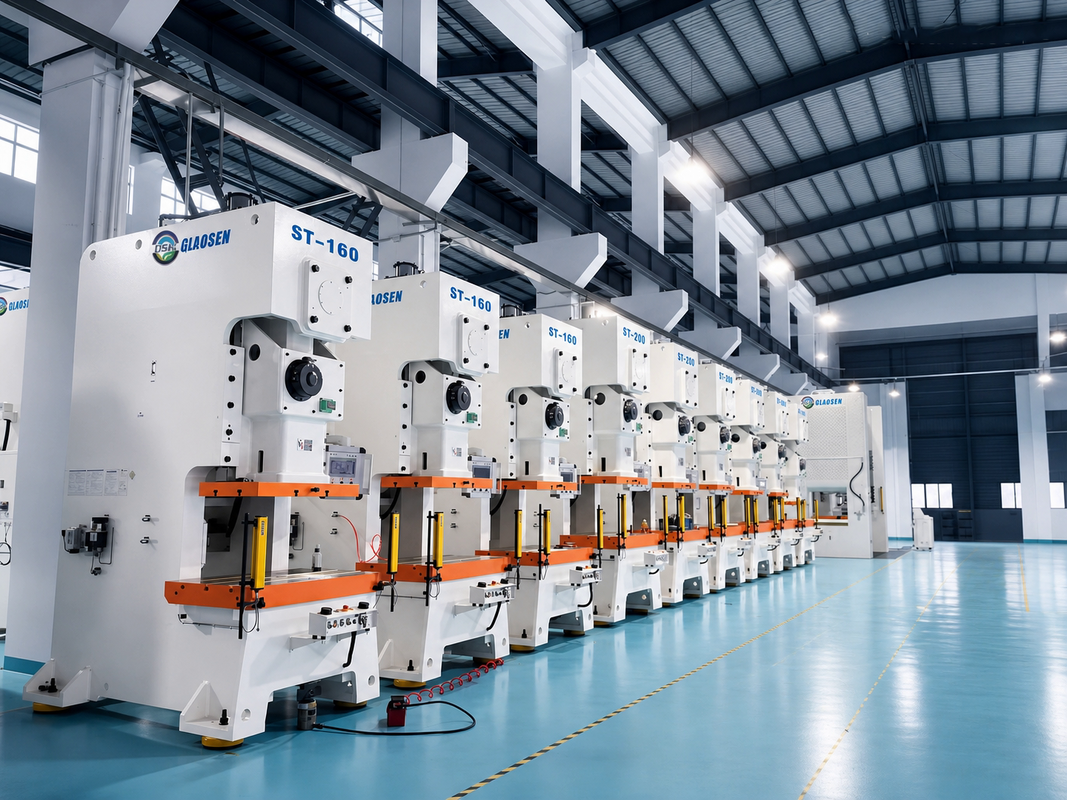

Qiaosen Manufacturing Facility Qiaosen Production Line Qiaosen Quality Control
Frequently Asked Questions
Q: What thickness of metal sheet can ST-160 process?
A: It depends on material and mould. Normally for cold rolled sheet within 6mm. We can evaluate based on your product.
Q: Can this power press connect with automatic feeding machines?
A: Yes. The machine reserves standard interface for servo feeder, uncoiler and straightener to build full auto stamping line.
Q: What is the machine precision? Is it suitable for mass continuous production?
A: JIS class 1 precision. High rigid frame, stable for long time mass stamping production.
Q: What is your lead time?
A: Standard production lead time 30-45 days. Final schedule depends on order plan.
Q: Do you offer installation and operator training?
A: Yes. We provide on-site installation, commissioning and operation training.
Q: What are wearing parts? Is spare parts easy to get?
A: Wearing parts include clutch parts, oil seal, buffer parts. Original spare parts are available all the time.
Q: Can ST-160 make shallow drawing parts?
A: Yes, suitable for sheet shallow drawing, bending and punching. Not suggested for deep drawing.
Q: What is the warranty period?
A: 1 year warranty for whole machine. Consumable wear parts are excluded. Lifetime technical support.
