Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:
ST-45

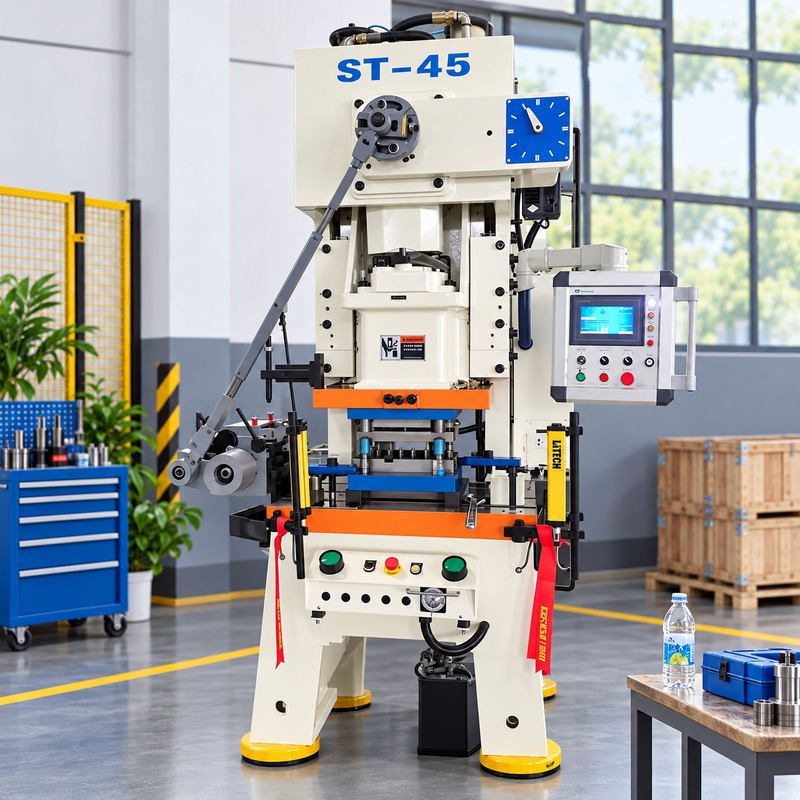

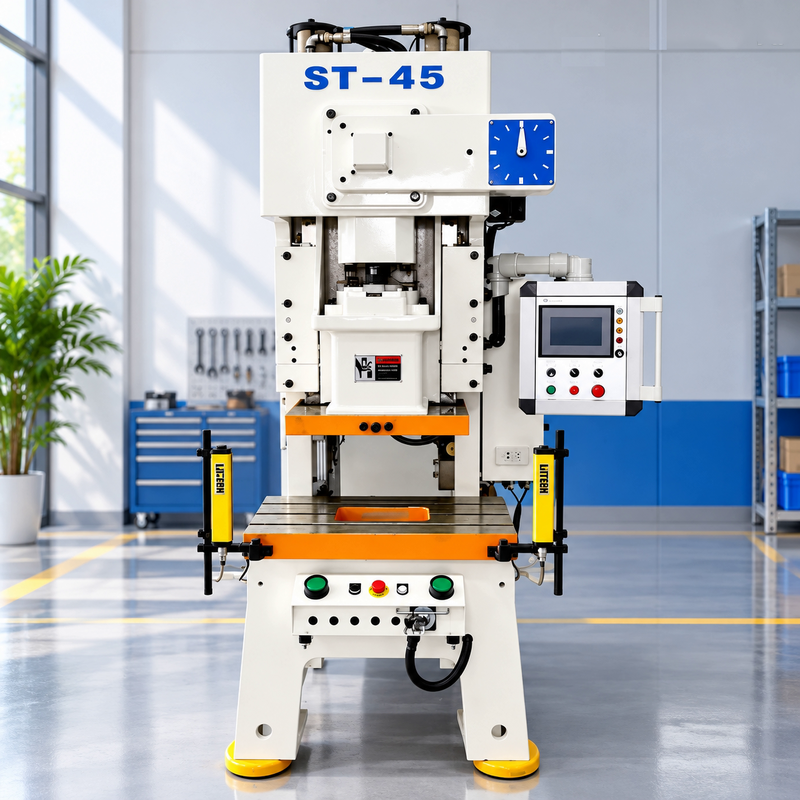

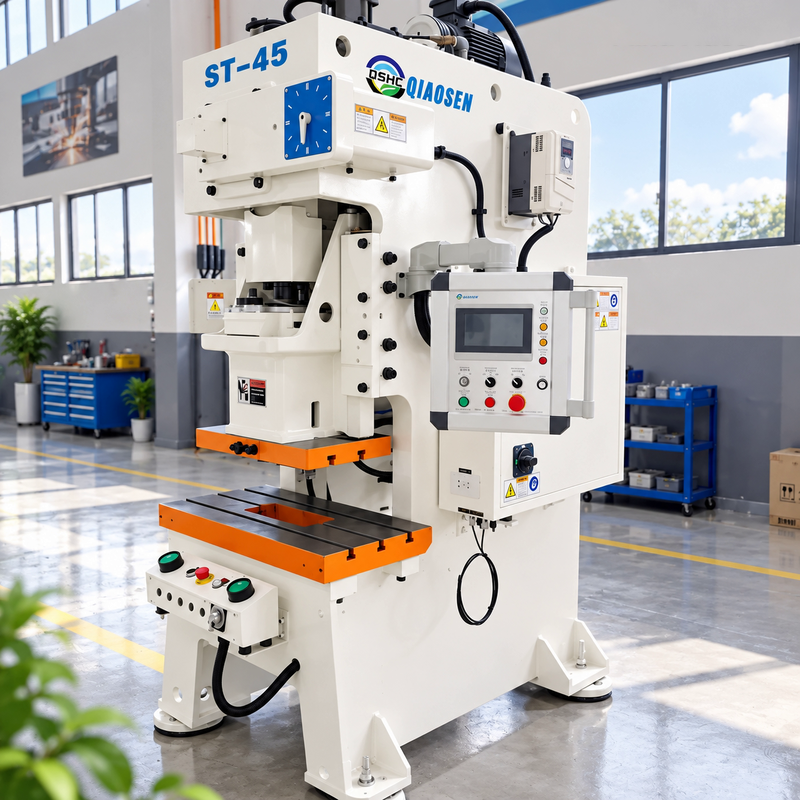

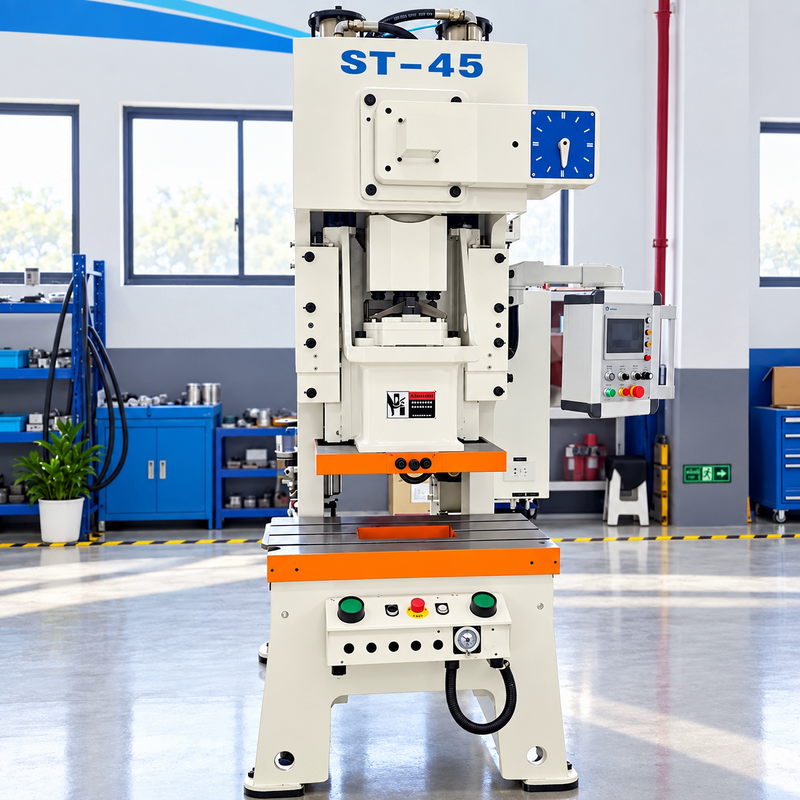

The Qiaosen ST-45 is a 45-ton C-frame single crank precision power press that conforms to JIS Class 1 precision standard. It features six-side slide guide technology and a high rigidity one-piece frame with minimal deformation. This machine is widely used for sheet metal punching, bending, and shallow drawing applications. It can be integrated with decoiler, straightener, and servo feeder equipment to build fully automatic stamping lines for hardware parts, home appliance components, new energy, and electronic metal parts production.
| Item | Specification |
|---|---|
| Model | ST-45 |
| Rated Capacity | 45 Ton |
| Slide Stroke | 80mm |
| Stroke Speed | 40~100 SPM |
| Max Die Shut Height | 250mm |
| Slide Adjustment | 60mm |
| Slide Size | 560×340×60mm |
| Bolster Size | 850×440×80mm |
| Throat Depth | 225mm |
| Bolster Height from Floor | 790mm |
| Shank Hole | Φ38.1mm |
| Main Motor Power | 5.5KW |
| Overall Dimension | 1575×950×2500mm |
| Machine Weight | 3.8 Ton |
| Precision Grade | JIS Class 1 |
Hardware buckles, terminals, spring pieces, small home appliance parts, new energy connectors, electronic metal gaskets, and thin sheet metal stamping.
Compatible with MT series decoiler, SML thin plate straightener, wool roller oil feeder, and servo feeder to build complete automatic coil feeding stamping lines for continuous coil production.
Every machine is fully load tested before delivery. We provide online operation training and remote troubleshooting. 1-year machine warranty. Paid on-site engineer service available. Export standard packaging.
