Name: 200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-200V
Price: 344.00 USD
Availability: InStock

Home > Products > C Frame Punch Press >

200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping

200 Ton C Frame Punch Press

High-Accuracy Metal Stamping Machine

JIS Class 1 Single Crank Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-200V

Chat Now

Request A Quote

Product Details

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Voltage:

380V

Model Number:

ST-200v

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Slider Adjustment Amount:

200mm

Slider Center To Machine Distance:

415mm

Highlight:

200 Ton C Frame Punch Press

High-Accuracy Metal Stamping Machine

JIS Class 1 Single Crank Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$4,685/case

Packaging Details

Standard

Delivery Time

Payment Terms

T/T

Supply Ability

30 Sets/Month

45ton High Precision C Frame Punch Press with Hydraulic Overload Protection for Metal Stamping

Chat Now

60-ton Punching Force C Frame Punch Press with JIS 1 Precision Grade and Energy-efficient Design for Metal Stamping

Chat Now

ST-110V 110Ton C Frame Punch Press with JIS Class 1 Precision and Pneumatic Clutch Brake for Sheet Metal Stamping

Chat Now

160 Ton C Frame Punch Press with Hydraulic Overload Protection and Double Crank Symmetrical Driving Structure for Auto Hardware Manufacturing

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

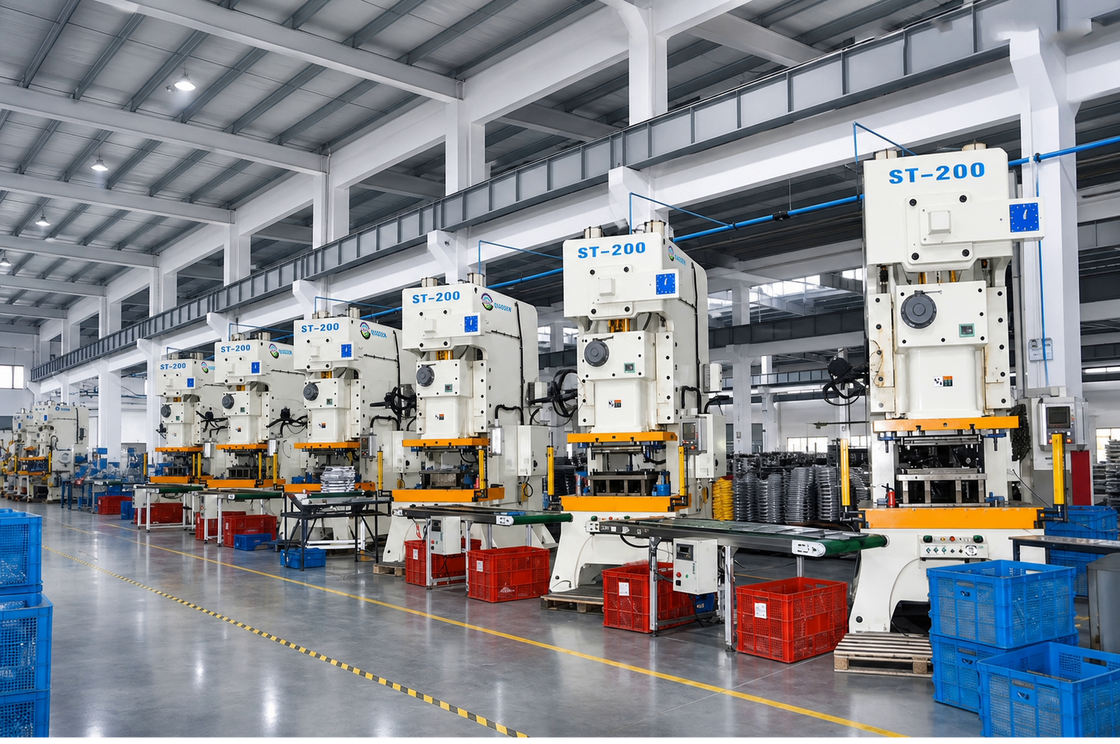

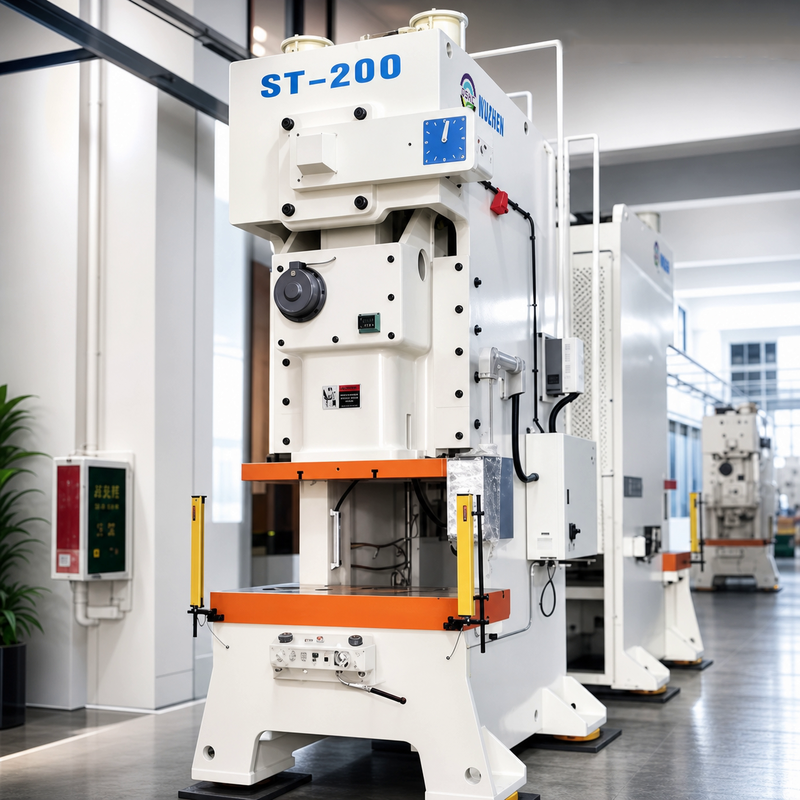

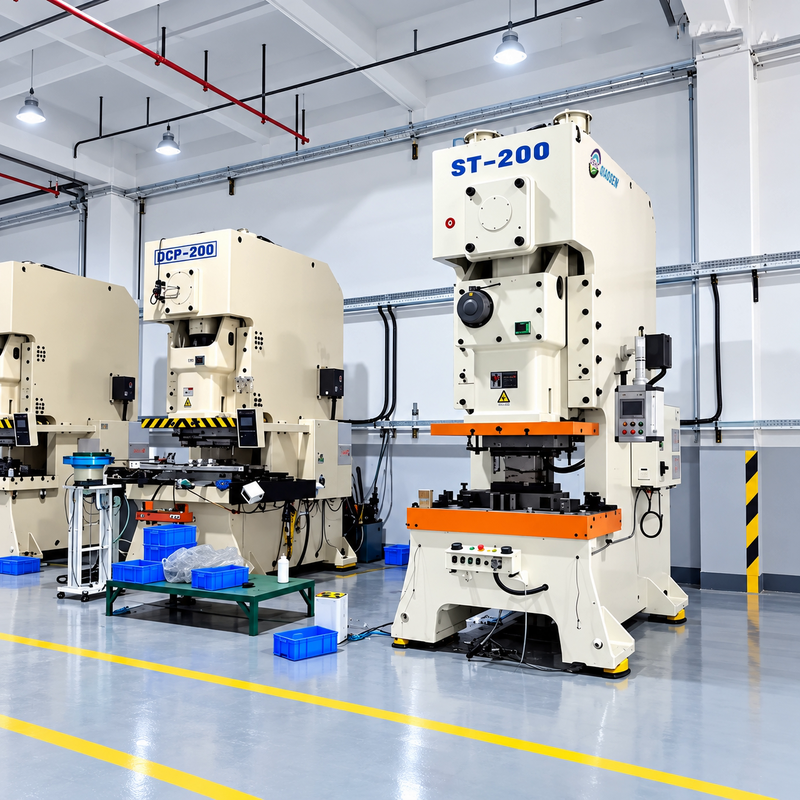

ST-200 Open Gap Frame Single Crank Press - 200 Ton Metal Stamping Machine

Qiaosen ST-200, 200 ton C frame single point crank precision power press, JIS class 1 accuracy, six sided slider guideway, high rigid integrated machine frame. Suitable for metal punching, bending and shallow drawing forming. It can match decoiler, straightener and servo feeder to build full automatic stamping line, widely used in auto hardware, home appliance parts, new energy and electronic metal components production.

Key Advantages

High rigidity frame, steel welded with stress relief treatment, low deformation during long time production to keep stable stamping accuracy
Six sided slider guide structure with low wear, long term precision retention and longer mold service life
Hydraulic overload protection, automatically protect machine and mold when overloaded
Sensitive clutch brake system with dual solenoid valve, fast stop response for safer operation
Electric mold height adjustment, simple and easy for fast mold change
Optional die cushion for deep drawing and forming workpieces
Compatible with full automatic feeding equipment to realize coil continuous stamping and save labor cost

Technical Specifications

No	Item	Unit	ST-200 V Type	ST-200 H Type
1	Punching Capability	ton	200	200
2	Impact Force Location	mm	6	3
3	Slider Strokes Per Minute	SPM	20-50	50-70
4	Slider Length	mm	200	100
5	Max Die Shut Height	mm	460	510
6	Slider Adjustment Amount	mm	110	-
7	Up Platform Area	mm	113063090	-
8	Down Platform Area	mm	1400820160	-
9	Shank Hole	-	Ø65	-
10	Main Motor Power	kW*P	18.5*4	-
11	Air Pressure	kg/cm²	6	-
12	Punch Accuracy Grade	-	JIS 1	-
13	Slider Adjustment Device	-	Manual Operation	-
14	Slider Center to Machine Distance	mm	415	-
15	Platform to Floor Distance	mm	995	-
16	Punch Weight	ton	23	-

Auto hardware home appliance metal parts new energy battery housing connectors sheet metal punching bending shallow drawing blanking and other metal stamping works. Can work with MT decoiler two in one decoiler straightener wool roller oil feeder NC servo feeder to form complete automatic stamping production line.

Product Configuration

Warranty and Service

One year warranty for whole press machine
All spare parts are available as most of the parts produced by our factory
Easy to get electric parts as all are international famous brands
We provide technical training and consulting via email, phone or video
We can send out engineers for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity will be sent with press

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.

Why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can I do different color machine?

Yes, we can customize your own colors to match your production line.

Can the touch screen board language change to others?

Yes, we can do it according to your requirement like Spanish, French, etc.
