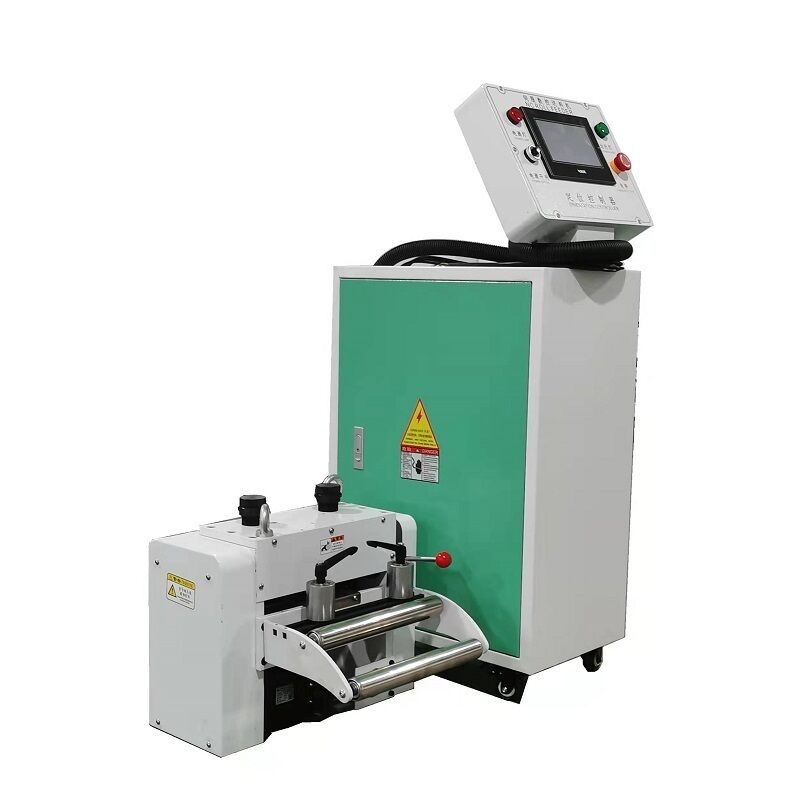

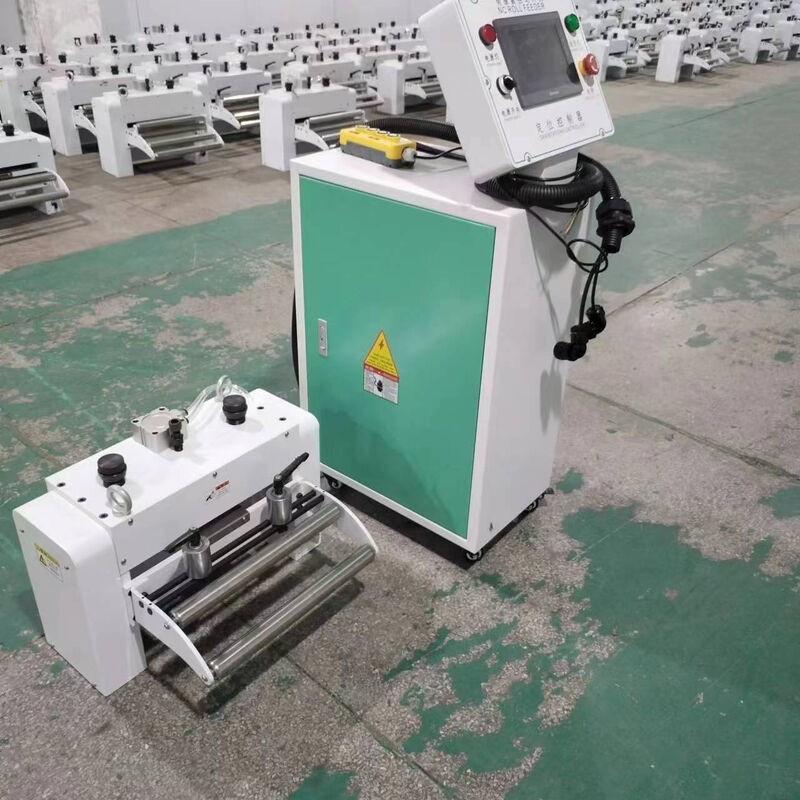

NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System

NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO 14001

Model Number:

NC-400

Chat Now
Request A Quote
NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System
NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System
Product Details
Width Of Material(mm):
400
Thickness Of Materlal(mm):
MAX.3.2
Feeding Capacity:
400WX2.0T/ 80WX3.2T
Feeding Length(mm):
0.01-9999.99
Roll Pressure:
Springtype
Releasing System:
Pneumatictypr
Pass Line Adjust(mm):
±50mm
Power Supply:
AC 380V/3Phase
Payment & Shipping Terms
Minimum Order Quantity
1
Price
￥20,270/cases 1-5 cases
Packaging Details
Standard
Delivery Time
30-90
Payment Terms
T/T
Supply Ability
100SET per month
RELATED PRODUCTS
Good price NCF Series Yaskawa NC Servo Feeder 16m/min for Press Stamping Automation online

NCF Series Yaskawa NC Servo Feeder 16m/min for Press Stamping Automation

Chat Now
Good price Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping online

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now
Good price Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine online

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now
Good price NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press online

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now
CONTACT US
+8618103082715
titi@qiaosenmachinery.com
86-0769-26626853
Chat Now
Product Description
Automatic Coil Servo Feeder Steel Roll Stamping NC Feeder for Press Machines
Qiaosen NC-400 High Precision NC ServoFeeder Automatic Metal Coil Feeding Machine Bearing for Sheet Stamping Punch Press
NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System 0 NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System 1
Product Specifications
NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System 2 NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System 3
NC-400B NC Servo Roller Feeder Features
  • Feeds material for various thicknesses and feeding stroke lengths
  • Suitable for high-speed feeding and long stroke length feeding to improve production capacity and precision
  • User-friendly operation panel for freely inputting feeding length (0.01mm-9999.99mm) and feeding speed
  • Pneumatic cylinder releasing method, malfunction-free operation
  • Optional mechanical releasing method available per customer requirements
  • High precision feeding: ±0.02mm
  • Supports 5 sets of different feeding lengths with up to 999 strokes per length
  • Normal manual running mode with manual speed for easy material feeding to stamping molds
  • Effective roller releasing device based on press machine's cam position electronic signal and material thickness
  • Touch screen interface for easy length input
  • Hollow feeding roller with HRC60 surface hardness and chrome plating
Structural Advantages
  • High-quality servo motor for efficient feeding testing time reduction
  • High-sensitivity encoder for precise feedback and improved feeding accuracy
  • Quality belt system eliminates gear gaps, abrasion, noise, and lubrication needs
  • Safe, environmentally friendly operation
  • Internally mounted motor design prevents potential damage
NC Servo Feeder Automatic Coil Feeder with 400mm Width High Precision ±0.02mm and Pneumatic Releasing System 4
Company Information
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, established in 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our office employs 51-100 people.
Why select us?
We are a manufacturer with powerful R&D capabilities and promise customers will never regret choosing our brand. We provide worldwide service and sales network support.
What can you buy from us?
Stamping press, Feeder, Straightening machine, Uncoiler, and Molds.
How about your delivery time?
Usually 25 to 40 working days after receiving advance payment.
Do you provide after-sale service?
Our technical and quality team will support you anytime you need assistance.
Can the touch screen board language change to others?
Yes, we can customize languages including Spanish, French, and others according to your requirements.
Ratings& Review

Overall Rating

5.0
Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
A*l
India Mar 5.2026
Helpful (2)
Good value for money. Works with different sheet thicknesses. Packing was solid.
