Name: Metal Coil 3 in 1 Decoiler Straightener Feeder Hydraulic Automatic Coil Uncoiling NC Servo Feeding
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: HCK4
Price: 2.00 USD
Availability: InStock

Home > Products > Leveler Machine >

Metal Coil 3 in 1 Decoiler Straightener Feeder Hydraulic Automatic Coil Uncoiling NC Servo Feeding

Servo Decoiler Straightener Feeder

3 in 1 Decoiler Straightener Feeder

Hydraulic NC Servo Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

HCK4

Chat Now

Request A Quote

Product Details

Numberofrollers:

Rollermaterial:

High Carbon Steel

Controlsystem:

PLC With Touch Screen

Warranty:

12 Months

Type:

Industrial Metal Leveling Equipment

Materialcompatibility:

Steel, Aluminum, Copper

Application:

Sheet Metal Leveling For Manufacturing

Productname:

Leveler Machine

Voltage:

380V/50Hz

Highlight:

Servo Decoiler Straightener Feeder

3 in 1 Decoiler Straightener Feeder

Hydraulic NC Servo Feeder

Payment & Shipping Terms

Minimum Order Quantity

Price

$56,000/cases 1-4 cases

Packaging Details

WOODEN BOX

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

100SET per month

Industrial Sheet Leveler Machine with 9 Leveling Hoops Electronic Straightening Adjustment

Chat Now

Metal Coil 3 in 1 Decoiler Straightener Feeder Hydraulic Automatic Coil Uncoiling NC Servo Feeding

Chat Now

Uncoiler Leveling Metal Coil Straightening Steel Plate Flattening Machine Feeder 3 in 1

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

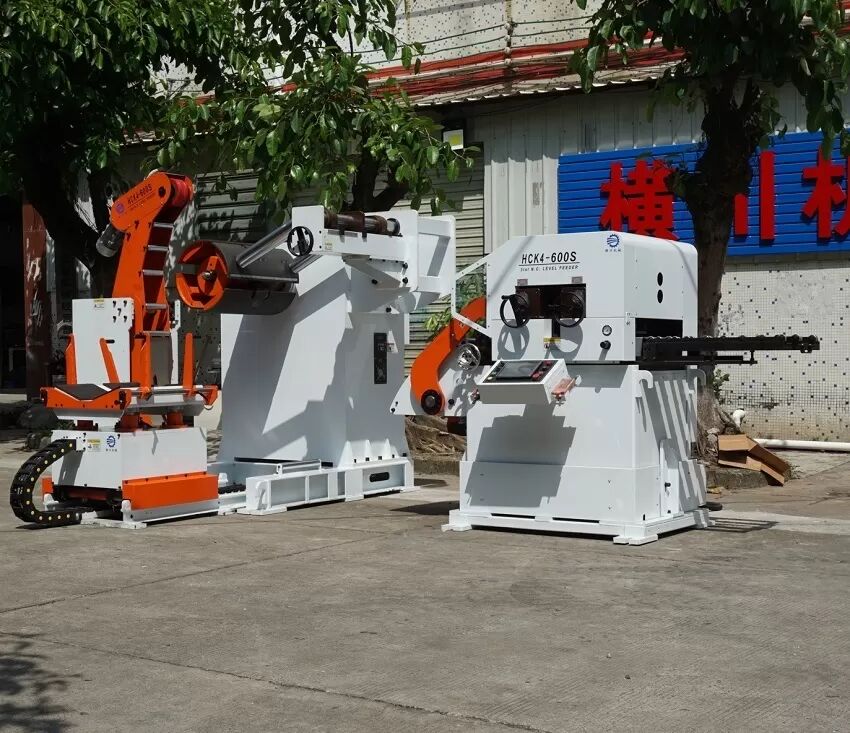

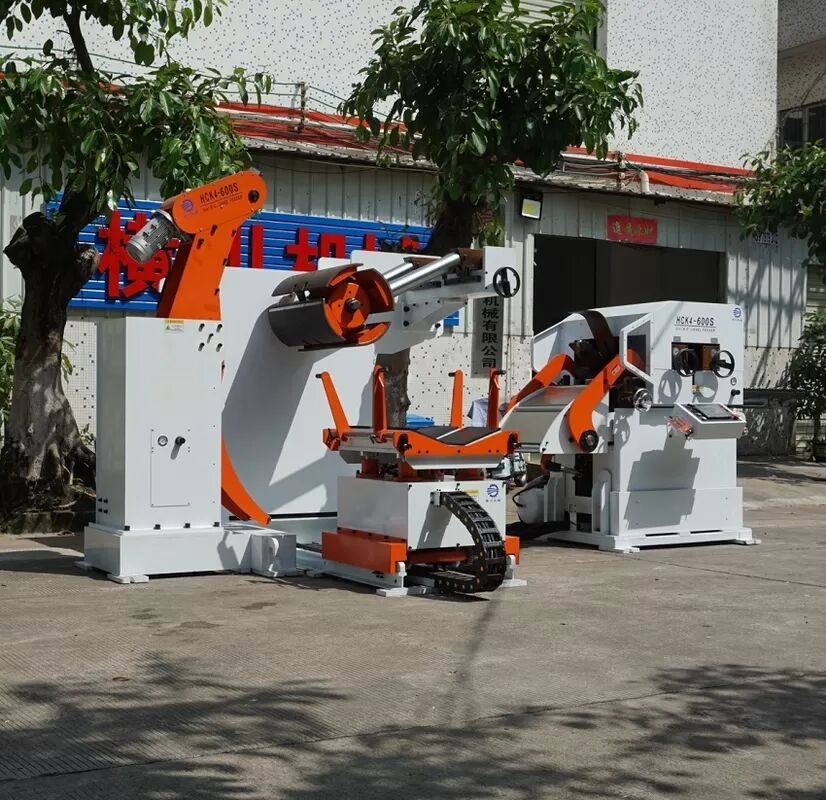

3 In 1 Servo Decoiler Straightener Feeder For Metal Coil Automatic Stamping Press Production Line

3-in-1 integrated servo feeder integrates uncoiling, leveling and NC servo feeding three functions into one heavy-duty machine. It replaces independent uncoiler, straightener and feeder, saves workshop space and shortens installation commissioning time. Adopts hydraulic coil expansion, 4 upper & 3 lower precision leveling rollers, YASKAWA servo drive system and Mitsubishi PLC control. With stable feeding precision, excellent leveling effect, strong body rigidity and long service life. Full specifications from thin plate to thick plate available.

Core Product Features

Heavy Integrated 3-In-1 Compact Structure
All-in-one design of uncoiling, leveling and servo feeding. Heavy steel welded frame with high structural rigidity, small floor occupation, no multi-equipment connection error, easy installation, debugging and daily maintenance.

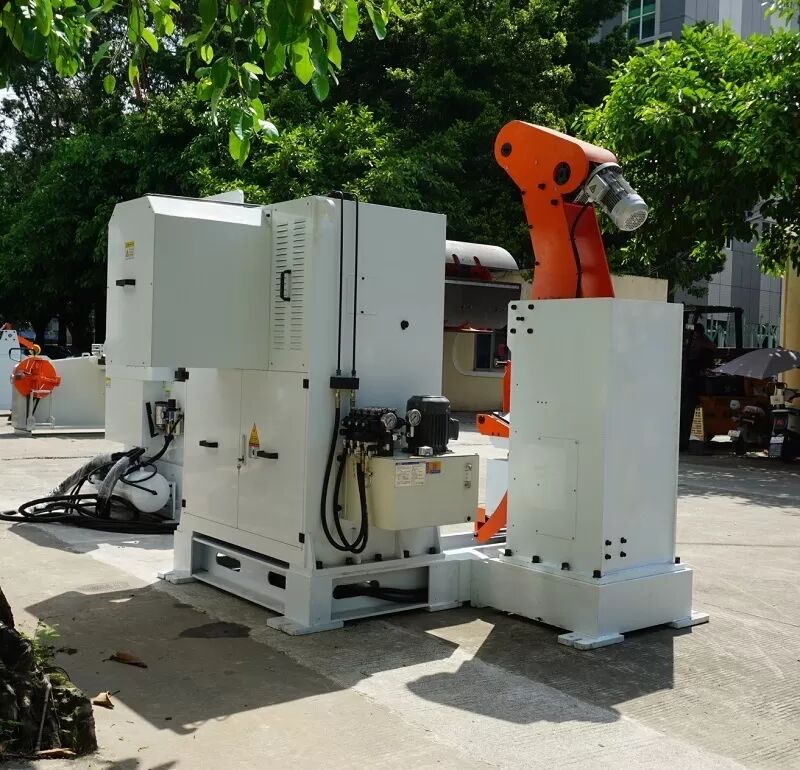

Hydraulic Automatic Coil Uncoiling System
Large-load spindle with hydraulic expansion and contraction structure. Equipped with material supporting arm, pressing arm and photoelectric frequency conversion buffer loop control. Realizes stable automatic uncoiling, effectively prevents coil scattering and material surface scratching, adapts to heavy large-weight metal coils.
Flip-Type High-Precision Leveling Mechanism
4 upper & 3 lower precision leveling rollers, all rollers integrally quenched and precision ground to HRC62 hardness. Universal joint full-shaft linkage transmission ensures uniform leveling force, fully eliminates internal stress and warpage of metal coils. Liftable leveling head design, convenient for waste cleaning, roller replacement and equipment maintenance.

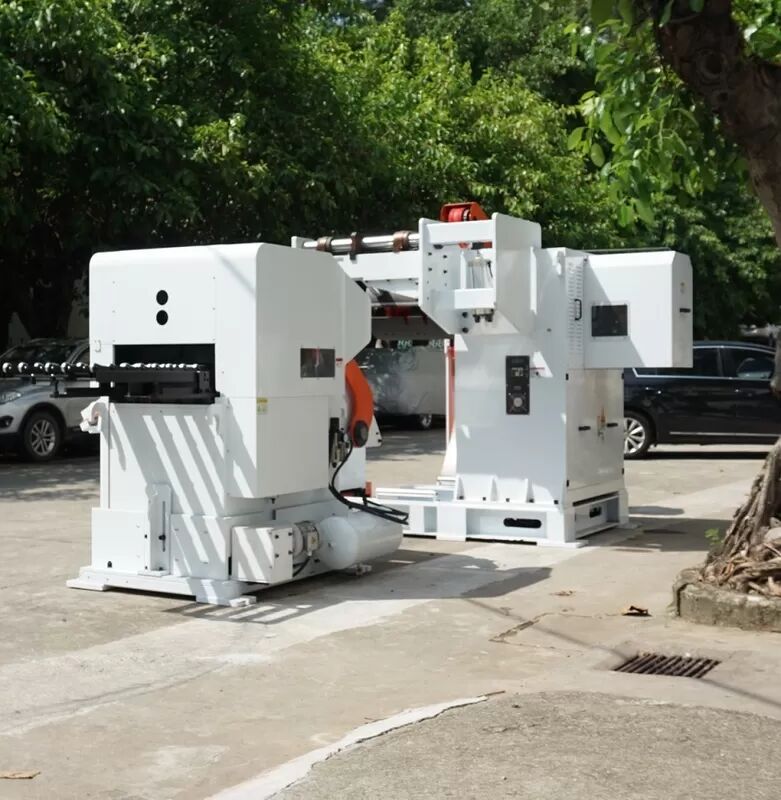

High Accuracy NC Servo Feeding Unit
Dual groups of feeding rollers with hard chrome electroplated anti-slip surface. Original YASKAWA AC servo motor and servo driver, stable power output. High feeding precision up to ± 0.08mm, freely adjustable feeding length and speed, signal synchronous linkage with power press, closed-loop control without accumulated error.
Intelligent Mitsubishi PLC Control System
Original Mitsubishi PLC with large touch screen HMI operation panel. Supports parameter memory storage, real-time fault diagnosis and alarm, one-click parameter setting and calling. Complete safety protection functions: material tail automatic stop, overload protection and abnormal operation alarm.
Durable Low-Maintenance Design
High wear-resistant roller material, centralized automatic lubrication system. Widely adaptable to various metal coils: cold rolled steel, galvanized steel, aluminum coil, copper strip, stainless steel and high tensile strength materials. Low vibration, low failure rate and long whole machine service life.

Application Industries

Perfect supporting automatic stamping peripheral equipment:

Hardware precision stamping parts & sheet metal components
Home appliance shell and structural metal parts
Motor stator & rotor lamination continuous stamping
Medium and small automobile precision stamping accessories
Terminal, connector and progressive die stamping processing
Matching with STC/STE/STD series power presses and global mechanical presses

Standard Configuration

Heavy integrated 3-in-1 uncoiler-straightener-feeder main frame
Hydraulic automatic coil expansion spindle system
Liftable 4 upper + 3 lower precision quenched & ground leveling roller set
Dual anti-slip hard chrome plated servo feeding rollers
Original YASKAWA AC servo drive & servo motor system
Original Mitsubishi PLC + large touch screen HMI control panel
Material supporting arm, pressing arm and photoelectric buffer loop control
Centralized automatic lubrication system
Complete safety protection and multi-function fault alarm system
Famous brand pneumatic and electrical components

Optional Accessories

Double-sided automatic material oil spraying device
Hydraulic coil head & tail shearing cutting machine
Mobile coil loading and unloading trolley
Extra safety light curtain protection device
Custom adjustable feeding height
Reinforced roller set for high tensile hard materials
Extra wide width customized model

Product Specifications

Model	HCK2-600S	HCK2-800S	HCK2-1000S	HCK2-1300S
Coil width(mm)	70-600	70-800	70-1000	70-1300
Coil thickness(mm)	0.8-9.0
Max coil weight(kg)	5000	5000	7000	10000
Coil I.D(mm)	508
Coil O.D(mm)	1400
Max speed(mm)	16
Feeding accuracy(mm)	±0.15
Correction roll(mm)	Upper 5/lower 4
Feeding roll(set)	1
Back pressure roll(set)	provided
Feeding line height(mm)	1200±100
Power supply	AC220V 50HZ/AC380V 50HZ
Uncoiler expansion method(mm)	hydraulic
Air pressure(kg/cm^2)	5
Servo motor(kw)	AC22
Uncoiler motor(kw)	2.2	2.2	3.7	7.5

Features:
1. Uses 9 leveling hoops, Effective enhances the material to rectify the even precision.
2. Electronic Straightening Adjustment: The NLF series features an automatic system for straightening adjustment, unlike previous models. Which adjusted straightening with manual wheels. The new electronic straightening system is easy to use and allows for faster setting up.

Product Packaging

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production. Product range includes 10-ton to 2000-ton press machines across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Applications span aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware. Products are recognized for excellent design, competitive pricing, superior quality, and efficient after-sales service, serving domestic markets across 20+ provinces and international markets including United States, Japan, Russia, European Union, Southeast Asia, and Middle East.

Frequently Asked Questions

Are you the manufacturer? Can we visit your factory?

We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.

What are your main products and main foreign markets?

Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.

What are the advantages of your machines and how can I trust the quality?

Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.

Will you update production process information after placing an order?

After order confirmation, we provide regular updates on production details via email and photos.

Can we be your agent?

Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.

What are your payment terms?

We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.

How long is your warranty?

We offer 12 months free warranty with lifelong maintenance support.

Do you accept customer logos and customization?

Yes, we accept various customizations including logos and machine modifications according to customer requirements.
