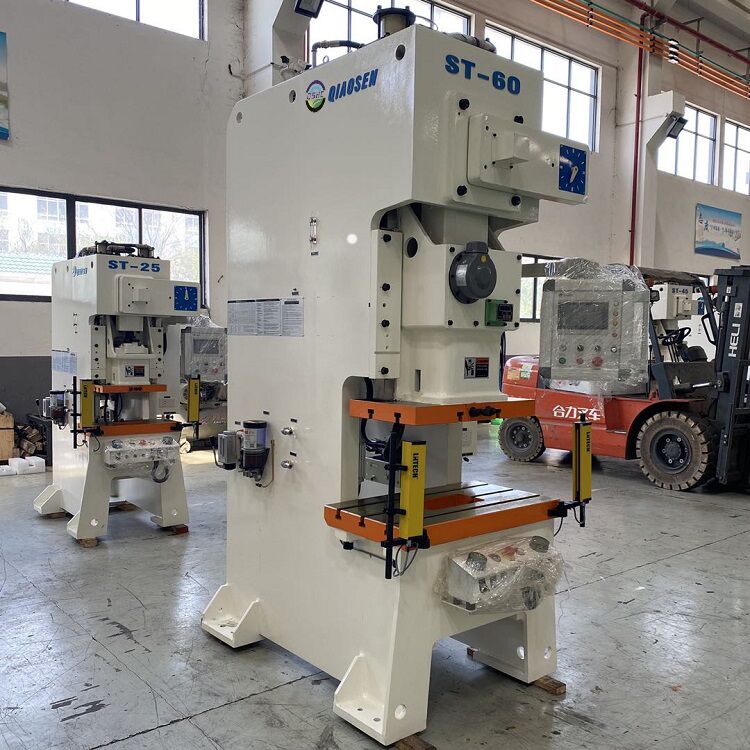

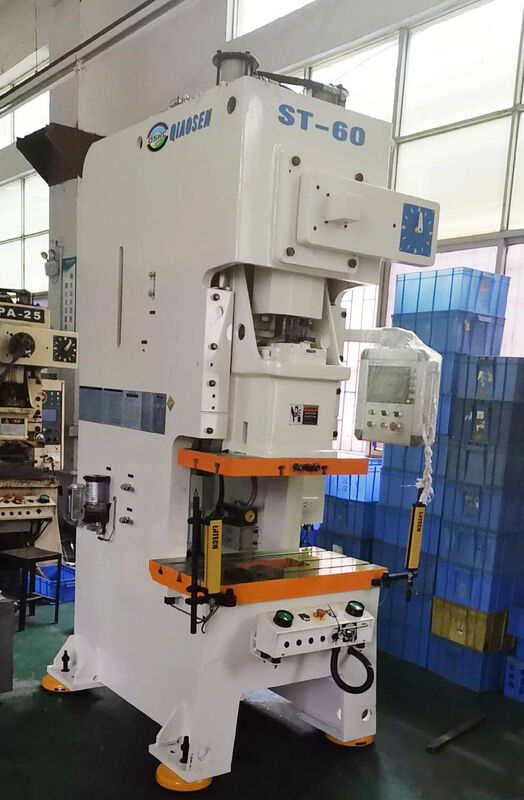

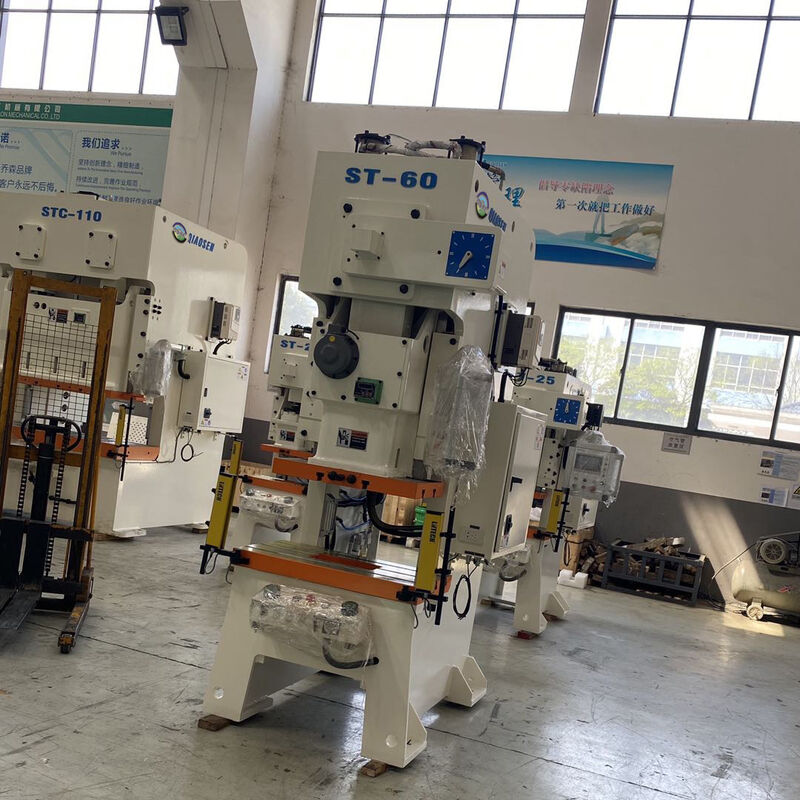

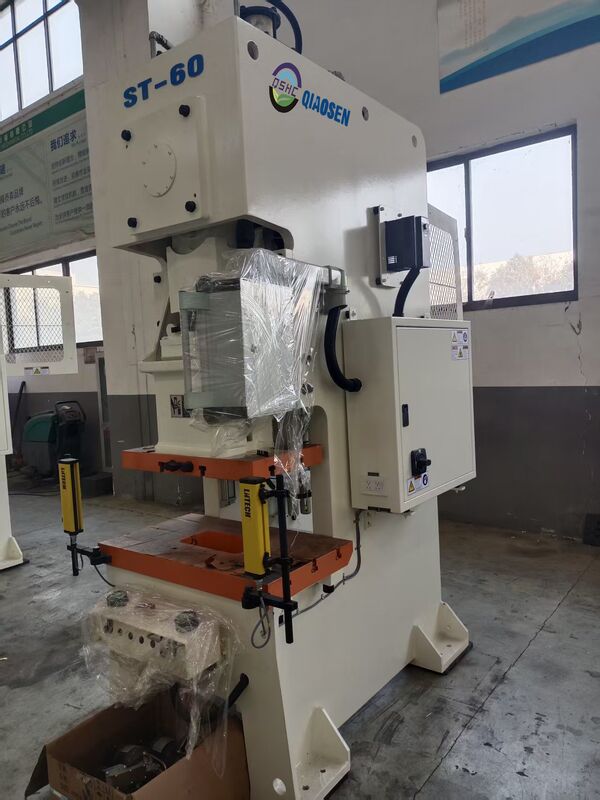

60ton C Frame Punch Press High Precision for Metal Processing

60ton C Frame Punch Press High Precision for Metal Processing

60ton C Frame Punch Press

C Frame Metal Punch Press

High Precision Metal Stamping Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-60V

Chat Now
Request A Quote
Product Details
Maxtonnage:
Varies (e.g., 10 To 100 Tons)
Presstype:
Mechanical/Hydraulic (depending On Model)
Dieheight:
Adjustable, Usually 50-150 Mm
Tablesize:
Depends On Model, E.g., 500 X 400 Mm
Safetyfeatures:
Emergency Stop, Safety Guards
Throatdepth:
Varies, Commonly 100-300 Mm
Application:
Punching, Blanking, Forming Metal Sheets
Motorpower:
Typically 1.5 To 7.5 KW
Operatingspeed:
Variable, E.g., 20-60 Strokes Per Minute
Weight:
Ranges From 500 Kg To 3000 Kg
Frametype:
C Frame
Productname:
C Frame Punch Press
Strokelength:
Adjustable, Typically 20-100 Mm
Materialcompatibility:
Sheet Metal, Steel, Aluminum, Copper
Controltype:
Manual / Semi-automatic / CNC
Highlight:

60ton C Frame Punch Press

,

C Frame Metal Punch Press

,

High Precision Metal Stamping Press

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$14,600/cases 1-2 cases
Packaging Details
WOODEN BOX
Delivery Time
25-60
Payment Terms
T/T
Supply Ability
100SET per month
Product Description
C Frame Punch Press
Product Overview

This C Frame Punch Press is designed for metal processing production of home appliance components and light metal products, featuring easy operation and reliable performance.

Industries and Applications

Widely used in hardware manufacturing, auto parts processing, electronic component production, home appliance manufacturing, and light metal processing industries. Suitable for stamping, blanking, bending, and forming of small to medium-sized metal workpieces including auto parts, hardware fittings, electronic terminals, and home appliance components.

Compatible materials include carbon steel, stainless steel, aluminum alloy, and copper sheets with thickness of 0.3-4.0mm, meeting diverse metal processing requirements.

Easy Operation Procedure
  1. Connect three-phase 380V power and air source, run machine for no-load test (2-3 minutes) to check clutch, brake, and photoelectric safety device operation
  2. Adjust mold position and punching pressure according to material thickness and product requirements (0.1mm precision adjustment)
  3. Place metal material on workbench, align precisely with mold, use special tools for feeding and part removal
  4. Start auto or manual mode - machine features automatic stop and alarm functions for overload or material deviation
Core Advantages
  • 60-ton punching force - Stable performance for various small to medium-load stamping tasks
  • High precision - JIS 1 precision grade with crankshaft error controlled within 0.02mm
  • Durable structure - Forged 42CrMo alloy crankshaft and precision-machined gears
  • Safe and reliable - Oil pressure overload protection, photoelectric safety device, and second falling protector
  • Energy-efficient - Frequency conversion variable speed motor saves 25%-35% electricity
  • Easy maintenance - Simple structure with standard maintenance tools and 1-year warranty
Technical Specifications
Item Unit ST-60V
Punching capability ton 60
Impact force location mm 4
Slider strokes per minute SPM 35-90
Slider length mm 120
Max die shut height mm 310
Slider adjustment amount mm 75
Up platform area mm 700×400×70
Down platform area mm 900×500×80
Shank hole mm Ø50
Main motor power kw×p 5.5×4
Air pressure kg/cm² 6
Punch accuracy grade
JIS 1
Slider adjustment device
Manual operation
Slider center to machine distance mm 225
Platform to floor distance mm 785
Punch weight ton 5.6
Punch dimension (L×W×H) mm 1595×1000×2800
Die cushion capacity ton 3.6
Stroke mm 70
Active area mm² 350×300
Product Configuration
60ton C Frame Punch Press High Precision for Metal Processing 0
Manufacturer Profile

Dongguan Qiaosen Machinery Co., Ltd. is committed to precision production and lean manufacturing. The company has implemented ERP enterprise information management, producing timely, high-quality, efficient, and value-added products while continuously promoting industry updates and upgrades.

Qiaosen focuses on critical technologies, continuously introduces latest instruments and excellent talents, and operates with the business philosophy of "lean manufacturing, brand creation, and customer service." The company values quality, consistency, honesty, information sharing, service spirit, and customer satisfaction.

Certifications
60ton C Frame Punch Press High Precision for Metal Processing 1
Warranty & Service
  • One year comprehensive warranty for entire press machine
  • Complete spare parts availability with most components produced in-house
  • International brand electrical components for easy replacement
  • Technical training and consulting via email, phone, or video
  • On-site engineer service, installation, and training available
  • English operation and maintenance manual provided
  • Certificate of conformity included with each machine
Frequently Asked Questions
What tonnage press do you provide?
We provide suitable press machines according to your stamping requirements, including tonnage, configuration and automatic feeding systems.
What materials can your press machine process?
Our press machines can process carbon steel, stainless steel, aluminum, copper and other metal sheets.
What is the maximum material thickness?
The maximum stamping thickness depends on the tonnage of the press machine and the material type.
What after-sale service do you provide?
Our technical and quality team provides comprehensive support whenever needed.
Do you provide automatic feeding systems?
Yes, we provide automatic feeding solutions, including feeder, straightener and decoiler.
What safety systems are included?
Our machines are equipped with: safety light curtain; emergency stop; overload protection; two-hand control system.
What is the delivery time?
Delivery time is usually 10 to 60 days depending on the machine model.
