Name: High Precision Pneumatic C Frame Punch Press Industrial Grade 200 Tons Capacity
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-2OOV
Price: 1.00 USD
Availability: InStock

Home > Products > C Frame Punch Press >

High Precision Pneumatic C Frame Punch Press Industrial Grade 200 Tons Capacity

Industrial C Frame Punch Press

Pneumatic Punch Press 200 Tons

High Precision Pneumatic Stamping Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-2OOV

Chat Now

Request A Quote

Product Details

Punchingspeed:

20-60 Strokes Per Minute

Strokelength:

20-100 Mm

Safetyfeatures:

Emergency Stop, Safety Guard

Frametype:

C Frame

Motorpower:

3-15 KW

Productname:

C Frame Punch Press

Operationtype:

Mechanical / Hydraulic

Controltype:

Manual / CNC

Voltage:

220V/380V

Application:

Metal Sheet Punching, Fabrication

Highlight:

Industrial C Frame Punch Press

Pneumatic Punch Press 200 Tons

High Precision Pneumatic Stamping Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$4,685/cases 1-2 cases

Packaging Details

WOODEN BOX

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

100SET per month

25ton Metal Sheet Punching Machine 60-140 SPM Slider Strokes 2.1T Punch Weight

Chat Now

ST-35V 35t Thin Sheet Metal Stamping Press for Electronic / Automotive Industries

Chat Now

60ton C Frame Punch Press High Precision for Metal Processing

Chat Now

ST-60V 60 Ton Pneumatic Punching Machine JIS 1 Grade With High Strength Alloy Crankshaft

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Technical Specifications

No	Item	Unit	ST-200 V Type	ST-200 H Type
1	Punching Capability	ton	200	200
2	Impact Force Location	mm	6	3
3	Slider Strokes Per Minute	SPM	20-50	50-70
4	Slider Length	mm	200	100
5	Max Die Shut Height	mm	460	510
6	Slider Adjustment Amount	mm	110	-
7	Up Platform Area	mm	1130×630×90	-
8	Down Platform Area	mm	1400×820×160	-
9	Shank Hole	-	Ø65	-
10	Main Motor Power	kW×P	18.5×4	-
11	Air Pressure	kg/cm²	6	-
12	Punch Accuracy Grade	-	JIS 1	-
13	Slider Adjustment Device	-	Manual Operation	-
14	Slider Center to Machine Distance	mm	415	-
15	Platform to Floor Distance	mm	995	-
16	Punch Weight	ton	23	-

Product Overview

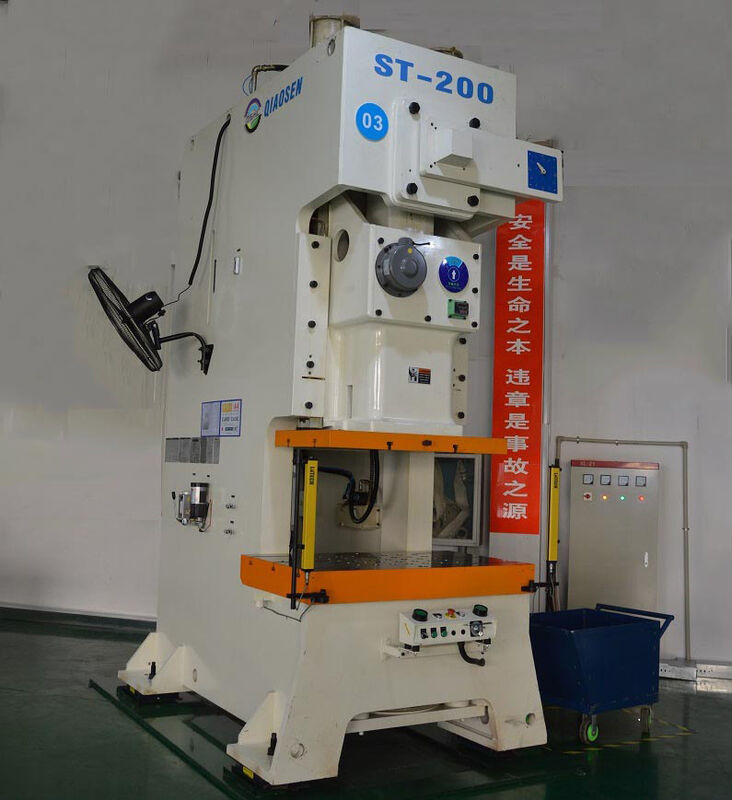

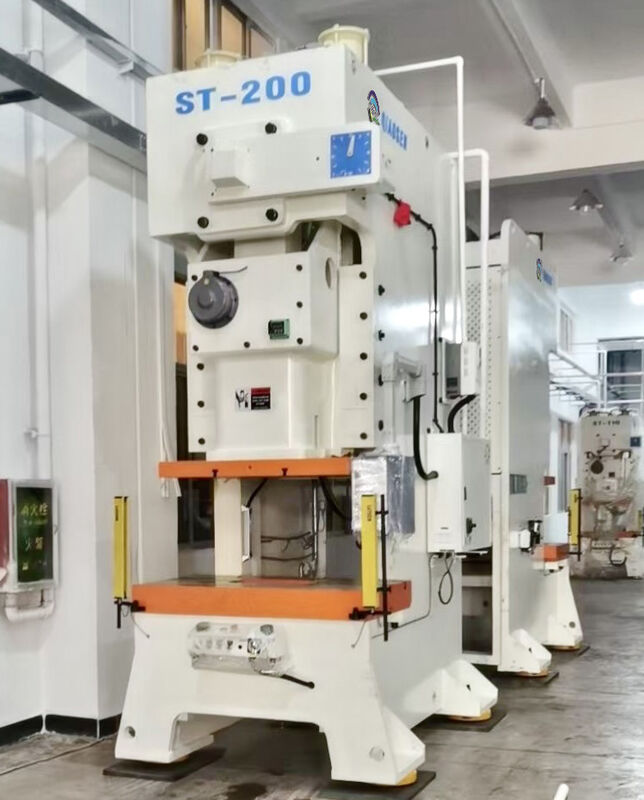

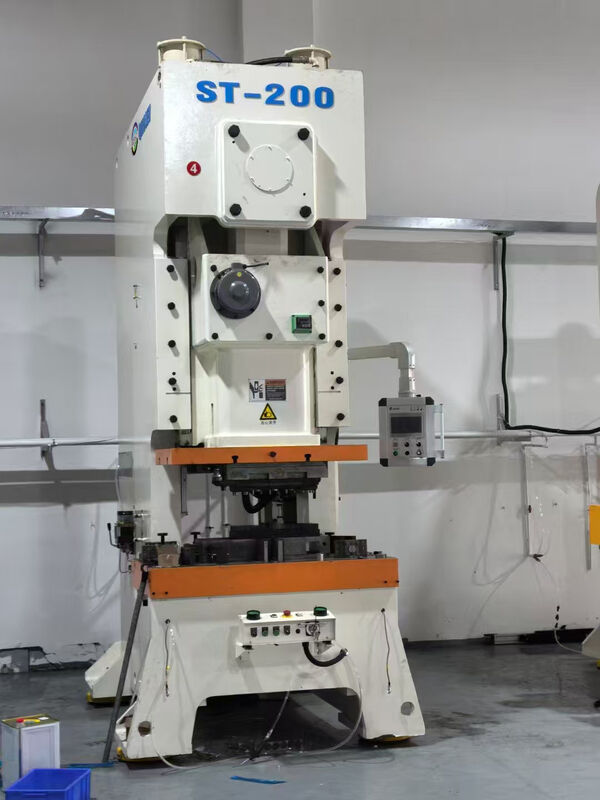

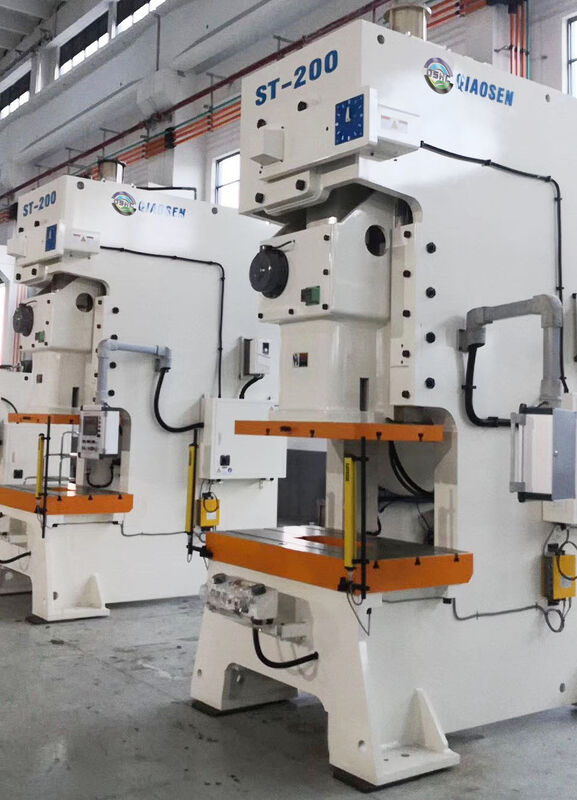

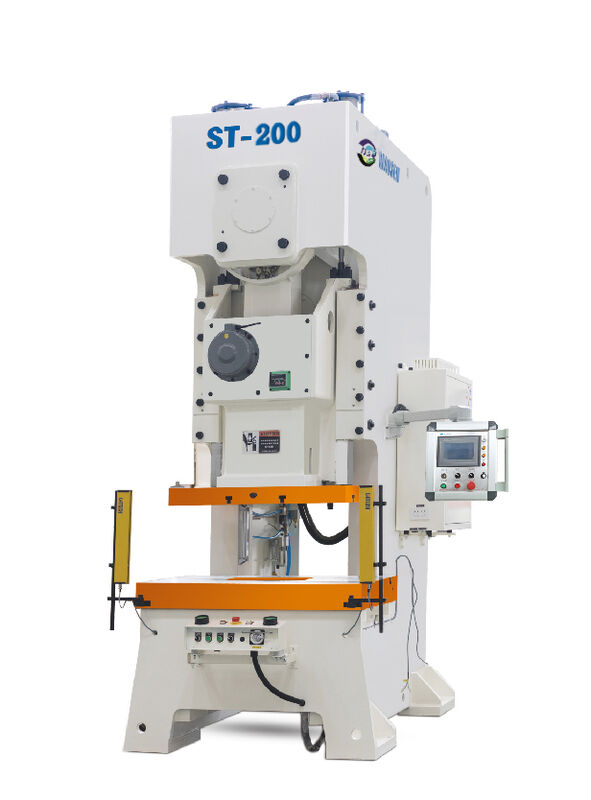

ST-200 ton V type punching machine. This is a 200-ton open single point crank punching machine that meets Japanese JIS 1 class standard - featuring safety, energy saving, stability, automation, and high precision.

Performance Features

The high-strength fuselage structure has small deformation and high precision
OMPI pneumatic dry clutch brake
The slider adopts 2-corner and 6-sided guides
The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
Highly sensitive hydraulic overload protection device protects the press and die service life
Optional mat (air cushion)

Product Configuration

High Precision Pneumatic C Frame Punch Press Industrial Grade 200 Tons Capacity 0

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.

We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Our equipment serves aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries.

Our products are recognized for exquisite design, competitive pricing, excellent quality, and efficient after-sales service with technical support. We serve over 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, Middle East, and other countries.

Warranty and Service

One year warranty for whole press machine
All spare parts are available as most of the parts produced by our factory
Easy to get electric parts as all are international famous brands
We provide technical training and consulting via email, phone or video
We can send out engineers for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity will be sent with press

High Precision Pneumatic C Frame Punch Press Industrial Grade 200 Tons Capacity 1

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.

Why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can I do different color machine?

Yes, we can customize your own colors to match your production line.

Can the touch screen board language change to others?

Yes, we can do it according to your requirement like Spanish, French etc.
