High Accuracy C Frame Punch Press 160t Pneumatic Punching Machine for Metal Stamping

160t Pneumatic Punching Machine

C Frame Punch Press 160t

Pneumatic Metal Stamping Press Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Document:

ST-160V C fame open single...nk.pdf

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

200

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

2315*1400*3670mm

Motor Power (kw):

Model Number:

ST-160V

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

160ton

Slider Adjustment Amount:

200mm

Up Platform Area:

990*550*90mm

Down Platform Area:

1200*800*140mm

Slider Center To Machine Distance:

405mm

Platform To Floor Distance:

900mm

Main Motor Power:

15*4

Air Pressure:

Punch Dimension(L*W*H):

2315*1400*3670mm

Punch Weight:

16tons

Highlight:

160t Pneumatic Punching Machine

C Frame Punch Press 160t

Pneumatic Metal Stamping Press Machine

Payment & Shipping Terms

Price

$36,000/cases 1-9 cases

Payment Terms

T/T

Supply Ability

1set 30days

25ton Metal Sheet Punching Machine 60-140 SPM Slider Strokes 2.1T Punch Weight

Chat Now

ST-35V 35t Thin Sheet Metal Stamping Press for Electronic / Automotive Industries

Chat Now

60ton C Frame Punch Press High Precision for Metal Processing

Chat Now

ST-60V 60 Ton Pneumatic Punching Machine JIS 1 Grade With High Strength Alloy Crankshaft

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

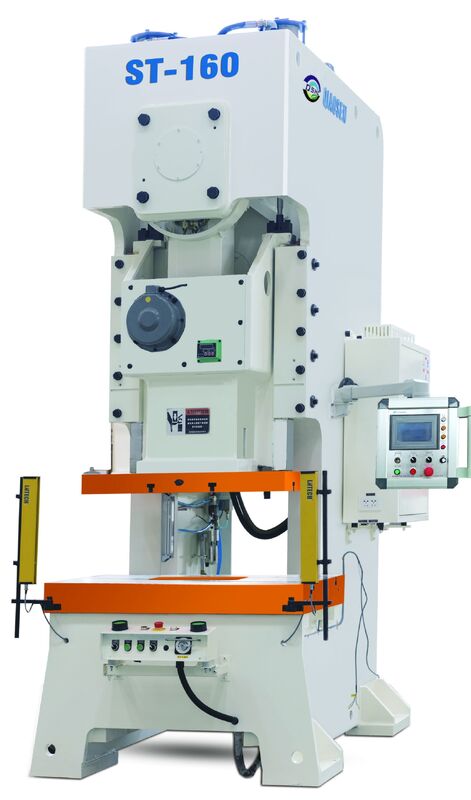

ST-160 Ton V-Type Pneumatic Punching Machine

This 160-ton open single point crank punching machine meets Japanese JIS 1 class standards for safety, energy efficiency, stability, automation, and high precision.

Performance Features

High-strength fuselage structure with minimal deformation and high precision
OMPI pneumatic dry clutch brake system
Slider with 2-corner and 6-sided guides for enhanced stability
Slider guide featuring high-frequency quenching and rail grinding process for reduced wear and extended service life
Crankshaft made of high-strength alloy 42CrMo (1.3 times stronger than 45 steel)
Copper sleeve constructed from tin phosphor bronze ZQSn10-1 (1.5 times stronger than ordinary BC6 brass)
Highly sensitive hydraulic overload protection device to protect press and die service life
Optional air cushion mat available

Technical Specifications

Item	Unit	ST-160 V Type	ST-160 H Type
Punching capability	ton	160
Impact force location	mm	6	3
Slider strokes per minute	SPM	20-50	40-70
Slider length	mm	200	90
Max die shut height	mm	460	510
Slider adjustment amount	mm	110
Up platform area	mm	990×550×90
Down platform area	mm	1250×800×140
Shank hole	mm	Ø65
Main motor power	kw×p	15×4
Air pressure	kg/cm²	6
Punch accuracy grade		JIS 1
Slider adjustment device		Electric operation
Slider center to machine distance	mm	405
Platform to floor distance	mm	900
Punch weight	ton	16
Punch dimension (L×W×H)	mm	2315×1400×3670
Die cushion capacity	ton	10
Stroke	mm	80
Active area	mm²	650×420

Product Configuration

Similar Products

Company Profile

Packaging

Warranty and Service

One year warranty for the complete press machine
All spare parts available with most components produced in-house
Easy access to electrical parts using international famous brands
Technical training and consulting via email, phone, or video
Engineer dispatch available for service, installation, or training at reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity included with press delivery

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan. Established in 2016, we serve customers in Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our office employs 51-100 people dedicated to manufacturing high-quality punching machines.

Why select us?

We are a high-end quality punching machine manufacturer committed to customer satisfaction. We guarantee that customers will never regret choosing our brand for their industrial needs.

How about your delivery time?

Typically, delivery takes 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team provides comprehensive support whenever you need assistance.

Can I customize machine colors?

Yes, we can customize machine colors to match your production line requirements.

Can the touch screen language be changed?

Yes, we can configure the touch screen interface in languages such as Spanish, French, and others according to your requirements.
