Name: 80ton High Accuracy Pneumatic Punching Machine 7.5kW for Metal Sheet Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: STE-80
Price: 2.00 USD
Availability: InStock

Home > Products > Pneumatic Punch Machine >

80ton High Accuracy Pneumatic Punching Machine 7.5kW for Metal Sheet Stamping

80ton Pneumatic Punching Machine

7.5kW Metal Sheet Stamping Machine

High Accuracy Pneumatic Punching Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

STE-80

Document:

STE-80H-H frame closed doub...nk.pdf

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

100

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Motor Power (kw):

7.5

Model Number:

STE-80H

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Slider Adjustment Amount:

80mm

Up Platform Area:

1200*520mm

Down Platform Area:

1400*620mm

Platform To Floor Distance:

950mm

Main Motor Power:

7.5*4

Air Pressure:

Side Opening:

500*380mm

After-sales Service Provided:

Online Support

Package:

Standard Package

Highlight:

80ton Pneumatic Punching Machine

7.5kW Metal Sheet Stamping Machine

High Accuracy Pneumatic Punching Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$44266/cases 1-4 cases

Payment Terms

T/T

Supply Ability

30 Sets/Month

200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

High Accuracy Pneumatic Power Press Punching Machine 500ton for Sheet Metal

Chat Now

video

80ton High Accuracy Pneumatic Punching Machine 7.5kW for Metal Sheet Stamping

Chat Now

200 Tonf H Frame Press with Closed-Type Double Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

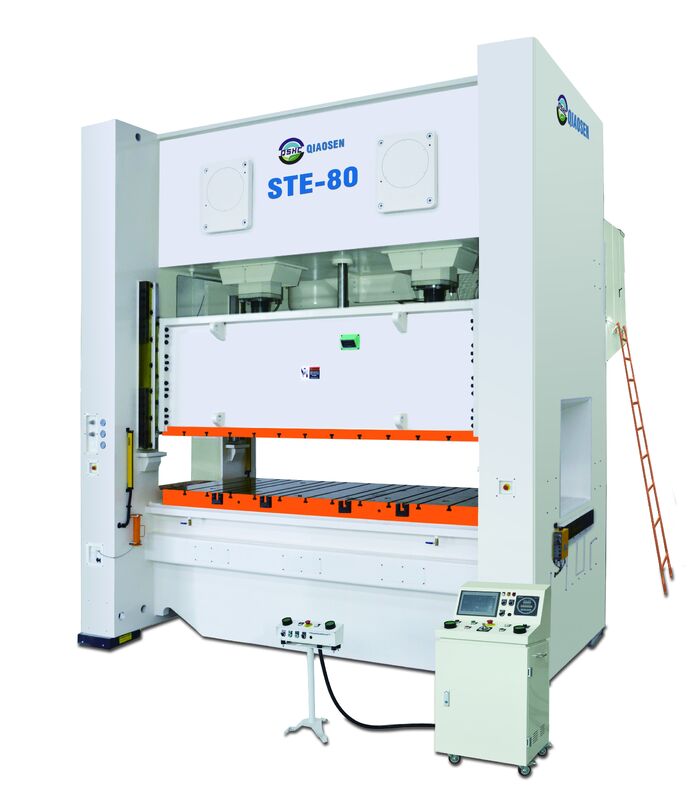

STE-80 Ton H Type Punching Machine

This 80-ton closed double point crank punching machine meets Japanese JIS 1 class standards for safety, energy efficiency, stability, automation, and high precision.

Performance Features

High-strength fuselage structure with minimal deformation and high precision
Pneumatic wet clutch brake (integrated): environmentally friendly, non-polluting, low noise and long service life
Slider adopts four-corner eight-sided guides to carry large eccentric loads, ensuring long-term stable stamping accuracy
Slider guide features high-frequency quenching and rail grinding process for minimal wear and extended precision maintenance
Forced thin oil circulation lubrication system with energy saving, environmental protection, and automatic alarm functions
Crankshaft made of high-strength alloy 42CrMo, 1.3 times stronger than 45 steel
Copper sleeve made of tin phosphor bronze ZQSn10-1, 1.5 times stronger than ordinary BC6 brass
High-sensitivity hydraulic overload protection for extended punch and die life
Standard Japanese SMC pressure regulator, oil mister, and air filter
Standard touch screen
Optional mat (air cushion) available

Technical Specifications

Item	Unit	STE-80	Mode
Punching capability	ton	80	S type / H type
Impact force location	mm	4 / 2
Long slider length	mm	150 / 100
Slider strokes per minute	SPM	45-90 / 80-120
Maximum mode height	mm	380 / 330
Slider adjustment amount	mm	80
Up platform area	mm	1200×520
Down platform area	mm	1400×620
Platform to floor distance	mm	950
Side opening	mm	500×380
Main motor power	kw×p	7.5×4
Slider adjustment device	kw×p	0.75×4
Air pressure	kg/cm²	6
Punch accuracy grade		JIS 1

Product Configuration

Similar Products

Warranty and Service

One year warranty for entire press machine
All spare parts available as most components produced in our factory
Easy access to electric parts using international famous brands
Technical training and consulting via email, phone, or video
Engineer dispatch for service, installation, or training with reasonable additional cost
English operation and maintenance manual provided
Certificate of conformity included with press

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan. Since 2016, we have exported to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our office employs 51-100 people.

Why select us?

We are a high-end quality punching machine manufacturer and we promise customers will never regret choosing our brand.

How about your delivery time?

Usually 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you anytime you need assistance.

Can I order machines in different colors?

Yes, we can customize colors to match your production line requirements.

Can the touch screen language be changed?

Yes, we can configure the touch screen interface in languages such as Spanish, French, and others according to your requirements.
