Name: STE-200S Heavy Duty Pneumatic Punch Machine Equipped with Adjustable Settings to Accommodate Different Punching Requirements
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: STE-200S
Price: 2.00 USD
Availability: InStock

Home > Products > Pneumatic Punch Machine >

STE-200S Heavy Duty Pneumatic Punch Machine Equipped with Adjustable Settings to Accommodate Different Punching Requirements

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE\ISO

Model Number:

STE-200S

Chat Now

Request A Quote

Product Details

Up Platform Area:

2200*900mm

Bolster Area:

2200*940mm

Main Motor Power:

37*4

Machine Dimensions:

600 X 400 X 800 Mm

Color:

Black&Customer Request

Long Slider Length:

300mm For Stamping Machine

Die Shut Height:

450mm

Voltage:

220V/380V

Machine Type:

Punching Machine

Cnc Or Not:

Normal

Frame Material:

Cast Iron

Core Components:

Pump

Machinery Test Report:

Provided

Application:

Sheet Metal Punching, Leather Cutting, Plastic Shaping

Side Opening:

500*380mm

Payment & Shipping Terms

Minimum Order Quantity

Price

$220,000/pieces 1-4 pieces

Packaging Details

WOODEN BOX

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

100SET per month

200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

video

80ton High Accuracy Pneumatic Punching Machine 7.5kW for Metal Sheet Stamping

Chat Now

High Accuracy Pneumatic Power Press Punching Machine 500ton for Sheet Metal

Chat Now

H Frame Double Crank Press Punching Machine 200ton Metal Stamping Press

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

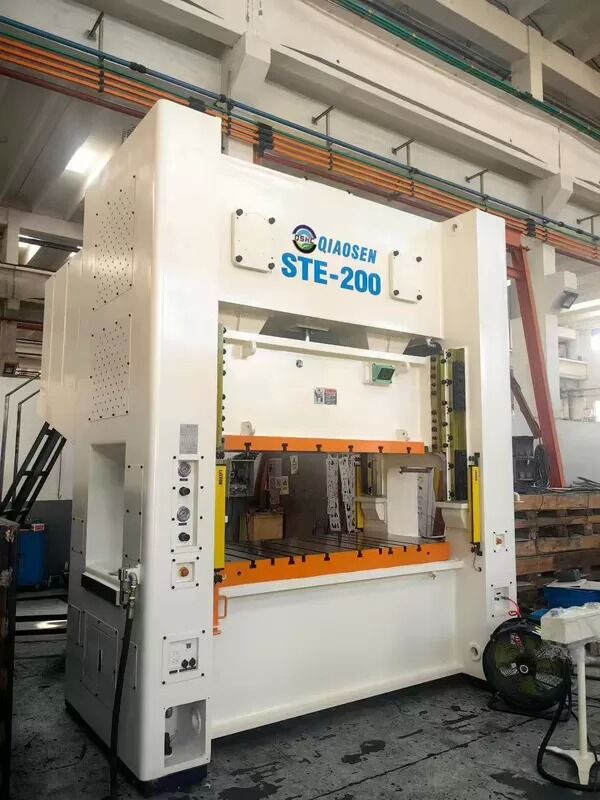

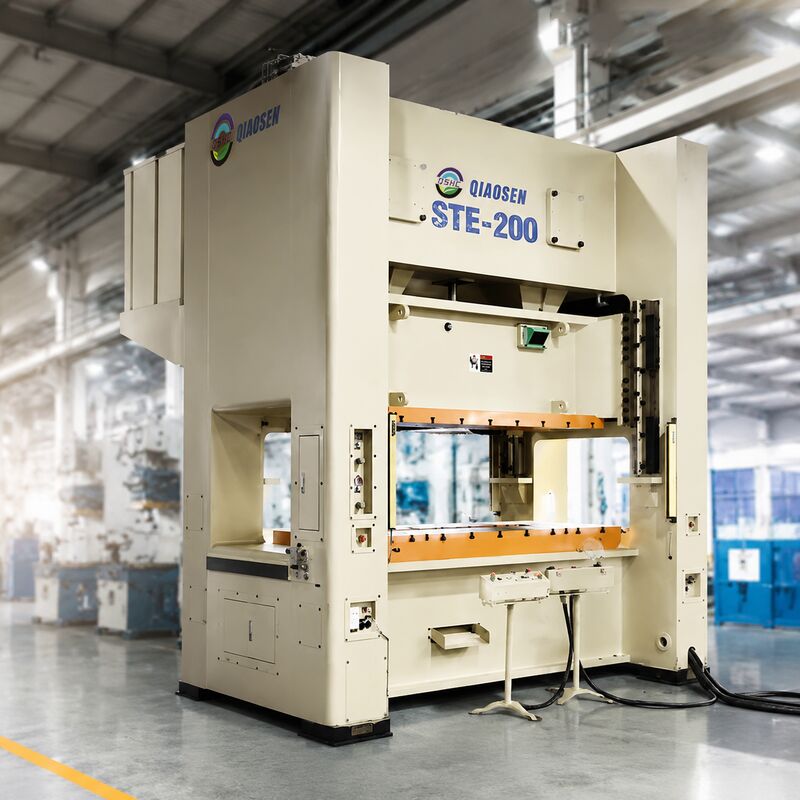

STE-200 Ton Pneumatic Punch Machine

Product Overview

The STE‑200 is a 200-ton precision punch press with closed-type double crankshaft manufactured by Dongguan Qiaosen Precision Engineering. It features high rigidity, high precision, and adaptability for continuous automatic stamping, widely applied in precision hardware, auto parts, and electronic components industries.

Material Specifications

Material Thickness: 1-6 mm (medium and thick metal sheets)
Applicable Materials: Carbon steel, stainless steel (304/316), aluminum alloy, copper alloy, galvanized sheet, cold-rolled sheet, hot-rolled sheet
Applications: Blanking, punching, bending, forming, and shallow drawing
Material Requirements: Free of cracks, burrs, or uneven thickness

Technical Specifications

Parameter	Specification
Nominal Pressure	200 Tonf
Structure Type	Closed-Type Double Crankshaft
Slide Stroke	100 mm
Stroke Frequency	50-70 SPM (Variable Frequency Adjustable)
Maximum Shut Height	510 mm
Slide Adjustment	110 mm
Lower Table Size	1400 * 820 mm
Upper Table Size	1130 * 630 mm
Main Motor Power	18.5 kW
Total Machine Weight	Approx. 23 Tonf

Structural & Precision Features

High Rigidity Frame

Steel plate welded frame with heat treatment for internal stress relief
Closed gantry + double crankshaft two-point structure ensures uniform load distribution

Precision Guidance & Transmission

Two-angle six-face long guideway with high-frequency quenching + precision grinding
Crankshaft made of 42CrMo high-strength alloy steel
Hardened + precision ground gears for stable transmission and low noise

High Adjustment Precision

Electric + manual dual-mode adjustment with precision up to 0.1 mm
Hydraulic overload protection device to prevent machine jamming

Safety & Control Systems

Clutch Brake: Pneumatic wet-type clutch brake with high sensitivity
Safety Features: Imported dual solenoid valve, safety light curtain, emergency stop button
Control System: PLC + touch screen control with variable frequency speed regulation
Premium Components: Japan NSK bearings, Japanese seals, SMC pneumatic components

Key Advantages

Stable Precision: Excellent part consistency during long-term mass production
Automation Compatibility: Compatible with NC feeder, material rack, leveler and manipulator
Wide Application Range: Suitable for precision small hardware, terminals, auto stamping parts
Low Noise & Energy Efficient: Wet-type clutch + variable frequency technology

Warranty & Service

One year warranty for whole press machine
All spare parts available from factory production
International brand electrical components for easy replacement
Technical training and consulting via email, phone or video
On-site engineer service available with reasonable additional cost
English operation and maintenance manual provided
Certificate of conformity included with machine

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production with applications spanning aviation, aerospace, automotive, shipbuilding, and light appliances.
