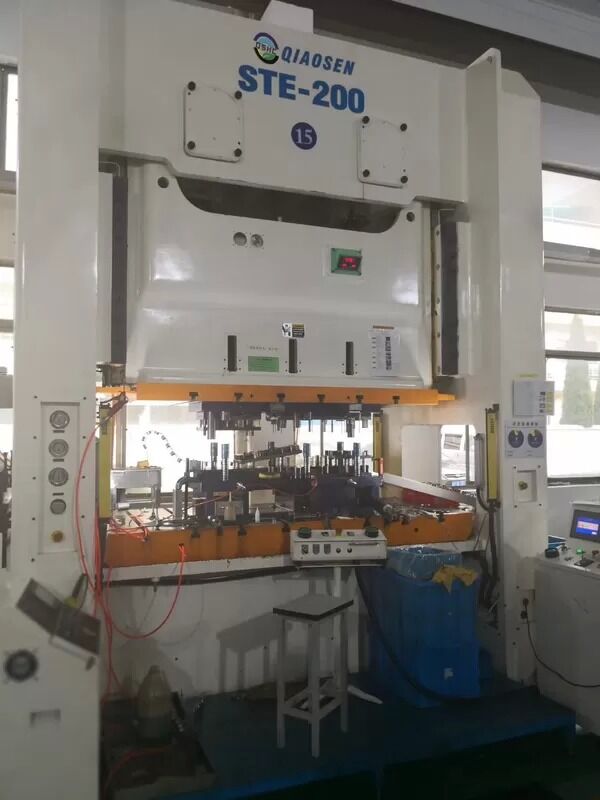

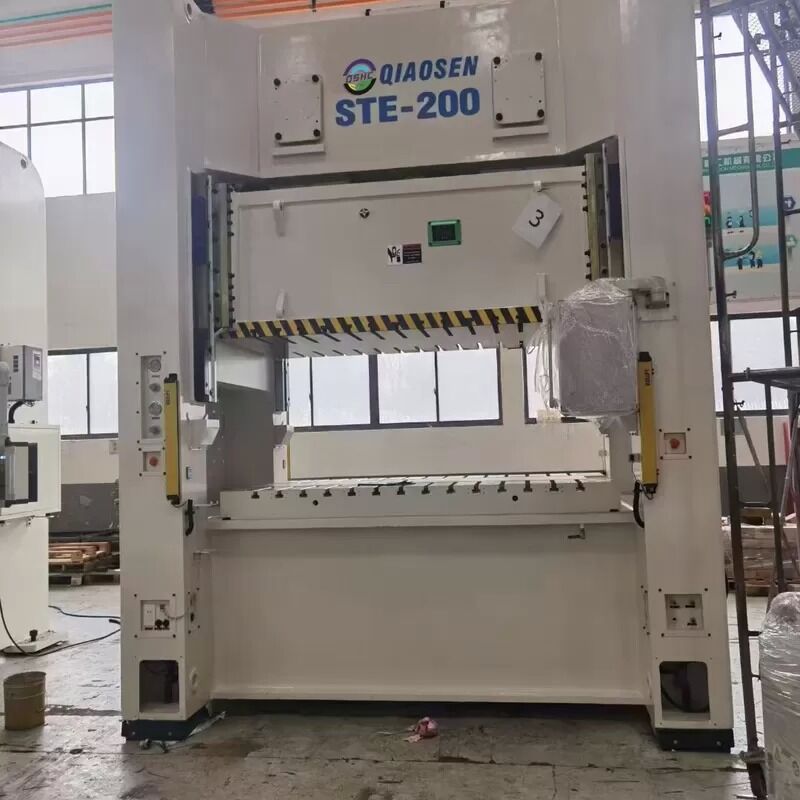

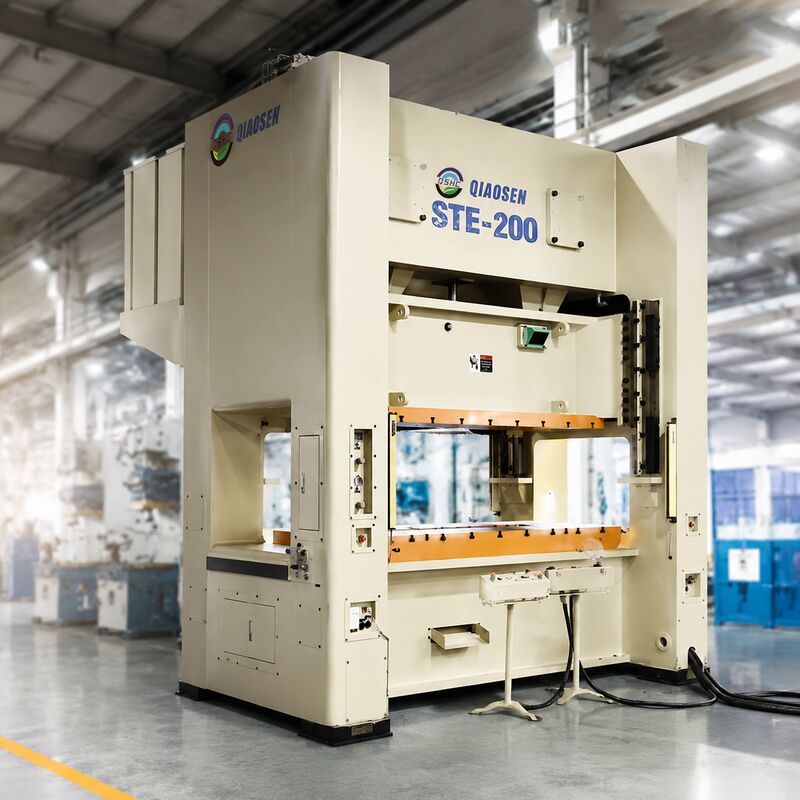

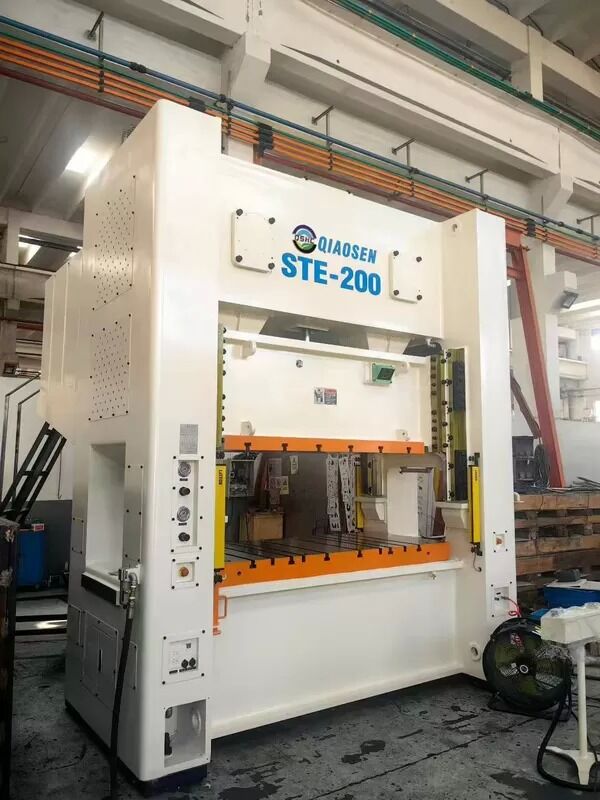

Name: 200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: STE-200S
Price: 2.00 USD
Availability: InStock

Home > Products > Pneumatic Punch Machine >

200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE\ISO

Model Number:

STE-200S

Chat Now

Request A Quote

Product Details

Up Platform Area:

2200*900mm

Bolster Area:

2200*940mm

Main Motor Power:

37*4

Machine Dimensions:

600 X 400 X 800 Mm

Color:

Black&Customer Request

Long Slider Length:

300mm For Stamping Machine

Die Shut Height:

450mm

Voltage:

220V/380V

Machine Type:

Punching Machine

Cnc Or Not:

Normal

Frame Material:

Cast Iron

Core Components:

Pump

Machinery Test Report:

Provided

Application:

Sheet Metal Punching, Leather Cutting, Plastic Shaping

Side Opening:

500*380mm

Payment & Shipping Terms

Minimum Order Quantity

Price

$220,000/pieces 1-4 pieces

Packaging Details

WOODEN BOX

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

100SET per month

200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

video

80ton High Accuracy Pneumatic Punching Machine 7.5kW for Metal Sheet Stamping

Chat Now

High Accuracy Pneumatic Power Press Punching Machine 500ton for Sheet Metal

Chat Now

H Frame Double Crank Press Punching Machine 200ton Metal Stamping Press

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

STE-200 Ton Pneumatic Punch Machine

Product Overview

The STE‑200 is a 200-ton precision punch press with closed-type double crankshaft manufactured by Dongguan Qiaosen Precision Engineering. It features high rigidity, high precision and adaptability for continuous automatic stamping, and is widely applied in the precision hardware, auto parts and electronic components industries.

Material Specifications

Material Thickness: 1-6 mm (medium and thick metal sheets)
Applicable Materials: Carbon steel, stainless steel (304/316), aluminum alloy, copper alloy, galvanized sheet, cold-rolled sheet, hot-rolled sheet
Applications: Blanking, punching, bending, forming, and shallow drawing
Material Requirements: Free of cracks, burrs or uneven thickness

Technical Specifications

Parameter	Specification
Nominal Pressure	200 Tonf
Structure Type	Closed-Type Double Crankshaft
Slide Stroke	100 mm
Stroke Frequency	50-70 SPM (Variable Frequency Adjustable)
Maximum Shut Height	510 mm
Slide Adjustment	110 mm
Lower Table Size	1400 * 820 mm
Upper Table Size	1130 * 630 mm
Main Motor Power	18.5 kW
Total Machine Weight	Approx. 23 Tonf

Structural Features

High Rigidity Frame

Steel plate welded frame with heat treatment for internal stress relief
Closed gantry + double crankshaft two-point structure ensures uniform load distribution

Precision Guidance & Transmission

Two-angle six-face long guideway processed by high-frequency quenching
Crankshaft made of 42CrMo high-strength alloy steel
Hardened gears and transmission shafts for stable operation

Safety & Control Systems

Pneumatic wet-type clutch brake with high sensitivity
Hydraulic overload protection device
PLC + touch screen control system with variable frequency speed regulation
Imported components: Japan NSK bearings, Japan seals, SMC pneumatic components

Key Advantages

Stable Precision: Excellent part consistency during long-term mass production
Automation Compatibility: Can be equipped with NC feeder, material rack, leveler and manipulator
Wide Application Range: Suitable for mass production of precision components
Low Noise & Energy Efficiency: Wet-type clutch + variable frequency technology

Model Comparison

STE‑200 (closed-type two-point) vs ST‑200 (open-type single point):

STE‑200: Closed gantry, high rigidity, high precision, suitable for large-area/continuous dies
ST‑200: Open C-type, cost-effective, large operating space, suitable for small and medium-sized parts

Automation Line Configuration

Typical Configuration: Material Rack (MT‑200) → Leveler (SML‑400 or STL‑400) → NC Servo Feeder (NCF‑400) → STE‑200 Punch Press → Material Receiving Device/Manipulator

Manufacturer Information

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production with products serving domestic and international markets including United States, Japan, Russia, European Union, Southeast Asia, and Middle East.

Warranty & Service

One year warranty for whole press machine
All spare parts available from factory production
International brand electrical components for easy replacement
Technical training and consulting via email, phone or video
On-site engineer service available
English operation and maintenance manual provided
Certificate of conformity included

Frequently Asked Questions

Are you the manufacturer? Can we visit your factory?

We are the manufacturer located in Wuxi city. We welcome factory visits to check machine quality on site.

What are your main products and main foreign markets?

Our main products include punching machines, metal straightening machines, and servo feeders. Main foreign markets are Asia, North America, Europe, and Africa.

What are the advantages of your machines and how can I trust the quality?

Our machines feature imported quality components and undergo rigorous testing before shipment, ensuring stable and reliable performance.

What are your payment terms?

We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.

How long is your warranty?

We offer 12 months free warranty with lifelong maintenance support.

Do you accept customer logos and customization?

Yes, we accept various customizations including logos and machine modifications according to customer requirements.
