Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Document:

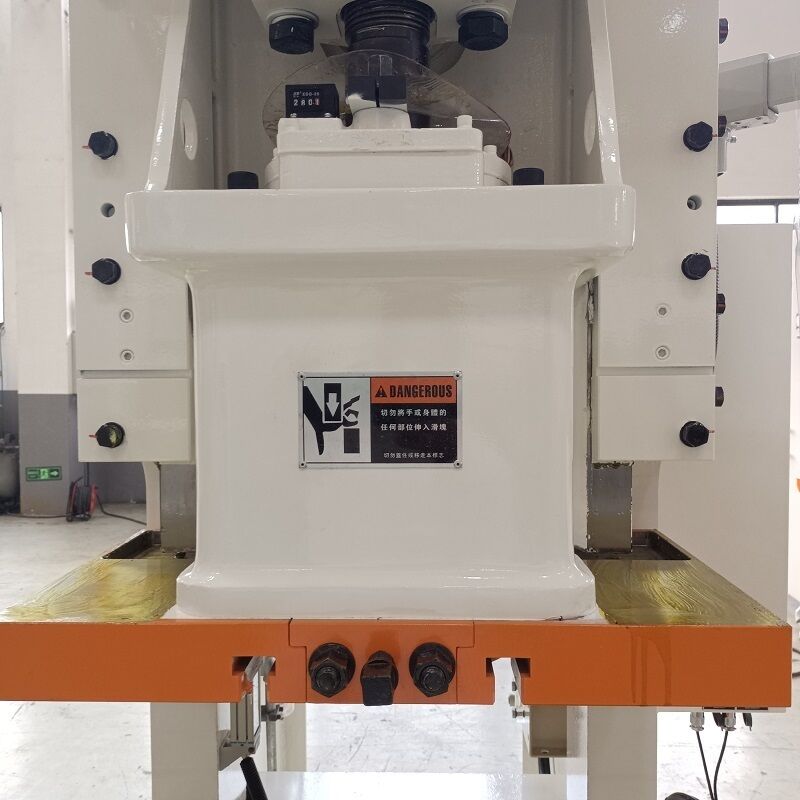

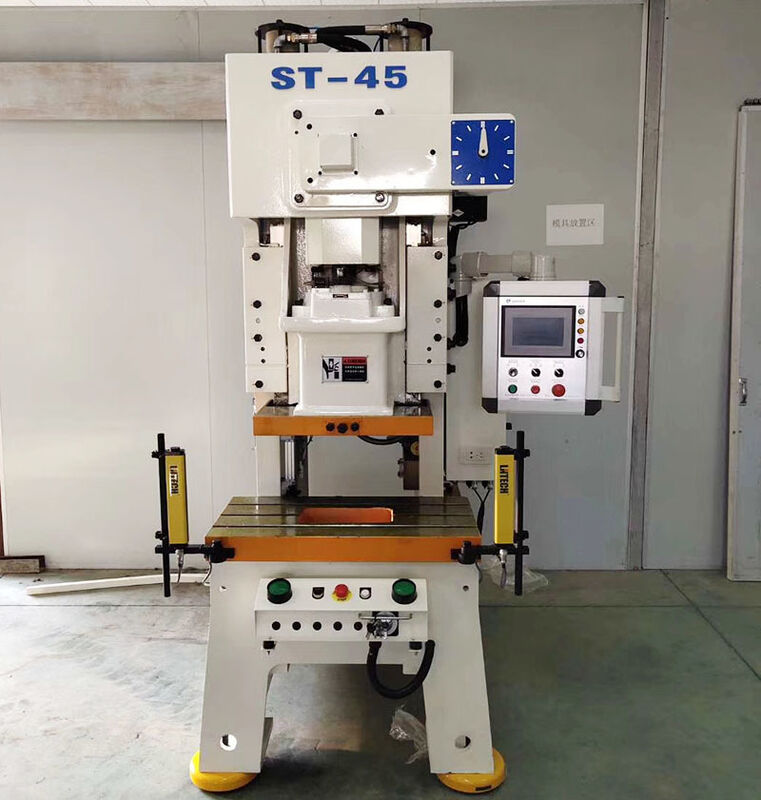

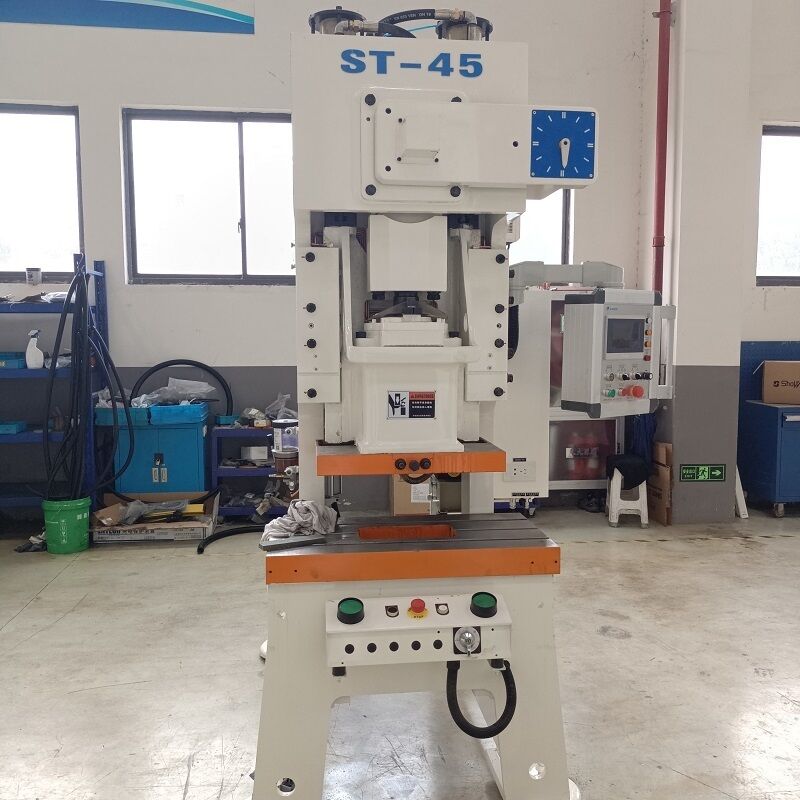

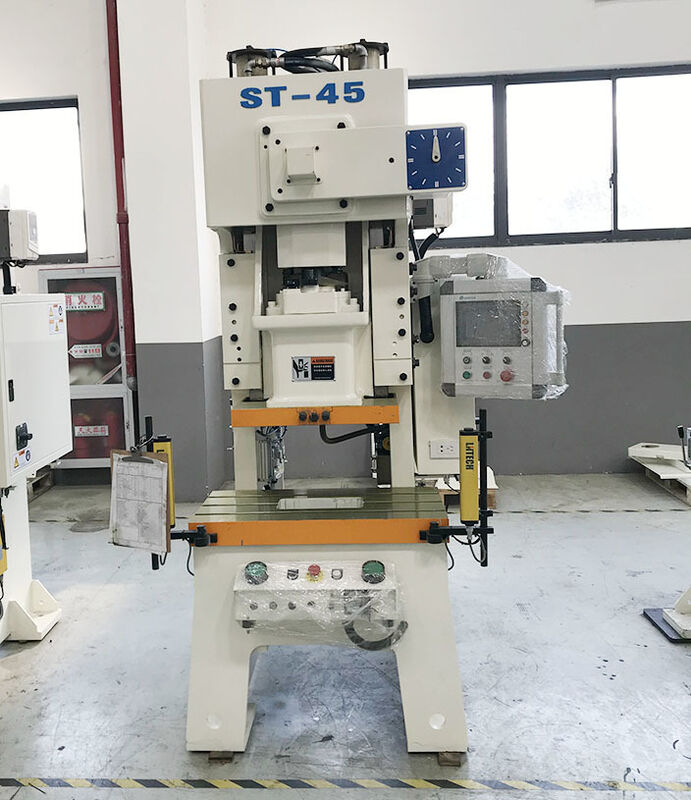

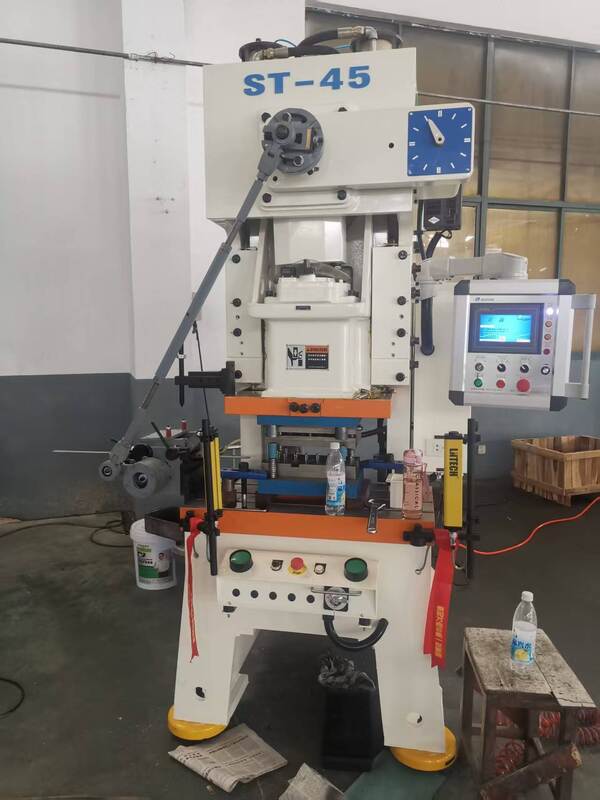

This is a 45-ton open single point crank punching machine that meets Japanese JIS 1 class standards for safety, energy saving, stability, automation, and high precision.
| No | Item | Unit | ST-45 V Type | ST-45 H Type |
|---|---|---|---|---|
| 1 | Punching Capability | ton | 45 | |
| 2 | Impact Force Location | mm | 3.2 | 1.6 |
| 3 | Slider Strokes Per Minute | SPM | 40-100 | 110-150 |
| 4 | Slider Length | mm | 80 | 50 |
| 5 | Max Die Shut Height | mm | 250 | 265 |
| 6 | Slider Adjustment Amount | mm | 60 | |
| 7 | Up Platform Area | kN | 560×340×60 | |
| 8 | Down Platform Area | ml | 850×440×80 | |
| 9 | Shank Hole | N.m | Ø38.1 | |
| 10 | Main Motor Power | kw×p | 5.5×4 | |
| 11 | Air Pressure | kg/cm² | 6 | |
| 12 | Punch Accuracy Grade | JIS 1 | ||
| 13 | Slider Adjustment Device | Manual Operation | ||
| 14 | Slider Center to Machine Distance | mm | 225 | |
| 15 | Platform to Floor Distance | mm | 790 | |
| 16 | Punch Weight | ton | 3.8 |
Our factory is located in Wuxi, China with a branch company in Dongguan. Established in 2016, we serve Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our office employs 51-100 people.
We are a high-end quality punching machine manufacturer and we promise customers will never regret choosing our brand.
Usually takes about 25 to 40 working days after receiving your advance payment.
Our technical and quality team will support you anytime you need assistance.
Yes, we can customize colors to match your production line requirements.
Yes, we can configure languages according to your requirements including Spanish, French, etc.
