Home > Products > Double Crank Power Press >
Mechanical Press Machine Junction Box Making Machine Electric Box Production Line

Mechanical Press Machine Junction Box Making Machine Electric Box Production Line

Junction Box Making Mechanical Press Machine

Electric Box Mechanical Press Machine

Junction Box Making Machine 380V

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

STC-315

Chat Now
Request A Quote
Product Details
Cnc Or Not:
Normal
Machine Type:
Punching Machine
Slide Stroke (mm):
280
Power Source:
Pneumatic
Place Of Origin:
Guangdong, China
Brand Name:
QIAOSEN
Voltage:
380V
Dimension(l*w*h):
2545*3100*4304
Motor Power (kw):
18.5
Model Number:
STC-315V
Weight (t):
30.5
Key Selling Points:
High-Accuracy
Warranty:
1 Year
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine
Punching Capacity:
200ton For Coin Punching Machine
Slider Adjustment Amount:
120mm For China Press Machine
Up Platform Area:
1850*650*95mm For Channel Punching Machine
Down Platform Area:
2400*840*170mm For Car Number Plate Making Machine Vehicle
Platform To Floor Distance:
1070mm For Busbar Punching Machine
Main Motor Power:
18.5*4 For Border Punching Machine For Craft
Air Pressure:
6 For Blinds Hole Punching Machine
Punch Dimension(L*W*H):
2235*2620*3849mm For Automatic Sheet Decoiler Machine
Punch Weight:
30.5tons For Automatic Punching Machine For Aluminum Foil Machine
Package:
Wooden Box
Highlight:

Junction Box Making Mechanical Press Machine

,

Electric Box Mechanical Press Machine

,

Junction Box Making Machine 380V

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$60,000/sets 1-49 sets
Packaging Details
Standard
Delivery Time
30-90
Payment Terms
,T/T
Supply Ability
100SET per month
Product Description

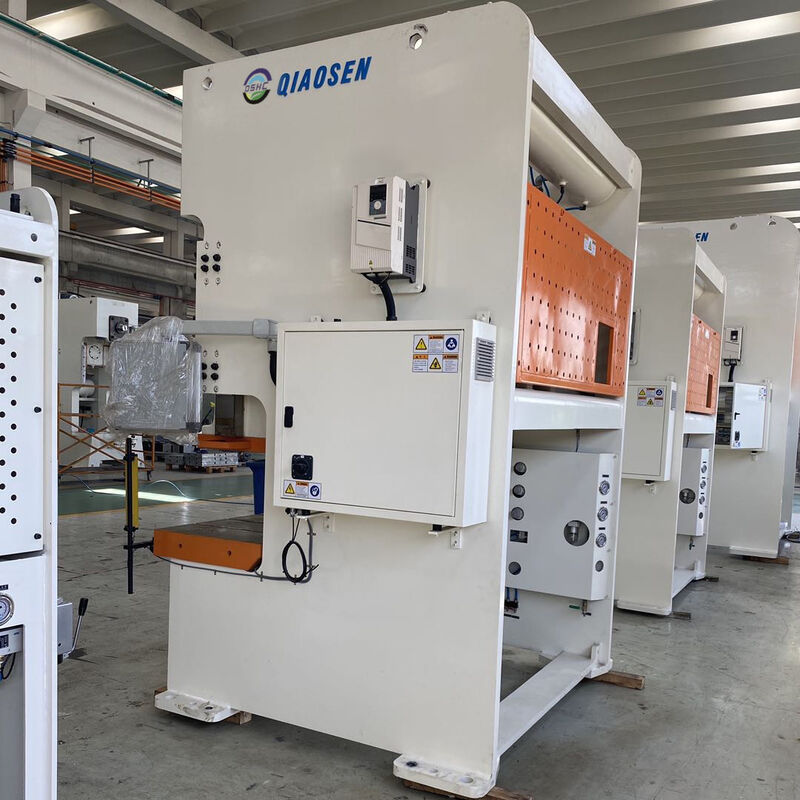

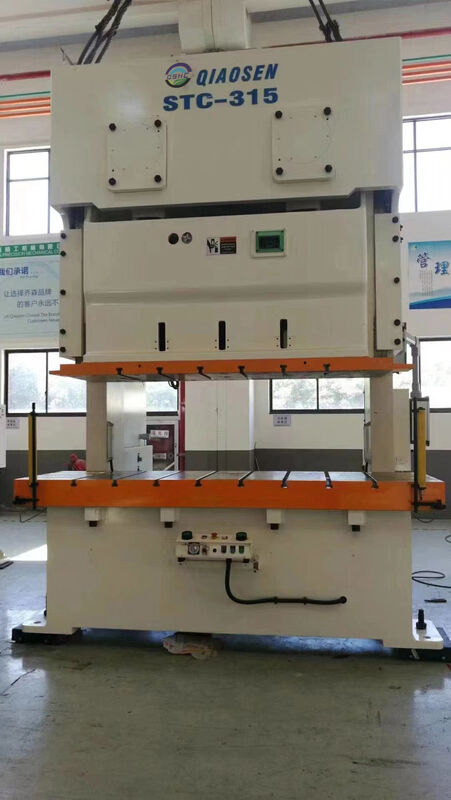

STC-315ton V type punching machine

This is 315ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

Mechanical Press Machine Junction Box Making Machine Electric Box Production Line 0
No Item Unit STC-315
  Mode   V type H type
1 punching capability ton 315
2 Impact force location mm 7 3.5
3 Slider stokes per minute SPM 20-35 30-60
4 Long slider length mm 280 170
5 Maximum mode height mm 550 605
6 Slider adjustment amount mm 120
7 Up platform area mm 2200*700*95
8 Down platform area mm 2800*900*190
9 Platform to floor distance mm 1100
10 Capacity Ton 14*2
11 Main motor power kw*p 30*4
12 Air pressure kg/cm^2 6
13 Punch accuracy grade   JIS 1
14 punch dimension(L*W*H) mm 2545*3100*4304
15 Punch weight ton 48
16 Crown sheet area mm 690*470*2
PRODUCT CONFIGURATION
Mechanical Press Machine Junction Box Making Machine Electric Box Production Line 1
Mechanical Press Machine Junction Box Making Machine Electric Box Production Line 2
Company Profile
Mechanical Press Machine Junction Box Making Machine Electric Box Production Line 3
Customer Case
Mechanical Press Machine Junction Box Making Machine Electric Box Production Line 4
Warranty And Service
  • 1. One year warranty for whole pressmachine.
  • 2. All spare parts are available as most of the parts produced by our factory.
  • 3. It is easy to get the electric parts as all are international famous brands.
  • 4. We can provide technical training and consulting via email, phone or video.
  • 5. We can send out engineers for service, installation or training with reasonable additional cost.
  • 6. English operation and maintenance manual is provided with the press.
  • 7. Certificate of conformity will be sent with press
FAQ
  • who are we?
    A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
  • why select us?
    A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
  • How about your delivery time?
    A: Usually it takes about 25 to 40 working days after receiving your advance payment.
  • Do you provide after-sale service?
    A: Our technical and quality team will support you any time if you need us.
  • Can i do different color machine?
    A: Yes, we can customize your own colors to match your production line
  • Can the touch screen board language change to others
    A: Yes, we can do it according to your requirement like Spanish, French ect...
