Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:
STC-160

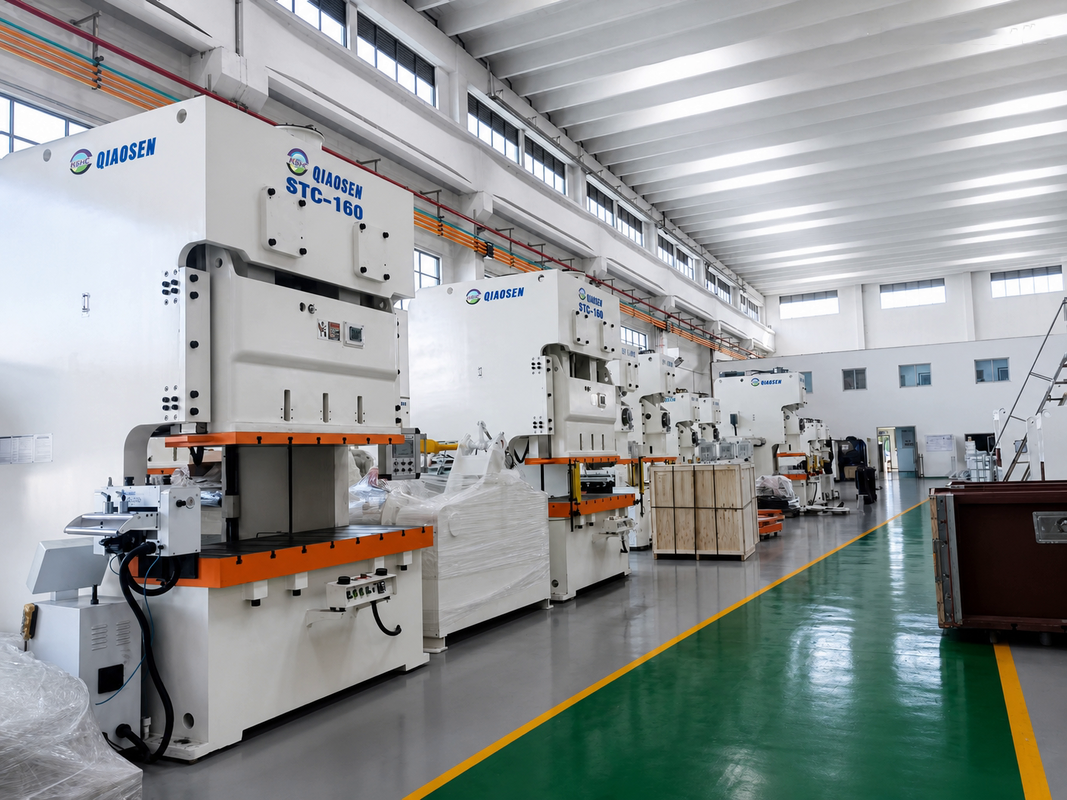

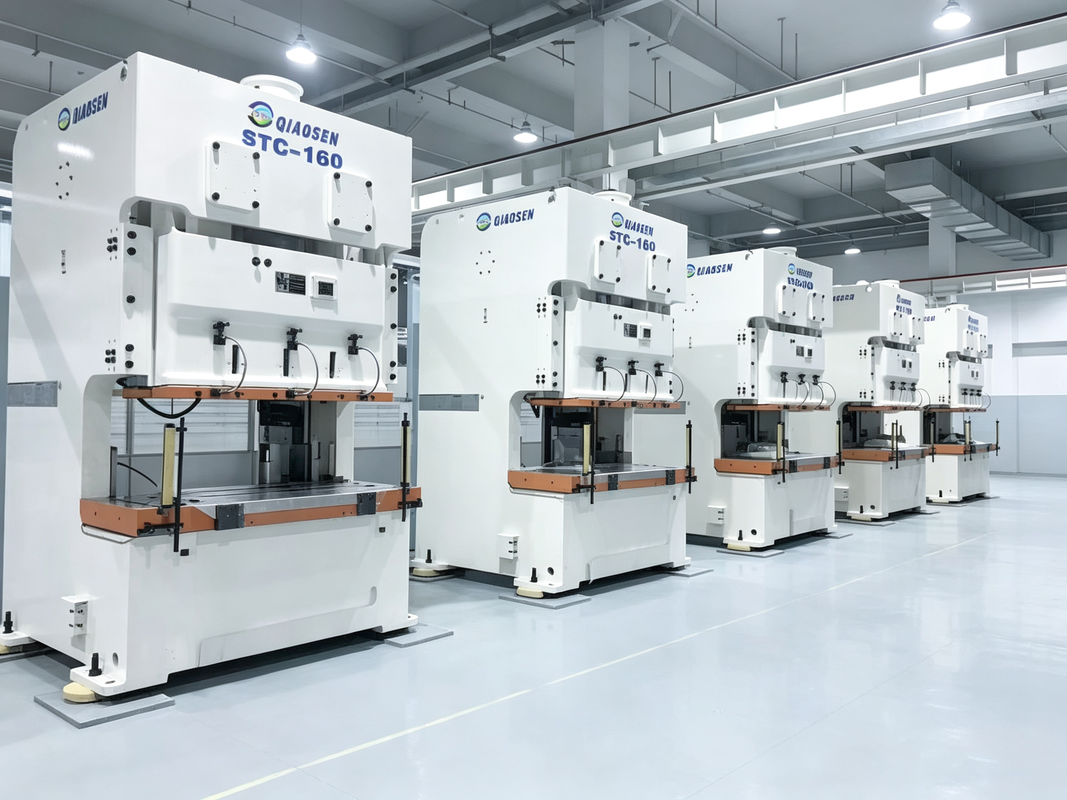

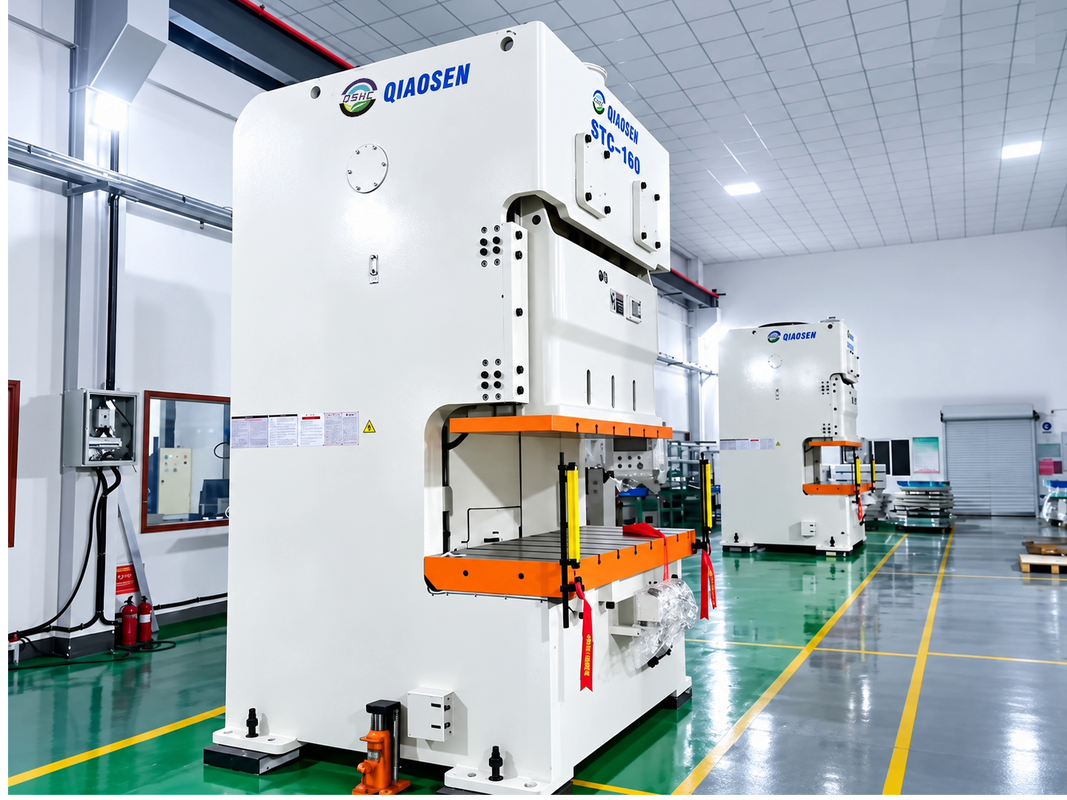

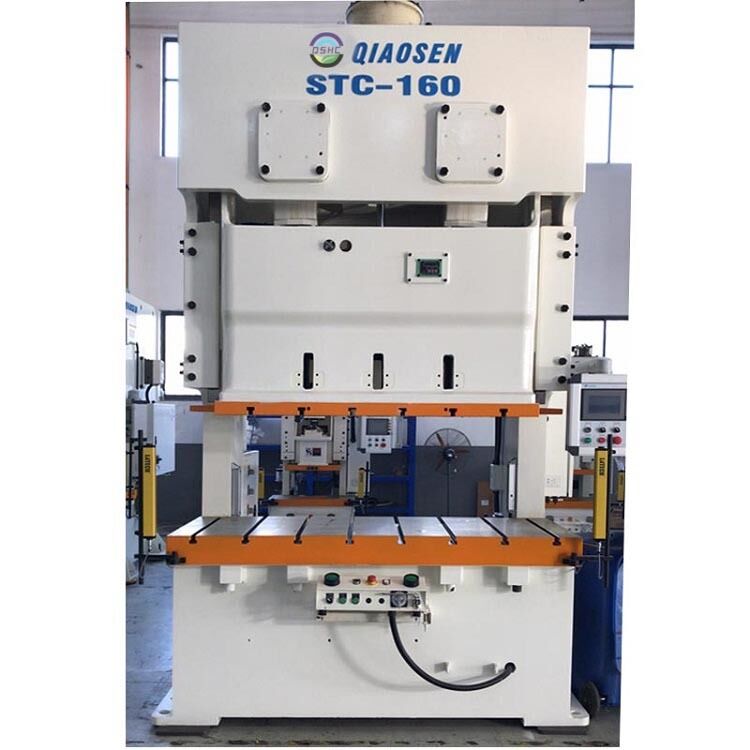

STC-160 is Qiaosen 160 ton C frame double crank power press. Adopting double crank structure, the slider gets balanced force and keeps stable during long continuous stamping. The machine frame is high rigidity steel welded structure with stress relief treatment, meets JIS class 1 precision standard. It is widely used for sheet metal working, including punching, bending, forming and shallow drawing. This press can work together with decoiler, straightener and servo feeder to build full automatic stamping line. Ideal for mass production of automotive hardware, home appliance parts, new energy components and electronic metal parts. Three operation modes: inch, single stroke and continuous stroke. Equipped with overload protection to ensure safe operation.
| No | Item | Unit | STC-160 |
|---|---|---|---|
| 1 | Punching Capability | ton | 160 |
| 2 | Impact Force Location | mm | 6 (V type) | 3 (H type) |
| 3 | Slider Strokes Per Minute | SPM | 30-55 (V type) | 40-85 (H type) |
| 4 | Long Slider Length | mm | 200 (V type) | 130 (H type) |
| 5 | Maximum Mode Height | mm | 450 (V type) | 485 (H type) |
| 6 | Slider Adjustment Amount | mm | 100 |
| 7 | Up Platform Area | mm | 1600*550*70 |
| 8 | Down Platform Area | mm | 2000*760*150 |
| 9 | Platform to Floor Distance | mm | 990 |
| 10 | Capacity | Ton | 6.3*2 |
| 11 | Main Motor Power | kw*p | 15*4 |
| 12 | Air Pressure | kg/cm² | 6 |
| 13 | Punch Accuracy Grade | JIS 1 | |
| 14 | Punch Dimension (L*W*H) | mm | 1940*2200*3709 |
| 15 | Punch Weight | ton | 22 |
| 16 | Crown Sheet Area | mm | 410*260*2 |
STC series uses double crank structure. The slider bears force evenly. It maintains better precision for large sheet stamping and long time continuous mass production.
It meets JIS class 1 precision standard, good for parts with strict tolerance requirement.

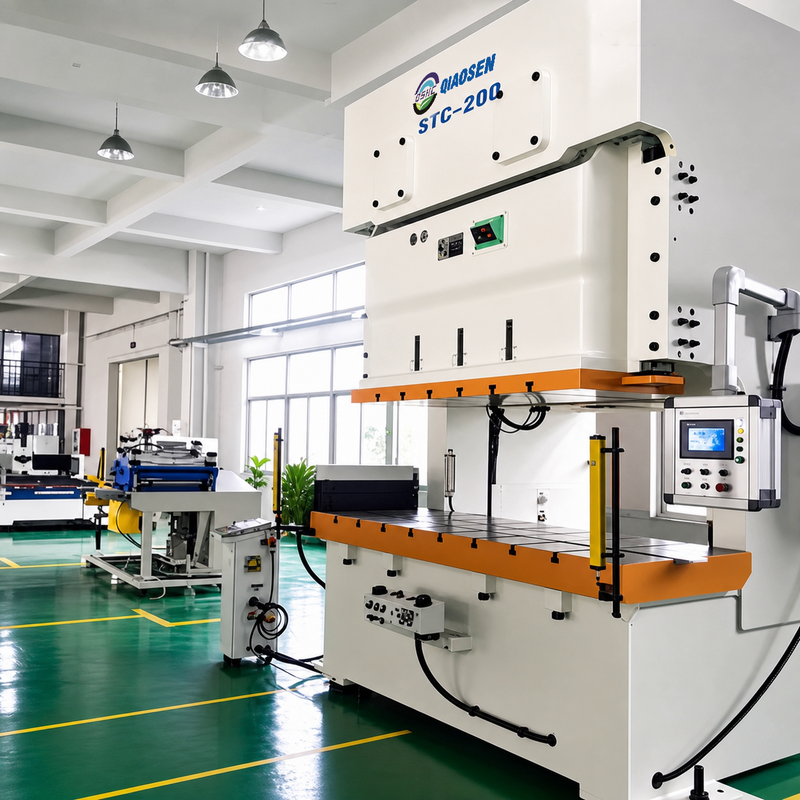

Yes. It can be matched with decoiler, straightener and servo feeder to build full automatic stamping production line.
Sheet metal punching, bending, forming, blanking and shallow drawing.
It comes with overload protection device to stop machine and protect frame and die. Safety light curtain can be installed for operator protection.
30-45 days for standard model. Custom configuration will have separate lead time.
We offer online technical support. Engineer on-site commissioning service is available. One year warranty for whole machine.
Max die shut height is 485mm, slider adjustment is 100mm, compatible with various stamping dies.
