Name: 160 Ton High-Accuracy Press Punching Machine with JIS Class 1 Precision for Metal Sheet Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-160V
Price: 36 USD
Availability: InStock

Home > Products > Pneumatic Punch Machine >

160 Ton High-Accuracy Press Punching Machine with JIS Class 1 Precision for Metal Sheet Stamping

160 Ton Press Punching Machine

High-Accuracy Power Press

JIS Class 1 Precision Stamping Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-160V

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Machine Type

Slide Stroke (mm):

200

Voltage:

380V

Dimension(l*w*h):

2315*1400*3670mm

Motor Power (kw):

Model Number:

ST-160V

Weight (ton):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Punching Capacity:

160ton

Slider Adjustment Amount:

200mm

Up Platform Area:

990*550*90mm

Down Platform Area:

1200*800*140mm

Slider Center To Machine Distance:

405mm

Platform To Floor Distance:

900mm

Main Motor Power:

15*4

Highlight:

160 Ton Press Punching Machine

High-Accuracy Power Press

JIS Class 1 Precision Stamping Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$36,000/case

Packaging Details

Standard

Delivery Time

Payment Terms

T/T

Supply Ability

30 Sets/Month

Deep‑Throat Power Press C‑Type Open‑Front Single Point Press Compatible With Decoiler Servo Feeder Automatic Stamping Line

Chat Now

200 Tonf H Frame Press with Closed-Type Double Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

200-ton Double Crank Punching Machine with Closed-Type Crankshaft and High Rigidity Frame for Metal Stamping

Chat Now

STE-200S Heavy Duty Pneumatic Punch Machine Equipped with Adjustable Settings to Accommodate Different Punching Requirements

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

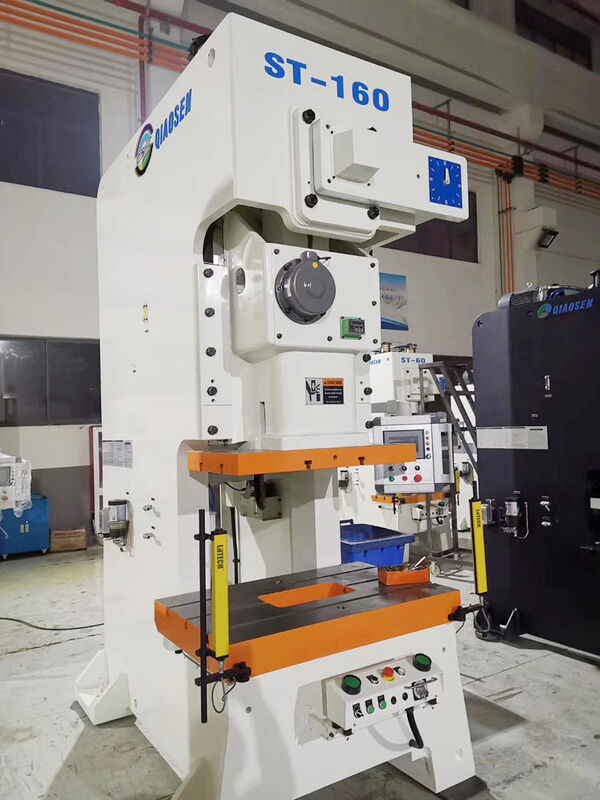

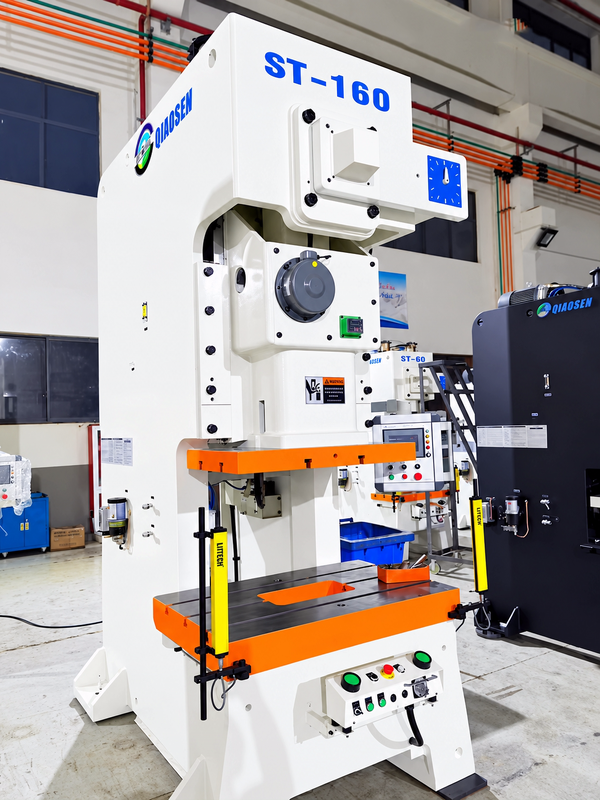

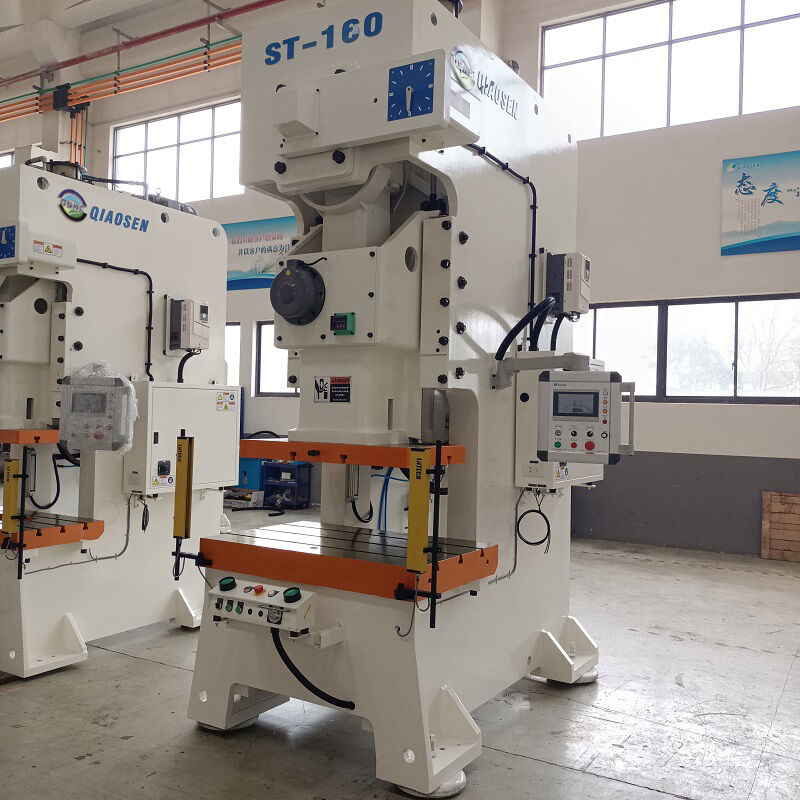

ST-160 160 Ton Press Punching Machine

160 Ton C Frame Single Point Precision Power Press for metal sheet punching, bending, and shallow drawing operations with consistent precision and durability.

Product Overview

The ST-160 is Qiaosen's 160 ton C frame single point precision power press featuring a one-piece cast frame with high rigidity. The slide utilizes a six-side guide structure meeting JIS class 1 precision standards. Ideal for metal sheet punching, bending, forming, and shallow drawing applications. Compatible with uncoilers, straighteners, and servo feeders to create fully automatic stamping lines. Suitable for automotive hardware, home appliance parts, new energy sheet metal, and electronic metal components.

Core Advantages

One-piece cast frame with strong anti-vibration performance and minimal deformation during long-term mass production
Six-side slide guide design with small running clearance for high stamping precision and extended mold life
Hydraulic overload protection device automatically releases pressure to protect machine and mold under overload conditions
Simple operation and convenient die adjustment with user-friendly control panel
Reserved interface for automatic feeding machines enabling continuous stamping and reduced labor costs

Technical Specifications

Item	Unit	ST-160 V Type	ST-160 H Type
Punching capability	ton	160
Impact force location	mm	6	3
Slider strokes per minute	SPM	20-50	40-70
Slider length	mm	200	90
Max die shut height	mm	460	510
Slider adjustment amount	mm	110
Up platform area	mm	990×550×90
Down platform area	mm	1250×800×140
Shank hole	mm	Ø65
Main motor power	kw×p	15×4
Air pressure	kg/cm²	6
Punch accuracy grade		JIS 1
Slider adjustment device		Electric operation
Slider center to machine distance	mm	405
Platform to floor distance	mm	900
Punch weight	ton	16
Punch dimension (L×W×H)	mm	2315×1400×3670
Die cushion capacity	ton	10
Stroke	mm	80
Active area	mm²	650×420

Application Industries

Automotive Hardware Home Appliance Parts New Energy Sheet Metal Electronic Metal Parts Kitchen Hardware Construction Hardware Stamping

Matching Equipment

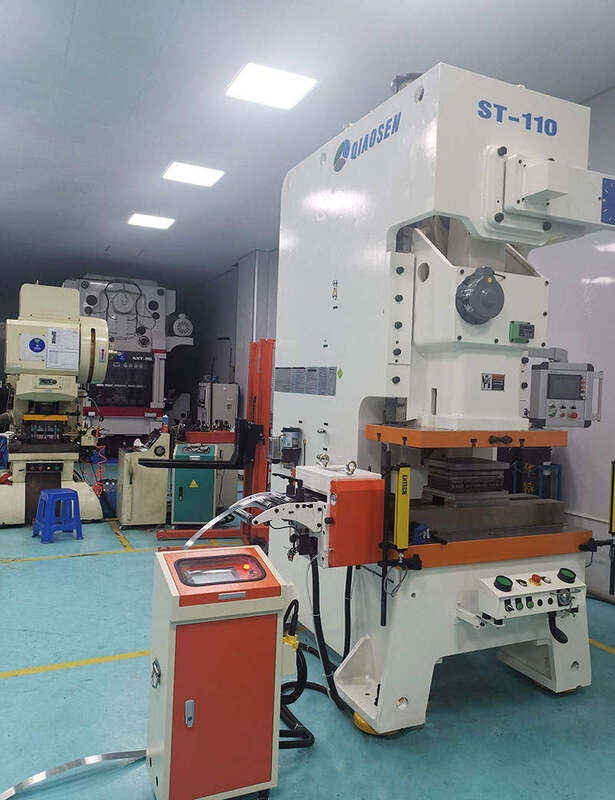

Compatible with uncoilers, 2-in-1 straightener feeders, servo feeders, and stamping molds to provide complete automatic stamping line solutions.

Warranty and Service

One year warranty for the complete press machine
All spare parts available with most components produced in-house
Easy access to electrical parts using international famous brands
Technical training and consulting via email, phone, or video
Engineer dispatch available for service, installation, or training at reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity included with press delivery

Company Profile

Frequently Asked Questions

What thickness of metal sheet can ST-160 process?

It depends on material and mold. Normally for cold rolled sheet within 6mm. We can evaluate based on your product requirements.

Can this power press connect with automatic feeding machines?

Yes. The machine reserves standard interface for servo feeders, uncoilers, and straighteners to build full automatic stamping lines.

What is the machine precision? Is it suitable for mass continuous production?

JIS class 1 precision. High rigid frame ensures stability for long-term mass stamping production.

What is your lead time?

Standard production lead time 30-45 days. Final schedule depends on order plan.

Do you offer installation and operator training?

Yes. We provide on-site installation, commissioning, and operation training services.

What are wearing parts? Is spare parts easy to get?

Wearing parts include clutch parts, oil seals, and buffer parts. Original spare parts are consistently available.

Can ST-160 make shallow drawing parts?

Yes, suitable for sheet shallow drawing, bending, and punching operations. Not recommended for deep drawing applications.

What is the warranty period?

1 year warranty for the complete machine (consumable wear parts excluded). Lifetime technical support provided.
