Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:
STC-110V

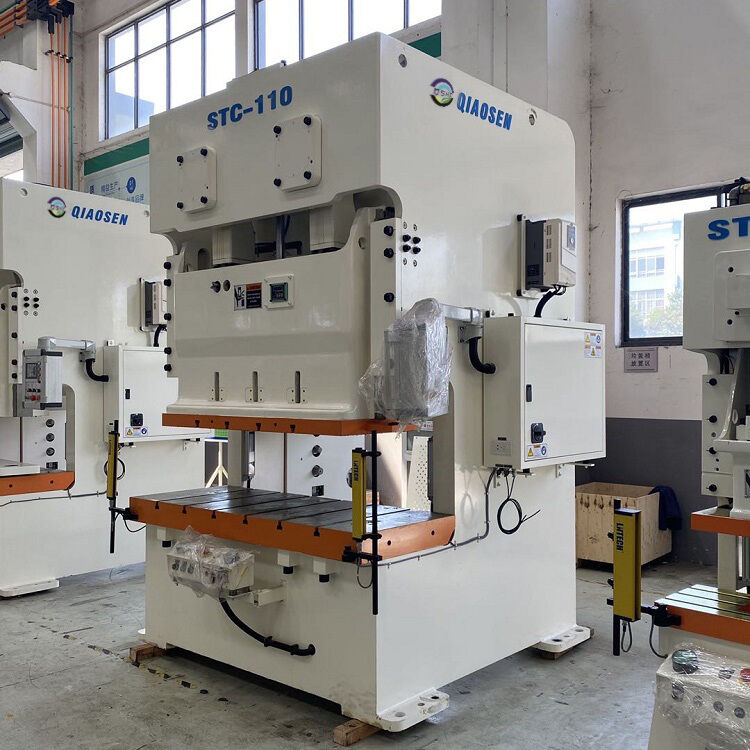

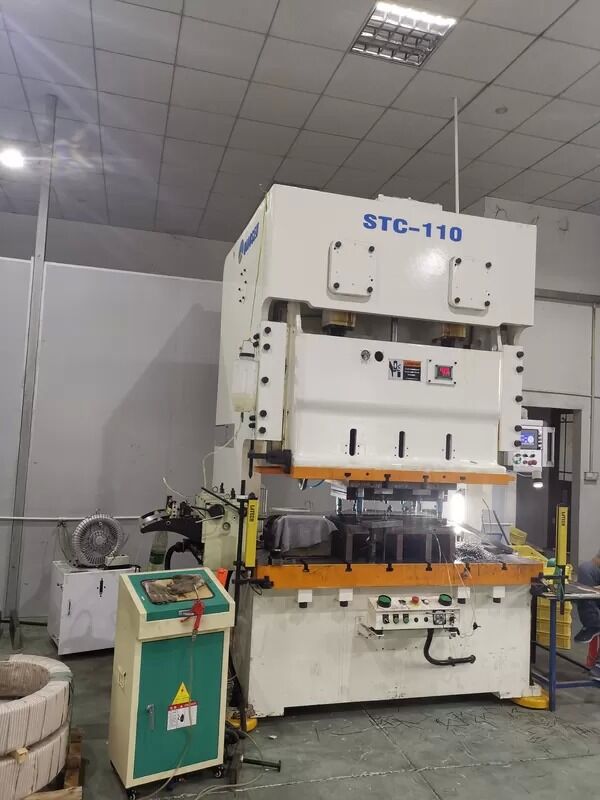

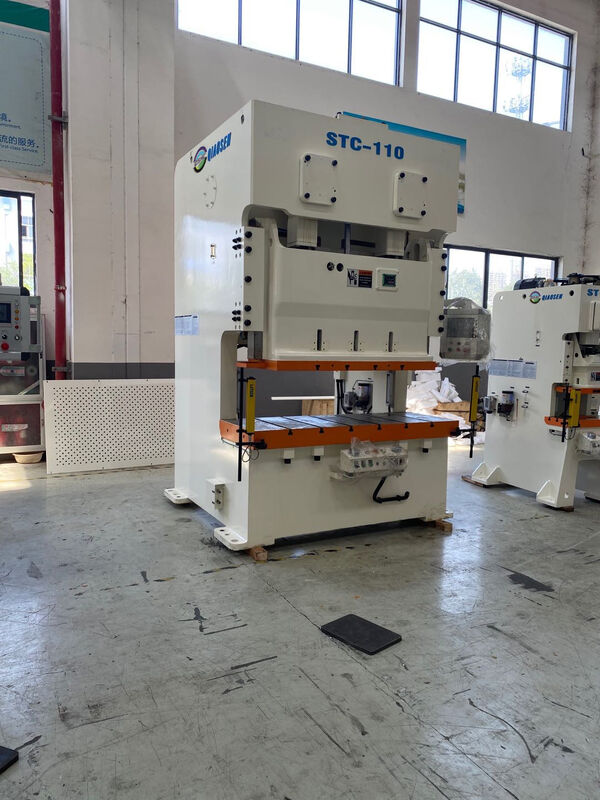

Energy efficient pneumatic punching press designed for auto parts and sheet metal stamping applications.
Widely applied in hardware, automotive parts, electronic components, home appliances and light industry. Ideal for punching, blanking, bending and forming of small to medium-sized workpieces.
Suitable Materials: Metal sheets (iron, steel, aluminum, copper) 0.5-4.0mm thick. Perfect for hardware accessories, auto small parts, electronic terminals and home appliance components processing.
Strong punching force with stable performance for various medium-load stamping tasks
Sturdy steel frame with stress relief treatment ensures stable precision and reduces material waste
Simple operation allows one operator to manage multiple machines, improving production efficiency
High-quality imported components with overload protection and emergency stop for safe long-term use
Suitable for multiple stamping processes including punching, blanking, and bending
Low energy consumption and easy maintenance reduce purchase and operation costs
| NO | Item | Unit | STC-110V | STC-110H |
|---|---|---|---|---|
| 1 | Punching capacity | ton | 110 | |
| 2 | Ability occurrence point | mm | 5 | 3 |
| 3 | Slider strokes per minute | SPM | 35-65 | 50-100 |
| 4 | Long slider length | mm | 180 | 110 |
| 5 | Maximum mode height | mm | 400 | 435 |
| 6 | Slider adjustment amount | mm | 100 | |
| 7 | Up platform area | mm | 1400*500*70 | |
| 8 | Down platform area | mm | 1800*650*130 | |
| 10 | Platform to floor distance | mm | 830 | |
| 12 | Main motor power | kw*p | 11*4 | |
| 13 | Air pressure | kg/cm² | 5 | |
| 14 | Punch accuracy grade | JIS 1 | ||
| 15 | Punch dimension(L*W*H) | mm | 1745*2000*3059 | |
| 16 | Punch weight | ton | 14.2 |
Dongguan Qiaosen Machinery Co., Ltd, with our factory located in Jiangsu province, was established in 2016. Conveniently located near Shanghai with excellent transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.
We specialize in hydraulic press machine production, offering 10 to 2000 ton press machines across 8 series with over 100 types. Our product range includes single column, four column, C frame, H frame presses, punching machines, folding machines, and cutting machines for applications in aviation, aerospace, automotive, shipping, light appliances, and daily hardware.
Our products are known for exquisite design, competitive pricing, excellent quality, and efficient after-sales service. We serve customers across more than 20 domestic provinces and export to United States, Japan, Russia, European Union, Southeast Asia, and Middle Eastern countries.
