GO-300 Max 3.2mm Thickness Sheet Leveling Machine Automatic 300mm Width 15m/min

3.2mm Thickness Sheet Leveling Machine

Automatic Sheet Metal Leveling Machine

300mm Width Sheet Leveling Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Document:

0a54443b-d35f-41ec-9338-d4f...32.pdf

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

300mm

Thickness Of Material:

Max 3.2mm

Material Diameter:

450-530mm

Material Outer Diameter:

1200mm

Material Weight:

1000kg

Correction Speed:

15m/min

Motor HP:

2HP

Expansion Method:

Moves Type

Highlight:

3.2mm Thickness Sheet Leveling Machine

Automatic Sheet Metal Leveling Machine

300mm Width Sheet Leveling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$2,560/cases 1-4 cases

Payment Terms

T/T

Supply Ability

30 Sets/Month

200 Ton Pneumatic Power Press Punching Machine for Auto Parts Stamping

Chat Now

CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication

Chat Now

Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet

Chat Now

video

ST-80 80Ton C Frame Single Point Crank Pneumatic Precision Power Press for Hardware Auto Parts Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

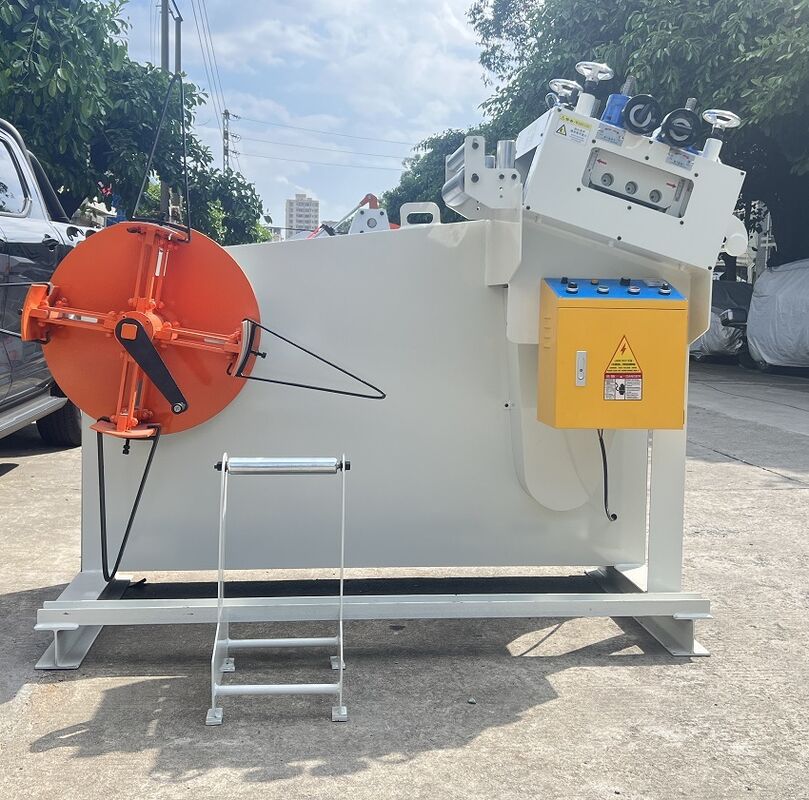

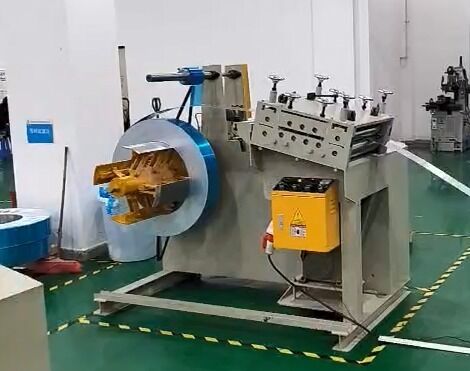

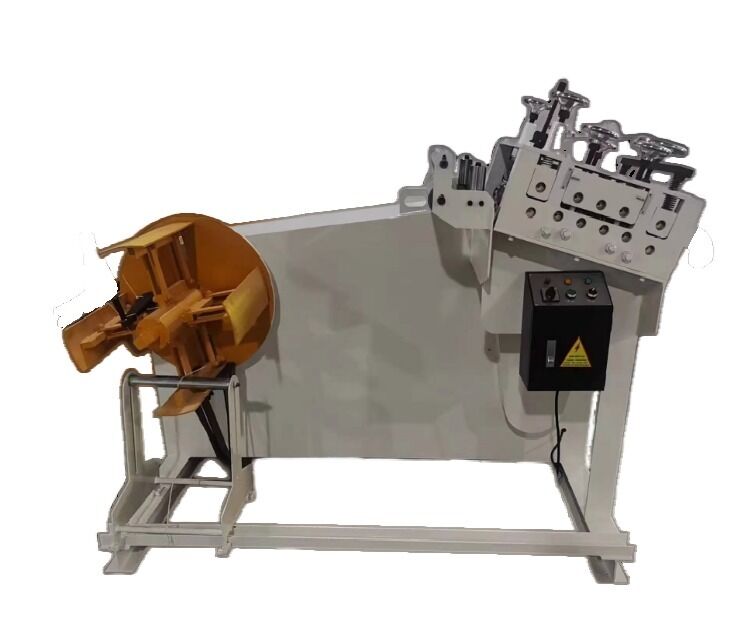

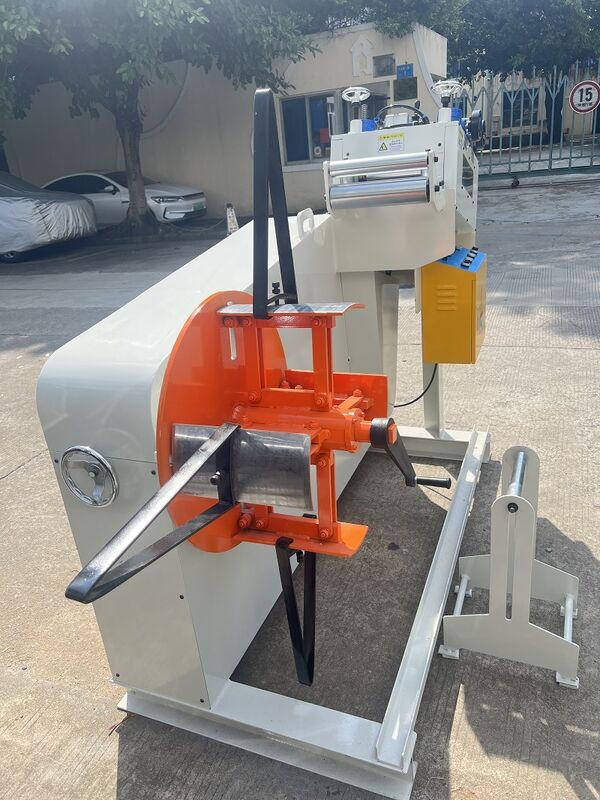

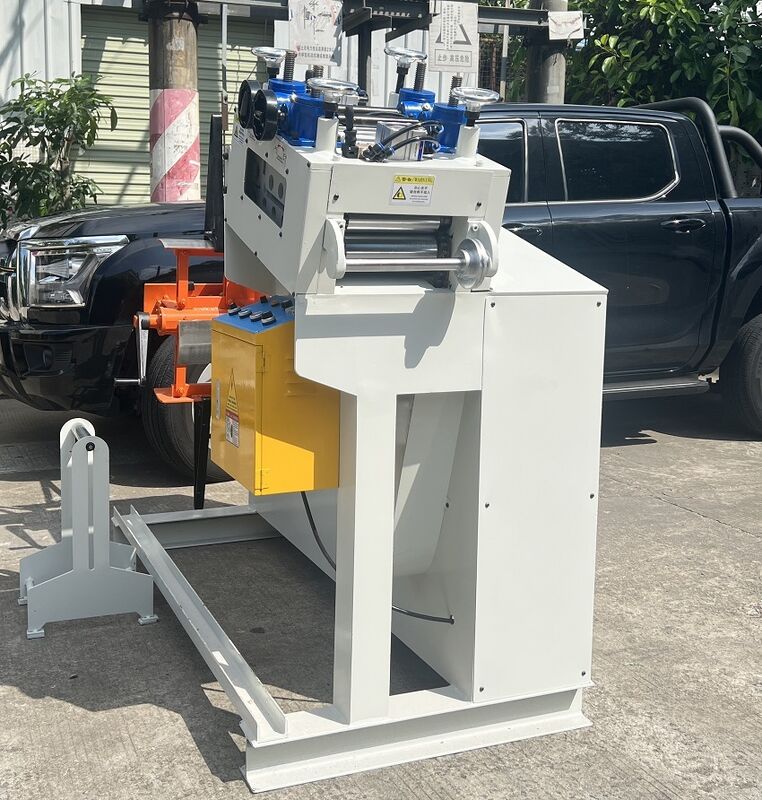

GO-300 Automatic Metal Material Straightening and Leveling Machine Steel Plate Sheet Feeder

Product Specifications

No	Item	Data
1	Width of material	300mm
2	Leveling thickness	0.5-3.2mm
3	Material diameter	450-530mm
4	Material outer diameter	1200mm
5	Material weight	1000kg
6	Correction speed	15m/min
7	Machine weight	1100kg

Key Features

Suitable for the collection and delivery of various coil materials, both thin metal and non-metal materials
Motor power can be added to match the feeding device
The tension of the brake device can be adjusted, and the main shaft uses a reinforced type to make the material reel rotate more smoothly and increase the load force
Indispensable parts for fully automatic production of presses, saving manpower, material resources, reducing costs, and achieving ideal results
Imported parts are used, with fewer failures and long life

Similar Products

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, which has our own factory located in Jiangsu province, was established in 2016. Located close to Shanghai city with very convenient transportation, it is a birthplace of creative minds and gifted talents. Our factory took the lead in passing authentication of the ISO9001:2008 quality management system. We are a factory specialized in the production of hydraulic press machines.

Our main products include 10 tons to 2000 tons press machines with 8 series, having more than 100 types, including single column, four column, C frame, H frame and all kinds of press machines, punching machines, folding machines, and cutting machines. These are used in aviation, space flight, automobile, ship, light appliance, daily used hardware and more.

All along, our company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support have received the affirmation of customers at home and abroad. Our products sell well in more than 20 domestic provinces, cities and districts, and are exported to United States, Japan, Russia, European Union, Southeast Asia, the Middle East and other countries.
