Automatic Sheet Feeder Machine Electric Straightening Adjustment 22M/Min with 9 Leveling Hoops

Automatic Sheet Feeder Machine

Sheet Metal Feeder Machine 22M/Min

9 Leveling Hoops Sheet Feeder Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Bearing, Motor, Pump

Brand Name:

Qiaosen

Voltage:

380

Power(w):

2HP

Dimension(l*w*h):

5150*2258*3398mm

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

2000

Feeding Speed:

20 M/Min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder Machine

Width Of Material:

600-1300mm For Aa4c Alloy Wheel Straightening Machine

Thickness Of Material:

0.8-9.0mm For Automatic Flattener

Max Correction Speed:

22/min For Automatic Level Machine

Main Motor:

AC22kw For Automatic Uncoiler Metal Sheet Opening Machine

Max Material Weight:

10000kg For Level Punching Machine

Coil Intside Diameter:

508mm For Leveler

Coil Outside Diameter:

1400mm For Uncoiler

Voltage:

Customized For Copper Straightening Machine

Highlight:

Automatic Sheet Feeder Machine

Sheet Metal Feeder Machine 22M/Min

9 Leveling Hoops Sheet Feeder Machine

Payment & Shipping Terms

Price

$37,000/cases 1-2 cases

Payment Terms

T/T

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now

video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

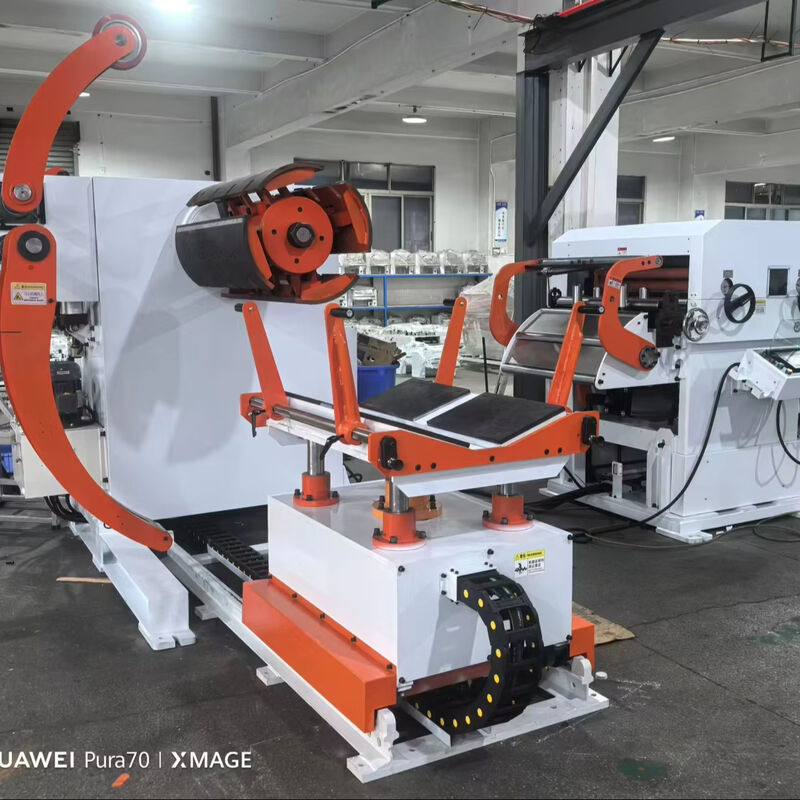

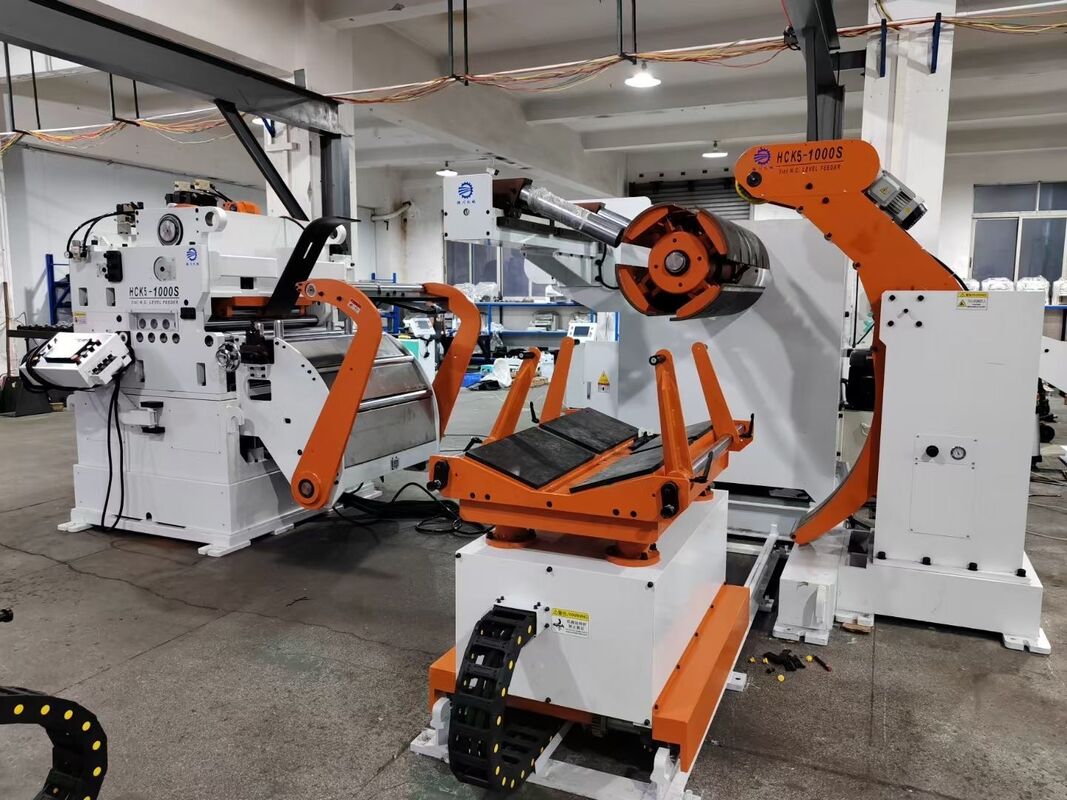

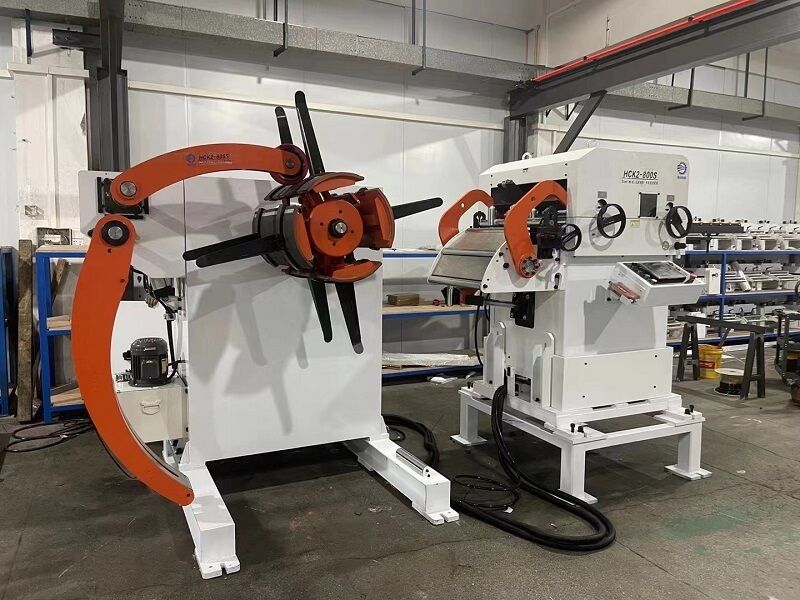

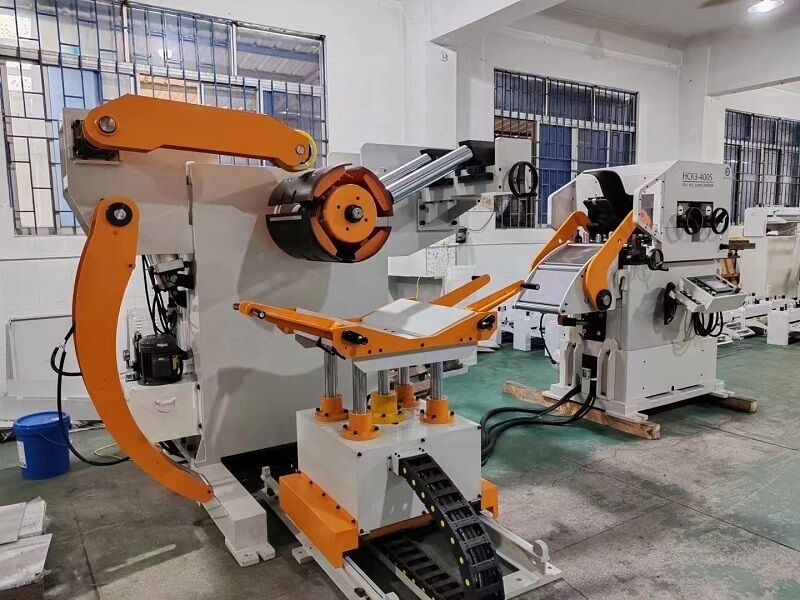

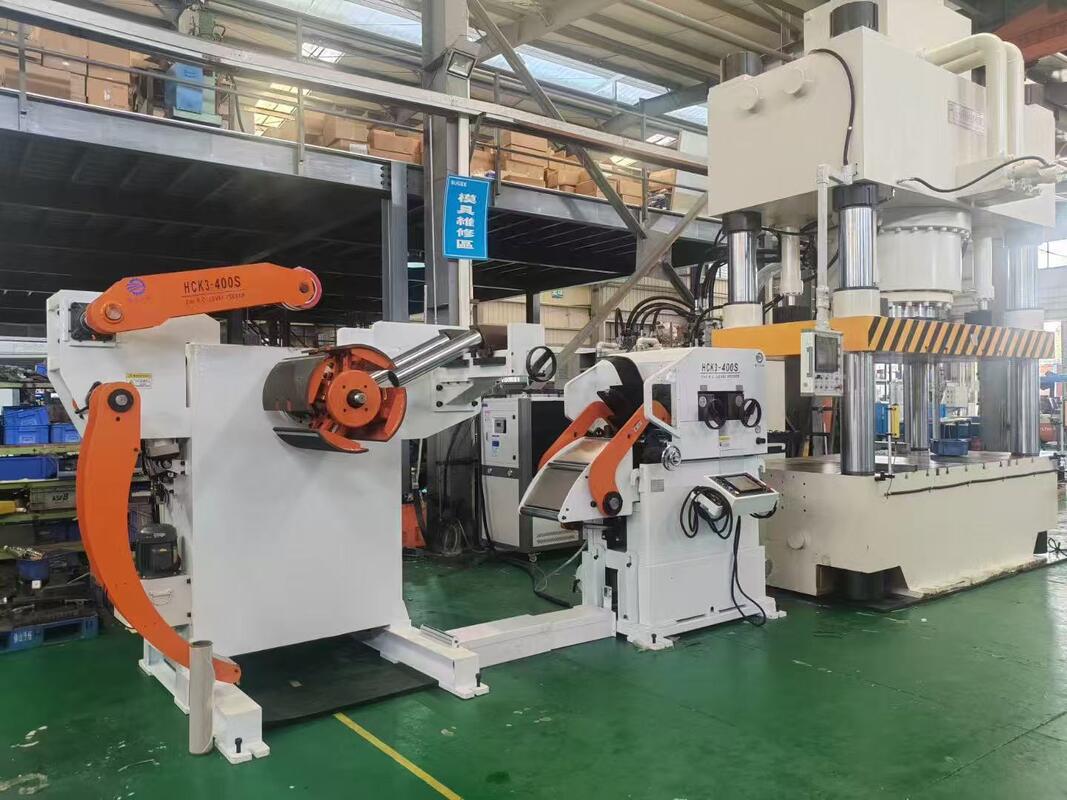

High Quality 3-in-1 Automatic Sheet Feeder Machine for Construction Industry

Automatic steel plate metal sheet decoiler with material straightening, leveling and feeding capabilities.

Product Specifications

Model	NLF4-600	NLF4-800	NLF4-1000	NLF4-1300
Coil width (mm)	70-600	70-800	70-1000	70-1300
Coil thickness (mm)	0.8-9.0
Max coil weight (kg)	5000	5000	7000	10000
Coil I.D (mm)	508
Coil O.D (mm)	1400
Max speed (mm)	22
Feeding accuracy (mm)	± 0.15
Correction roll (mm)	Upper 5/lower 4
Feeding roll (set)	1
Back pressure roll (set)	provided
Feeding line height (mm)	1200 ±100
Power supply	AC220V 50HZ/AC380V 50HZ
Uncoiler expansion method (mm)	hydraulic
Air pressure (kg/cm²)	5
Servo motor (kw)	AC22
Uncoiler motor (kw)	2.2	2.2	3.7	7.5

Key Features

Uses 9 leveling hoops for enhanced material straightening precision
Electronic straightening adjustment system for easy setup and faster operation
