Name: High Accuracy Pneumatic Press Punching Machine 200t for Metal Sheet Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: ST-200
Price: 1.00 USD
Availability: InStock

Home > Products > Press Punching Machine >

High Accuracy Pneumatic Press Punching Machine 200t for Metal Sheet Stamping

Press Punching Machine 200t

Pneumatic Press Punching Machine

Metal Sheet Stamping Pneumatic Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-200

Document:

ST-200V C fame open single...nk.pdf

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

110

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

2615*1690*4075

Motor Power (kw):

18.5*4

Model Number:

ST-200v

Weight (t):

3.8

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

200ton For Stamping Machines

Slider Adjustment Amount:

200mm For Metal Straightening Machine

Up Platform Area:

1130*630*90mm For Number Plate Making Machine

Down Platform Area:

1400*820*160mm For Power Press

Slider Center To Machine Distance:

415mm For Perforation Machine

Platform To Floor Distance:

995mm For Press Machine Pneumatic

Main Motor Power:

18.5*4 For Manual Press Stamping Machines

Air Pressure:

6 For Power Press Machine

Punch Dimension(L*W*H):

2615*1690*4075mm For Pneumatic Press

Punch Weight:

23tons For Tube Punching Machine

Highlight:

Press Punching Machine 200t

Pneumatic Press Punching Machine

Metal Sheet Stamping Pneumatic Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$4,685/cases 1-2 cases

Payment Terms

T/T

Supply Ability

1set 30days

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now

video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

High Precision Pneumatic Tin Can Lid Punching Machine

Technical Specifications

No	Item	Unit	ST-200 V Type	ST-200 H Type
1	Punching capability	ton	200	-
2	Impact force location	mm	6	3
3	Slider strokes per minute	SPM	20-50	50-70
4	Slider length	mm	200	100
5	Max die shut height	mm	460	510
6	Slider adjustment amount	mm	110	-
7	Up platform area	kN	1130×630×90	-
8	Down platform area	ml	1400×820×160	-
9	Shank hole	N.m	Ø65	-
10	Main motor power	kw×p	18.5×4	-
11	Air pressure	kg/cm²	6	-
12	Punch accuracy grade	-	JIS 1	-
13	Slider adjustment device	-	Manual operation	-
14	Slider center to machine distance	mm	415	-
15	Platform to floor distance	mm	995	-
16	Punch weight	ton	23	-

Product Overview

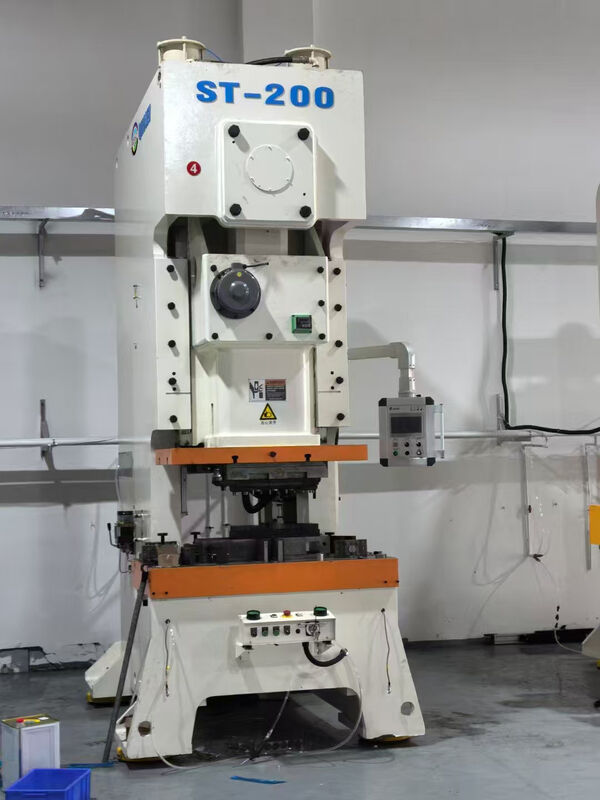

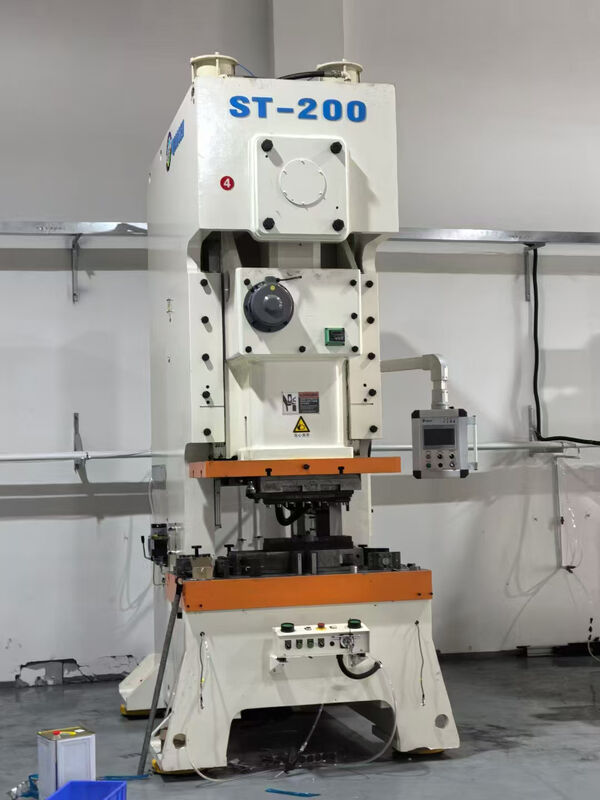

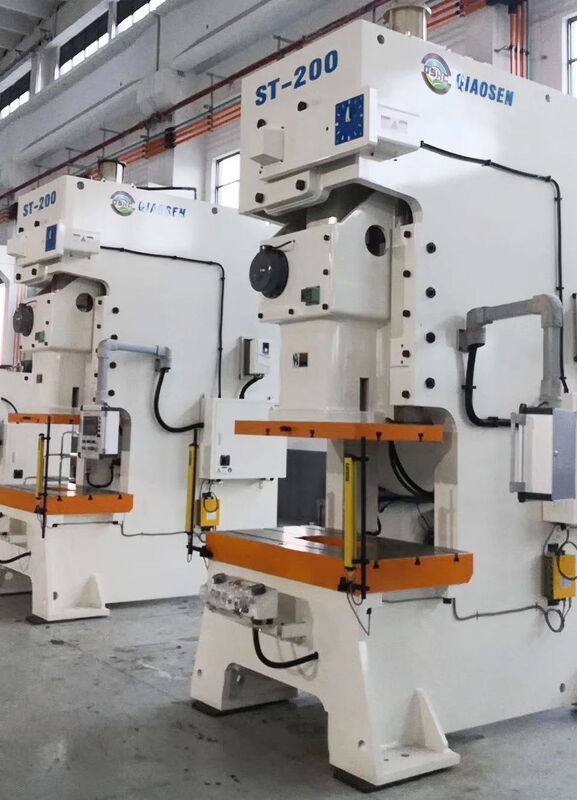

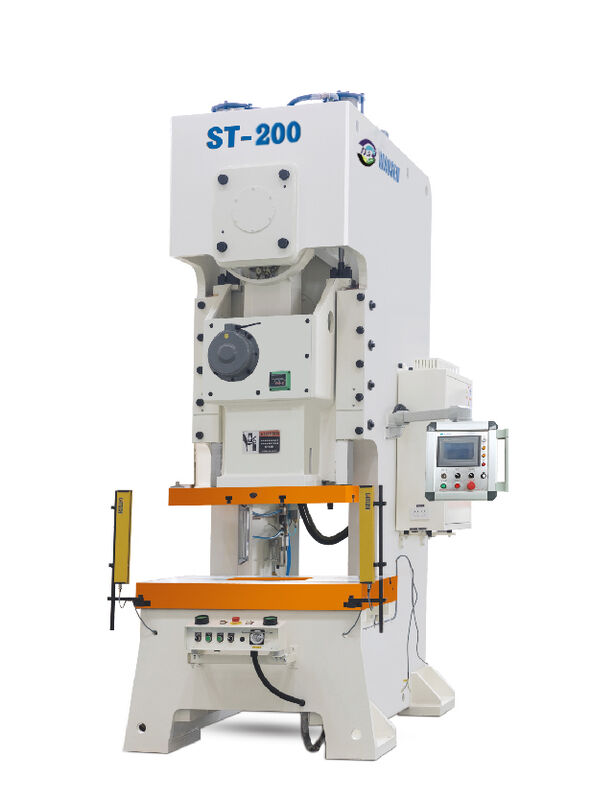

ST-200 ton V type punching machine. This is a 200 ton open single point crank punching machine that meets Japanese JIS 1 class standard - featuring safety, energy saving, stability, automation, and high precision.

Performance Features

The high-strength fuselage structure has small deformation and high precision
OMPI pneumatic dry clutch brake

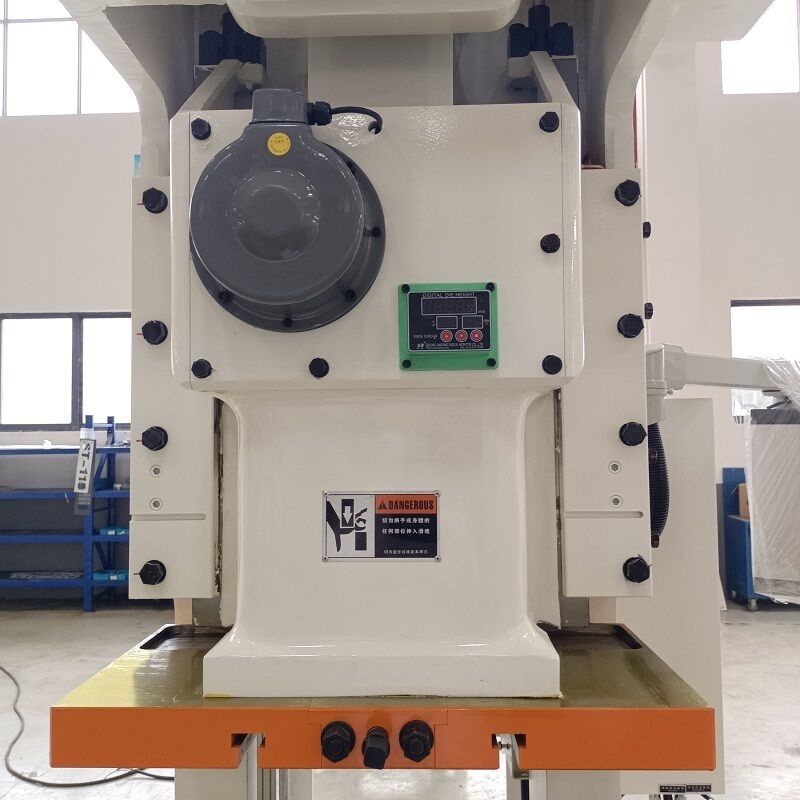

The slider adopts 2 corner and 6 sided guides
The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
Highly sensitive hydraulic overload protection device protects the press and die service life
Optional mat (air cushion)

Warranty And Service

One year warranty for whole press machine
All spare parts are available as most of the parts produced by our factory
Easy to get electric parts as all are international famous brands
Technical training and consulting via email, phone or video
Engineers available for service, installation or training with reasonable additional cost
English operation and maintenance manual provided with the press
Certificate of conformity sent with press

Frequently Asked Questions

Who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), and Eastern Europe (1.00%). There are total about 51-100 people in our office.

Why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can I do different color machine?

Yes, we can customize your own colors to match your production line.

Can the touch screen board language change to others?

Yes, we can do it according to your requirement like Spanish, French, etc.
