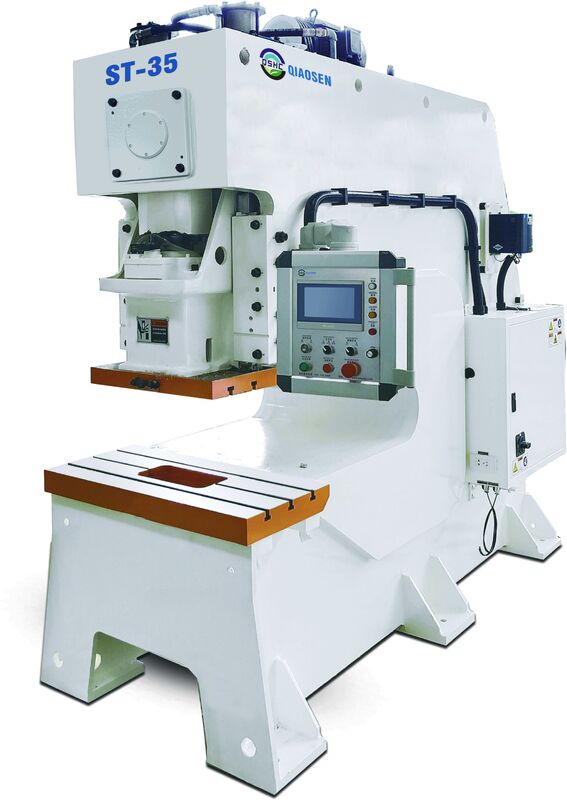

35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal

35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal

35ton Press Punching Machine

Metal Pneumatic Punching Machine

High Accuracy Pneumatic Punch Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

ST-35

Document:

ST-35H C fame open single p...nk.pdf

Chat Now
Request A Quote
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal
Product Details
Cnc Or Not:
Normal
Machine Type:
Punching Machine
Slide Stroke (mm):
40
Power Source:
Pneumatic
Place Of Origin:
Guangdong, China
Brand Name:
QIAOSEN
Voltage:
380V
Dimension(l*w*h):
1380*900*2200
Motor Power (kw):
3.7
Model Number:
ST-35H
Weight (t):
3
Key Selling Points:
High-Accuracy
Warranty:
1 Year
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Core Components:
Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine
Punching Capacity:
35ton
Slider Adjustment Amount:
55mm
Up Platform Area:
520*250*50mm
Down Platform Area:
800*400*70mm
Slider Center To Machine Distance:
205mm
Platform To Floor Distance:
790mm
Main Motor Power:
3.7*4
Air Pressure:
6
Punch Dimension(L*W*H):
1380*900*2400mm
Punch Weight:
3tons
Highlight:

35ton Press Punching Machine

,

Metal Pneumatic Punching Machine

,

High Accuracy Pneumatic Punch Press

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$11,000/cases 1-2 cases
Payment Terms
T/T
Supply Ability
1set 30days
RELATED PRODUCTS
Good price 200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping online

200-ton Two-Point Driving Press Punching Machine with High-Strength Steel Frame for Stable Stamping

Chat Now
Good price Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates online video

Standard Switch / Outlet Wall Fully Automatic Punching Machine Progressive Templates

Chat Now
Good price High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping online

High Rigidity Frame Precision Punch Press 260 Ton JIS Class 1 For Metal Stamping

Chat Now
Good price STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton online

STC-110V High Precision JIS Class 1 Servo Punch Press for Metal Stamping 110 ton

Chat Now
CONTACT US
+8618103082715
titi@qiaosenmachinery.com
86-0769-26626853
Chat Now
Product Description
New High Pressing 25T/35T/45T Pneumatic Punching Machine for Metal
Product Overview

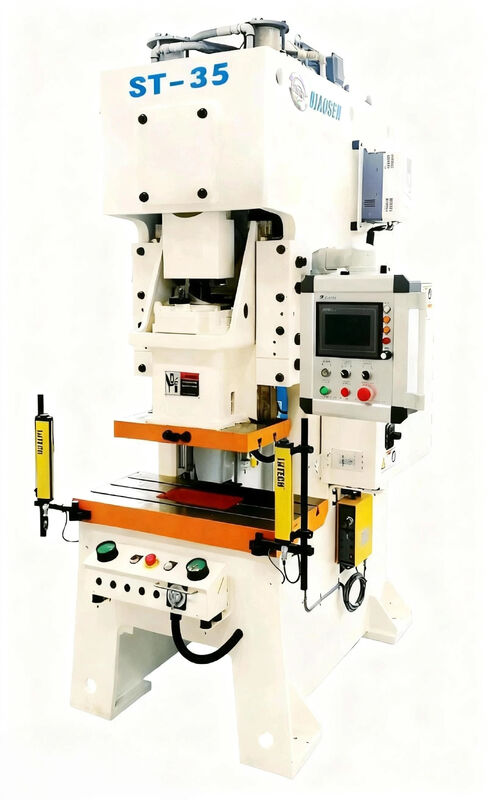

ST-35ton H type punching machine

This is 35ton open single point crank punching machine, meeting Japanese JIS 1 class standard - Safety, Energy saving, Stable, Automation, High precision.

Performance Features
  • The high-strength fuselage structure has small deformation and high precision
  • OMPI pneumatic dry clutch brake
  • The slider adopts 2 corner and 6 sided guides
  • The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
  • Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
  • The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
  • Highly sensitive hydraulic overload protection device protects the press and die service life
  • Optional mat (air cushion)
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 0
Technical Specifications
Item Unit ST-35 H Type
Punching capability ton 35
Impact force location mm 1.6
Slider strokes per minute SPM 110-180
Slider length mm 40
Max die shut height mm 235
Slider adjustment amount mm 55
Up platform area mm 520×250×50
Down platform area mm 800×400×70
Shank hole mm Ø38.1
Main motor power kW 3.7×4
Air pressure kg/cm² 6
Punch accuracy grade - JIS 1
Slider adjustment device - Manual operation
Slider center to machine distance mm 205
Platform to floor distance mm 790
Punch weight ton 3
Die cushion capacity ton 2.3
Stroke mm 50
Active area mm² 300×230
Product Configuration
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 1
Similar Products
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 2 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 3 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 4 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 5 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 6

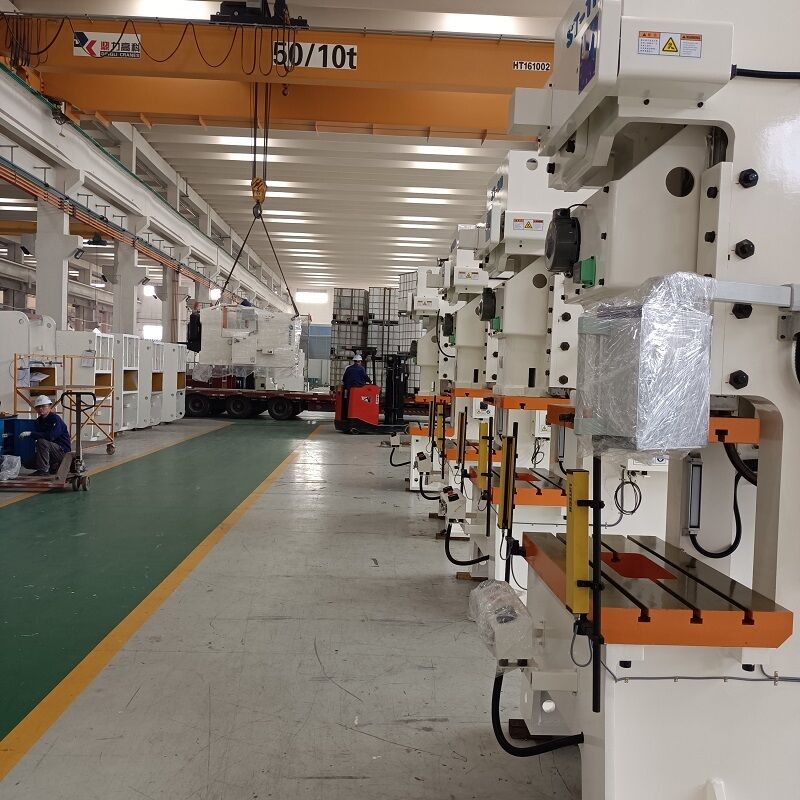

Company Profile
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 7 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 8 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 9
Customer Case
35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 10 35ton High Accuracy Pneumatic Press Punching Machine JIS 1 Class Standard for Metal 11
Warranty and Service
  • One year warranty for whole press machine
  • All spare parts are available as most of the parts produced by our factory
  • Easy to get electric parts as all are international famous brands
  • We can provide technical training and consulting via email, phone or video
  • We can send out engineers for service, installation or training with reasonable additional cost
  • English operation and maintenance manual is provided with the press
  • Certificate of conformity will be sent with press
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French, etc.
