Pneumatic H Frame Press Machine 110ton For Metal Sheet Stamping

Pneumatic H Frame Press Machine

110ton Pneumatic Punching Machine

Pneumatic Metal Sheet Stamping Machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

STD-110

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

300mm

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

Qiaosen

Voltage:

380

Motor Power (kw):

Model Number:

STD-500H

Weight (t):

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Gear, Motor, PLC, Pressure Vessel

Product Name:

Punching Machine And Sheet Metal Punch Press

Transmission:

Crank Precision Punch

Device Mode:

Body Type Steel Plate

Nominal Capacity:

110ton

Slider Guide Position Stucture:

4 Corner 8guide Structure

Impact Force Location:

6mm

Slider Length:

180mm

Slider Adjustment Amount:

80mm

Slider Strokes Per Minute:

30-60mm

Punch Weight:

20ton

Highlight:

Pneumatic H Frame Press Machine

110ton Pneumatic Punching Machine

Pneumatic Metal Sheet Stamping Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$160,000/pieces 1-4 pieces

Packaging Details

Standard

Delivery Time

30-90

Payment Terms

T/T

Supply Ability

100SET per month

STD-110 110T Pneumatic H Frame Press Machine for High Precision Metal Sheet Stamping

Chat Now

Small Pneumatic Punching Machine with 42CrMo Crankshaft, 80mm Long Slider Stroke, and 110ton Punching Capacity

Chat Now

High Precision H Frame Press Machine 300 to 1200 Tons Hardened Pressing Plates

Chat Now

110 Ton H Frame Power Press JIS1 Precision for Metal Forming Punching

Chat Now

+8618103059517

tina_07@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

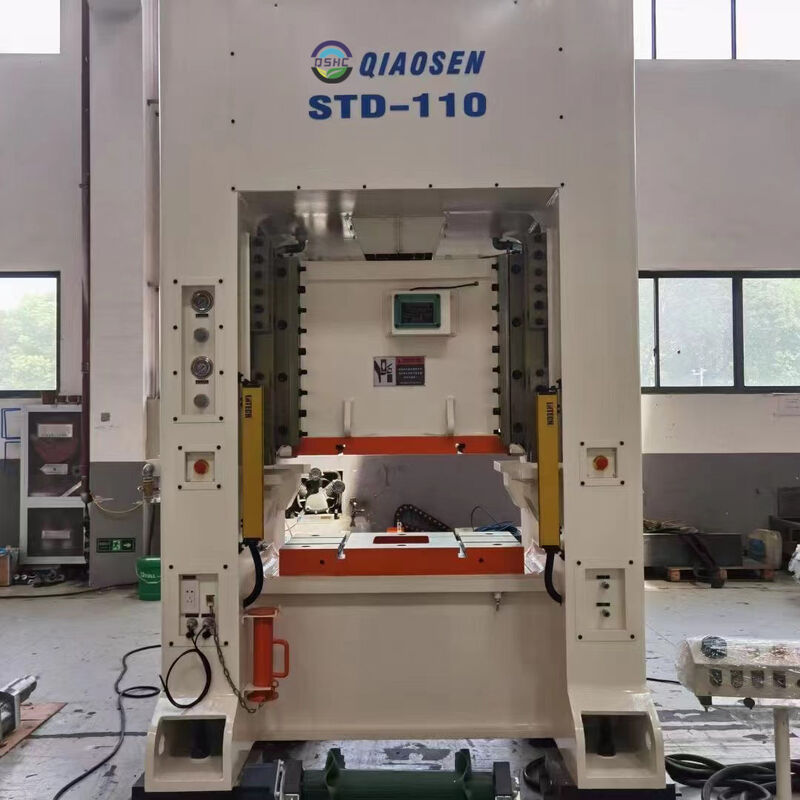

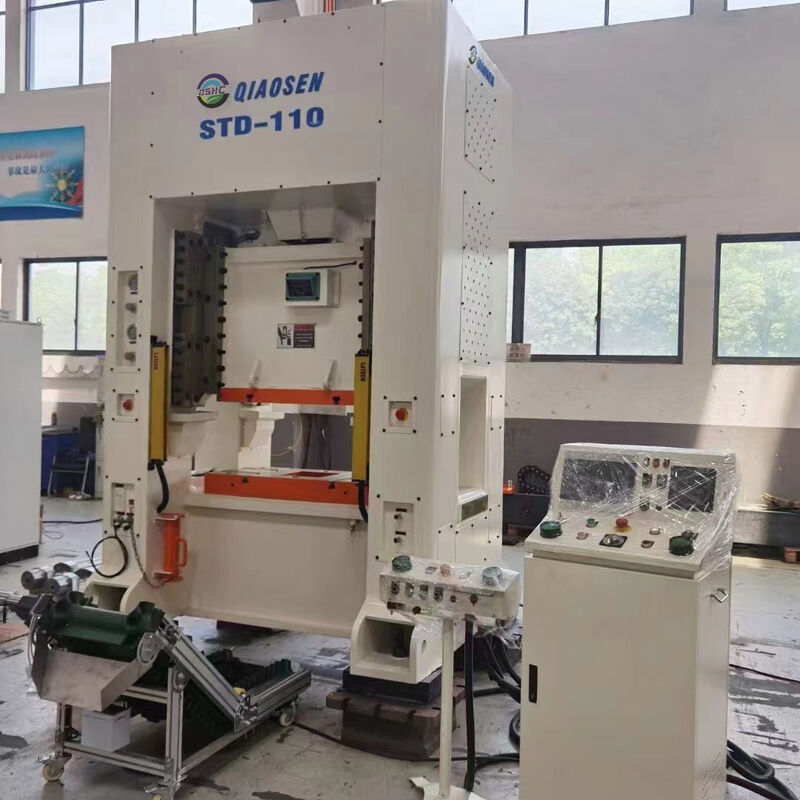

STD-110ton H type punching machine

This is 500ton closed single point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE

1. The high-strength fuselage structure has small deformation and high precision.
2.OMPI pneumatic wet clutch brake , low noice, environmentally friendly, non polluting.
3.The slider adopts 4corner and 8sided guides, can carry large eccentric loads.
4.The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve service life.
5. Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
6. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
7. Highly sensitive hydraulic overload protection device protects the press and die service life
8. The forced thin oil circulation lubrication device is energy saving, has automatic alarm function which can increase the the number of punching times with more oil.

PRODUCT SPECIFICATIONS

No	Item	Unit	STD-110
	Mode		S type	H type
1	punching capability	ton	110
2	Impact force location	mm	10	5
3	Slider stokes per minute	SPM	30-60	60-90
4	Slider length	mm	180	80
5	Max die shut height	mm	350	300
6	Slider adjustment amount	mm	80
7	Up platform area	kN	650*500
8	Down platform area	ml	850*600
9	Main motor power	kw*p	11*4
10	Air pressure	kg/cm^2	6
12	Punch accuracy grade		JIS 1

PRODUCT CONFIGURATION

Company Profile

Certification

Customer Case

Warranty And Service

1. One year warranty for whole pressmachine.
2. All spare parts are available as most of the parts produced by our factory.
3. It is easy to get the electric parts as all are international famous brands.
4. We can provide technical training and consulting via email, phone or video.
5. We can send out engineers for service, installation or training with reasonable additional cost.
6. English operation and maintenance manual is provided with the press.
7. Certificate of conformity will be sent with press

FAQ

who are we?
A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
why select us?
A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
A: Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
A: Our technical and quality team will support you any time if you need us.
Can i do different color machine?
A: Yes, we can customize your own colors to match your production line
Can the touch screen board language change to others
A: Yes, we can do it according to your requirement like Spanish, French ect...
