STD-110 110 Ton Pneumatic H-Frame Punching Machine
High precision metal sheet stamping processing machine designed for industrial applications
Key Specifications
Punching Capacity: 110 tons
Power Source: Pneumatic
Motor Power: 30 kW
Slide Stroke: 300mm
Slider Strokes/Minute: 30-60 SPM
Machine Weight: 20 tons
Brand: Qiaosen
Voltage: 380V
Warranty: 1 Year
Performance Features
- High-strength fuselage structure with minimal deformation and superior precision
- OMPI pneumatic wet clutch brake system - low noise, environmentally friendly, non-polluting
- Slider utilizes 4-corner 8-sided guide structure for handling large eccentric loads
- Slider guide features high-frequency quenching and rail grinding process for reduced wear and extended service life
- Crankshaft constructed from high-strength alloy 42CrMo (1.3x stronger than standard 45 steel)
- Copper sleeve made of tin phosphor bronze ZQSn10-1 (1.5x stronger than ordinary BC6 brass)
- Highly sensitive hydraulic overload protection device safeguards press and die longevity
- Forced thin oil circulation lubrication with energy-saving design and automatic alarm function
Technical Specifications
| Item |
Unit |
STD-110 |
| Punching capability |
ton |
110 |
| Impact force location |
mm |
10 (S type) / 5 (H type) |
| Slider strokes per minute |
SPM |
30-60 (S type) / 60-90 (H type) |
| Slider length |
mm |
180 (S type) / 80 (H type) |
| Max die shut height |
mm |
350 (S type) / 300 (H type) |
| Slider adjustment amount |
mm |
80 |
| Up platform area |
kN |
650×500 |
| Down platform area |
ml |
850×600 |
| Main motor power |
kw×p |
11×4 |
| Air pressure |
kg/cm² |
6 |
| Punch accuracy grade |
|
JIS 1 |

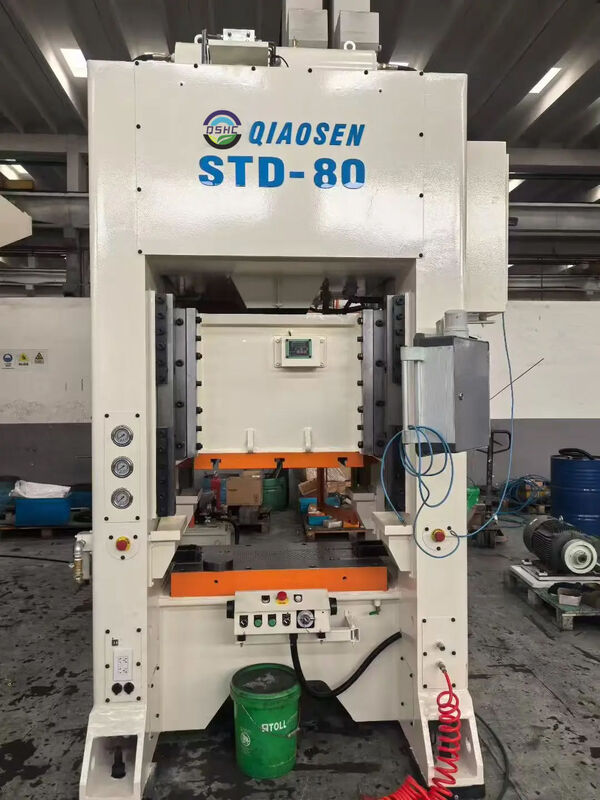

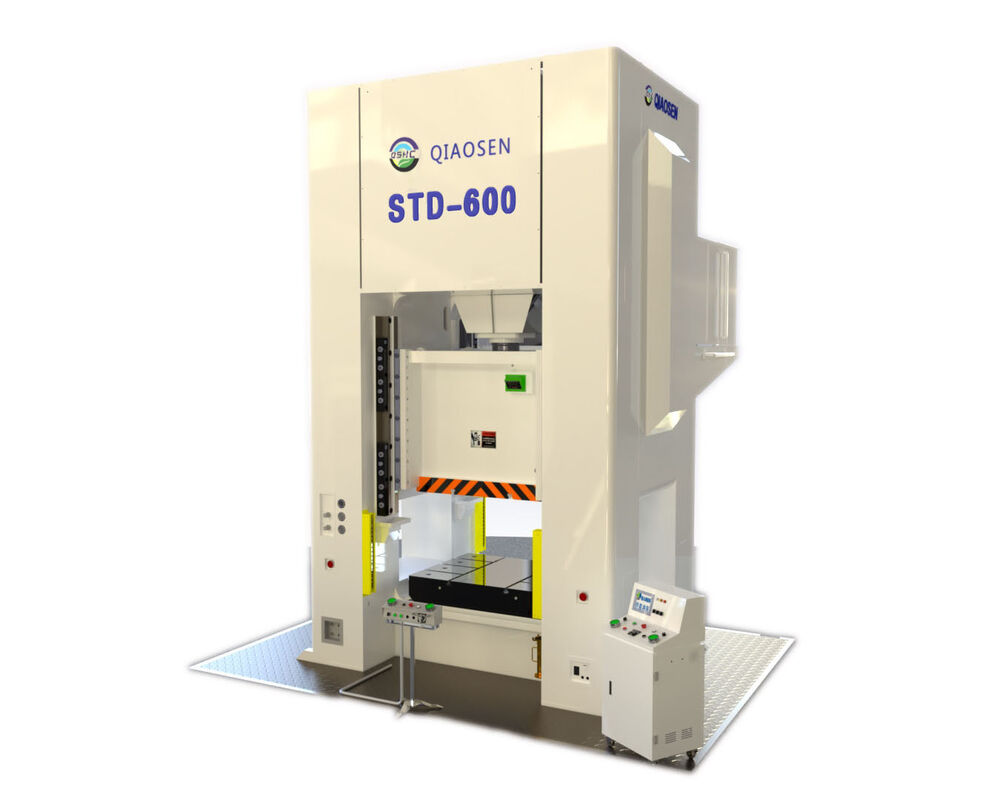

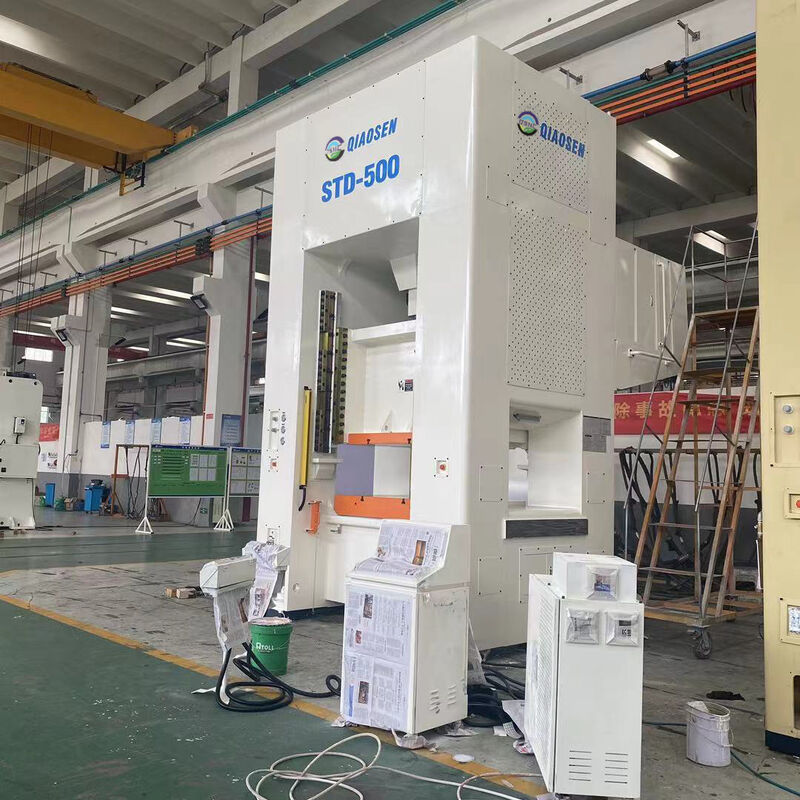

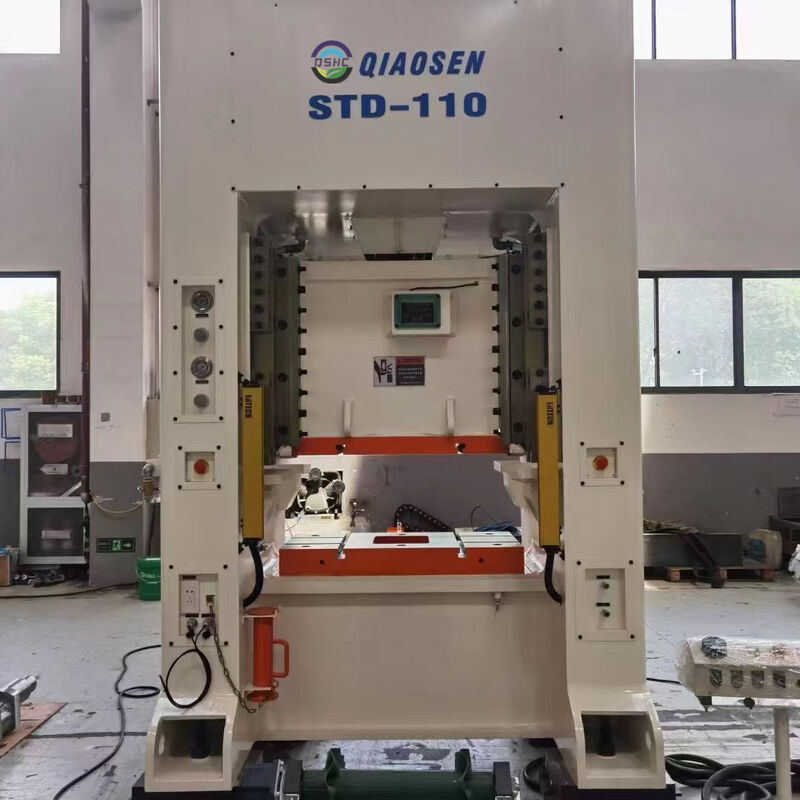

Product Images
Manufacturer Profile
Dongguan Qiaosen Machinery Co., Ltd., established in 2016, is a professional manufacturer with ISO9001:2008 quality management system certification. Specializing in pneumatic press machines from 25 tons to 1600 tons across 8 series with over 100 types, serving industries including aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware. Products exported to United States, Japan, Russia, European Union, Southeast Asia, and Middle East countries.
Certifications
Warranty & Service
- One year comprehensive warranty for entire press machine
- Complete spare parts availability with most components produced in-house
- International brand electrical components for easy replacement
- Technical training and consulting via email, phone, or video
- On-site engineer service, installation, and training available
- English operation and maintenance manual provided
- Certificate of conformity included with each machine
