Name: High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: STC-250
Price: 2.00 USD
Availability: InStock

Home > Products > Double Crank Power Press >

High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction

Pneumatic Power Press Punching Machine

Pneumatic Power Press Machine 250ton

Steel Construction Pneumatic Power Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

STC-250

Chat Now

Request A Quote

Product Details

Cnc Or Not:

Normal

Machine Type:

Punching Machine

Slide Stroke (mm):

280

Power Source:

Pneumatic

Place Of Origin:

Guangdong, China

Brand Name:

QIAOSEN

Voltage:

380V

Dimension(l*w*h):

2545*3000*4304

Motor Power (kw):

Model Number:

STC-250V

Weight (t):

40.5

Key Selling Points:

High-Accuracy

Warranty:

1 Year

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Core Components:

Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine

Punching Capacity:

250ton For Coin Punching Machine

Slider Adjustment Amount:

120mm For China Press Machine

Up Platform Area:

2100*700*95mm For Channel Punching Machine

Down Platform Area:

2700*900*170mm For Car Number Plate Making Machine Vehicle

Platform To Floor Distance:

1100mm For Busbar Punching Machine

Main Motor Power:

22*4 For Border Punching Machine For Craft

Air Pressure:

6 For Blinds Hole Punching Machine

Punch Dimension(L*W*H):

2545*3000*4304mm For Automatic Sheet Decoiler Machine

Punch Weight:

40.5tons For Automatic Punching Machine For Aluminum Foil Machine

After-sales Service Provided:

Online Support

Highlight:

Pneumatic Power Press Punching Machine

Pneumatic Power Press Machine 250ton

Steel Construction Pneumatic Power Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$90,000/sets 1-4 sets

Packaging Details

Standard

Delivery Time

30-90

Payment Terms

,T/T

Supply Ability

100SET per month

STC-200V High Accuracy Pneumatic Power Press Machine 200t with Progressive Templates

Chat Now

video

Durable Double Crank Power Press Designed for Heavy Duty Metal Stamping and Fabrication Tasks in Industrial Production Lines

Chat Now

Automatic Pneumatic Punching Machine 250t for Precision Metal Stamping

Chat Now

STC Steel Frame V Press Punching Machine 250ton JIS Class 1 for Heavy Metal Stamping

Chat Now

+8618103059517

tina_07@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

composite panel punching machines copper sealing punching machine decoiler machine die press machine

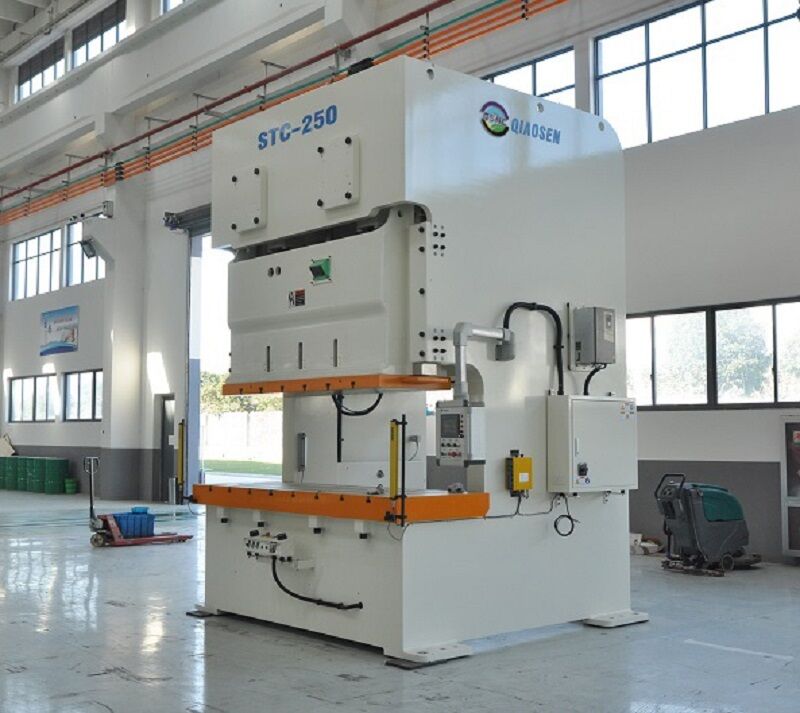

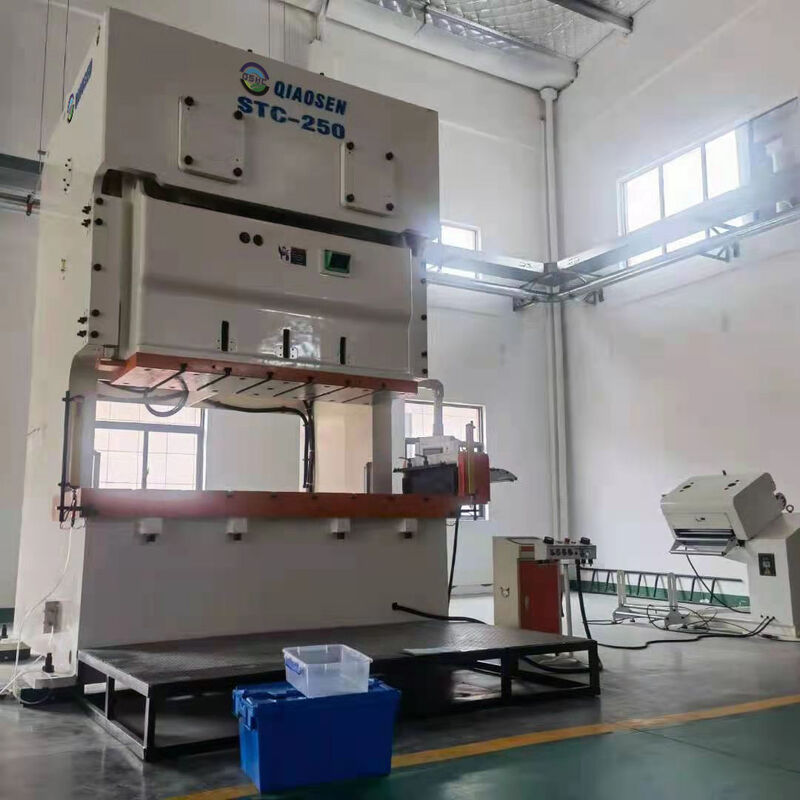

STC-250ton V type punching machine

This is 200ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE

The high-strength fuselage structure has small deformation and high precision.
OMPI pneumatic dry clutch brake are used
The slider adopts two corner and six sided guides and the slider guide adopts"high-frequency quenching" and "rail grinding process", small wear, high precision,long precision maintenance time and improve service life.
Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
The highly sensitive hydraulic overload protection device protects the life of the press and die .
Standard SMC pressure regulator,oil mister,air filter.
Optional mat (air cushion)

No	Item	Unit	STC-250
	Mode		V type	H type
1	punching capability	ton	250
2	Impact force location	mm	7	3.5
3	Slider stokes per minute	SPM	20-35	30-60
4	Long slider length	mm	280	170
5	Maximum mode height	mm	550	605
6	Slider adjustment amount	mm	120
7	Up platform area	mm	210070095
8	Down platform area	mm	2700900170
9	Platform to floor distance	mm	1100
10	Capacity	Ton	14*2
11	Main motor power	kw*p	22*4
12	Air pressure	kg/cm^2	6
13	Punch accuracy grade		JIS 1
14	punch dimension(LWH)	mm	25530004304
15	Punch weight	ton	40.5
16	Crown sheet area	mm	6404702

PRODUCT CONFIGURATION

Company Profile

Warranty And Service

One year warranty for whole pressmachine.
All spare parts are available as most of the parts produced by our factory.
It is easy to get the electric parts as all are international famous brands.
We can provide technical training and consulting via email, phone or video.
We can send out engineers for service, installation or training with reasonable additional cost.
English operation and maintenance manual is provided with the press.
Certificate of conformity will be sent with press

FAQ

who are we?

A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

why select us?

A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

A: Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

A: Our technical and quality team will support you any time if you need us.

Can i do different color machine?

A: Yes, we can customize your own colors to match your production line

Can the touch screen board language change to others

A: Yes, we can do it according to your requirement like Spanish, French ect...
