Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE / ISO14001
Model Number:
STC-110

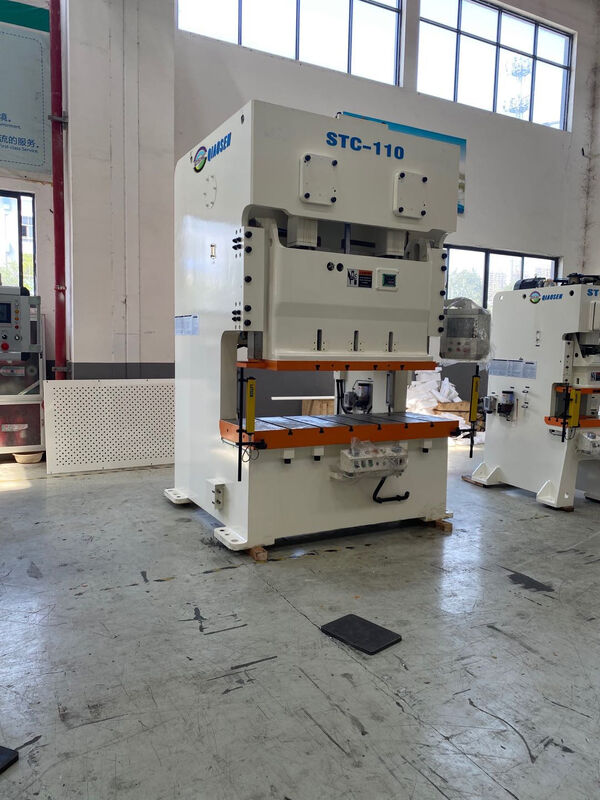

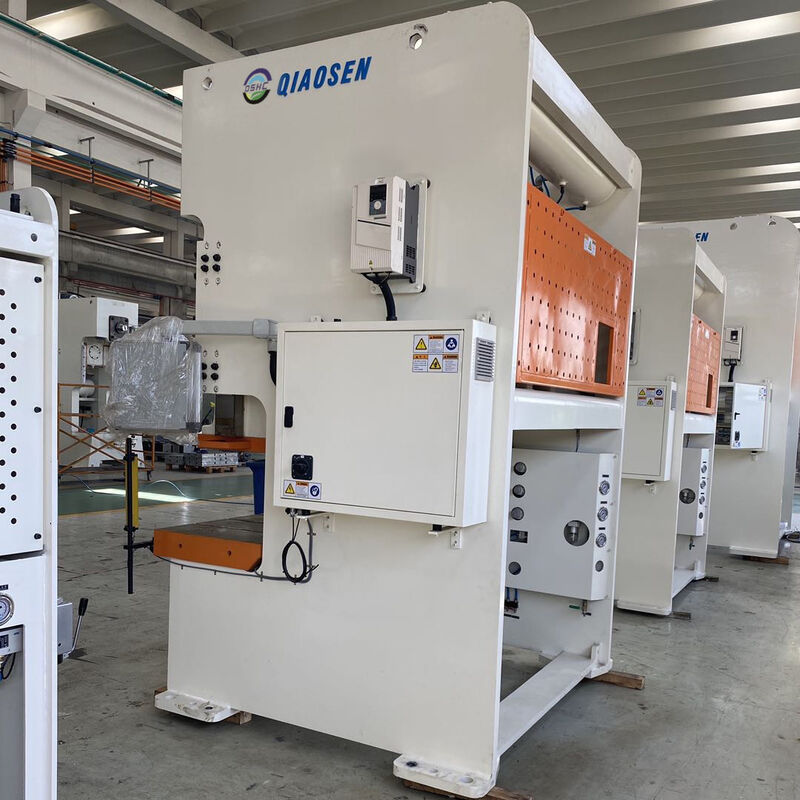

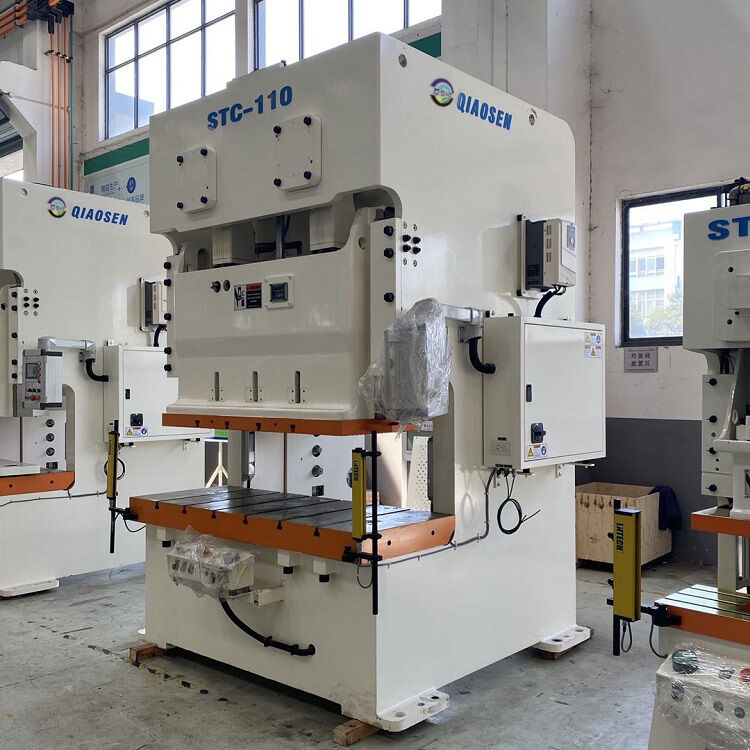

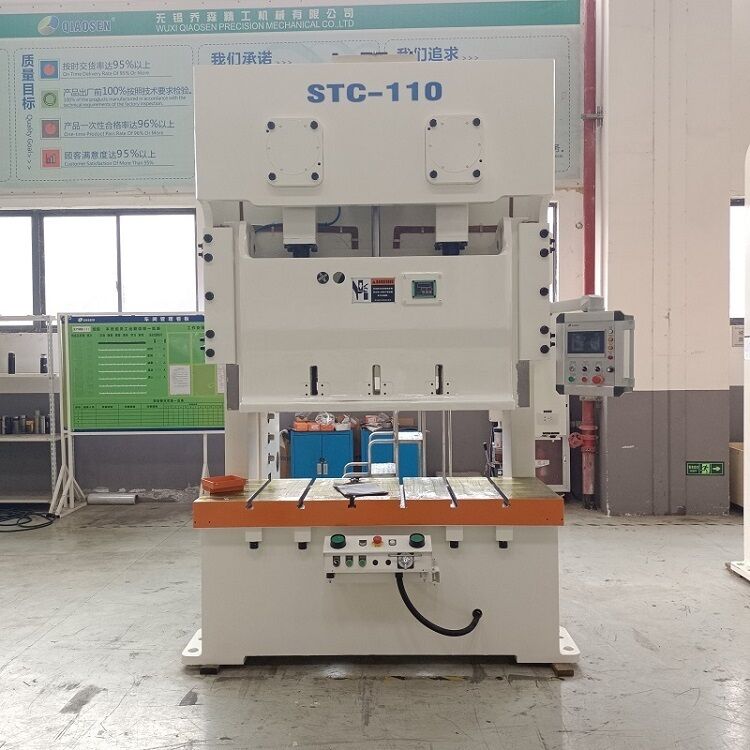

This is 110ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.
| No | Item | Unit | STC-110 | |
| Mode | V type | H type | ||
| 1 | punching capability | ton | 110 | |
| 2 | Impact force location | mm | 5 | 3 |
| 3 | Slider stokes per minute | SPM | 35-65 | 50-100 |
| 4 | Slider length | mm | 180 | 110 |
| 5 | Max die shut height | mm | 400 | 435 |
| 6 | Slider adjustment amount | mm | 100 | |
| 7 | Up platform area | kN | 1400*500*70 | |
| 8 | Down platform area | ml | 1800*650*130 | |
| 10 | Main motor power | kw*p | 11*4 | |
| 11 | Air pressure | kg/cm^2 | 5 | |
| 12 | Punch accuracy grade | JIS 1 | ||
| 15 | Platform to floor distance | mm | 830 | |
| 16 | Overall dimension | mm | 1745*2000*3059 | |
| 17 | Punch weight | ton | 14.2 | |
| 20 | Die cushion effective area | mm^2 | 350*235 | |
Certification
who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.
why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can i do different color machine?
Yes, we can customize your own colors to match your production line
Can the touch screen board language change to others
Yes, we can do it according to your requirement like Spanish, French ect...
