Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE\ISO
Model Number:
MT-600

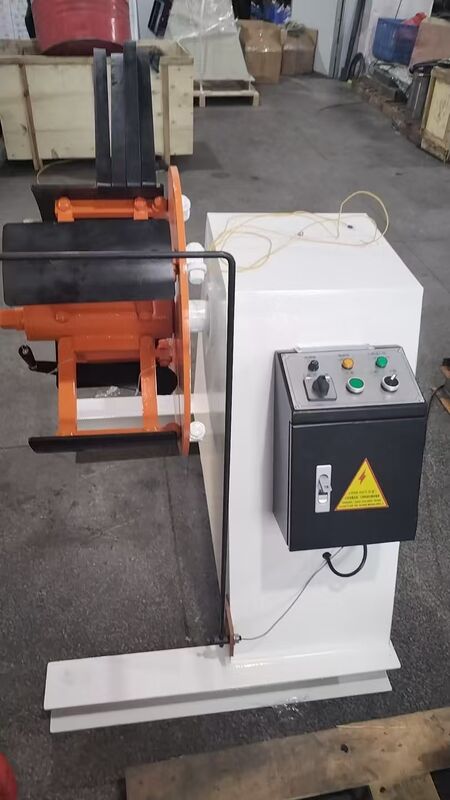

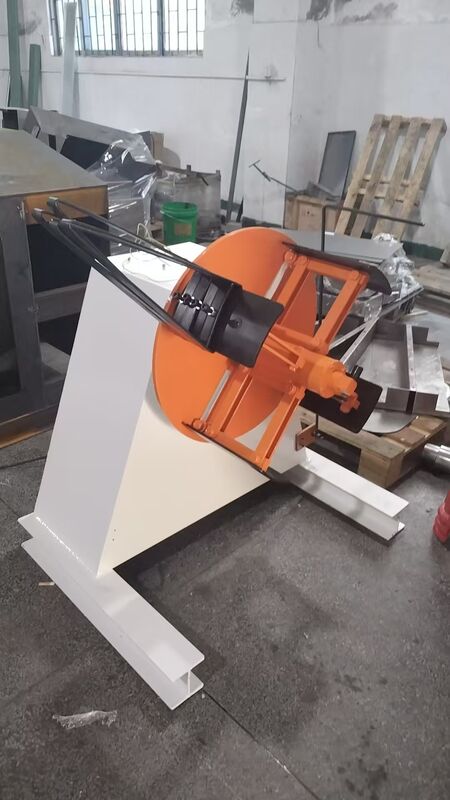

MT series heavy duty uncoiler is specifically engineered for integration with MT series high-speed power press automatic stamping lines. Featuring a heavy steel welded frame, motorized/hydraulic expansion spindle, pneumatic pressing arm, photoelectric buffer loop control, and variable frequency speed regulation, this system provides stable tension and synchronous uncoiling with MT high-speed presses (SPM 150-1000). Effectively prevents material scattering, scratching, and overlapping. Ideal for precision thin coil applications including terminals, connectors, motor laminations, stainless steel, copper strips, and aluminum coils.
Heavy steel plate welded structure with overall stress relief annealing ensures high stability and low vibration, suitable for long-term high-speed operation with MT series presses.
Four-piece expansion shaft structure with standard manual expansion or optional hydraulic automatic expansion. Fast and convenient coil loading/unloading with stable clamping for heavy coils.
Equipped with pneumatic material pressing arm, supporting arm, and photoelectric frequency conversion buffer loop. Ensures precise synchronous uncoiling with MT high-speed press feeding for stable tension and material protection.
Frequency conversion motor drive with stepless speed adjustment (0-15m/min). Closed-loop tension control provides perfect matching with MT press high-speed feeding without slack or tension break.
Material end automatic stop, overload protection, and emergency stop functions. Spindle features hard chrome plating and wear-resistant expansion blocks for low failure rate and long service life in high-speed production lines.
Suitable for various precision metal coils including cold rolled steel, galvanized steel, aluminum, copper, stainless steel, high tensile strip, and terminal materials with thickness range of 0.1-3.2mm.
Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. The company holds ISO9001:2008 quality management system certification and specializes in hydraulic press machine production.
Product range includes 10-ton to 2000-ton press machines across 8 series with over 100 types, including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Applications span aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware.
Products are recognized for excellent design, competitive pricing, superior quality, and efficient after-sales service, serving domestic markets across 20+ provinces and international markets including United States, Japan, Russia, European Union, Southeast Asia, and Middle East.
We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.
Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.
Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.
After order confirmation, we provide regular updates on production details via email and photos.
Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.
We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.
We offer 12 months free warranty with lifelong maintenance support.
Yes, we accept various customizations including logos and machine modifications according to customer requirements.
