Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE\ISO
Model Number:
MT-200

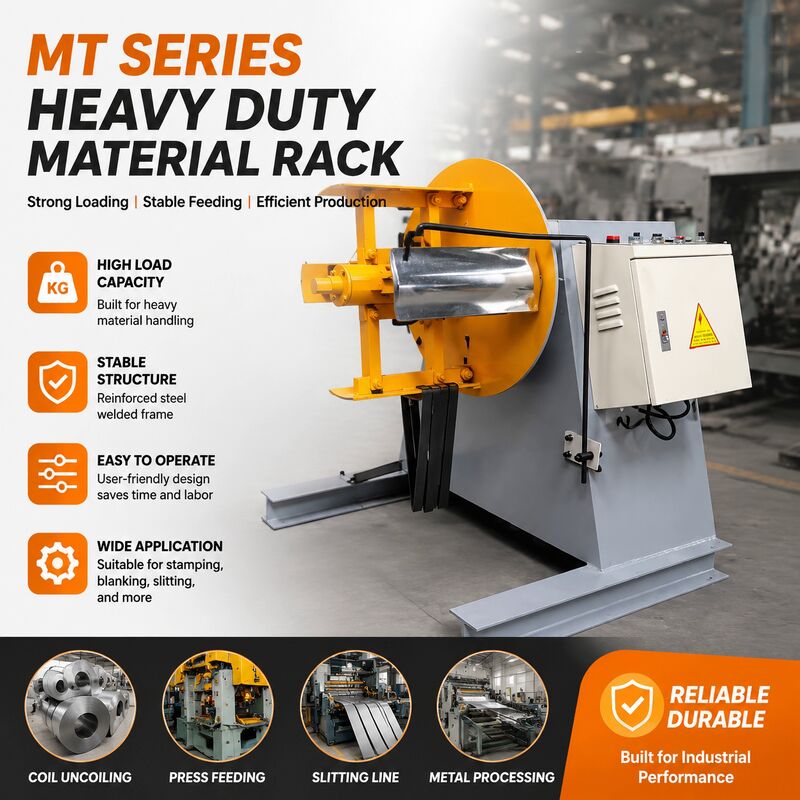

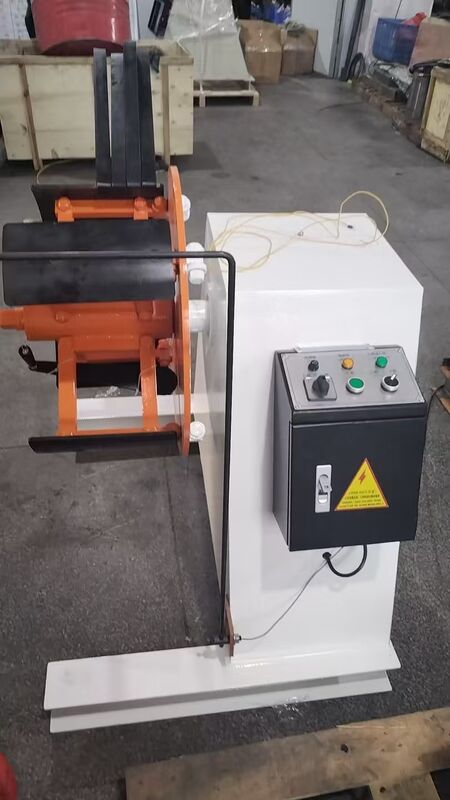

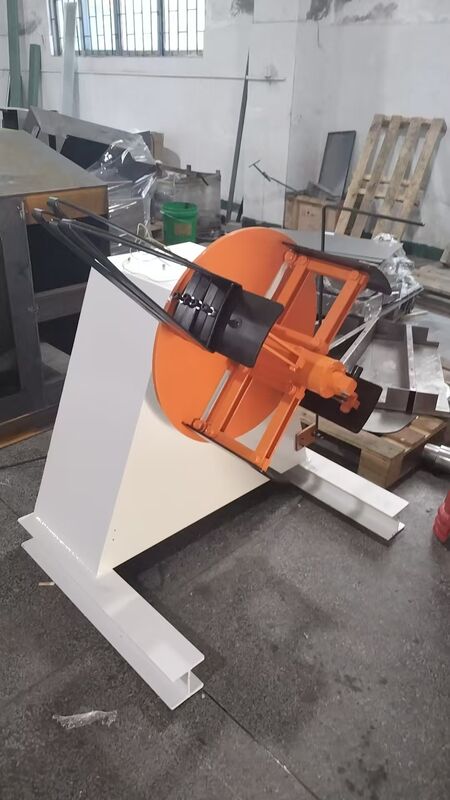

This industrial uncoiler machine is designed for processing various metal coils and serves as essential pre-processing equipment for stamping, cutting, and other manufacturing processes in industrial production environments.
Widely used in hardware manufacturing, auto parts processing, electronic component production, home appliance manufacturing, and metal processing industries.
Suitable Materials: Carbon steel, stainless steel, aluminum alloy, copper sheets, cold rolled plate, hot rolled plate, galvanized plate with thickness of 0.1-3.0mm.
Easy to operate with no professional experience required:
Strong power output ensuring smooth, uniform uncoiling without material jamming
High precision photoelectric induction for automatic uncoiling, reducing manual operation
Rubber covered rollers prevent material surface scratches and protect coil integrity
Sturdy structure with durable components, low failure rate, and minimal maintenance
Low operation and maintenance costs, suitable for long-term continuous production
| No | Item | Data |
|---|---|---|
| 1 | Width of material | 200mm |
| 2 | Thickness of material | 0-1.6mm |
| 3 | Speed reducer | 1/60 |
| 4 | Motor HP | 1 |
| 5 | Coil outside diameter | 1200mm |
| 6 | Coil inside diameter | 300/460mm |
| 7 | Max material weight | 500kg |
| 8 | Machine weight | 320kg |
Our factory is located in Wuxi, China with a branch company in Dongguan, operating since 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our organization employs 51-100 professionals.
We specialize in high-end quality punching machines and guarantee customer satisfaction with our premium products.
Standard delivery timeframe is 25-40 working days after receiving advance payment.
Our technical and quality team provides comprehensive support whenever needed.
Yes, we can customize machine colors to match your production line requirements.
Yes, we can configure touch screen interfaces in multiple languages including Spanish, French, and others as required.
