Place of Origin:
China
Brand Name:
QIAOSEN
Certification:
CE\ISO
Model Number:
HCK2-600

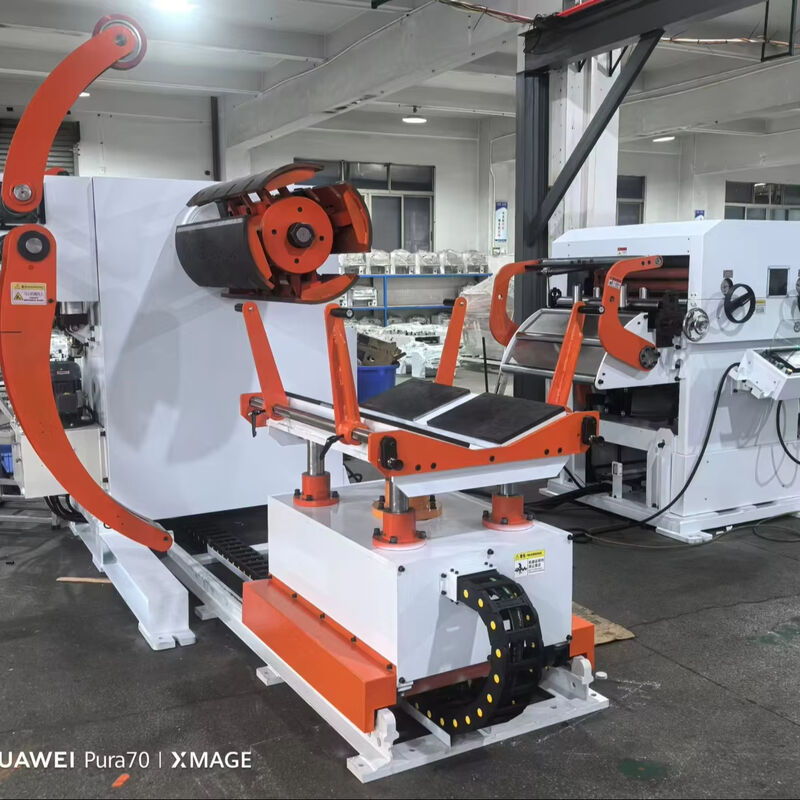

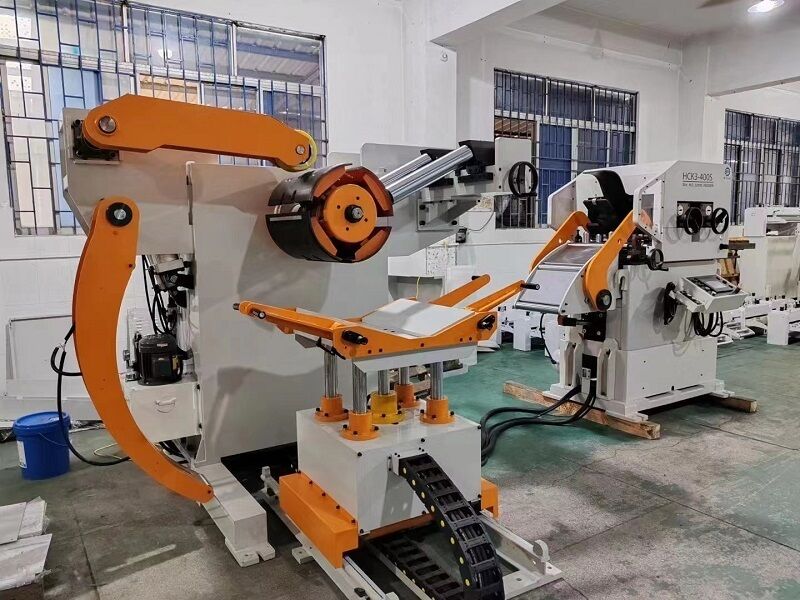

This HCK5 1000S three-in-one uncoiler straightener feeder integrates uncoiling, leveling, and feeding functions into a single machine unit, saving over 60% of workshop floor space compared to separate coil processing equipment.
The machine features hydraulic expansion mandrel for stable coil unwinding and an automatic material loading trolley for fast heavy metal coil loading without manual lifting, significantly reducing labor costs for metal stamping factories.
| Place of Origin | Guangdong, China |
|---|---|
| Type | Feeder Machine |
| Application | Sheet Metal Processing |
| Core Components | PLC, Bearing, Motor, Pump |
| Brand Name | Qiaosen |
| Voltage | 380V (Customizable) |
| Power | 2HP |
| Dimensions (L×W×H) | 5150×2258×3398mm |
| Weight | 2000kg |
| Feeding Speed | 15 M/min |
| Material Width Range | 70-800mm |
| Material Thickness Range | 0.6-6.0mm |
| Max Correction Speed | 22/min |
| Main Motor Power | AC22kw |
| Max Material Weight | 7000kg |
| Coil Inside Diameter | 508mm |
| Coil Outside Diameter | 1400mm |
| Warranty | 1 Year |
This integrated coil processing machine matches all types of open and closed frame punch presses to build fully automatic metal coil stamping production lines. Widely applied in automotive parts, home appliance shells, electronic connectors, kitchen hardware, and communication metal casing manufacturing industries.
Supports processing of cold rolled sheet, galvanized plate, stainless steel, aluminum alloy, copper plate, and other alloy metal raw materials. Compatible with blanking, bending, embossing, forming, and coining stamping crafts.
Dongguan Qiaosen Machinery Co., Ltd., established in 2016, operates from its factory in Jiangsu province near Shanghai. The company holds ISO9001:2008 quality management system certification and specializes in pneumatic press machines ranging from 25 to 1600 tons across 8 series with over 100 types.
Products include single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines serving aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries. Known for excellent design, competitive pricing, superior quality, and efficient after-sales service.
