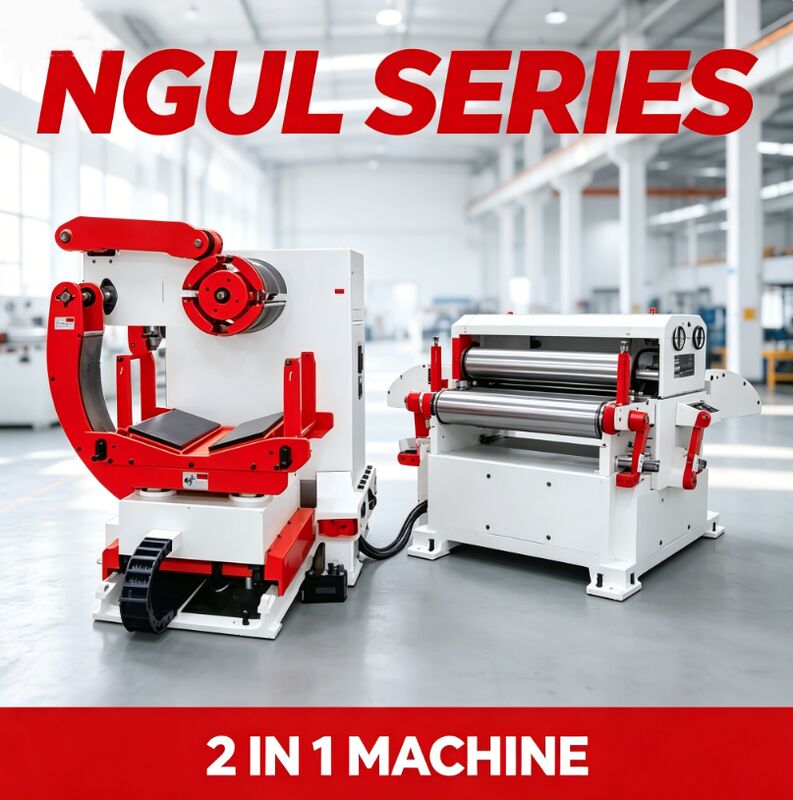

High Precision 2-in-1 Metal Straightening Machine with CNC/PLC Control for Industrial Sheet Metal Leveling

High Precision 2-in-1 Metal Straightening Machine with CNC/PLC Control for Industrial Sheet Metal Leveling

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE\ISO

Model Number:

NGUL

Chat Now
Request A Quote
Product Details
Steel Plate Thickness:
0-1.6mm
Capacity:
Up To 10mm Thickness
Machine Weight:
2000-5000 Kg
Motor Hp:
3HP
Power Source:
Mechanical
Controlsystem:
CNC / PLC
Cnc Or Not:
Normal
Control System:
PLC Control With Touchscreen Interface
Material Width:
200mm For Metal Decoil Leveling
Roller Material:
Hardened Steel
Item Name:
Leveling Machine
Maximum Thickness:
Up To 20 Mm
Operating Voltage:
380V/50Hz
Adjustment Method:
Four Point Independent
Voltage:
380
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$8000\1-4 CASE
Packaging Details
WOODEN BOX
Delivery Time
25-60
Payment Terms
T/T
Supply Ability
100SET per month
Product Description
Industrial Sheet Metal Flattening Machine High Precision Straightener for Stamping Production
Precision Metal Straightening Machine

Providing uniform flattening of metal sheets and coils to meet strict industrial standards.

Applications
  • Stamping automation lines (with NC servo feeder / roller feeder)
  • Metal parts: electronics, home appliances, auto components, hardware
  • Thin sheet processing: steel, stainless steel, aluminum, galvanized coil
  • Lines requiring compact layout and high material flatness
Model Range & Capacity
Standard Models BML-150, BML-200, BML-300, BML-400, BML-500, BML-600
Coil Width 150mm ~ 600mm
Material Thickness 0.5mm ~ 3.2mm (steel, stainless steel, aluminum, copper)
Coil Weight 500kg ~ 3000kg (customizable)
Coil Dimensions ID: 460-540mm; OD: max 1200mm

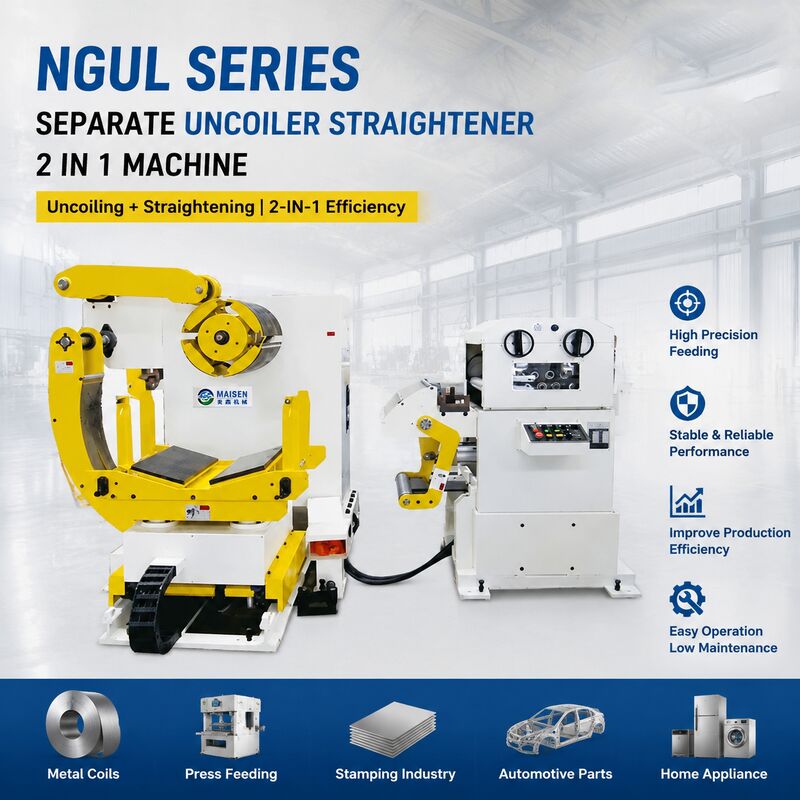

Decoiler Section
  • Motorized expansion mandrel (mechanical / hydraulic)
  • Pneumatic pressure arm + safety brake to prevent coil loosening
  • Variable-frequency drive (VFD) for smooth uncoiling

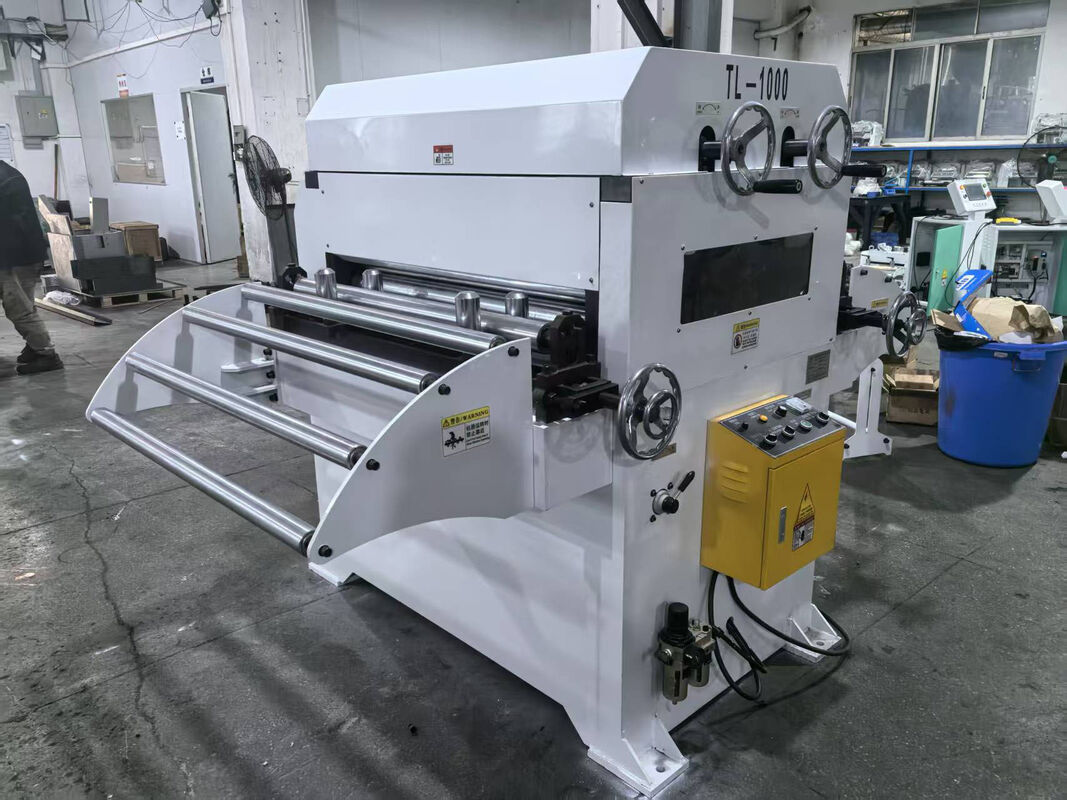

Straightener Section
  • 7-9 precision rollers (upper 3-4, lower 4-5), high-frequency hardened & chrome-plated
  • Worm & worm gear adjustment with dial indicator for precise leveling
  • Inlet/outlet pinch rollers to stabilize material
  • Tilted top design for easy material threading
Control System
  • Independent VFD for decoiler & straightener
  • Photoelectric loop control (auto speed matching)
  • Emergency stop, overload protection, manual/JOG mode
Performance Advantages
Space-saving
2-in-1 design cuts floor space by ~40% vs separate machines
High straightness
Eliminates coil set, waviness, and internal stress
Synchronized operation
Smooth feeding without slipping or scratching
Easy setup
Quick adjustment via handwheels & dial gauges
Low maintenance
Centralized lubrication, durable bearings
High Power Motor
Ensures smooth operation and increased load force
Imported Parts
Fewer failures and longer lifespan
Wide Compatibility
Suitable for various coil materials
Adjustable Brake Tension
Customizable for optimal performance
High Precision 2-in-1 Metal Straightening Machine with CNC/PLC Control for Industrial Sheet Metal Leveling 0
Company Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates its own factory in Jiangsu province near Shanghai with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.

We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines. Our equipment serves aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries.

Our products are recognized for exquisite design, competitive pricing, excellent quality, and efficient after-sales service with technical support. We serve over 20 domestic provinces and export to the United States, Japan, Russia, European Union, Southeast Asia, Middle East, and other countries.

High Precision 2-in-1 Metal Straightening Machine with CNC/PLC Control for Industrial Sheet Metal Leveling 1
Warranty and Service
  • One-year warranty for the complete press machine
  • All spare parts available as most components are produced in-house
  • Easy access to electrical parts from international famous brands
  • Technical training and consulting via email, phone, or video
  • Engineer dispatch for service, installation, or training with reasonable additional cost
  • English operation and maintenance manual provided with press
  • Certificate of conformity included with press delivery
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French etc.
