Name: NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: NC-400
Price: 1.00 USD
Availability: InStock

Home > Products > Servo Feeder >

NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine

NCF-400 servo roller feeder

3.2mm sheet metal coil feeder

automatic servo feeding machine

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO 14001

Model Number:

NC-400

Chat Now

Request A Quote

Product Details

Width Of Material (mm):

400

Thickn Ess Of Material (mm):

MAX3.2

Feeding Capacity:

400w*2.0T /80w*3.2T

Feeding Length (mm):

0.01-9999.99

Roll Pressure:

Spring Type

Relcasing System:

Pneumatic Type

Pass Line Adjustment:

±50mm

Power Supply:

AC380V/3phase

Highlight:

NCF-400 servo roller feeder

3.2mm sheet metal coil feeder

automatic servo feeding machine

Payment & Shipping Terms

Minimum Order Quantity

Price

$2400/cases 1-2 cases

Packaging Details

Standard

Delivery Time

10-30day

Payment Terms

T/T

Supply Ability

100SET per month

Automatic NC Zigzag Servo Feeder Machine for Metal Sheet Circle Blanking Stamping Line

Chat Now

video

NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine

Chat Now

High Precision Servo Feeder with ±0.1mm Accuracy and 16m/min Speed Featuring Japan Yaskawa Servo System

Chat Now

High-Accuracy NC Servo Feeder with Japan Yaskawa Servo System for 16m/min Feeding Speed

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

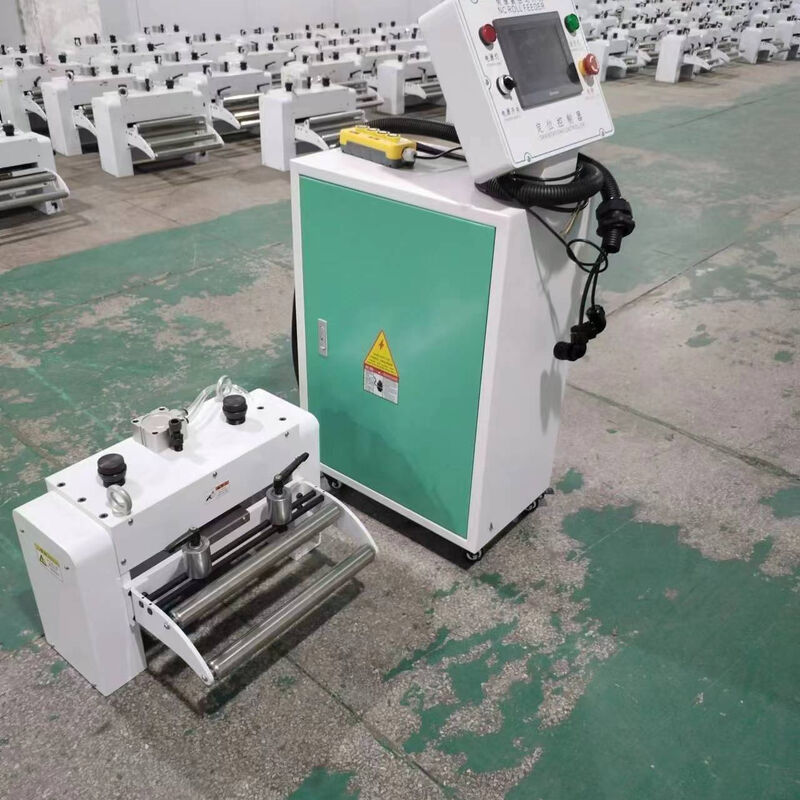

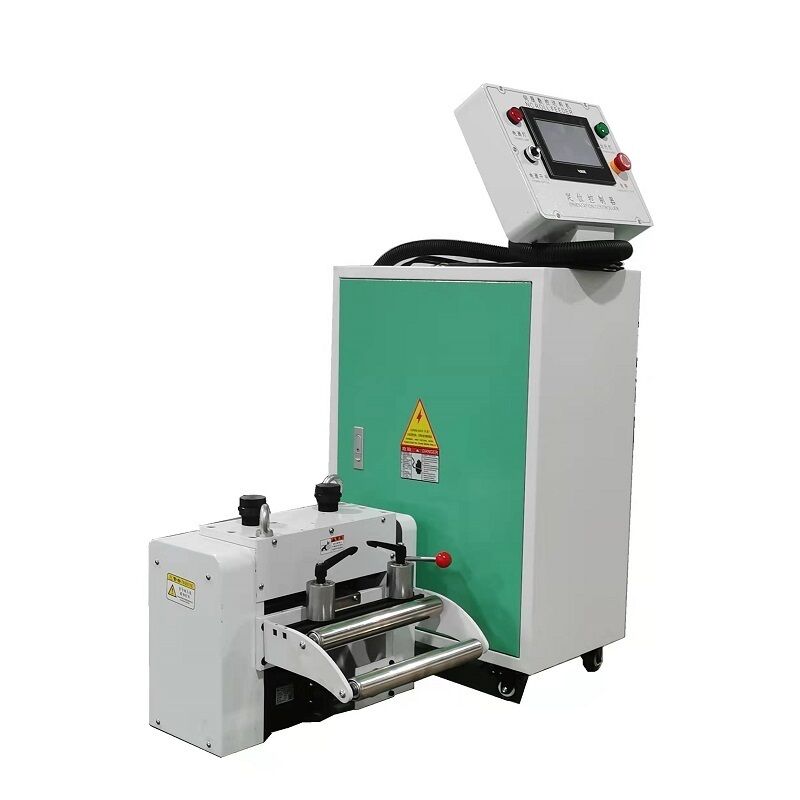

NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine

NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine 0

NCF-400 NC Servo Roller Feeder, 3.2mm Sheet Metal Coil Roll Automatic Feeding Machine 1

NC-200/300/400/500/600/800/1000/1300B NC servo roller feeder

It can feed material for various thicknesses and feeding stroke length.
It suits for high speed feeding, long stroke length feeding, to improve production capacity and feeding precision.
With a good operation panel, so users can input feeding length number, feeding speed number freely. Feeding length range is
01mm-9999.99mm.
It adopts pneumatic cylinder releasing method, without malfunction.
Mechanical releasing method can be made according to customers requirement.
High precision feeding, ±0.02mm.
User can input 5 sets of different feeding length. For each length, user can input 999 strokes quantity number.
User can use this feeder, under normal manual running mode, with normal manual speed. It is easy to feed steel material to
stamping mould easily for user.
Releasing device for a roller is high effective, as per press machine’s cam position electronic signal, and steel material
thickness.
User inputs feeding length number at a touch screen by finger, feeder can feed steel material to reach that length.
Feeding roller is hollow, surface hardness is HRC60, with chrome plating.

How to use this machine?

(1) In manual mode, the operator feeds the tape into the machine using a switch that controls two pneumatic clamping cylinders and
the feed motor.
(2) Next, a control run is performed to reset the encoder value.
(3) The operator sets the length and number of workpieces to be cut.
(4) Presses "automatic start" active the automatic mode , and the machine starts working according to the entered data.
(5) After cutting the last workpieces, the machine stops and switches to manual mode, then the operator can enter new order data or
repeat the previous one.
