Name: GO-500 Metal Straightening Machine 15m/min 500mm Width 3.2mm Max Thickness
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: GO-500
Price: 1.00 USD
Availability: InStock

Home > Products > Metal Straightening Machine >

GO-500 Metal Straightening Machine 15m/min 500mm Width 3.2mm Max Thickness

500mm Width Metal Straightening Machine

3.2mm Max Thickness Straightening Feeder

15m/min Correction Speed Sheet Metal Decoiler

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

GO-500

Chat Now

Request A Quote

Product Details

Highlight:

500mm Width Metal Straightening Machine

3.2mm Max Thickness Straightening Feeder

15m/min Correction Speed Sheet Metal Decoiler

Payment & Shipping Terms

Minimum Order Quantity

Price

$2,966/cases 1-2 cases

Packaging Details

wooden box

Delivery Time

25-60

Payment Terms

T/T

Supply Ability

30 Sets/Month

NGUL Precise Decoiler Straightener 2 In 1 Industrial Thin Plate Straightening Machine

Chat Now

3-in-1 Uncoiler Straightener Feeder Machine with High Precision Servo System Hydraulic Expansion Mandrel and Space-saving Integrated Design for Metal Coil Stamping

Chat Now

High Precision 2-in-1 Metal Straightening Machine with CNC/PLC Control for Industrial Sheet Metal Leveling

Chat Now

Precision Metal Straightening Machine with 7-9 Precision Rollers for 0.3-3.2mm Thickness and 15 m/min Feeding Speed

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

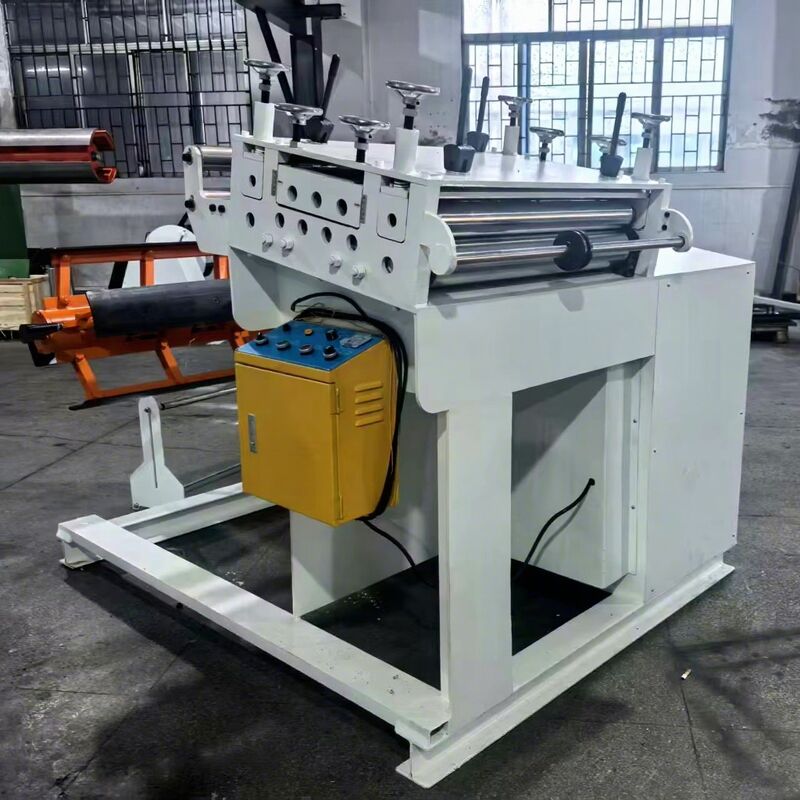

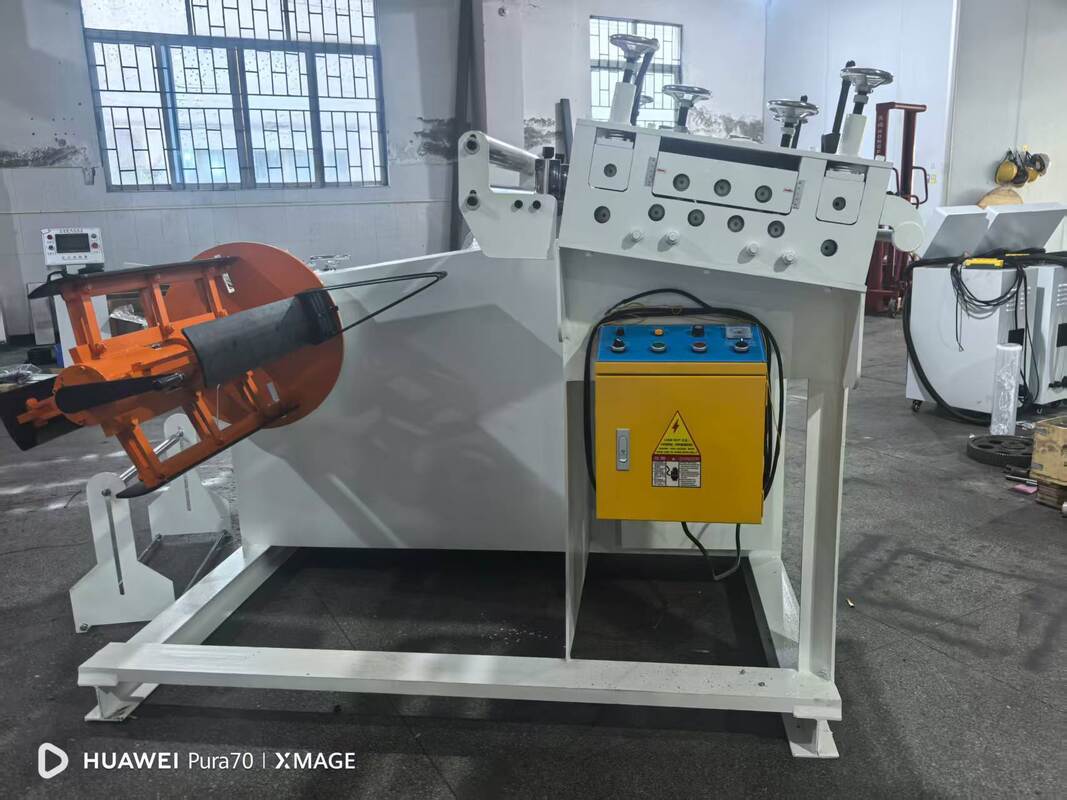

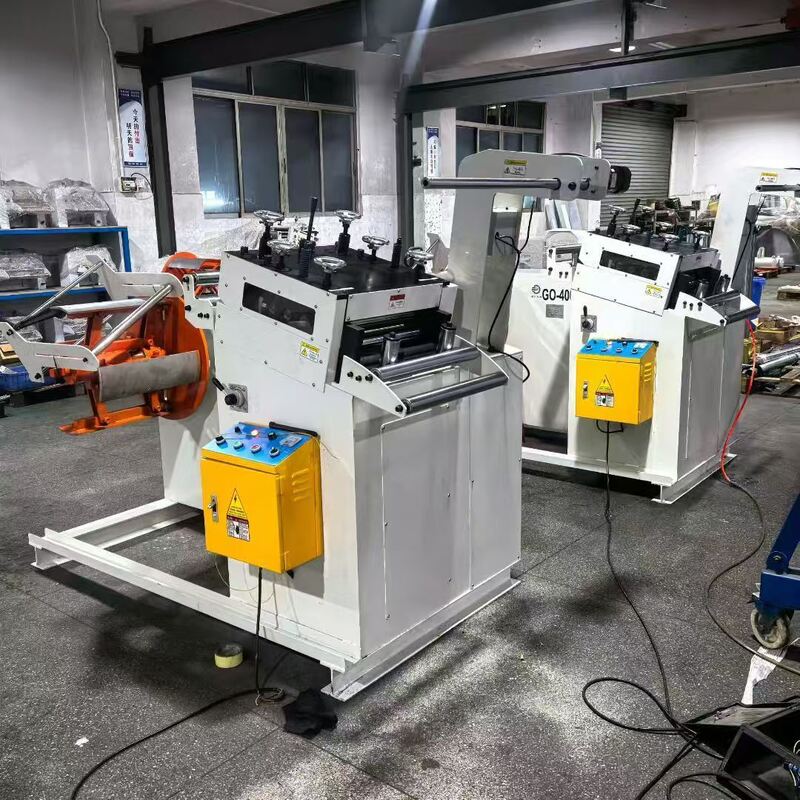

GO-500 Metal Straightening Machine

Providing consistent and uniform metal sheet straightening for manufacturing applications

Product Overview

Place of Origin: Guangdong, China
Type: Feeder Machine
Use: Sheet Metal Processing
Brand Name: Qiaosen
Key Selling Points: Easy To Operate

Technical Specifications

Item	Specification
Width of Material	500mm
Leveling Thickness	0.5-3.2mm
Material Diameter	450-530mm
Material Outer Diameter	1200mm
Material Weight	2000kg
Correction Speed	15m/min
Motor Power	3HP (1500W)
Machine Weight	1200kg
Voltage	380V

Key Features

Suitable for collection and delivery of various coil materials, both thin metal and non-metal materials
Motor power can be added to match the feeding device requirements
Adjustable tension brake device with reinforced main shaft for smooth material reel rotation
Essential for fully automatic press production, saving manpower and reducing costs
Utilizes imported components for reduced failures and extended service life

Quality Assurance & Support

Warranty & Service

One year warranty for entire press machine
Comprehensive spare parts availability from our factory
International brand electrical components for easy replacement
Technical training and consulting via email, phone, or video
On-site engineer service available with reasonable additional cost
English operation and maintenance manual provided
Certificate of conformity included with each machine

Frequently Asked Questions

Are you a manufacturer?

Yes, we are the manufacturer with over ten years of experience.

What payment terms do you accept?

We offer flexible payment terms - please contact us for specific details.

What information do you need for a roll forming machine proposal?

We require profile drawings, material information, and any special requirements.

What should I do if I'm new to roll forming machinery?

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates from our factory in Jiangsu province near Shanghai. We are ISO9001:2008 certified and specialize in hydraulic press machines ranging from 10 to 2000 tons across 8 series with over 100 types. Our products serve aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries worldwide.
