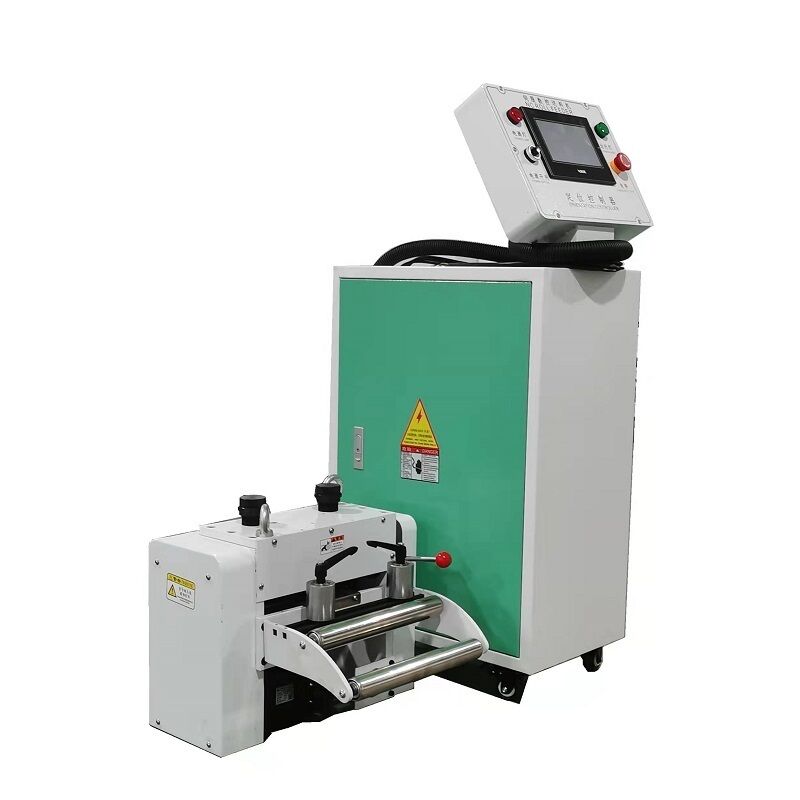

Name: High Precision Feeding Pneumatic Punching Press For Metal Stamping
Brand: Dongguan Qiaosen Machinery Co., Ltd.
SKU: NC-300
Price: 2.00 USD
Availability: InStock

Home > Products > Servo Feeder >

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Metal Stamping Pneumatic Punching Press

High Precision Feeding Pneumatic Press

Pneumatic Metal Stamping Press

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Model Number:

NC-300

Chat Now

Request A Quote

Product Details

Controlmethod:

Programmable Controller

Interface:

Digital Display With Touch Screen

Max Stroke Length:

100 Mm

Product Name:

Servo Feeder

Dimensions:

600 Mm X 400 Mm X 300 Mm

Safety Features:

Overload Protection, Emergency Stop

Power Consumption:

Approximately 500W

Feeding Speed:

Adjustable, Up To 150 Cycles Per Minute

Weight:

Around 50 Kg

Material:

Stainless Steel / Aluminum

Applications:

Automotive, Electronics, Packaging, Assembly Lines

Type:

Feeding Equipment

Power Supply:

AC 220V / 110V

Drive Type:

Servo Motor

Highlight:

Metal Stamping Pneumatic Punching Press

High Precision Feeding Pneumatic Press

Pneumatic Metal Stamping Press

Payment & Shipping Terms

Minimum Order Quantity

Price

$3,000/cases 1-4 cases

Packaging Details

WOODEN BOX

Delivery Time

15-25

Payment Terms

T/T

Supply Ability

100SET per month

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

86-0769-26628519

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

Energy Saving Press Punching Machine

Engineered to reduce power consumption while maintaining effective punching operations with high precision and reliability.

Product Specifications

No	Item	Data
1	Width of material	Max 300mm
2	Thickness of material	MAX 3.2mm
3	Feeding length	0.01-9999.99mm
4	Roll pressure	Spring type
5	Releasing system	Pneumatic type
6	Pass line adjustment	50mm

Key Features

Feeds material for various thicknesses and feeding stroke lengths
Suits high-speed feeding and long stroke length feeding to improve production capacity and precision
User-friendly operation panel for free input of feeding length (0.01mm-9999.99mm) and feeding speed
Pneumatic cylinder releasing method ensures reliable operation without malfunction
Optional mechanical releasing method available per customer requirements
High precision feeding: ±0.02mm
Supports 5 sets of different feeding lengths with up to 999 strokes per length
Normal manual running mode with manual speed for easy feeding of steel material to stamping mold
Effective releasing device for rollers based on press machine's cam position electronic signal and material thickness
Touch screen input for feeding length numbers
Hollow feeding roller with HRC60 surface hardness and chrome plating

Structural Design

High-quality servo motor for efficient feeding testing time reduction
High-sensitivity encoder ensures feedback and improves feeding precision
Quality belt system eliminates gear gap, prevents gear abrasion, operates quietly without lubrication
Internally mounted motor design protects against potential damage

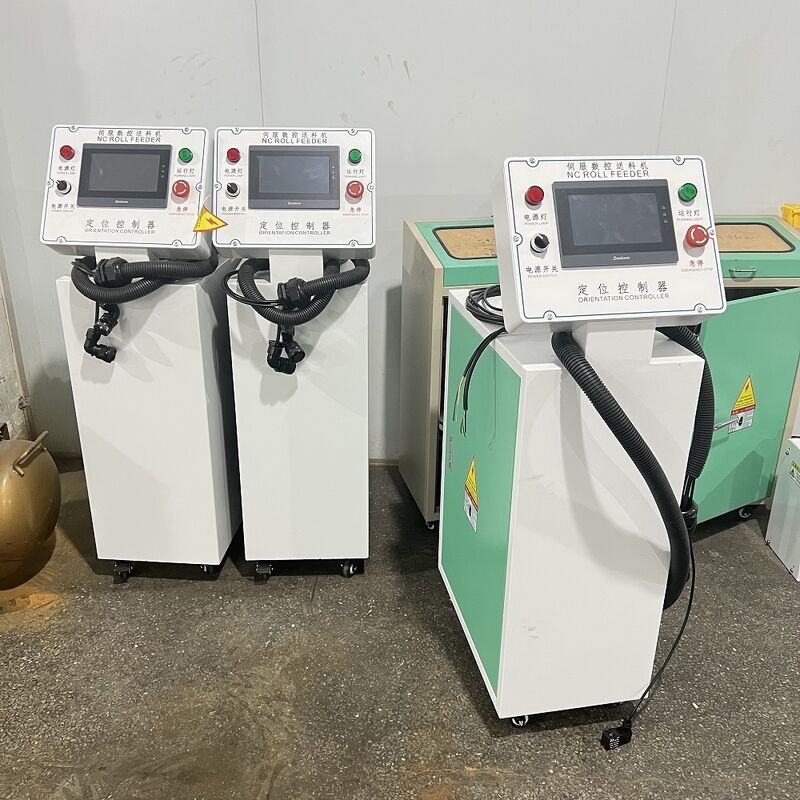

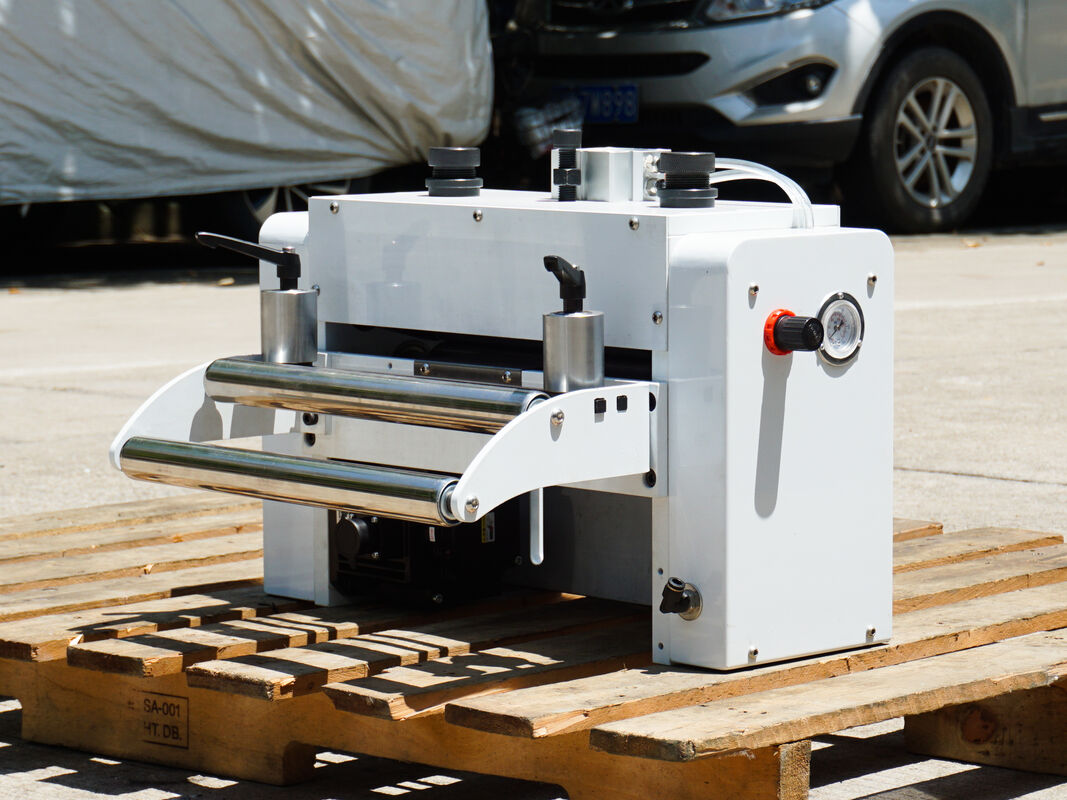

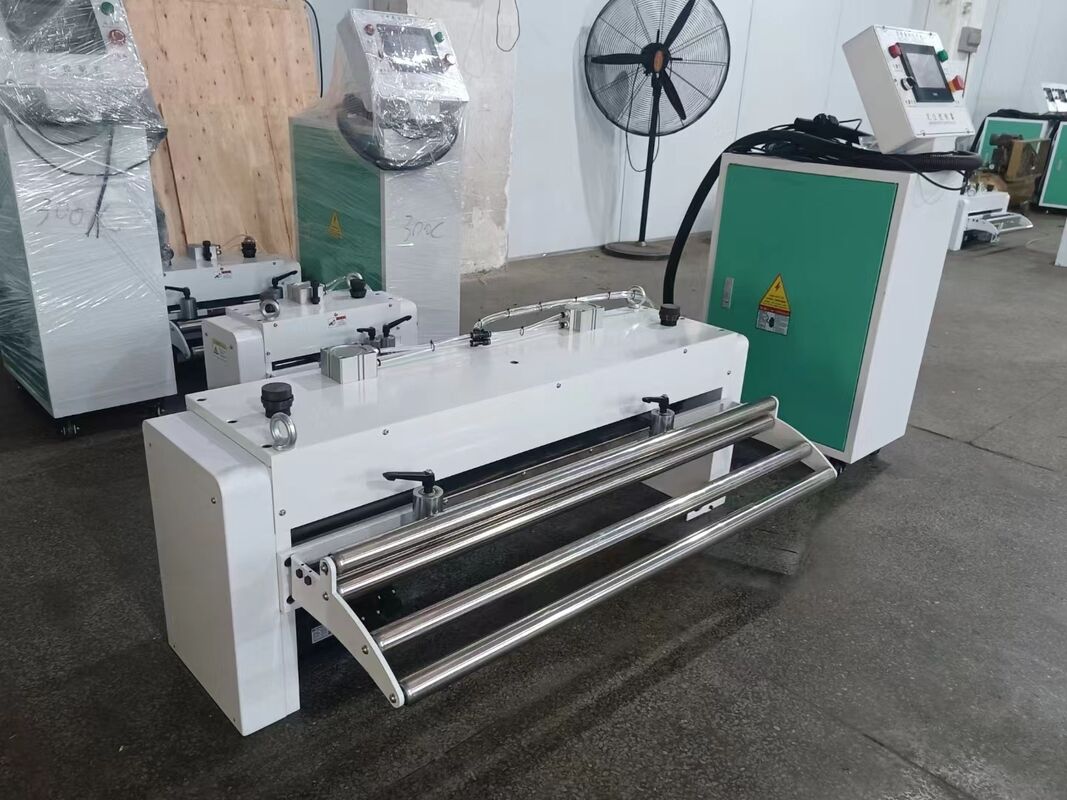

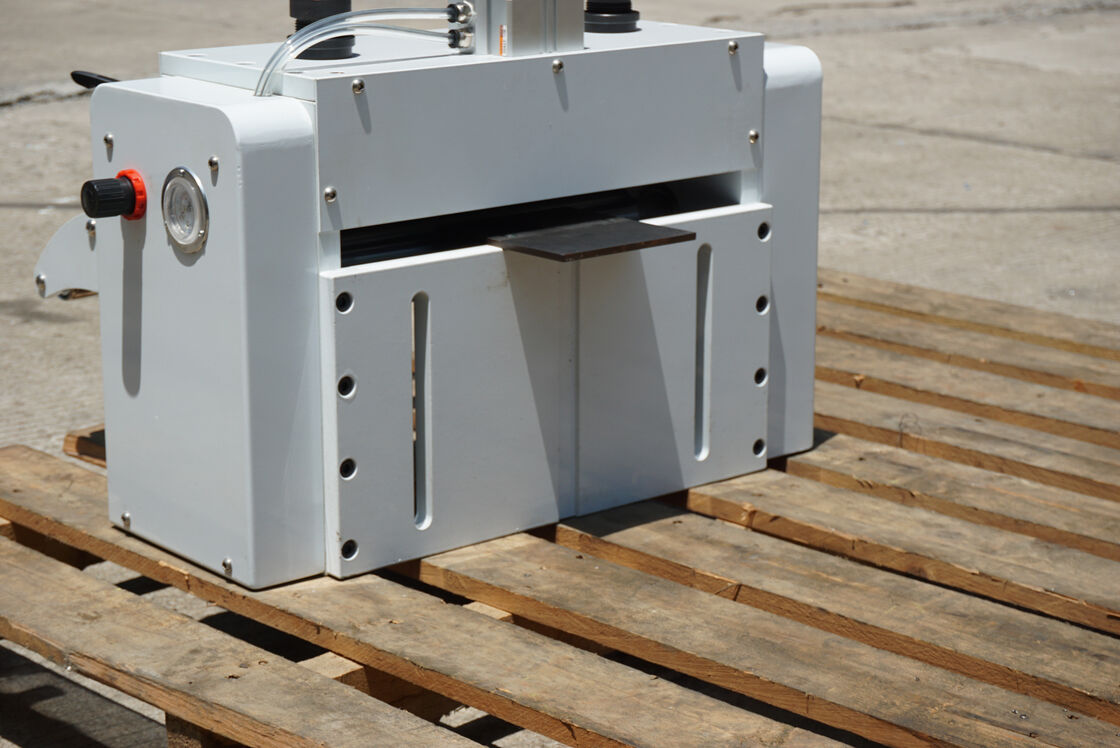

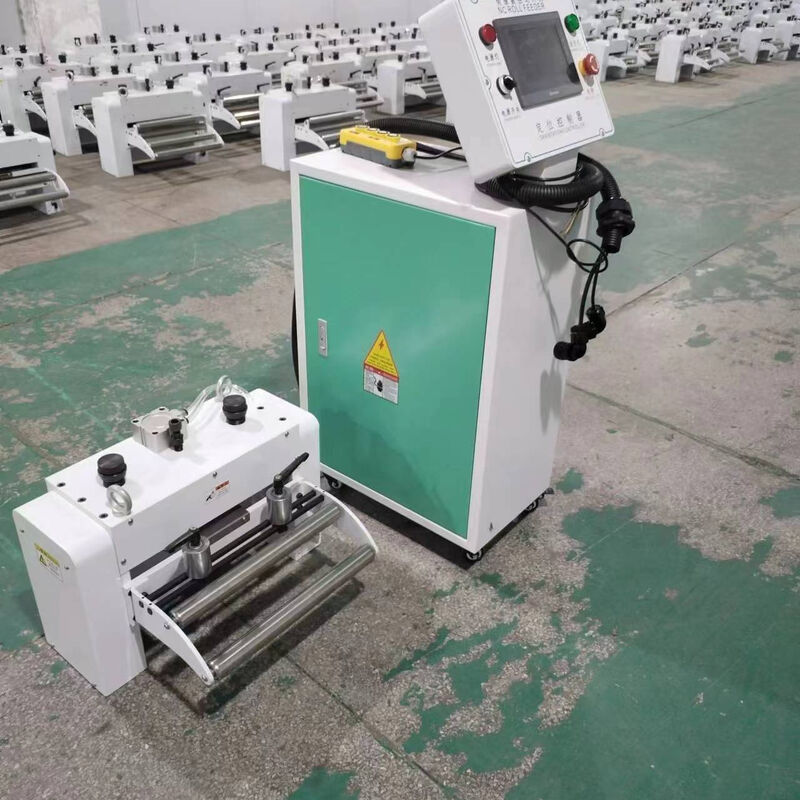

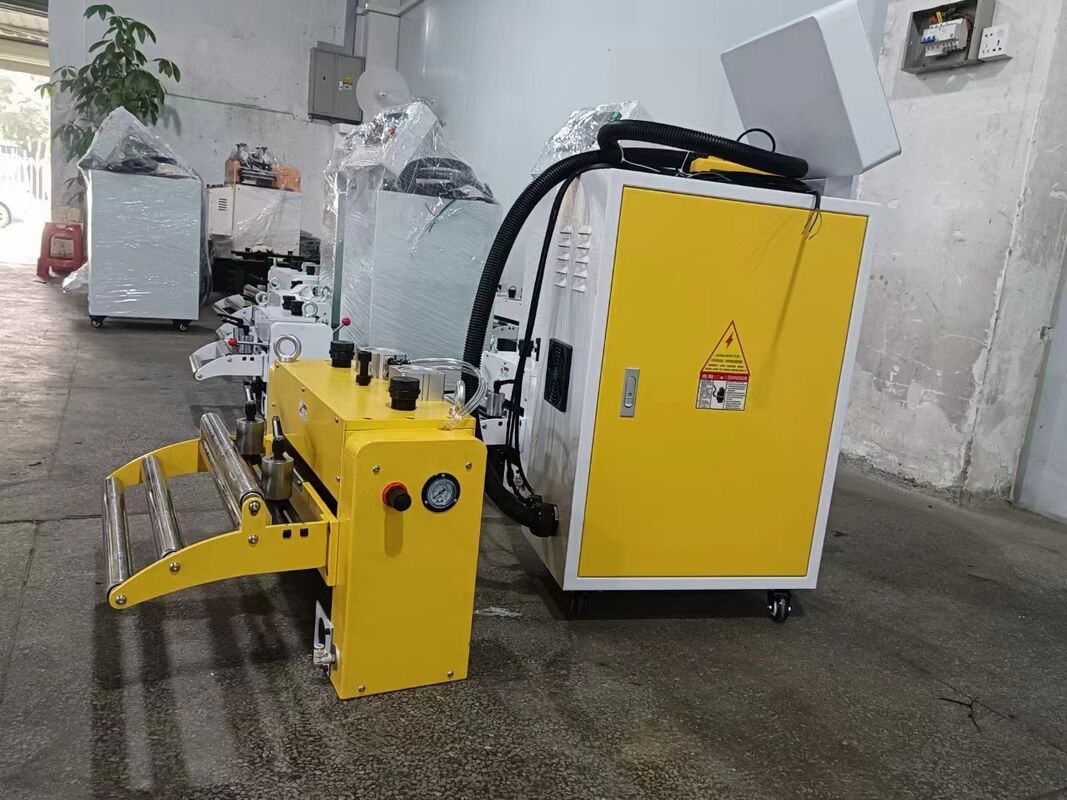

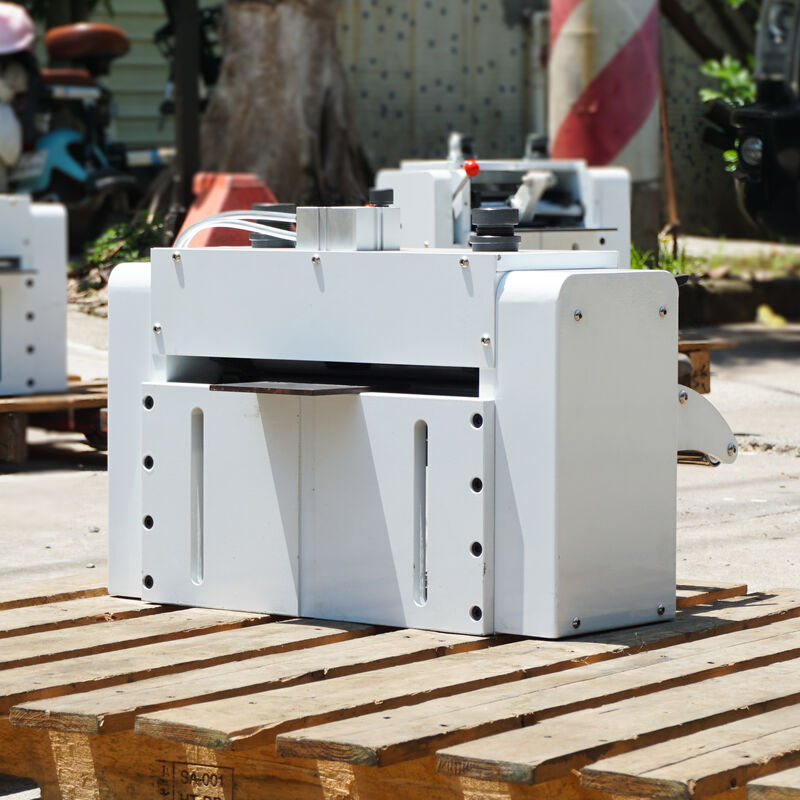

Product Images

Company Profile

Certifications

Frequently Asked Questions

Are you the manufacturer? Can we visit your factory?

We are the manufacturer located in Wuxi city. We welcome you to visit our factory and check our machine quality on site. Any questions will be solved immediately.

What are your main products and main foreign markets?

Our main products include punching machines, metal straightening machines, and servo feeders. Our main foreign markets are Asia, North America, Europe, and Africa.

What are the advantages of your machines and how can I trust the quality?

Our machines feature imported quality components and are backed by a professional quality inspection team. Each machine undergoes rigorous testing before shipment, ensuring stable and reliable performance.

Will you update production process information after placing an order?

After order confirmation, we provide regular updates on production details via email and photos.

Can we be your agent?

Yes, we are seeking global agents. We provide comprehensive support including technical assistance and after-sales service, along with competitive discounts and commissions.

What are your payment terms?

We accept T/T, L/C, Western Union, PayPal, and other secure payment methods.

How long is your warranty?

We offer 12 months free warranty with lifelong maintenance support.

Do you accept customer logos and customization?

Yes, we accept various customizations including logos and machine modifications according to customer requirements.
