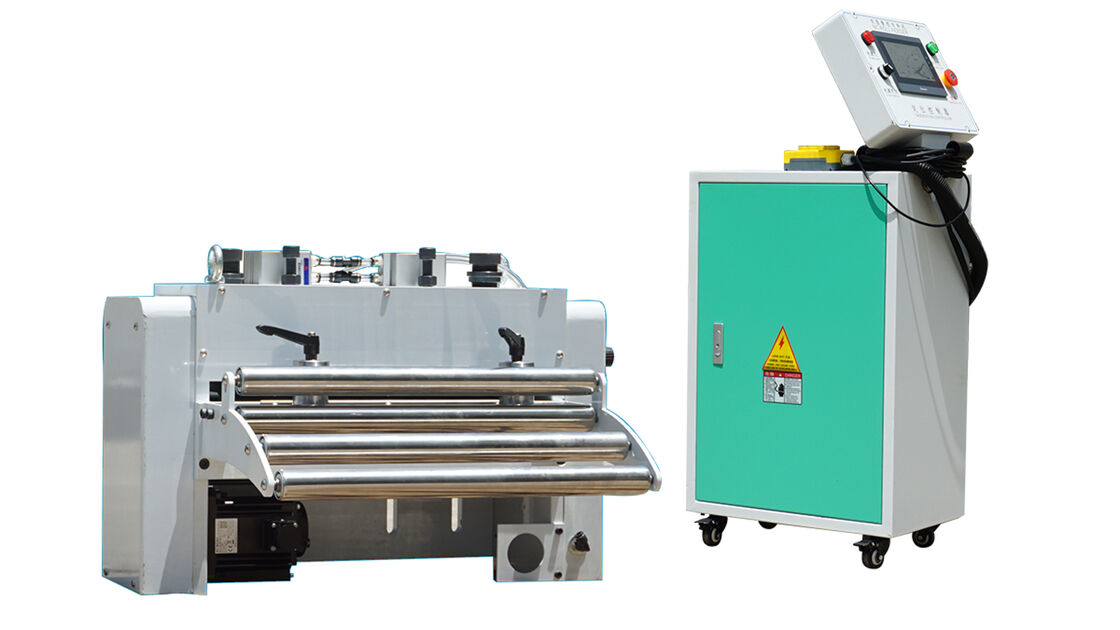

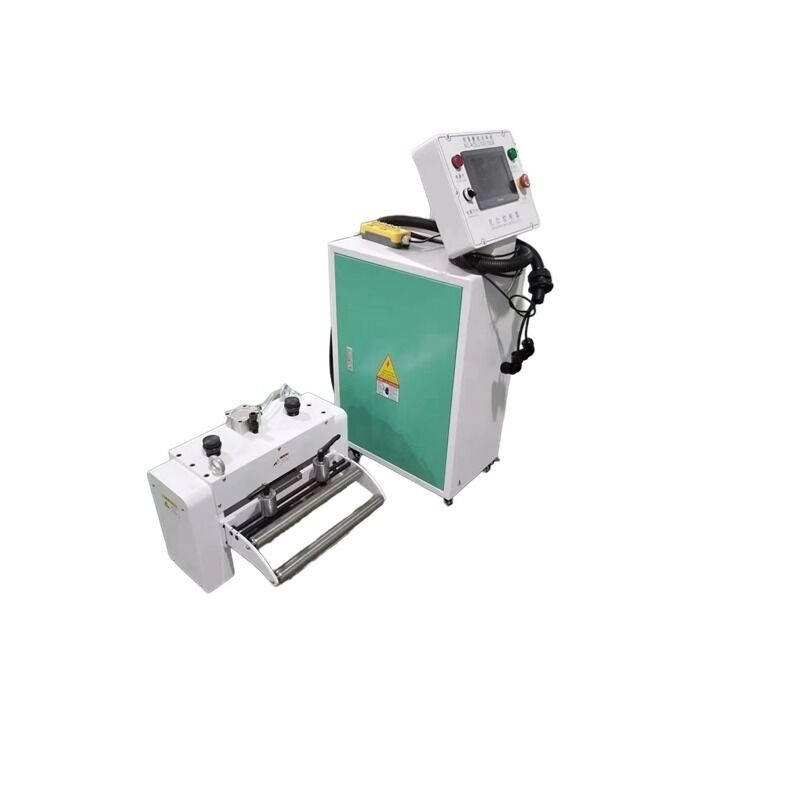

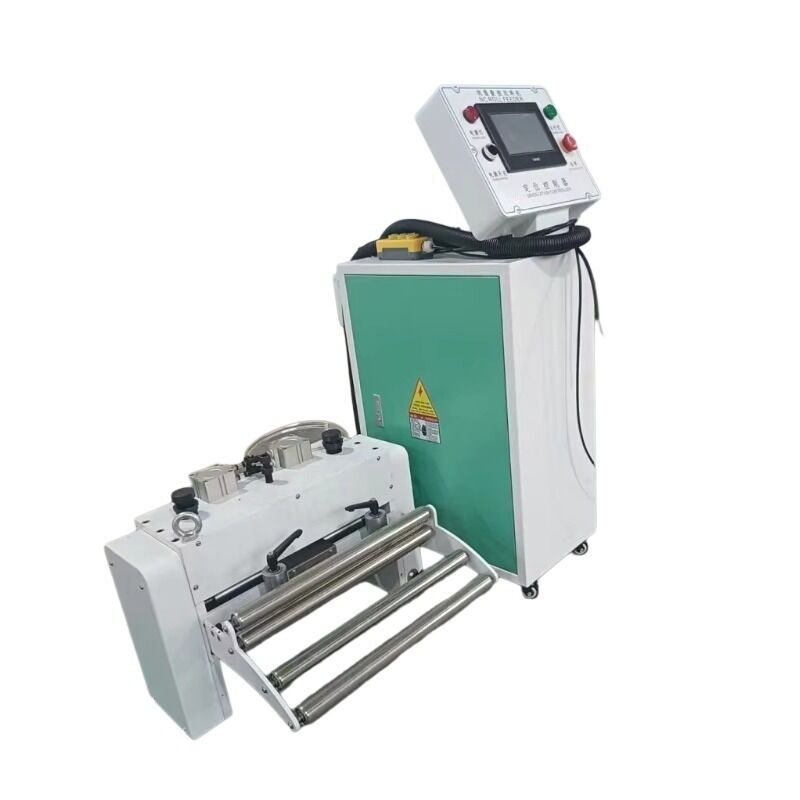

High Precision Servo Roll Feeder Max 3.2mm Thickness 15m/min for Sheet Metal

Servo Roll Feeder 15m/min

Sheet Metal Servo Roll Feeder

3.2mm Thickness Nc Roll Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Document:

NC-600E.pdf

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

200

Feeding Speed:

15 M/min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

600mm

Thickness Of Material:

Max 3.2mm

Feeding Capacity:

300W*2.3T

Feeding Length:

0.01-9999.99mm

Roll Pressure:

Spring Type

Releasing System:

Pneumatic Type

Pass Line Adjustment:

50mm

Power Supply:

AC380V/3phase

Highlight:

Servo Roll Feeder 15m/min

Sheet Metal Servo Roll Feeder

3.2mm Thickness Nc Roll Feeder

Payment & Shipping Terms

Minimum Order Quantity

Price

$5,148/cases 1-4 cases

Payment Terms

T/T

Supply Ability

1set 7days

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

NC-300 NC-600 Automatic Pneumatic Servo Sheet Metal Coil Strip Punching Press Feeder Machine Core Motor Straightening Machinery

Product Overview

Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder

Technical Specifications

No	Item	Data
1	Width of material	AC380V/3phase
2	Thickness of material	MAX3.2
3	Feeding Capacity	300W2.3T, 803.2T
4	Feeding length	0.01-9999.99
5	Roll pressure	Spring type
6	Releasing system	Pneumatic type
7	Pass line adjustment	50mm

Key Features

Can feed material for various thicknesses and feeding stroke lengths
Suitable for high-speed feeding and long stroke length feeding to improve production capacity and feeding precision
User-friendly operation panel for freely inputting feeding length and speed numbers (range: 0.01mm-9999.99mm)
Pneumatic cylinder releasing method without malfunction
Mechanical releasing method available according to customer requirements
High precision feeding: ±0.02mm
Supports 5 sets of different feeding lengths with up to 999 strokes quantity per length
Normal manual running mode with manual speed for easy steel material feeding to stamping mould
High effective releasing device based on press machine's cam position electronic signal and steel material thickness

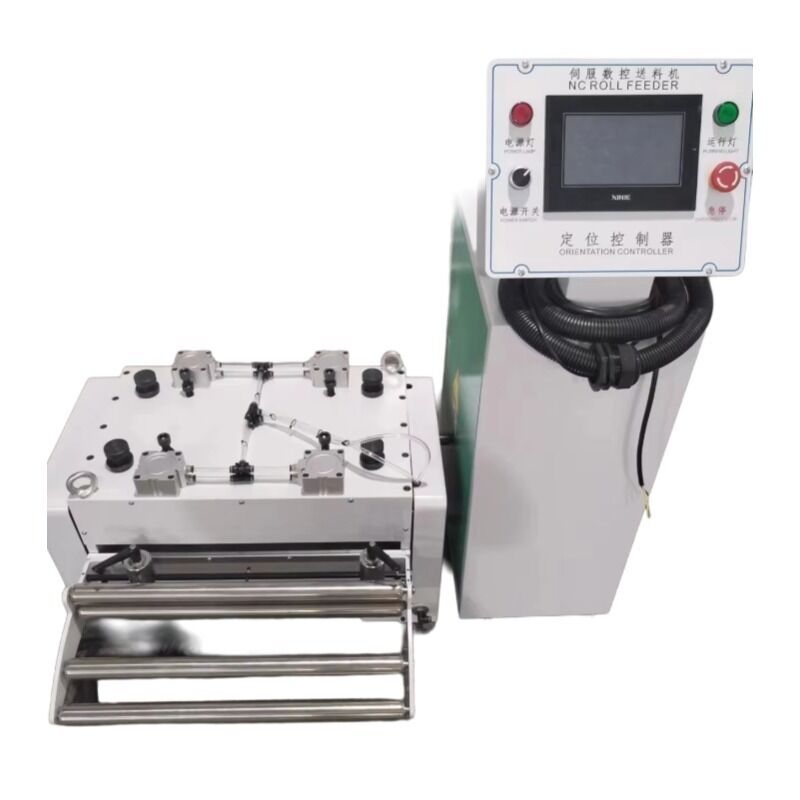

Touch screen input for feeding length numbers
Hollow feeding roller with surface hardness HRC60 and chrome plating

Structural Design

High quality servo motor for efficient feeding testing time reduction
High-sensitivity encoder for accurate feedback and improved feeding precision
Quality belt system to avoid gears gap, gear abrasion, noise-free operation, no lubrication required, safe and environmentally friendly
Internally installed motor structure to prevent possible damages

Similar Products

Company Profile

Dongguan Qiaosen Machinery Co., Ltd, with our own factory located in Jiangsu province, was established in 2016. Conveniently located near Shanghai city with excellent transportation access, we are a hub of creative minds and gifted talents. Our factory was among the first to pass the ISO9001:2008 quality management system certification.

We specialize in the production of hydraulic press machines, offering main products ranging from 10 tons to 2000 tons with 8 series and over 100 types. Our product line includes single column, four column, C frame, H frame, and various press machines, punching machines, folding machines, and cutting machines used in aviation, aerospace, automobile, shipbuilding, light appliances, daily hardware, and more.

Our company products are known for exquisite design, reasonable pricing, excellent quality, and efficient after-sales service with technical support. We have received recognition from customers worldwide, selling well in over 20 domestic provinces and cities, and exporting to the United States, Japan, Russia, European Union, Southeast Asia, the Middle East, and other countries.

Product Packaging
