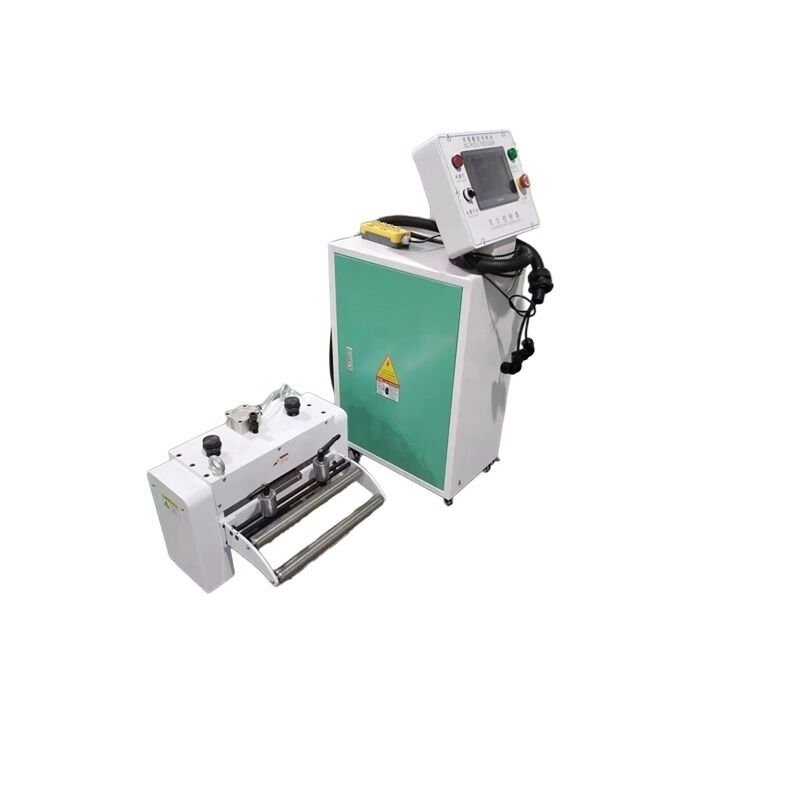

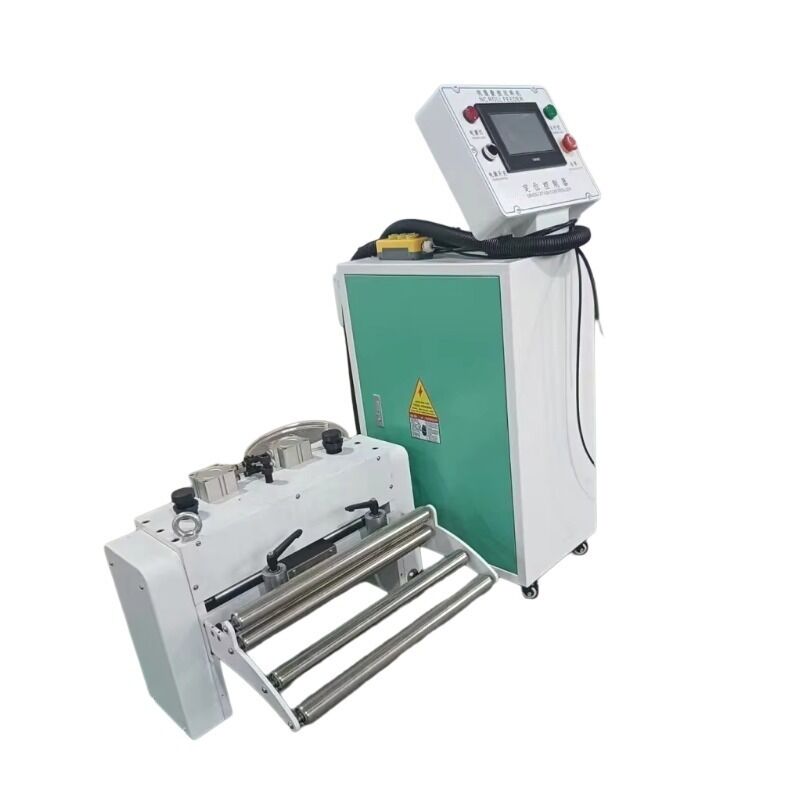

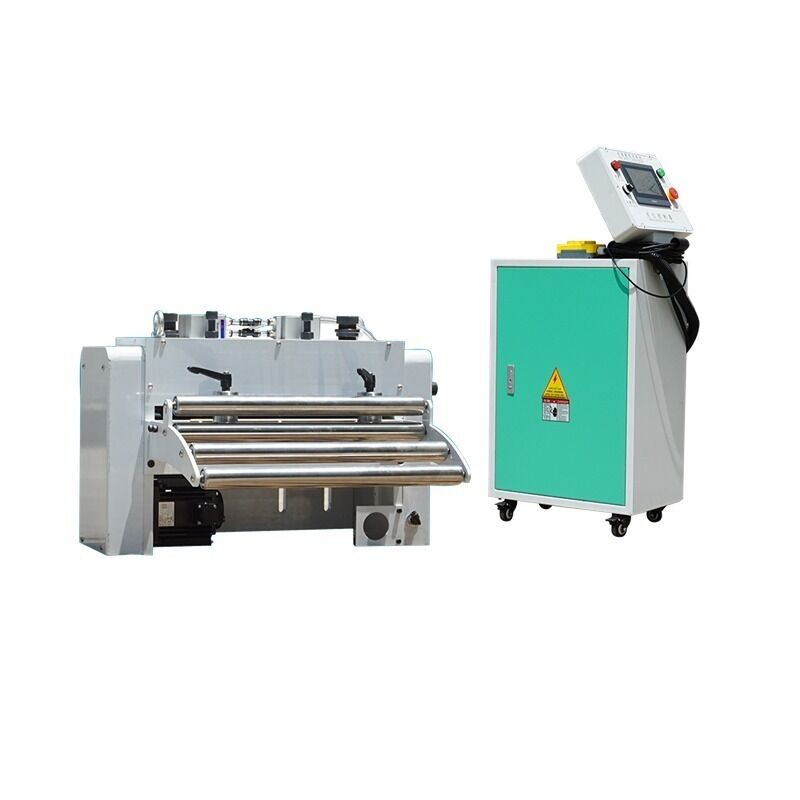

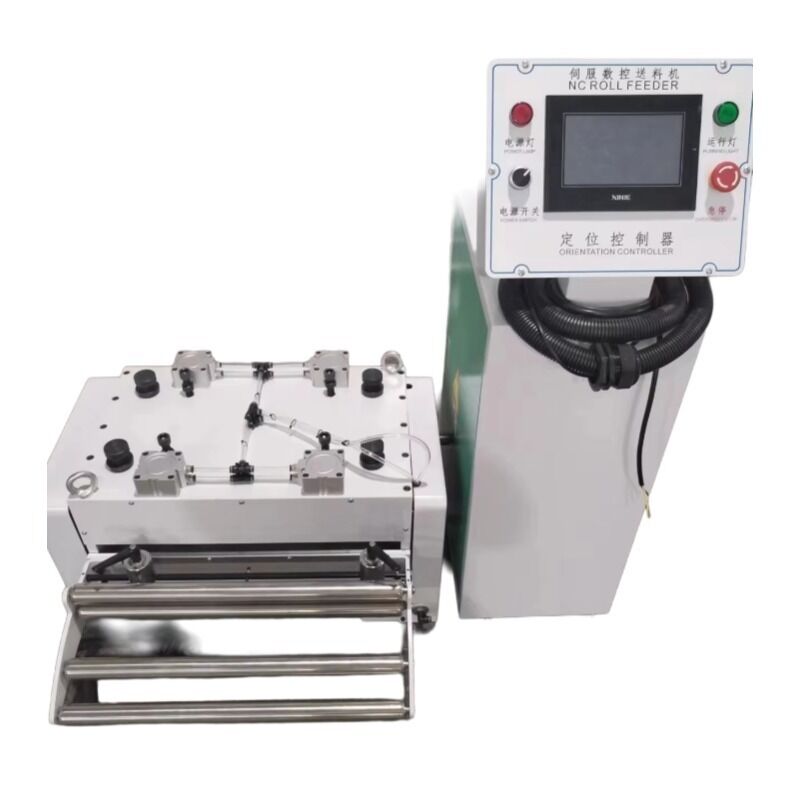

Pneumatic Releasing System NC Servo Roll Feeder High Precision for 400mm Width Material

Pneumatic NC Servo Roll Feeder

400mm Width Nc Roll Feeder

High Precision Servo Roll Feeder

Place of Origin:

China

Brand Name:

QIAOSEN

Certification:

CE / ISO14001

Chat Now

Request A Quote

Product Details

Place Of Origin:

Guangdong, China

Type:

Feeder Machine

Use:

Sheet

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Core Components:

PLC, Engine, Bearing, Motor

Brand Name:

Qiaosen

Voltage:

380

Power(w):

1500

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Weight (kg):

200

Feeding Speed:

15 M/min

Item Name:

Pneumatic & Mechanical Feeding Straightening Feeder

Keyword:

Straightening Feeder

Width Of Material:

400mm

Thickness Of Material:

Max 3.2mm

Feeding Capacity:

300W*2.3T

Feeding Length:

0.01-9999.99mm

Roll Pressure:

Spring Type

Releasing System:

Pneumatic Type

Pass Line Adjustment:

50mm

Power Supply:

AC380V/3phase

Highlight:

Pneumatic NC Servo Roll Feeder

400mm Width Nc Roll Feeder

High Precision Servo Roll Feeder

Payment & Shipping Terms

Minimum Order Quantity

Price

$3,800/cases 1-4 cases

Payment Terms

T/T

Supply Ability

1set 7days

Servo Motor NC Feeder Machine For Metal Sheet Plate Stamping

Chat Now

Servo Motor Metal Sheet Coil Feeder Machine For Metal Stamping Machine

Chat Now

NC-800 Automatic Pneumatic Servo Roll Feeder 800mm for Sheet Metal Coil Strip Punch Press

Chat Now

video

High Precision Feeding Pneumatic Punching Press For Metal Stamping

Chat Now

+8618103082715

titi@qiaosenmachinery.com

86-0769-26626853

Chat Now

Product Description

NC200 NC300 NC400 NC-1000 Coil Servo Feeder Machine Core Motor Components Bearing for Metal Straightening Machinery Sheet Use

Servo Roller Feeder Punching Press Automatic Pneumatic & Mechanical Feeding Straightening feeder

Product Specifications

NC-400B NC Servo Roller Feeder

Feeds material for various thicknesses and feeding stroke lengths

Suitable for high-speed feeding and long stroke length feeding

User-friendly operation panel for inputting feeding length (0.01mm-9999.99mm) and speed

Pneumatic cylinder releasing method, malfunction-free operation

Optional mechanical releasing method available

High precision feeding: ±0.02mm

Supports 5 sets of different feeding lengths with 999 strokes quantity each

Normal manual running mode for easy material feeding to stamping mould

Effective releasing device based on press machine's cam position and material thickness

Touch screen interface for length input

Hollow feeding roller with HRC60 surface hardness and chrome plating

Structure Features

High-quality servo motor for efficient feeding testing

High-sensitivity encoder for precise feedback and improved accuracy

Quality belt system eliminates gear gap, abrasion, noise, and lubrication needs

Internally mounted motor for protection against damage

Similar Products

Company Profile

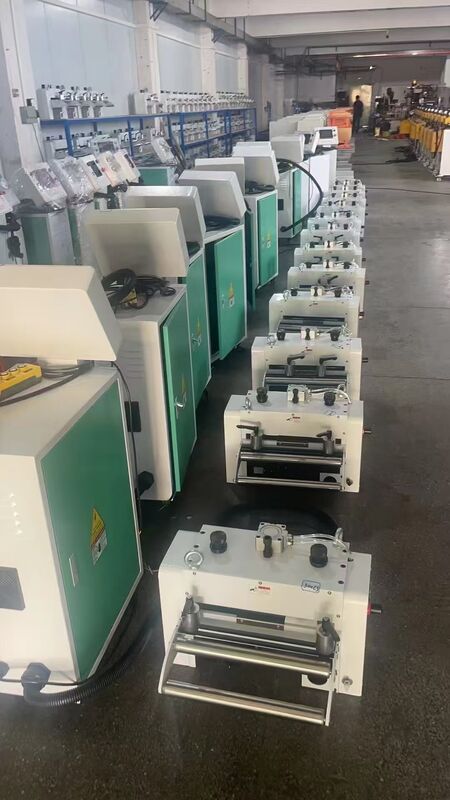

Dongguan Qiaosen Machinery Co., Ltd, established in 2016, operates from our factory located in Jiangsu province near Shanghai city with convenient transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification. We specialize in hydraulic press machine production, offering 10-ton to 2000-ton press machines across 8 series with over 100 types including single column, four column, C-frame, H-frame, and various press, punching, folding, and cutting machines. Our products serve aviation, aerospace, automotive, shipbuilding, light appliances, daily hardware, and other industries. Known for exquisite design, competitive pricing, excellent quality, and efficient after-sales service, our products have gained recognition from domestic and international customers, selling across more than 20 domestic provinces and exporting to the United States, Japan, Russia, European Union, Southeast Asia, the Middle East, and other countries.
